DLN-50

< REMOVAL AND INSTALLATION >

[TRANSFER: TY20A]

AWD CONTROL UNIT

REMOVAL AND INSTALLATION

AWD CONTROL UNIT

Exploded View

INFOID:0000000005514208

Removal and Installation

INFOID:0000000005514209

REMOVAL

1.

Remove instrument lower panel LH. Refer to

IP-12, "Exploded View"

.

2.

Remove Knee protector (1).

3.

Disconnect AWD control unit harness connector.

4.

Remove AWD control unit mounting bolts.

5.

Remove AWD control unit (1).

INSTALLATION

1.

AWD control unit

: Vehicle front

JPDIE0051ZZ

: Bolt

JSGIA0306ZZ

JPDIE0054ZZ

AWD CONTROL UNIT

DLN-51

< REMOVAL AND INSTALLATION >

[TRANSFER: TY20A]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

Install in the reverse order of removal.

DLN-52

< REMOVAL AND INSTALLATION >

[TRANSFER: TY20A]

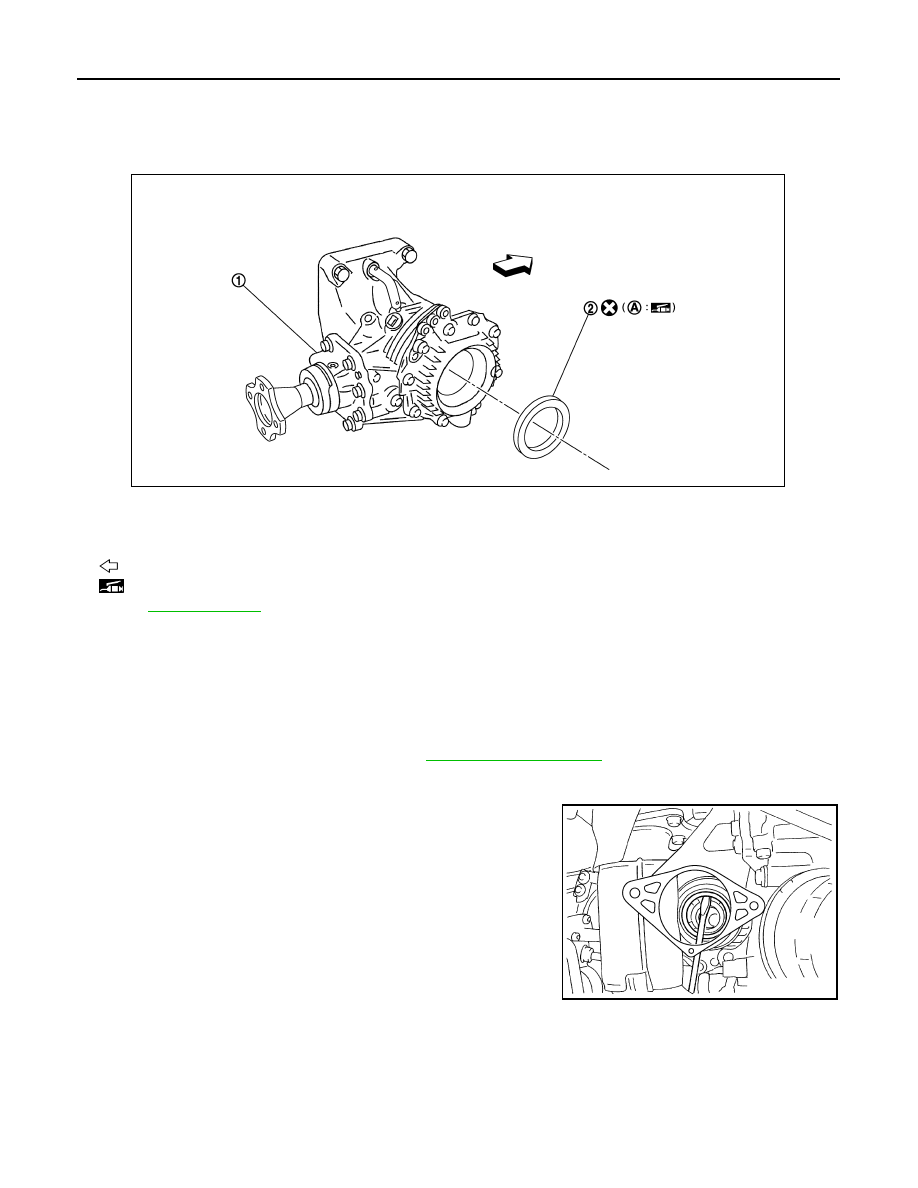

SIDE OIL SEAL

SIDE OIL SEAL

Exploded View

INFOID:0000000005514210

Removal and Installation

INFOID:0000000005514211

REMOVAL

NOTE:
Transaxle side oil seal is attached to transaxle assembly. Replace it when transfer assembly is removed from
vehicle.

1.

Remove front drive shaft (right side). Refer to

FAX-44, "Exploded View"

.

CAUTION:

Be careful not to damage gear oil seal inside of transfer.

2.

Remove side oil seal with a suitable tool.

CAUTION:

Be careful not to damage adapter case.

INSTALLATION

1.

Transfer assembly

2.

Side oil seal

A.

Oil seal lip

:Vehicle front

:Apply multi-purpose grease.

Refer to

GI-4, "Components"

 for symbols not described on the above.

JPDIE0020ZZ

JPDIE0018ZZ

SIDE OIL SEAL

DLN-53

< REMOVAL AND INSTALLATION >

[TRANSFER: TY20A]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

1.

Apply multi-purpose grease to side oil seal lips. As shown in the
figure, install side oil seal so that it becomes flush with the case
end surface, using the drift (A) [SST: KV38101700 (   —   )].

CAUTION:

• Never reuse side oil seal.
• Be careful not to incline side oil seal.

2.

Install front drive shaft (right side). Refer to

FAX-44, "Exploded

View"

.

CAUTION:

Be careful not to damage gear ring oil seal inside of trans-
fer.

3.

Check oil level and leakage. Refer to

DLN-48, "Inspection"

.
