DLK-372

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

AUTOMATIC BACK DOOR MAIN SWITCH

AUTOMATIC BACK DOOR MAIN SWITCH

Exploded View

INFOID:0000000005517858

Refer to

IP-12, "Exploded View"

.

Removal and Installation

INFOID:0000000005517859

REMOVAL

1.

Remove the instrument driver lower panel LH. Refer to

IP-13, "Removal and Installation"

.

2.

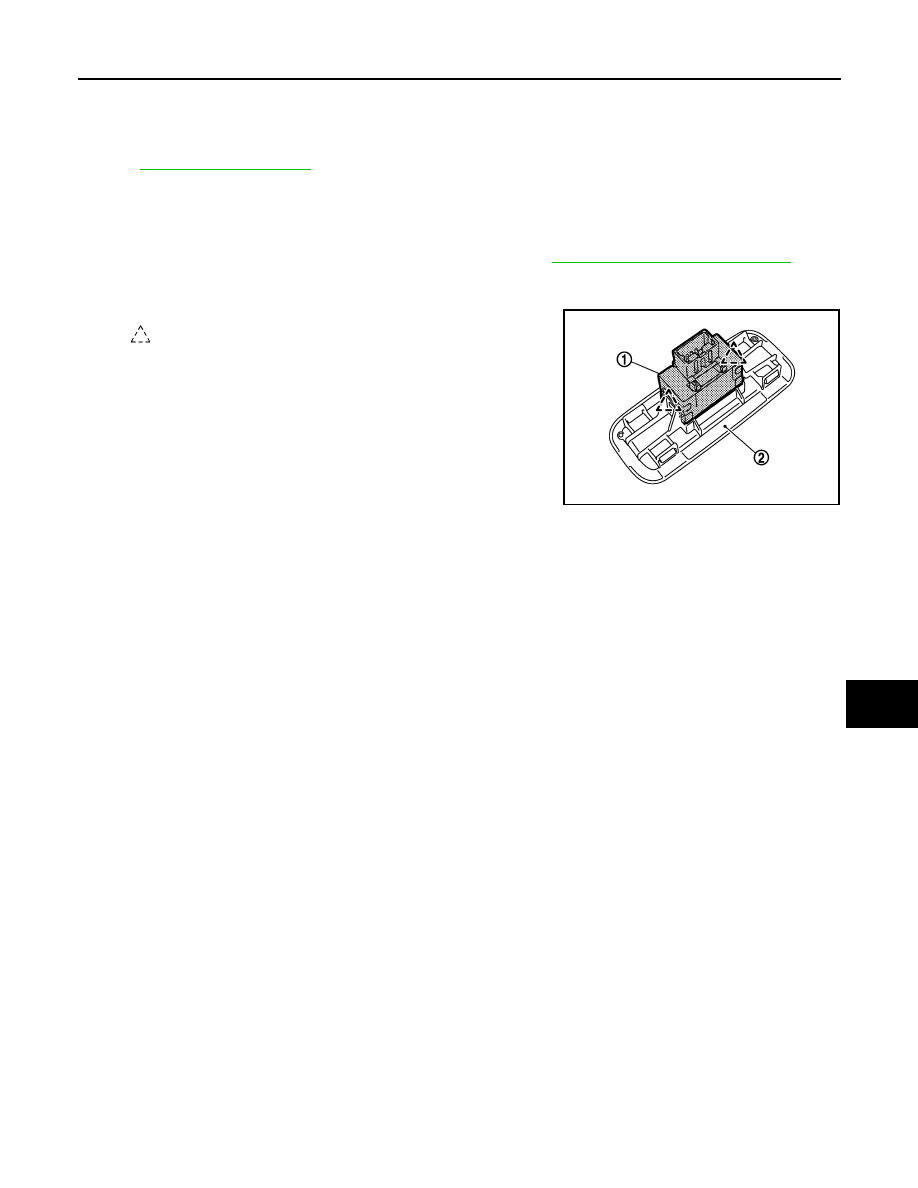

Widen the pawl, and remove the automatic back door main switch (1) from switch bracket (2).

INSTALLATION

Install in the reverse order of removal.

:

Pawl

JMKIA1849ZZ

AUTOMATIC BACK DOOR CLOSE SWITCH

DLK-373

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

AUTOMATIC BACK DOOR CLOSE SWITCH

Exploded View

INFOID:0000000005517860

Refer to

INT-38, "Exploded View"

.

Removal and Installation

INFOID:0000000005517861

REMOVAL

1.

Remove the automatic back door close switch finisher. Refer to

INT-38, "Removal and Installation"

.

2.

Widen the pawl, and remove the automatic back door close switch (1) from automatic back door close
switch finisher (2).

INSTALLATION

Install in the reverse order of removal.

:

Pawl

JMKIA1847ZZ

DLK-374

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

AUTOMATIC BACK DOOR SWITCH

AUTOMATIC BACK DOOR SWITCH

Exploded View

INFOID:0000000005517862

Refer to

IP-12, "Exploded View"

.

Removal and Installation

INFOID:0000000005517863

REMOVAL

1.

Remove the instrument driver lower panel. Refer to

IP-13, "Removal and Installation"

.

2.

Widen the pawl, and remove the automatic back door switch (1) from automatic back door switch finisher
(2).

INSTALLATION

Install in the reverse order of removal.

:

Pawl

JMKIA1848ZZ
