Nissan Murano Z51. Manual - part 334

REPLACEMENT OPERATIONS

BRM-43

< UNIT REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

: Vehicle front

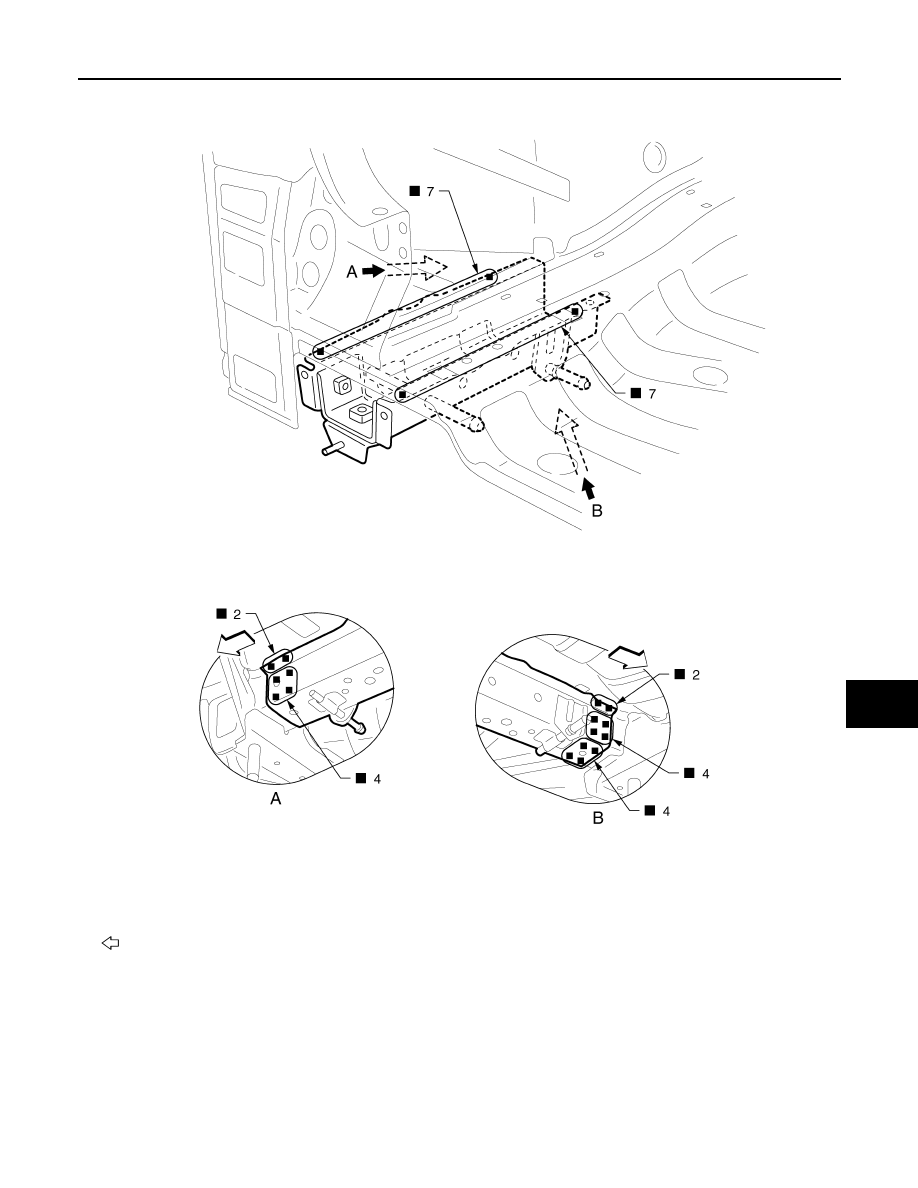

Replacement parts

z

Rear side member extension (LH)

JSKIA0543ZZ

BRM-44

< SERVICE DATA AND SPECIFICATIONS (SDS)

BODY ALIGNMENT

SERVICE DATA AND SPECIFICATIONS (SDS)

BODY ALIGNMENT

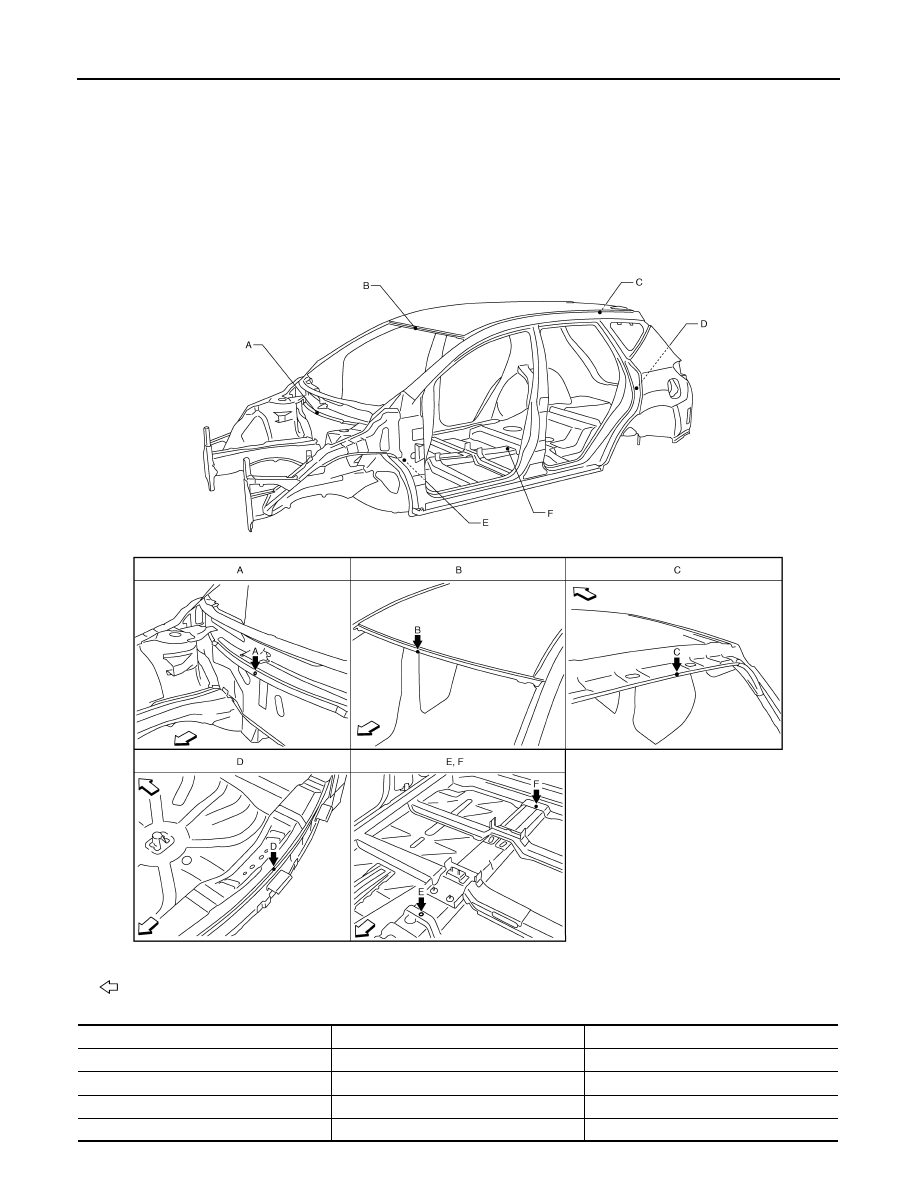

Body Center Marks

INFOID:0000000005513922

A mark is placed on each part of the body to indicate the vehicle center. When repairing the vehicle frame
(members, pillars, etc.) damaged by an accident which it enables more accurate and effective repair by using
these marks together with body alignment specifications.

Unit: mm (in)

: Vehicle front

Points

Portion

Marks

A

Upper dash

Hole

φ

7 (0.28)

B

Front roof

Embossment

C

Rear roof

Indent

D

Upper rear panel

Indent

JSKIA0558ZZ

BODY ALIGNMENT

BRM-45

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Description

INFOID:0000000005513923

• All dimensions indicated in the figures are actual.
• When using a tracking gauge, adjust both pointers to equal length. Then check the pointers and gauge itself

to make sure there is no free play.

• When a measuring tape is used, check that there is no elongation, twisting, or bending.
• Measurements should be taken at the center of the mounting holes.
• An asterisk (*) following the value at the measuring point indicates that the measuring point on the other side

is symmetrically the same value.

• The coordinates of the measurement points are the distances measured from the standard line of

″

X

″

,

″

Y

″

and

″

Z

″

.

•

″

Z

″

: Imaginary base line [200 mm (7.87 in) below datum line (

″

0Z

″

 at design plan)]

Engine Compartment

INFOID:0000000005513924

Measurement

Dimensions marked with

″

*

″

 indicate symmetrically identical dimensions on both the right and left hand of the

vehicle.

E

Front floor reinforcement

Hole

φ

9 (0.35)

F

Front floor

Embossment

Points

Portion

Marks

1.

Vehicle center

2.

Front axle center

3.

Imaginary base line

JSKIA0073GB

BRM-46

< SERVICE DATA AND SPECIFICATIONS (SDS)

BODY ALIGNMENT

«The others»

Unit: mm (in)

Measurement Points

Unit: mm (in)

JSKIA0544GB

Point

Dimension

Memo

Point

Dimension

Memo

Point

Dimension

Memo

Point

Dimension

Memo

B - c

1394 (54.88)*

E - e

1550 (61.02)
