Component Description

INFOID:0000000005517261

1.

Steering angle sensor

2.

ABS warning lamp

3.

Brake warning lamp

4.

VDC OFF indicator lamp

5.

SLIP indicator lamp

6.

ABS actuator and electric unit (con-
trol unit)

7.

Front wheel sensor

8.

Yaw rate/side/decel G sensor

9.

VDC OFF switch

10. Rear wheel sensor

A.

Back of spiral cable assembly

B.

Combination meter

C.

Engine room (right side)

D.

Steering knuckle

E.

Under center console

F.

Instrument driver lower panel

G.

Rear axle

Component parts

Reference

ABS actuator and electric unit (control unit)

Pump

BRC-42, "Description"

Motor

Actuator relay (Main relay)

BRC-58, "Description"

Solenoid valve

BRC-52, "Description"

VDC switch-over valve (CV1, CV2)

BRC-71, "Description"

VDC switch-over valve (SV1, SV2)

BRC-73, "Description"

Wheel sensor

BRC-33, "Description"

Yaw rate/side/decel G sensor

BRC-44, "Description"

Steering angle sensor

BRC-62, "Description"

VDC OFF switch

BRC-80, "Description"

ABS warning lamp

BRC-82, "Description"

Brake warning lamp

BRC-83, "Description"

VDC OFF indicator lamp

BRC-85, "Description"

SLIP indicator lamp

BRC-86, "Description"

BRC-20

< SYSTEM DESCRIPTION >

[VDC/TCS/ABS]

ABS

ABS

System Diagram

INFOID:0000000005517262

System Description

INFOID:0000000005517263

• The Anti-Lock Braking System detects wheel revolution while braking, and it improves handling stability dur-

ing sudden braking by electrically preventing 4 wheel lock. Maneuverability is also improved for avoiding
obstacles.

• Electrical system diagnosis by CONSULT-III is available.

Component Parts Location

INFOID:0000000005517264

FOR USA

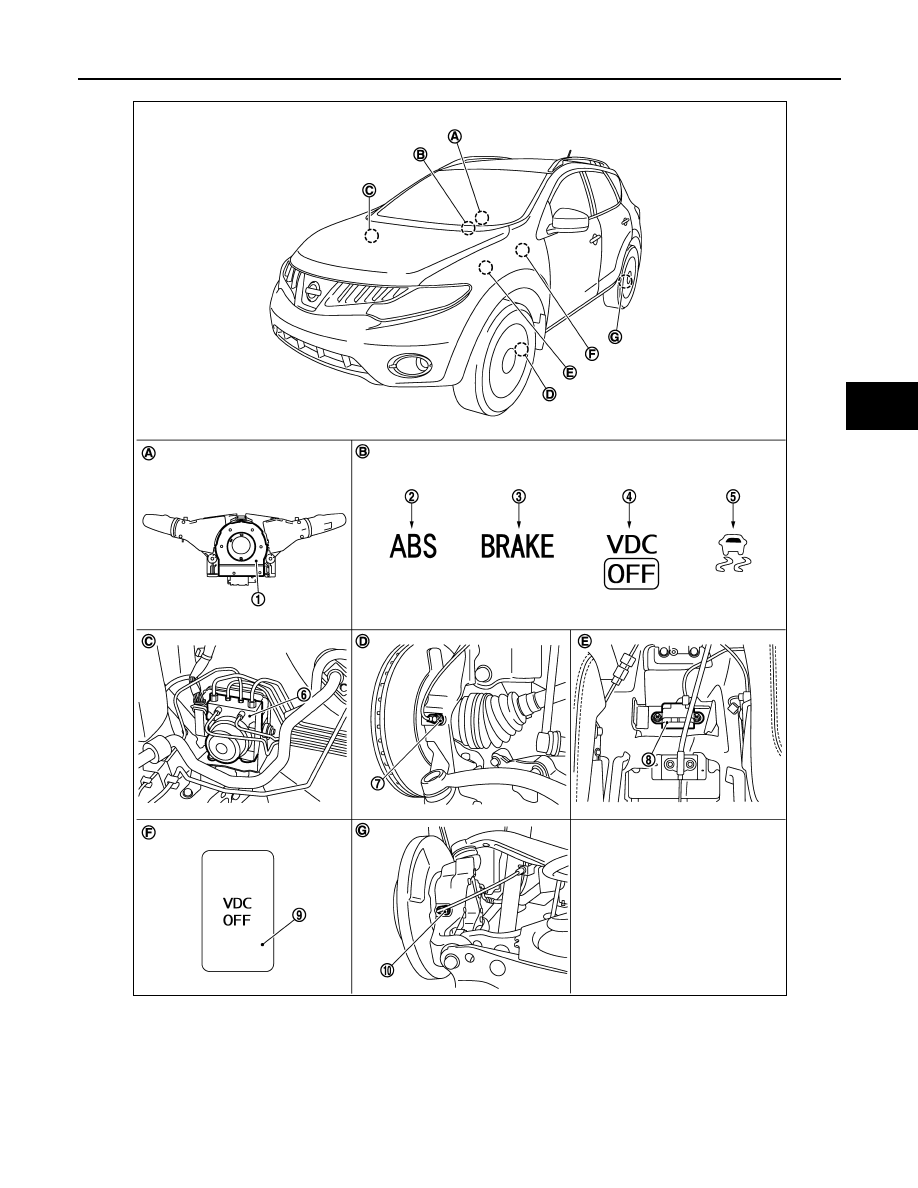

JSFIA0210GB

ABS

BRC-21

< SYSTEM DESCRIPTION >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

1.

Steering angle sensor

2.

ABS warning lamp

3.

Brake warning lamp

4.

VDC OFF indicator lamp

5.

SLIP indicator lamp

6.

ABS actuator and electric unit (con-
trol unit)

7.

Front wheel sensor

8.

Yaw rate/side/decel G sensor

9.

VDC OFF switch

10. Rear wheel sensor

JSFIA0208ZZ

BRC-22

< SYSTEM DESCRIPTION >

[VDC/TCS/ABS]

ABS

EXCEPT FOR USA

A.

Back of spiral cable assembly

B.

Combination meter

C.

Engine room (right side)

D.

Steering knuckle

E.

Under center console

F.

Instrument driver lower panel

G.

Rear axle

JSFIA0209ZZ
