VDC

BRC-15

< SYSTEM DESCRIPTION >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

Component Description

INFOID:0000000005517257

1.

Steering angle sensor

2.

ABS warning lamp

3.

Brake warning lamp

4.

VDC OFF indicator lamp

5.

SLIP indicator lamp

6.

ABS actuator and electric unit (con-
trol unit)

7.

Front wheel sensor

8.

Yaw rate/side/decel G sensor

9.

VDC OFF switch

10. Rear wheel sensor

A.

Back of spiral cable assembly

B.

Combination meter

C.

Engine room (right side)

D.

Steering knuckle

E.

Under center console

F.

Instrument driver lower panel

G.

Rear axle

Component parts

Reference

ABS actuator and electric unit (control unit)

Pump

BRC-42, "Description"

Motor

Actuator relay (Main relay)

BRC-58, "Description"

Solenoid valve

BRC-52, "Description"

VDC switch-over valve (CV1, CV2)

BRC-71, "Description"

VDC switch-over valve (SV1, SV2)

BRC-73, "Description"

Wheel sensor

BRC-33, "Description"

Yaw rate/side/decel G sensor

BRC-44, "Description"

Steering angle sensor

BRC-62, "Description"

VDC OFF switch

BRC-80, "Description"

ABS warning lamp

BRC-82, "Description"

Brake warning lamp

BRC-83, "Description"

VDC OFF indicator lamp

BRC-85, "Description"

SLIP indicator lamp

BRC-86, "Description"

BRC-16

< SYSTEM DESCRIPTION >

[VDC/TCS/ABS]

TCS

TCS

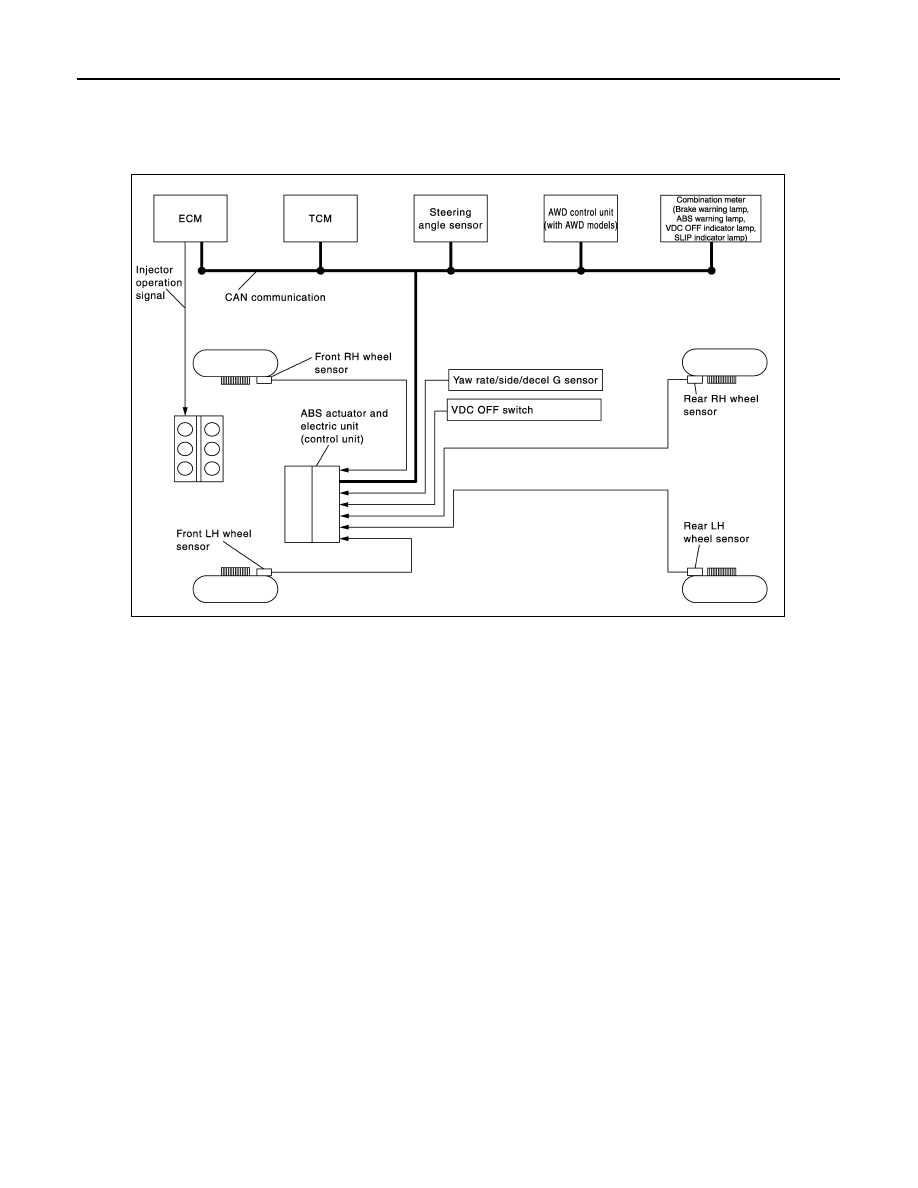

System Diagram

INFOID:0000000005517258

System Description

INFOID:0000000005517259

• The wheel spin of the drive wheels is detected by the ABS actuator and electric unit (control unit) using the

wheel speed signals from the four wheels, so if wheel spin occurs, the drive wheel right and left brake fluid
pressure control and engine fuel cut are conducted while the throttle valve opening is restricted to reduce the
engine torque and decrease the amount of wheel spin. In addition, the throttle opening is controlled to
achieve the optimum engine torque.

• During TCS operation, TCS informs driver of system operation by blinking the SLIP indicator lamp.
• Electrical system diagnosis by CONSULT-III is available.

Component Parts Location

INFOID:0000000005517260

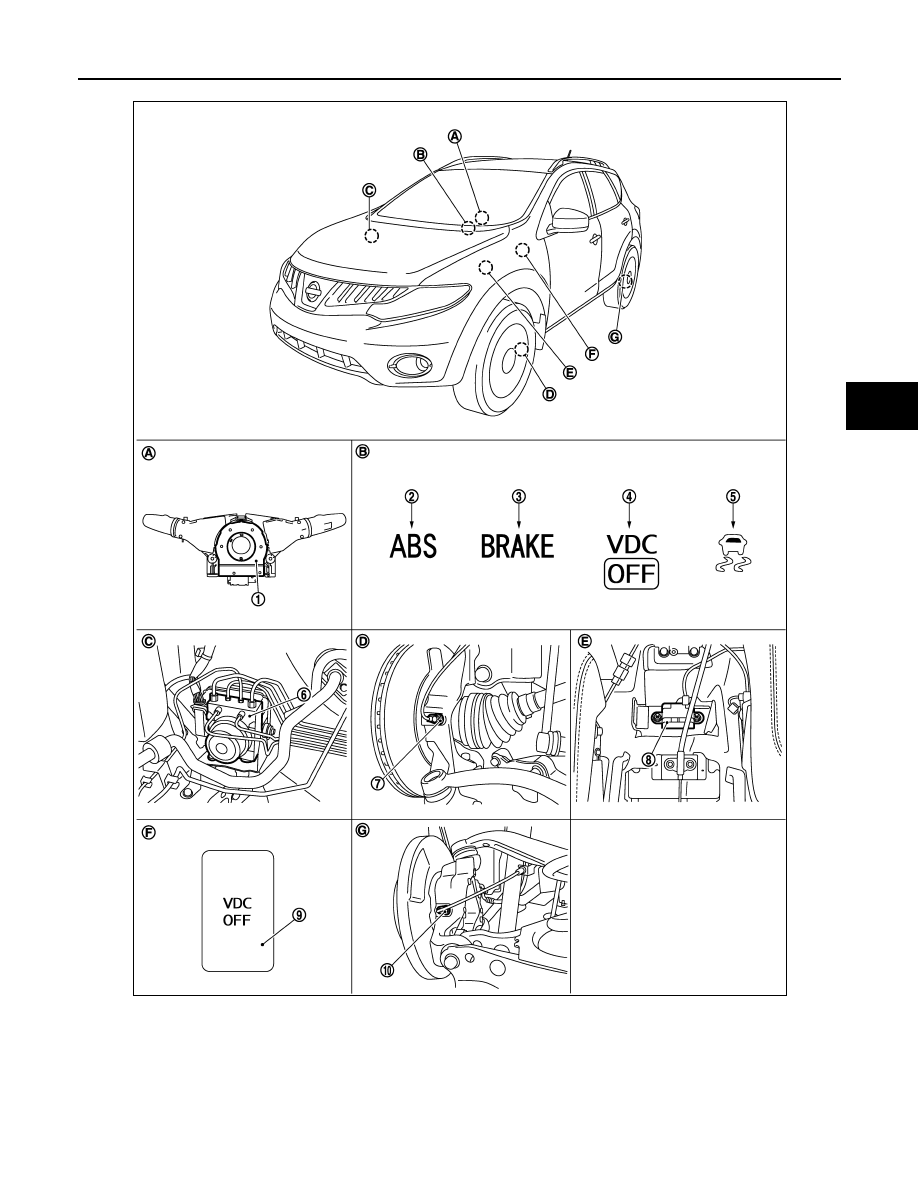

FOR USA

JSFIA0210GB

TCS

BRC-17

< SYSTEM DESCRIPTION >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

1.

Steering angle sensor

2.

ABS warning lamp

3.

Brake warning lamp

4.

VDC OFF indicator lamp

5.

SLIP indicator lamp

6.

ABS actuator and electric unit (con-
trol unit)

7.

Front wheel sensor

8.

Yaw rate/side/decel G sensor

9.

VDC OFF switch

10. Rear wheel sensor

JSFIA0208ZZ

BRC-18

< SYSTEM DESCRIPTION >

[VDC/TCS/ABS]

TCS

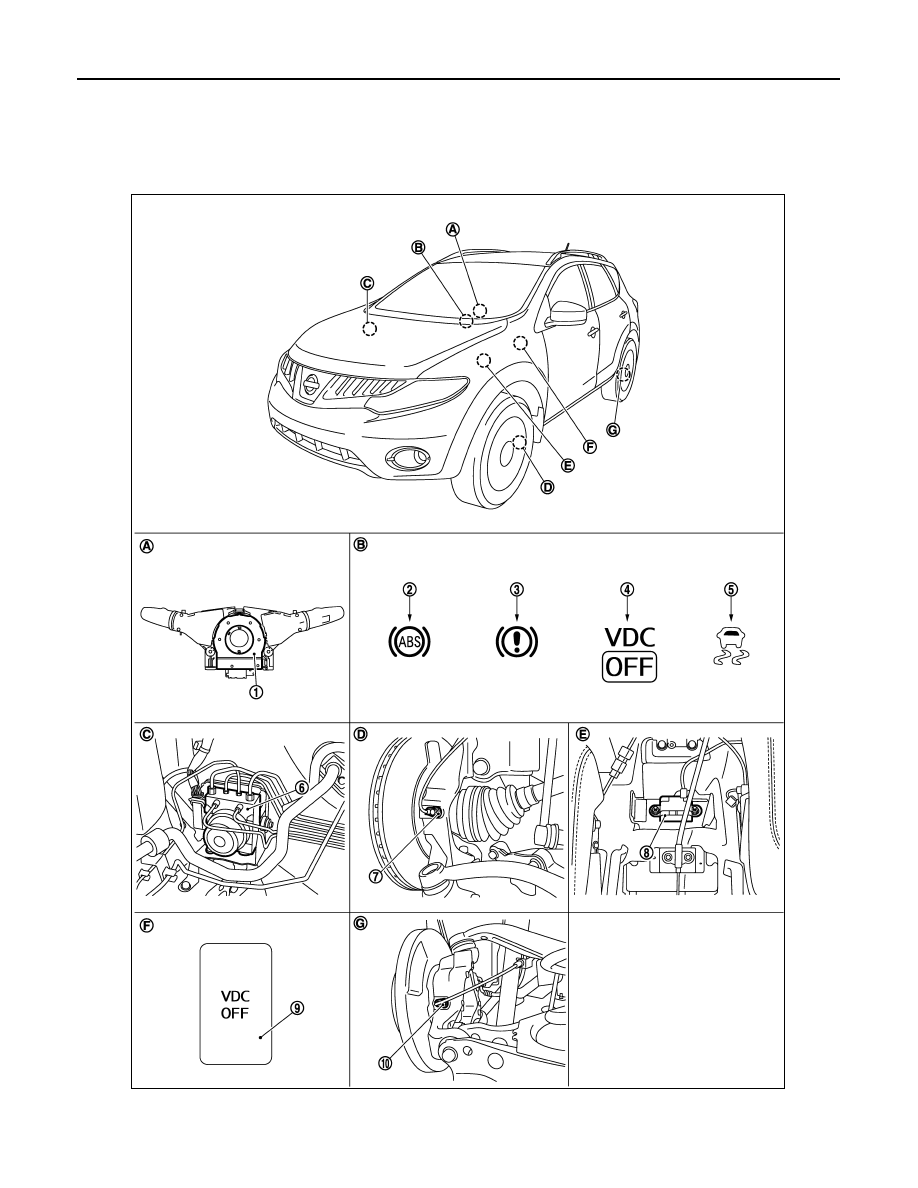

EXCEPT FOR USA

A.

Back of spiral cable assembly

B.

Combination meter

C.

Engine room (right side)

D.

Steering knuckle

E.

Under center console

F.

Instrument driver lower panel

G.

Rear axle

JSFIA0209ZZ
