FRONT DISC BRAKE

BRAKE PAD

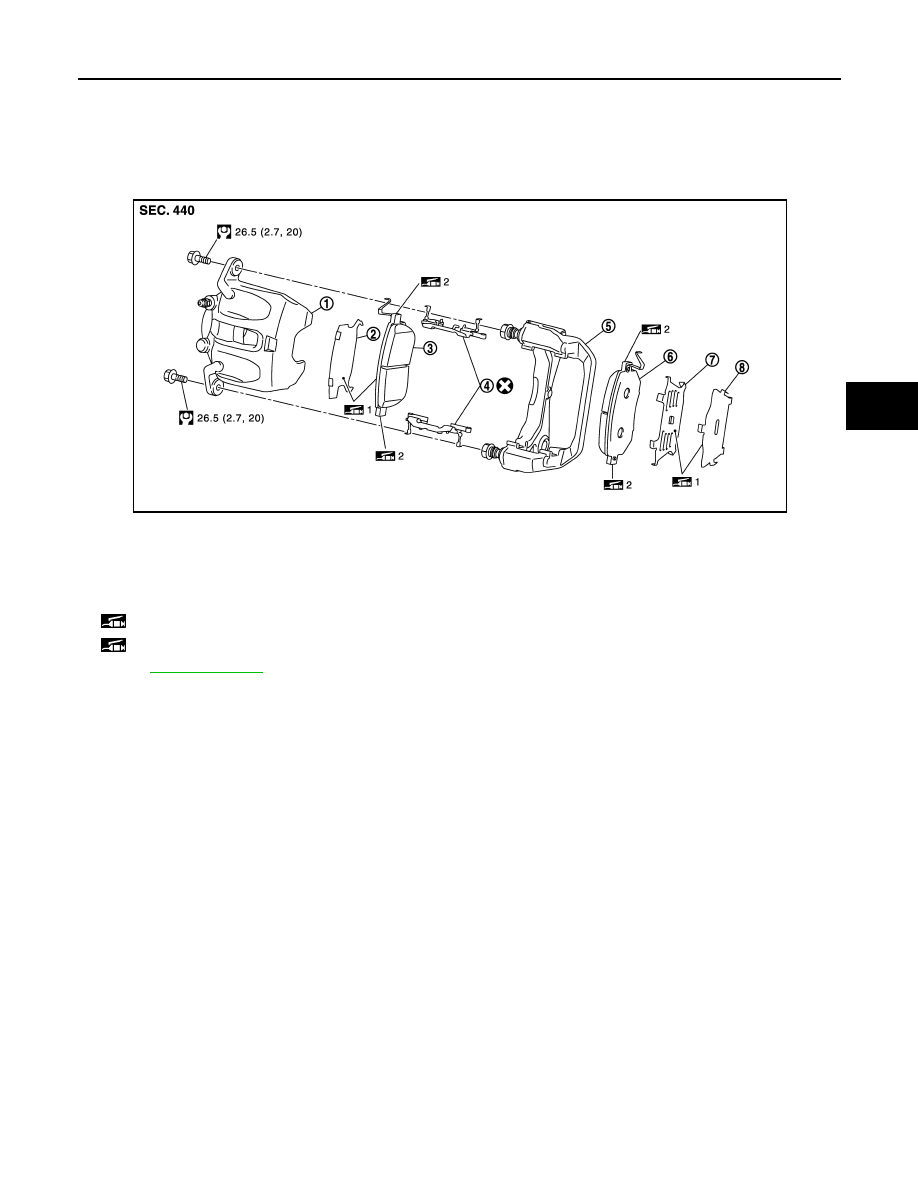

BRAKE PAD : Exploded View

INFOID:0000000005516229

BRAKE PAD : Removal and Installation

INFOID:0000000005516230

REMOVAL

WARNING:

Clean any dust from the brake caliper and brake pads with a vacuum dust collector. Never blow with
compressed air.

CAUTION:

• Never depress the brake pedal while removing the brake pads because the piston may pop out.
• Never spill or splash brake fluid on the disc rotor.

1.

Remove tires with power tool.

2.

Remove lower sliding pin bolt.

3.

Suspend the cylinder body with suitable wire so that the brake hose will not stretch. Then remove the
brake pads, shims and shim cover from the torque member.

CAUTION:

• Never reuse the pad retainers when removed the pad retainers from the torque member.
• Never damage the piston boot.
• Never drop the brake pads, shims, and the shim cover.
• Remember each position of the removed brake pads.

INSTALLATION

WARNING:

Clean any dust from the brake caliper and brake pads with a vacuum dust collector. Never blow with
compressed air.

CAUTION:

1.

Cylinder body

2.

Inner shim

3.

Inner pad (with pad wear sensor)*

4.

Pad retainer

5.

Torque member

6.

Outer pad

7.

Outer shim

8.

Outer shim cover

*: Some vehicles has pad wear sensor only for one side.

1: Apply PBC (Poly Butyl Cuprysil) grease or silicone-based grease.

2: Apply copper based brake grease.

Refer to

GI-4, "Components"

 for symbols not described on the above.

JPFIA0495GB

BR-36

< REMOVAL AND INSTALLATION >

FRONT DISC BRAKE

• Never depress the brake pedal while removing the brake pads or the cylinder body because the pis-

ton may pop out.

• Never spill or splash brake fluid on the disc rotor.

1.

Install the pad retainer to the torque member if the pad retainers has been removed.

CAUTION:

• Never reuse the pad retainers.
• Securely assemble the pad retainers so that it will not be lifted up from the torque member.
• Never deform the pad retainers.
• Eliminate double-faced adhesive tape on torque member.
• Remove adhesive's protective liner on pad retainers.

2.

Apply PBC (Poly Butyl Cuprysil) grease or silicone-based grease to the mating faces between the brake
pads and pad retainers.

3.

Apply copper based brake grease to the mating faces between the brake pads, shims and shim covers,
and install them to the brake pad.

CAUTION:

Always replace the shims together with the shim covers when replacing the brake pad.

4.

Install the cylinder body and brake pads to the torque member.

CAUTION:

• Never damage the piston boot.
• When replacing a pad with new one, check a brake fluid level in the reservoir tank because brake

fluid returns to master cylinder reservoir tank when pressing piston in.

NOTE:
Use a disc brake piston tool to easily press piston.

5.

Install the lower sliding pin bolt and tighten it to the specified torque.

6.

Depress the brake pedal several times to check that no drag feel is present for the front disc brake. Refer
to

BR-36, "BRAKE PAD : Inspection"

.

BRAKE PAD : Inspection

INFOID:0000000005516231

INSPECTION AFTER REMOVAL

Replace the shims and the shim cover if rust is excessively attached.

INSPECTION AFTER INSTALLATION

1.

Check a drag of front disc brake. If any drag is found, follow the procedure described below.

2.

Remove brake pads.

3.

Press the piston.

CAUTION:

• Never damage the piston boot.
• When replacing a pad with new one, check a brake fluid level in the reservoir tank because brake

fluid returns to master cylinder reservoir tank when pressing piston in.

NOTE:
Use a disc brake piston tool to easily press piston.

4.

Install brake pads.

5.

Depress the brake pedal several times.

6.

Check a drag of front disc brake again. If any drag is found, disassemble the cylinder body. Refer to

BR-

38, "BRAKE CALIPER ASSEMBLY : Disassembly and Assembly"

.

7.

Burnish contact surfaces after refinishing or replacing pads, or if a soft pedal occurs at very low mileage.
Refer to

BR-16, "BRAKE PAD : Inspection and Adjustment"

.

BRAKE CALIPER ASSEMBLY

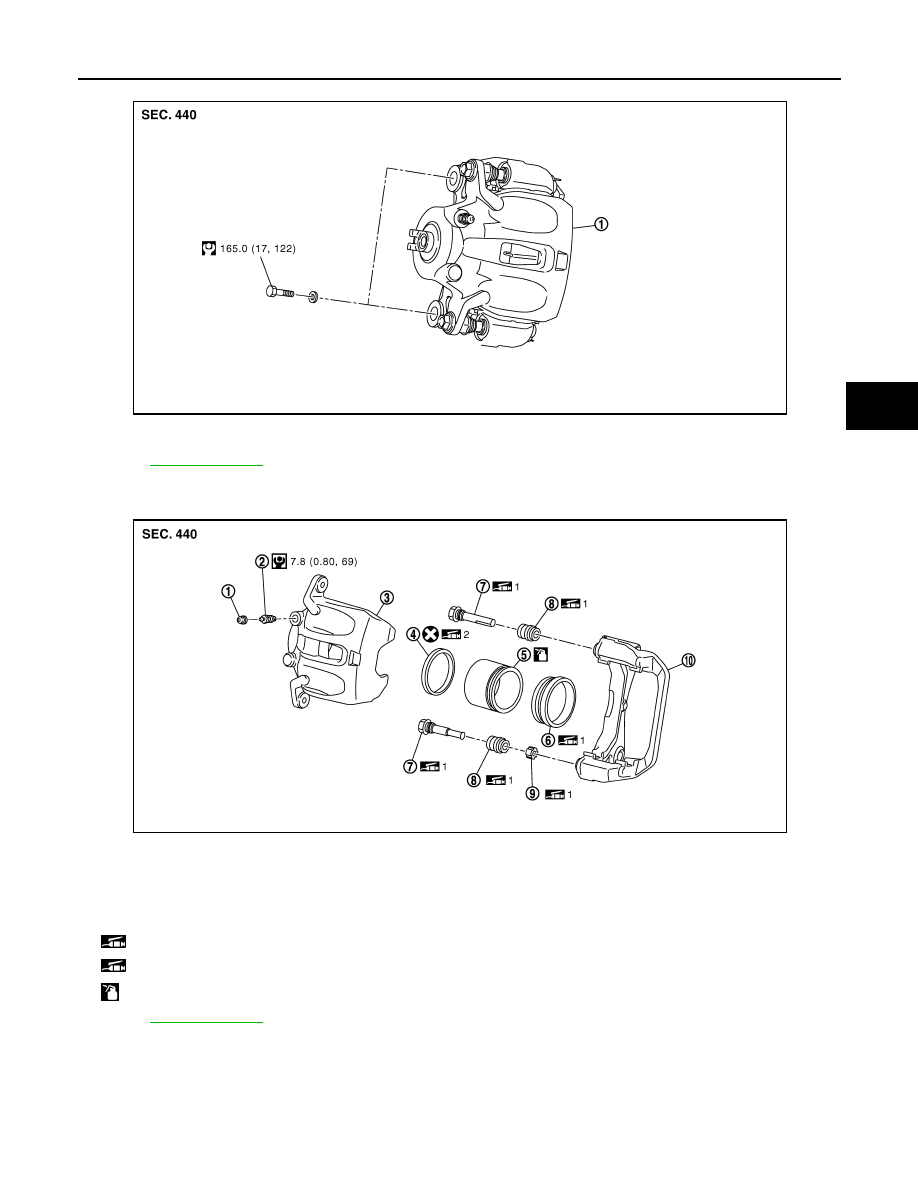

BRAKE CALIPER ASSEMBLY : Exploded View

INFOID:0000000005516232

REMOVAL

FRONT DISC BRAKE

BR-37

< REMOVAL AND INSTALLATION >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

DISASSEMBLY

BRAKE CALIPER ASSEMBLY : Removal and Installation

INFOID:0000000005516233

REMOVAL

WARNING:

1.

Brake caliper assembly

Refer to

GI-4, "Components"

 for symbols not described on the above.

JPFIA0308GB

1.

Cap

2.

Bleeder valve

3.

Cylinder body

4.

Piston seal

5.

Piston

6.

Piston boot

7.

Sliding pin

8.

Sliding pin boot

9.

Bushing

10. Torque member

1: Apply rubber grease.

2: Apply polyglycol ether based lubricant.

: Apply brake fluid.

Refer to

GI-4, "Components"

 for symbols not described on the above.

JPFIA0309GB

BR-38

< REMOVAL AND INSTALLATION >

FRONT DISC BRAKE

Clean any dust from the brake caliper and brake pads with a vacuum dust collector. Never blow with
compressed air.

CAUTION:

Never depress the brake pedal. Brake fluid may splash while removing the brake hose.

1.

Remove tires with power tool.

2.

Fix the disc rotor using wheel nuts.

3.

Drain brake fluid. Refer to

BR-12, "Draining"

.

CAUTION:

Never spill or splash brake fluid on the disc rotor.

4.

Remove union bolt and copper washers, and then disconnect brake hose from caliper assembly. Refer to

BR-22, "FRONT : Exploded View"

.

5.

Remove torque member mounting bolts, and remove brake caliper assembly.

CAUTION:

Never drop brake pads and caliper assembly.

6.

Remove disc rotor.

CAUTION:

• Put matching marks on the wheel hub and bearing assembly and the disc rotor before removing

the disc rotor.

• Never drop disc rotor.

INSTALLATION

WARNING:

Clean any dust from the brake caliper and brake pads with a vacuum dust collector. Never blow with
compressed air.

CAUTION:

Never depress the brake pedal. Brake fluid may splash while removing the brake hose.

1.

Install disc rotor.

CAUTION:

Align the matching marks put during removal when reusing the disc rotor.

2.

Install the brake caliper assembly to the vehicle and tighten the torque member mounting bolts to the
specified torque.

CAUTION:

Never spill or splash any grease and moisture on the brake caliper assembly mounting face,
threads, mounting bolts and washers. Wipe out any grease and moisture.

3.

Install brake hose and copper washers to brake caliper assembly, and tighten union bolts to the specified
torque. Refer to

BR-22, "FRONT : Exploded View"

.

CAUTION:

Never reuse copper washer.

4.

Refill with new brake fluid and perform the air bleeding. Refer to

BR-13, "Bleeding Brake System"

.

CAUTION:

• Never reuse drained brake fluid.
• Never spill or splash brake fluid on the disc rotor.

5.

Check a drag of front disc brake. If any drag is found, refer to

BR-40, "BRAKE CALIPER ASSEMBLY :

Inspection"

.

BRAKE CALIPER ASSEMBLY : Disassembly and Assembly

INFOID:0000000005516234

DISASSEMBLY

NOTE:
Never remove the torque member and pad retainers when disassembling and assembling the cylinder body.

1.

Remove the sliding pin bolts, and remove the cylinder body from the torque member.

CAUTION:

Never drop brake pads, shims, shim covers and pad retainers from torque member.

2.

Remove brake pads, shims and shim cover. Refer to

BR-35, "BRAKE PAD : Exploded View"

.

3.

Remove sliding pins and sliding pin boots from torque member.

4.

Remove bushing from sliding pin.
