BRAKE PEDAL

BR-11

< PERIODIC MAINTENANCE >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

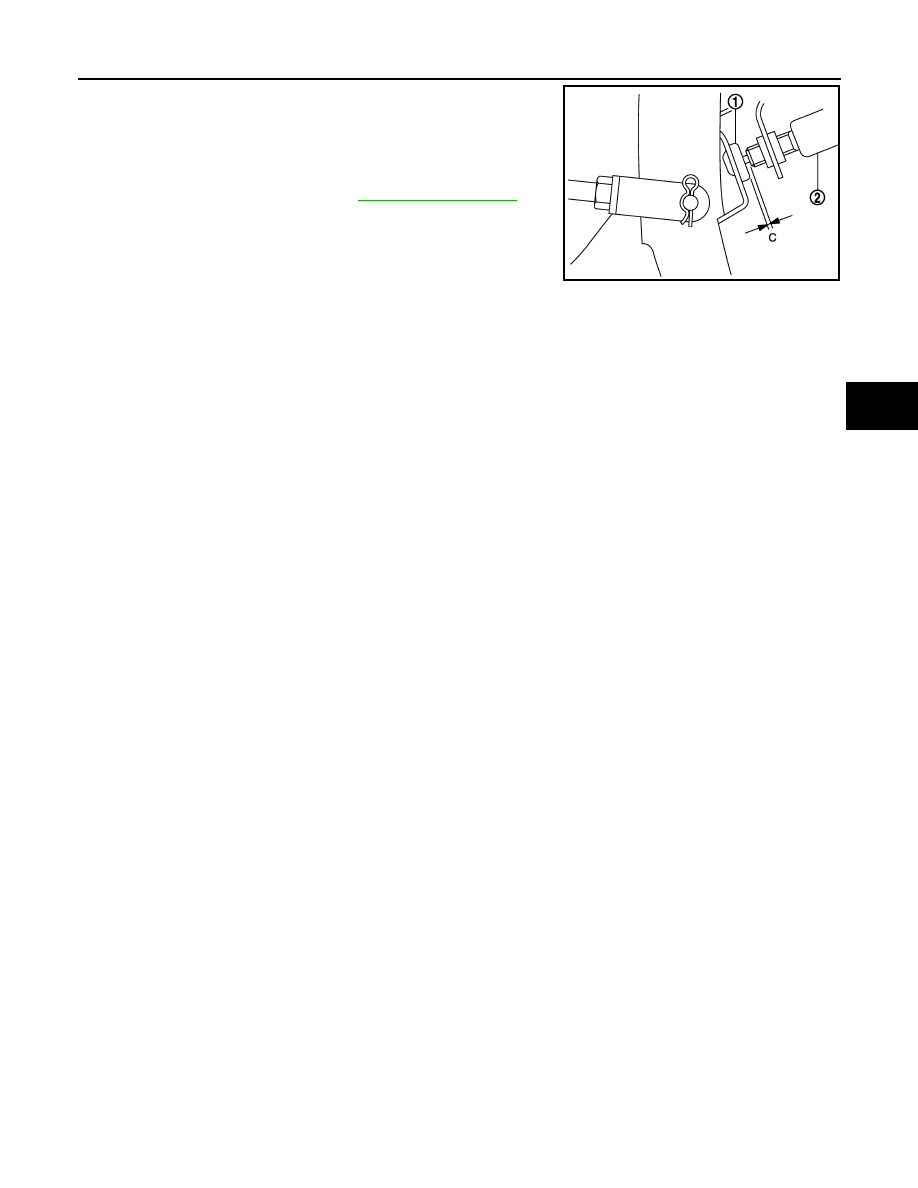

4.

Press-fit stop lamp switch and ASCD brake switch (2) until stop
lamp switch and ASCD brake switch hits the stopper rubber (1)
45

°

 clockwise.

CAUTION:

• The clearance (C) between the stopper rubber and stop

lamp switch and ASCD brake switch threaded end must
be the specified value. Refer to

BR-47, "Brake Pedal"

• The stop lamp must be turned off when the brake pedal is

released.

JPFIA0122ZZ

BR-12

< PERIODIC MAINTENANCE >

BRAKE FLUID

BRAKE FLUID

Inspection

INFOID:0000000005516198

BRAKE FLUID LEVEL

• Check that the fluid level in the sub tank is within the specified

range (MAX – MIN lines).

• Visually check for any brake fluid leakage around the sub tank,

reservoir tank and hose.

• Check the brake system for any leakage if the fluid level is

extremely low (lower than MIN).

• Check the brake system for fluid leakage if the warning lamp

remains illuminated even after the parking brake is released.

BRAKE LINE

1.

Check brake line (tubes and hoses) for cracks, deterioration or other damage. Replace any damaged
parts.

2.

Check for fluid leakage by fully depressing brake pedal while
engine is running.

CAUTION:

If leakage occurs around joints, retighten or, if necessary,
replace damaged parts.

Draining

INFOID:0000000005516199

CAUTION:

• Never spill or splash brake fluid on painted surfaces. Brake fluid may seriously damage paint. Wipe it

off immediately and wash with water if it gets on a painted surface.

• Turn the ignition switch OFF and disconnect the ABS actuator and electric unit (control unit) con-

nector or the battery negative terminal before draining.

1.

Connect a vinyl tube to the bleed valve.

2.

Depress the brake pedal and loosen the bleeder valve to gradu-
ally discharge brake fluid.

Refilling

INFOID:0000000005516200

CAUTION:

Turn the ignition switch OFF and disconnect the ABS actuator and electric unit (control unit) connec-
tor or the battery negative terminal before refilling.

1.

Check that there is no foreign material in the sub tank, and refill with new brake fluid.

CAUTION:

Never reuse drained brake fluid.

JPFIA0295ZZ

SBR389C

BRA0007D

BRAKE FLUID

BR-13

< PERIODIC MAINTENANCE >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

2.

Loosen the bleeder valve, slowly depress the brake pedal to the full stroke, and then release the pedal.
Repeat this operation at intervals of 2 or 3 seconds until all brake fluid is discharged. Then close the
bleeder valve with the brake pedal depressed. Repeat the same work on each wheel.

3.

Perform the air bleeding. Refer to

BR-13, "Bleeding Brake System"

.

Bleeding Brake System

INFOID:0000000005516201

CAUTION:

• Turn the ignition switch OFF and disconnect the ABS actuator and electric unit (control unit) con-

nector or the battery negative terminal before performing the work.

• Monitor the fluid level in the sub tank during the air bleeding.
• Always use new brake fluid for refilling. Never reuse the drained brake fluid.

1.

Connect a vinyl tube to the bleeder valve of the rear right brake.

2.

Fully depress the brake pedal 4 to 5 times.

3.

Loosen the bleeder valve and bleed air with the brake pedal depressed, and then quickly tighten the
bleeder valve.

4.

Repeat steps 2 and 3 until all of the air is out of the brake line.

5.

Tighten the bleeder valve to the specified torque.
• Front disc brake: refer to

BR-36, "BRAKE CALIPER ASSEMBLY : Exploded View"

.

• Rear disc brake: refer to

BR-42, "BRAKE CALIPER ASSEMBLY : Exploded View"

.

6.

Perform steps 1 to 5 for the rear right brake

 front left brake

 rear left brake

 and front right brake in

order.

7.

Check that the fluid level in the sub tank is within the specified range after air bleeding. Refer to

BR-12,

"Inspection"

.

BR-14

< PERIODIC MAINTENANCE >

BRAKE MASTER CYLINDER

BRAKE MASTER CYLINDER

Inspection

INFOID:0000000005516202

FLUID LEAK

Check for brake fluid leakage from the master cylinder mounting face, reservoir tank mounting face, sub tank
mounting face, brake tube connections and hose connections.
