A/C AUTO AMP.

Exploded View

INFOID:0000000005517190

DISASSEMBLY

Removal and Installation

INFOID:0000000005517191

REMOVAL

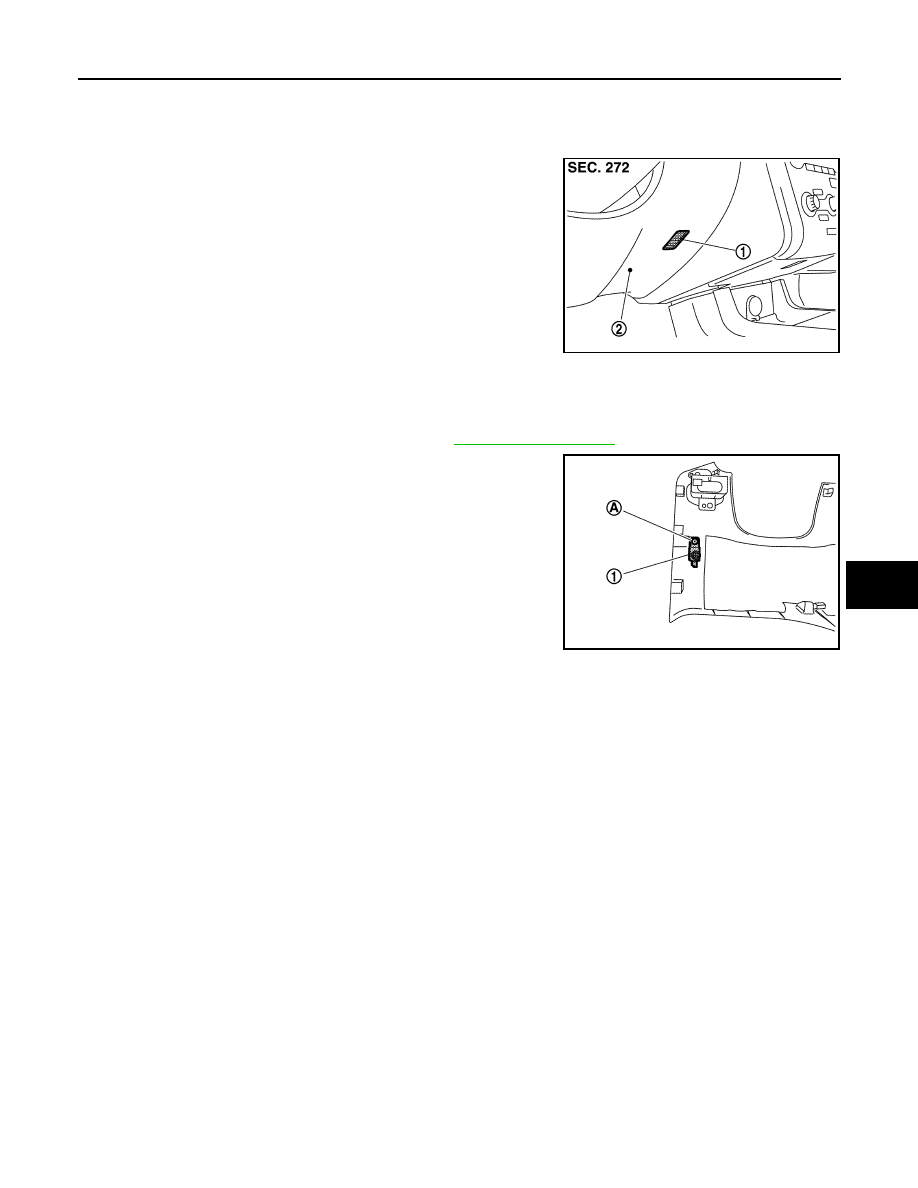

1.

Remove the AV control unit. Refer to

AV-787, "Exploded View"

.

2.

Remove the mounting screws (A), and then remove the A/C
auto amp. (1).

INSTALLATION

Install in the reverse order of removal.

JPIIA0553ZZ

1.

AV control unit

2.

Bracket (LH)

3.

A/C auto amp.

4.

Bracket (RH)

JPIIA0554ZZ

VTL-88

< REMOVAL AND INSTALLATION >

[WITH 7 INCH DISPLAY]

AMBIENT SENSOR

AMBIENT SENSOR

Exploded View

INFOID:0000000005517192

Removal and Installation

INFOID:0000000005517193

REMOVAL

1.

Disconnect the ambient sensor connector (A), and then remove
the ambient sensor (1).

INSTALLATION

Install in the reverse order of removal.

1.

Ambient sensor

JPIIA1300ZZ

JPIIA0556ZZ

IN-VEHICLE SENSOR

VTL-89

< REMOVAL AND INSTALLATION >

[WITH 7 INCH DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

IN-VEHICLE SENSOR

Exploded View

INFOID:0000000005517194

Removal and Installation

INFOID:0000000005517195

REMOVAL

1.
