Nissan Murano Z51. Manual - part 1411

STR-14

< PRECAUTION >

PRECAUTIONS

with a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly
causing serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

PREPARATION

STR-15

< PREPARATION >

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

PREPARATION

PREPARATION

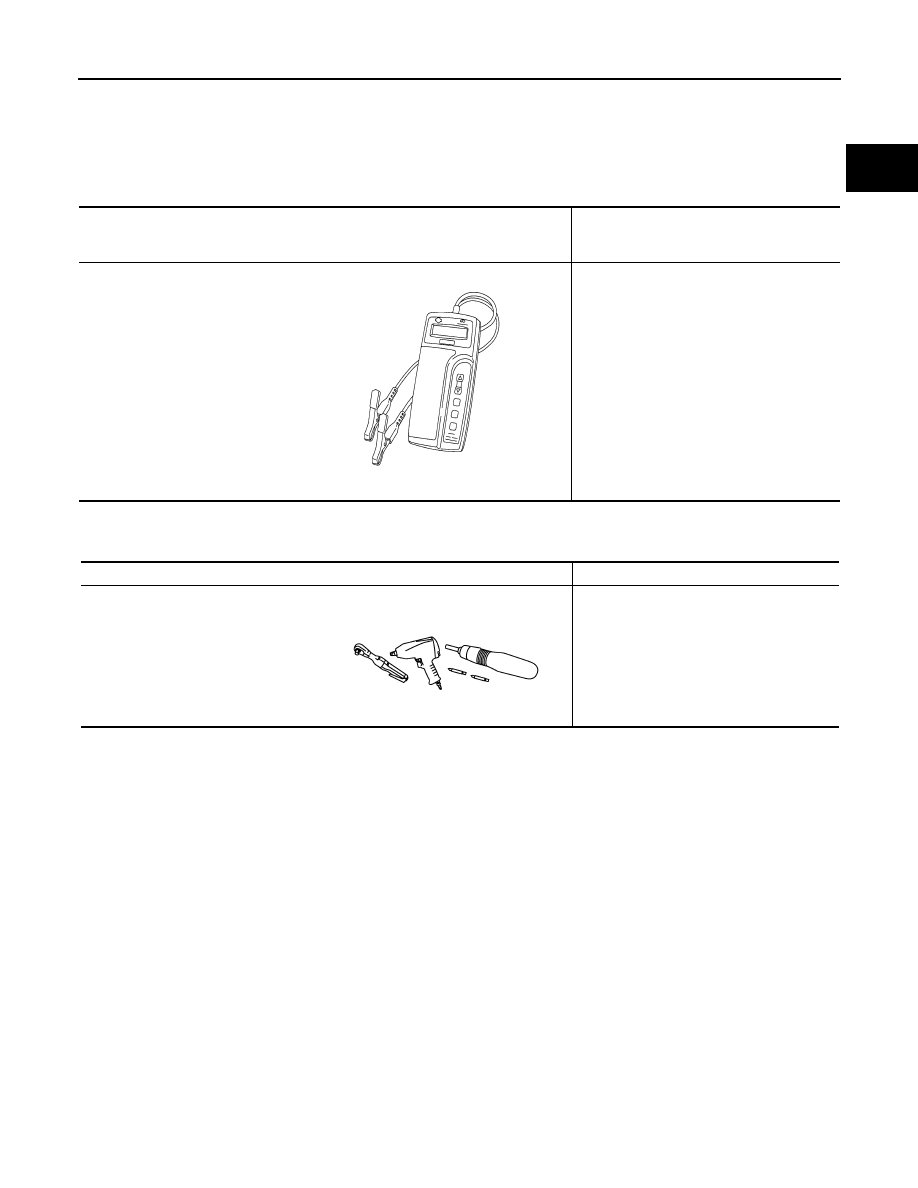

Special Service Tools

INFOID:0000000005517082

Commercial Service Tools

INFOID:0000000005517083

Tool number
(Kent-Moore No.)
Tool name

Description

—

(J-44373 Model MCR620)
Starting/Charging System Tester

Tests starting and charging systems.
For operating instructions, refer to Technical
Service Bulletin.

SEL403X

Tool name

Description

Power tool

Loosening bolts, nuts and screws

PIIB1407E

STR-16

< REMOVAL AND INSTALLATION >

STARTER MOTOR

REMOVAL AND INSTALLATION

STARTER MOTOR

Exploded View

INFOID:0000000005517084

REMOVAL

DISASSEMBLY

Type: M000TA0072

1.

Converter housing

2.

“B” terminal harness

3.

Starter motor “B” terminal nut

4.

Starter motor mounting bolt

5.

Starter motor

6.

“S” connector

Refer to

GI-4, "Components"

 for symbols in the figure.

JPBIA1922GB

STARTER MOTOR

STR-17

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

Removal and Installation

INFOID:0000000005517085

REMOVAL

1.

Remove the battery Refer to

PG-119, "Removal and Installation"

.

2.

Remove the air cleaner assembly and air ducts.

3.

Disconnect the following unit connectors:
• ECM
• TCM
• IPDM  E/R

4.

Remove the battery tray.

5.

Disconnect the starter motor harness connectors.

6.

Remove the starter motor mounting bolts, using power tools.

7.

Remove the starter motor.

INSTALLATION

Installation is in the reverse order of removal.

Inspection

INFOID:0000000005517086

INSPECTION AFTER DISASSEMBLY

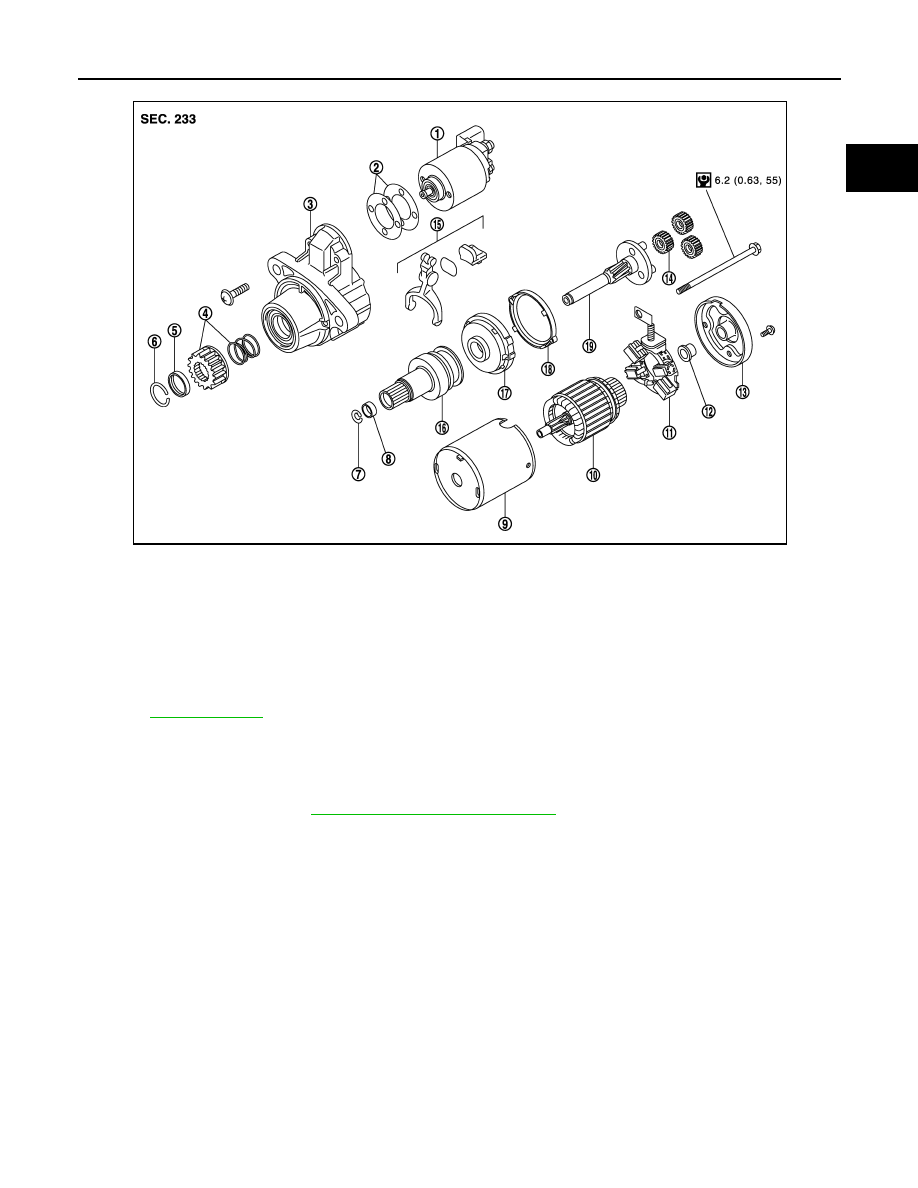

Pinion/Clutch Check

1.

Magnetic switch assembly

2.

Dust cover kit

3.

Gear case assembly

4.

Pinion assembly

5.

Stopper

6.

Ring

7.

Ring

8.

Stopper

9.

Yoke assembly

10. Armature assembly

11.

Brush holder assembly

12. Metal

13. Rear cover

14. Gear assembly

15. Shift lever set

16. Clutch gear assembly

17. Center bracket

18. Packing

19. Gear shaft

Refer to

GI-4, "Components"

 for symbols not described on the above.

JPBIA1777GB
