Nissan Murano Z51. Manual - part 1354

SRC-186

< SYSTEM DESCRIPTION >

[FOR MEXICO]

DIAGNOSIS SYSTEM (AIRBAG)

DIAGNOSIS SYSTEM (AIRBAG)

Diagnosis Description

INFOID:0000000005513704

CAUTION:

• Do not use electrical test equipment on any circuit related to the SRS unless instructed in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness
connectors.

• Do not repair, splice or modify the SRS wiring harness. If the harness is damaged, replace it with a

new one.

• Keep ground portion clean.

DIAGNOSIS FUNCTION

• The SRS self-diagnosis results can be read by using air bag warning lamp and/or CONSULT-III.
• The user mode is exclusively prepared for the customer (driver). This mode warns the driver of a system

malfunction through the operation of the air bag warning lamp.

• The diagnosis mode allows the technician to locate and inspect the malfunctioning part.
• The mode applications for the air bag warning lamp and CONSULT-III are as follows.

HOW TO PERFORM TROUBLE DIAGNOSIS FOR QUICK AND ACCURATE REPAIR

A good understanding of the malfunction conditions can make troubleshooting faster and more accurate.
In general, each customer feels differently about a malfunction. It is important to fully understand the symp-
toms or conditions for a customer complaint.

Information from Customer.

• WHAT..... Vehicle model.
• WHEN..... Date, Frequencies.
• WHERE..... Road conditions.
• HOW..... Operating conditions, Symptoms.

Preliminary Check.

Check that the following parts are in good order.
• Battery (Refer to

PG-3, "How to Handle Battery"

).

• Fuse (Refer to

PG-91, "Fuse"

).

• System component-to-harness connections.

HOW TO ERASE SELF-DIAGNOSTIC RESULTS (With CONSULT-III)

• “SELF-DIAG [CURRENT]”

A current self-diagnosis result is displayed on CONSULT-III screen in real time.
After the malfunction is repaired completely, no malfunction is detected on “SELF-DIAG [CURRENT]”.

• “SELF-DIAG [PAST]”

Return to “SELF-DIAG [CURRENT]” CONSULT-III screen by touching “BACK” key of CONSULT-III and
select “SELF-DIAG [CURRENT]” in SELECT DIAG MODE. Touch “ERASE” in “SELF-DIAG [CURRENT]”
mode.
NOTE:
If the memory of the malfunction in “SELF-DIAG [PAST]” is not erased, the user mode shows the system
malfunction by the operation of the warning lamp even if the malfunction is repaired completely.

• “TROUBLE DIAG RECORD”

The memory of “TROUBLE DIAG RECORD” cannot be erased.

HOW TO ERASE SELF-DIAGNOSTIC RESULTS (Without CONSULT-III)

After a malfunction is repaired, turn the ignition switch OFF for at least one second, then turn ignition switch
ON diagnosis mode returns to the user mode. At that time the self-diagnosis result is cleared.

User mode

Diagnosis mode

Display type

Air bag warning lamp

X

X

ON-OFF operation

CONSULT-III

–

X

Monitoring

DIAGNOSIS SYSTEM (AIRBAG)

SRC-187

< SYSTEM DESCRIPTION >

[FOR MEXICO]

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

DIAGNOSTIC PROCEDURE (User mode)

Checking air bag operation according to air bag warning lamp-User Mode

1.

Turn the ignition switch from OFF to ON, and check that the air bag warning lamp blinks.

2.

Compare the air bag warning lamp blinking pattern with the
examples.

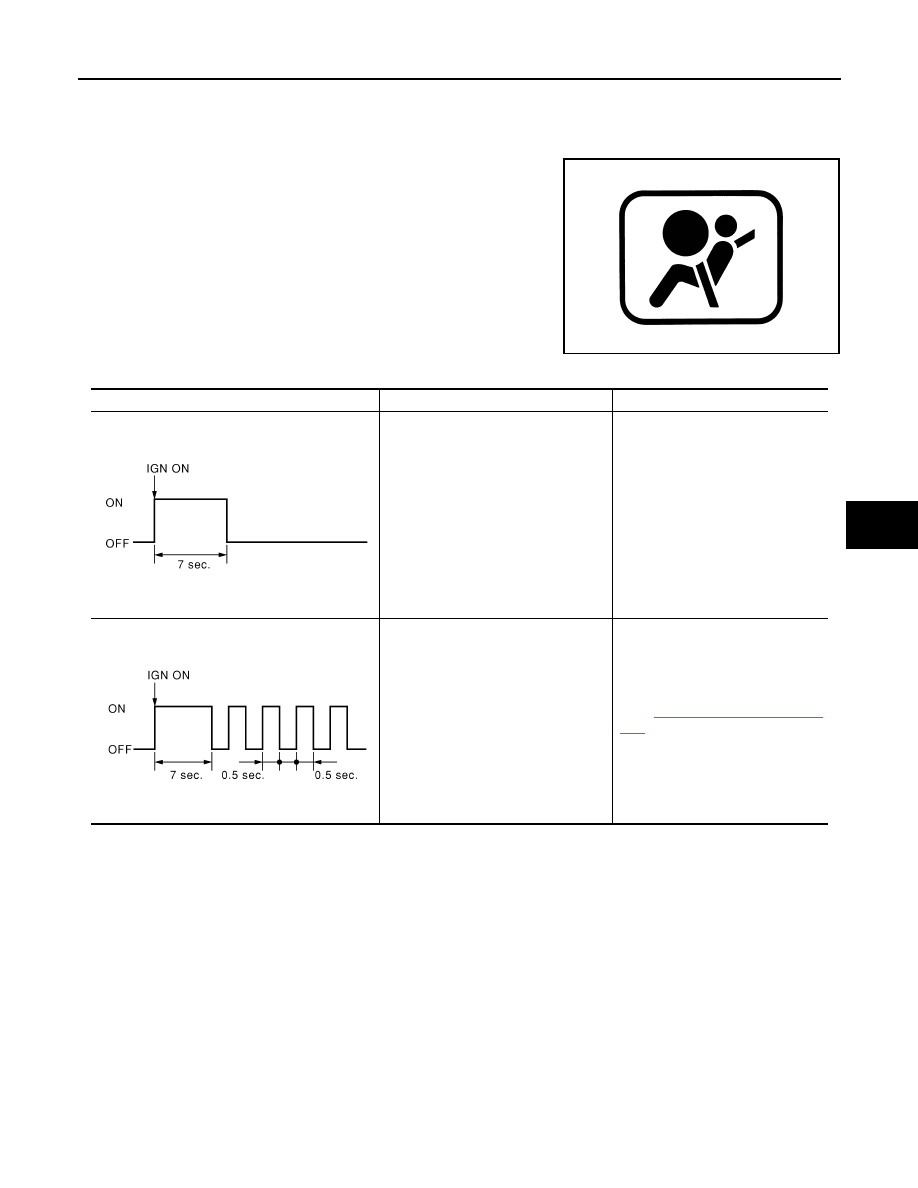

Warning lamp examples (User mode)

BF-1845D

Air bag warning lamp operation -User mode

SRS condition

Reference item

• No malfunction is detected
• No further action is necessary

—

• The system is malfunctioning and

needs to be repaired as indicated

Go to

SRC-186, "Diagnosis Descrip-

tion"

SHIA0011E

SHIA0012E

SRC-188

< SYSTEM DESCRIPTION >

[FOR MEXICO]

DIAGNOSIS SYSTEM (AIRBAG)

DIAGNOSTIC PROCEDURE (With CONSULT-III)

CONSULT-III Function

INFOID:0000000005513705

DIAGNOSIS MODE FOR CONSULT-III

• “SELF-DIAG [CURRENT]”

A current self-diagnosis results (also indicated with the number of warning lamp blinks in diagnosis mode)
are displayed on CONSULT-III screen in real time. This refers to a malfunctioning part requiring repairs.

• “SELF-DIAG [PAST]”

Diagnosis results previously stored in the memory are displayed on CONSULT-III screen. The stored results
are not erased until memory erasing is executed.

• “TROUBLE DIAG RECORD”

With TROUBLE DIAG RECORD, diagnosis results previously erased by a reset operation can be displayed
on CONSULT-III screen.

• “DISCRIMINATED NO.”

The air bag diagnosis sensor unit for each vehicle model has its own individual classification number. This
number will be displayed on CONSULT-III screen, as shown. When replacing the air bag diagnosis sensor
unit, refer to the part number for the compatibility. After installation, replacement with a correct unit can be
checked by confirming this classification number on CONSULT-III screen.
After repair, check that the discriminated number of air bag diagnosis sensor unit installed to vehicle are the
same. Refer to

SR-53, "Removal and Installation"

.

 HOW TO CHANGE SELF-DIAGNOSIS MODE WITH CONSULT-III

From User Mode to Diagnosis Mode

After selecting “AIR BAG” on the “SELECT SYSTEM” screen, User mode automatically changes to Diagnosis
mode.

• Air bag is deployed
• Seat belt pre-tensioner is deployed

Go to

SRC-302, "Diagnosis Proce-

dure"

 or

SRC-304, "Diagnosis Pro-

cedure"

• Air bag diagnosis sensor unit is mal-

functioning

• Air bag power supply circuit is mal-

functioning

• Air bag warning lamp circuit is mal-

functioning

Go to

SRC-330, "Diagnosis Proce-

dure"

• Air bag diagnosis sensor unit is mal-

functioning

• Air bag warning lamp circuit is mal-

functioning

Go to

SRC-330, "Diagnosis Proce-

dure"

Air bag warning lamp operation -User mode

SRS condition

Reference item

SHIA0013E

SHIA0014E

Diagnostic Mode

Description

SELF-DIAG RESULT

The self-diagnosis result is displayed (SELF-DIAG [CURRENT], [PAST], RECORD)

DISCRIMINATED No.

The part number of air bag diagnosis sensor unit is displayed

DIAGNOSIS SYSTEM (AIRBAG)

SRC-189

< SYSTEM DESCRIPTION >

[FOR MEXICO]

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

From Diagnosis Mode to User Mode

To return to User mode from Diagnosis mode, touch “BACK” key of CONSULT-III until “SELECT SYSTEM”
appears, then diagnosis mode automatically changes to User mode.

SELF-DIAGNOSIS FUNCTION (Without CONSULT-III)

• The reading of these results is accomplished by “User mode” and “Diagnosis mode”.
• After a malfunction is repaired, turn ignition switch ON. Diagnosis mode returns to the user mode. At that

time, the self-diagnosis result is cleared.

HOW TO CHANGE SELF-DIAGNOSIS MODE WITHOUT CONSULT-III

PHIA0709E
