SRC-178

< SYMPTOM DIAGNOSIS >

[FOR USA AND CANADA]

PASSENGER SEAT BELT WARNING SYSTEM

PASSENGER SEAT BELT WARNING SYSTEM

Diagnosis Procedure

INFOID:0000000005513695

1.

CHECK THE SYSTEM 1

Check the seat belt warning lamp function.

Seat belt warning lamp turns ON in the following conditions.
• Driver seat belt is fastened.
• Occupant is on front passenger seat.
• Front passenger seat belt is not fastened.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>>

Check the followings.

• Harness between air bag diagnosis sensor unit and combination meter.
• Seat belt buckle switch (front passenger side) circuit.
• Seat belt buckle switch (front passenger side).

If these are OK, replace air bag diagnosis sensor unit.

2.

CHECK THE SYSTEM 2

Check the seat belt warning lamp function.

Seat belt warning lamp turns OFF in the following conditions.
• Driver seat belt is fastened.
• Occupant is on front passenger seat.
• Front passenger seat belt is fastened.

Is the inspection result normal?

YES

>> System is OK.

NO

>>

Check the followings.

• Seat belt buckle switch (front passenger side) circuit.
• Seat belt buckle switch (front passenger side).

If these are OK, replace air bag diagnosis sensor unit.

PRECAUTIONS

SRC-179

< PRECAUTION >

[FOR USA AND CANADA]

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000005513696

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the “SRS AIR BAG” and “SEAT BELT” of this
Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the “SRS AIR BAG”.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s)
with a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly
causing serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Service

INFOID:0000000005513697

• Do not use electrical test equipment to check SRS circuits unless instructed to in this Service Manual.
• Before servicing the SRS, turn ignition switch OFF, disconnect battery negative terminal and wait at least 3

minutes.
For approximately 3 minutes after the battery negative terminal is removed, it is still possible for the air bag
and seat belt pre-tensioner to deploy. Therefore, do not work on any SRS connectors or wires until at least 3
minutes have elapsed.

• Diagnosis sensor unit must always be installed with their arrow marks “

” pointing towards the front of the

vehicle for proper operation. Also check diagnosis sensor unit for cracks, deformities or rust before installa-
tion and replace as required.

• The spiral cable must be aligned in the neutral position since its rotations are limited. Do not turn steering

wheel and column after removal of steering gear.

• Handle air bag module carefully. Always place driver and front passenger air bag modules with the pad side

facing upward and seat mounted front side air bag module standing with the stud bolt side facing down.

• Conduct self-diagnosis to check entire SRS for proper functioning after replacing any components.
• After air bag inflates, the front instrument panel assembly should be replaced if damaged.
• Always replace instrument panel pad following front passenger air bag deployment.

Occupant Classification System Precaution

INFOID:0000000005513698

• Replace occupant classification system control unit and passenger front seat cushion as an assembly.

Refer to

SE-112, "Removal and Installation"

.

SRC-180

< BASIC INSPECTION >

[FOR MEXICO]

DIAGNOSIS AND REPAIR WORK FLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORK FLOW

Work Flow

INFOID:0000000005513699

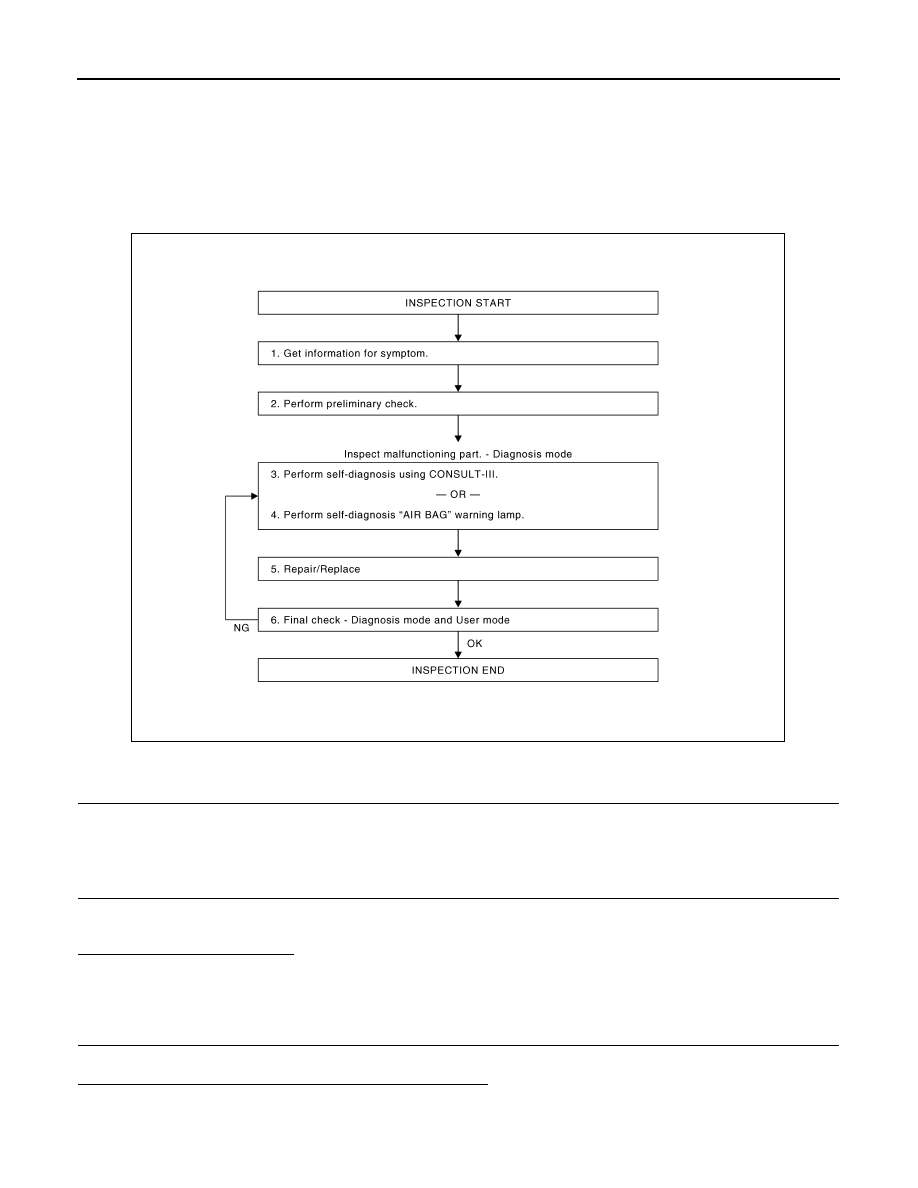

OVERALL SEQUENCE

DETAILED FLOW

1.

GET INFORMATION FOR SYMPTOM

Interview the customer about the symptom.

>> GO TO 2.

2.

PERFORM PRELIMINARY CHECK

At the beginning of inspection, confirm the condition of power supply circuit, check that the battery is charged
and fuses and fusible links are not blown.

Is power supply circuit normal?

YES-1 >> GO TO 3. (With CONSULT-III)
YES-2 >> GO TO 4. (Without CONSULT-III)
NO

>> Repair or replace the battery and fuse/fusible links.

3.

PERFORM SELF-DIAGNOSIS USING “CONSULT-III” (WITH CONSULT-III)

Perform “AIR BAG” Self Diagnostic Result.

Is “MALFUNCTIONING PART” displayed on CONSULT-III?

YES

>> GO TO 5.

NO

>> Repeat DTC confirmation with diagnostic procedure.

JMHIA0027GB

DIAGNOSIS AND REPAIR WORK FLOW

SRC-181

< BASIC INSPECTION >

[FOR MEXICO]

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

4.

PERFORM SELF-DIAGNOSIS “AIR BAG” WARNING LAMP (WITHOUT CONSULT-III)

Check the air bag warning lamp status.
Is “MALFUNCTIONING PART” detected?

YES

>> GO TO 5.

NO

>> Repeat DTC confirmation with diagnostic procedure.

5.

REPAIR OR REPLACE

Repair or replace the malfunctioning part.
After the malfunction is repaired, erase the self-diagnostic result. Refer to

SRC-17, "Diagnosis Description"

 or

SRC-19, "CONSULT-III Function"

.

>> GO TO 6.

6.

FINAL CHECK

Perform “AIR BAG” Self Diagnostic Result with CONSULT-III and /or, air bag warning lamp status.

Are all malfunctions corrected?

YES

>> INSPECTION END

NO-1

>> GO TO 3. (With CONSULT-III)

NO-2

>> GO TO 4. (Without CONSULT-III)
