FRONT PASSENGER AIR BAG MODULE

SR-17

< REMOVAL AND INSTALLATION >

[FOR USA AND CANADA]

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

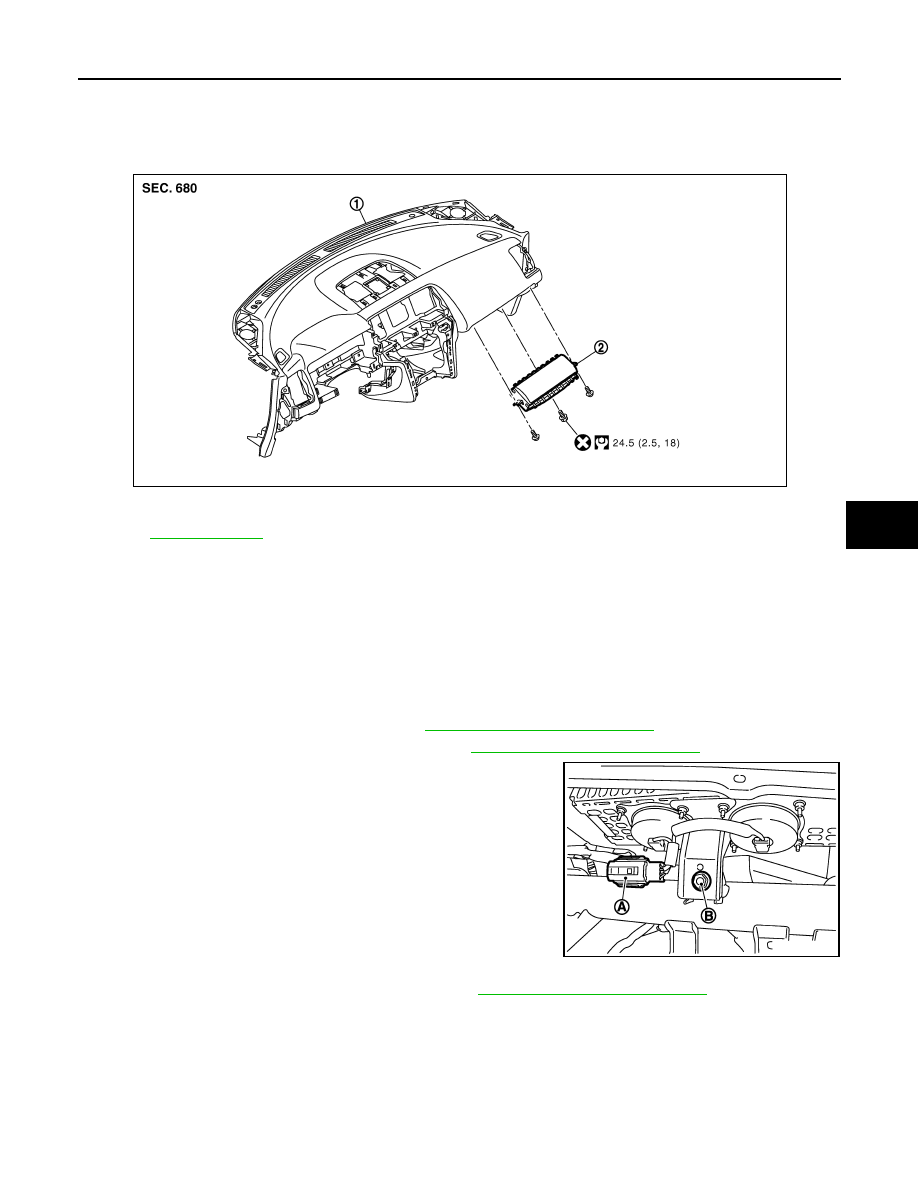

FRONT PASSENGER AIR BAG MODULE

Exploded View

INFOID:0000000005518907

Removal and Installation

INFOID:0000000005518908

WARNING:

• Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait 3 minutes

or more.

• Always work from the side of air bag module. Never work in front of it.
• Never use the air tools or electric tools for servicing.

REMOVAL

1.

Remove the glove box lid assembly. Refer to

IP-13, "Removal and Installation"

.

2.

Remove the Instrument lower assist panel. Refer to

IP-13, "Removal and Installation"

.

3.

Disconnect the front passenger air bag harness connector (A).

4.

Remove the front passenger air bag module fixing bolt (B).
NOTE:
The figure shows the installed front passenger air bag module.
(Under view of the module installed without glove box cover.)

5.

Remove the instrument panel assembly (1). Refer to

IP-13, "Removal and Installation"

.

1.

Instrument panel assembly

2.

Front passenger air bag module

Refer to

GI-4, "Components"

 for symbols in the figure.

JMHIA0509GB

JMHIA0510ZZ

SR-18

< REMOVAL AND INSTALLATION >

[FOR USA AND CANADA]

FRONT PASSENGER AIR BAG MODULE

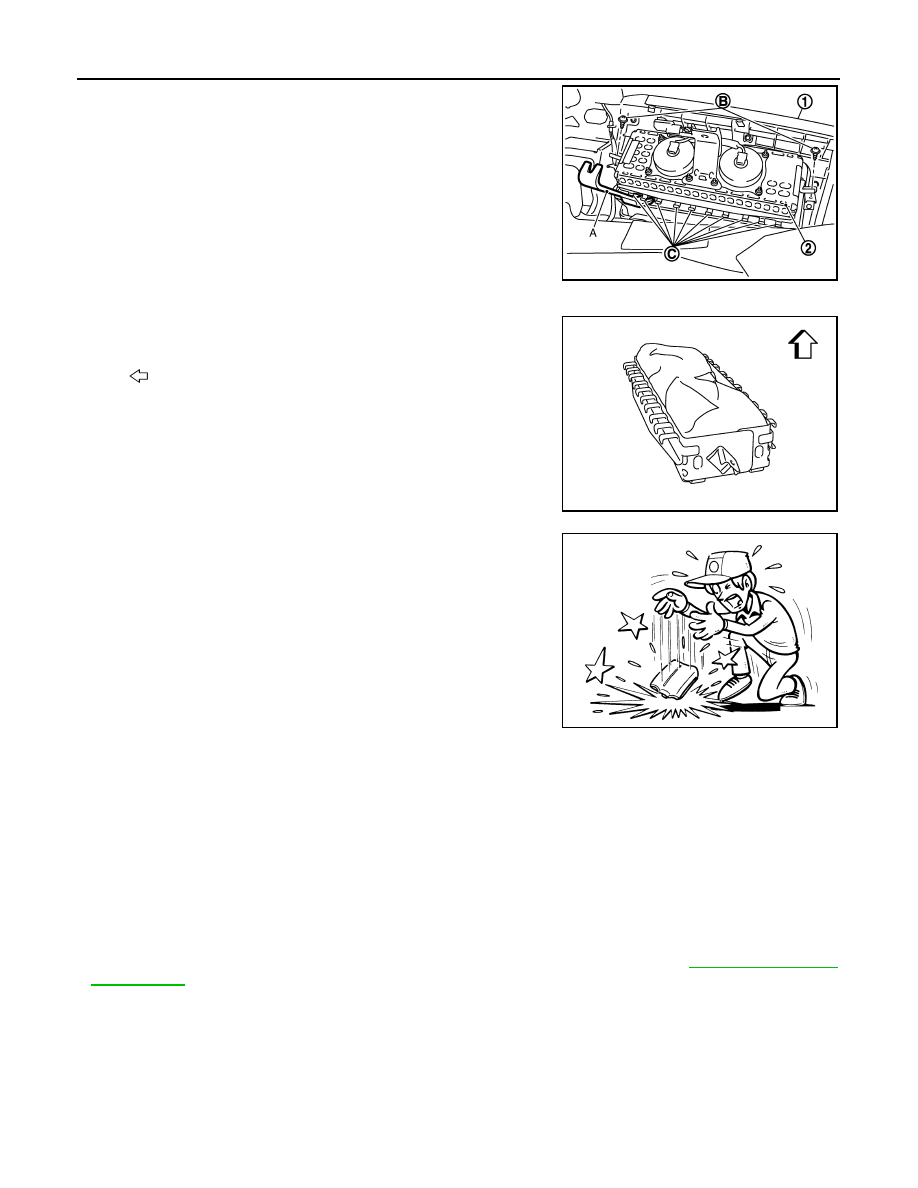

6.

Remove the front passenger air bag module fixing screws (B).

7.

Disconnect the pawls (C) by using remover tool (A), and then
remove the front passenger air bag module (2) from instrument
panel.

CAUTION:

• Always place the front passenger air bag module with pad

side facing upward.

• Never impact the passenger air bag module.
• Replace the front passenger air bag module if it has been

dropped or sustained an impact.

• Never insert any foreign objects (screwdriver, etc.) into front passenger air bag module.
• Never disassembly the front passenger air bag module.
• Never expose the front passenger air bag module to temperatures exceeding 90

°

C (194

°

F).

• Never allow oil, grease, detergent, or water to come in contact with the front passenger air bag mod-

ule.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Never use the old fixing bolts after removal, replace with the new bolts.
• Never damage the harness while installing.
• If malfunction is detected by the air bag warning lamp, after repair or replacement of the malfunc-

tioning parts, reset the memory using self-diagnosis or CONSULT-III. Refer to

SRC-17, "Diagnosis

Description"

.

• After the work is completed, check that no system malfunction is detected by air bag warning lamp.

JMHIA0511ZZ

: Upward

JMHIA0512ZZ

JMHIA0009ZZ

SIDE CURTAIN AIR BAG MODULE

SR-19

< REMOVAL AND INSTALLATION >

[FOR USA AND CANADA]

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

SIDE CURTAIN AIR BAG MODULE

Exploded View

INFOID:0000000005518909

Removal and Installation

INFOID:0000000005518910

WARNING:

• Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait 3 minutes

or more.

• Never use air tools or electric tools for servicing.

REMOVAL

1.

Remove the headlining.
• Normal roof models: Refer to

INT-27, "NORMAL ROOF : Removal and Installation"

.

• Sunroof models: Refer to

INT-30, "SUNROOF : Removal and Installation"

.

2.

Remove the side curtain air bag harness connector.

CAUTION:

• For installing/removing the side curtain air bag harness

connector, insert thin screwdriver wrapped in tape into
notch, lift lock and remove the connector.

• Install the connector with lock raised, and push lock into

the connector.

• After installing the connector, check that the lock is

pushed securely into it.

3.

Remove the fixing bolts, and then remove the side curtain air bag module.

CAUTION:

1.

Side curtain air bag inflator

2.

Side curtain air bag

3.

Strap

A.

Side curtain air bag harness connec-
tor

B.

Ground bolt

Refer to

GI-4, "Components"

 for symbols in the figure.

JMHIA0513GB

PHIA0953J

SR-20

< REMOVAL AND INSTALLATION >

[FOR USA AND CANADA]

SIDE CURTAIN AIR BAG MODULE

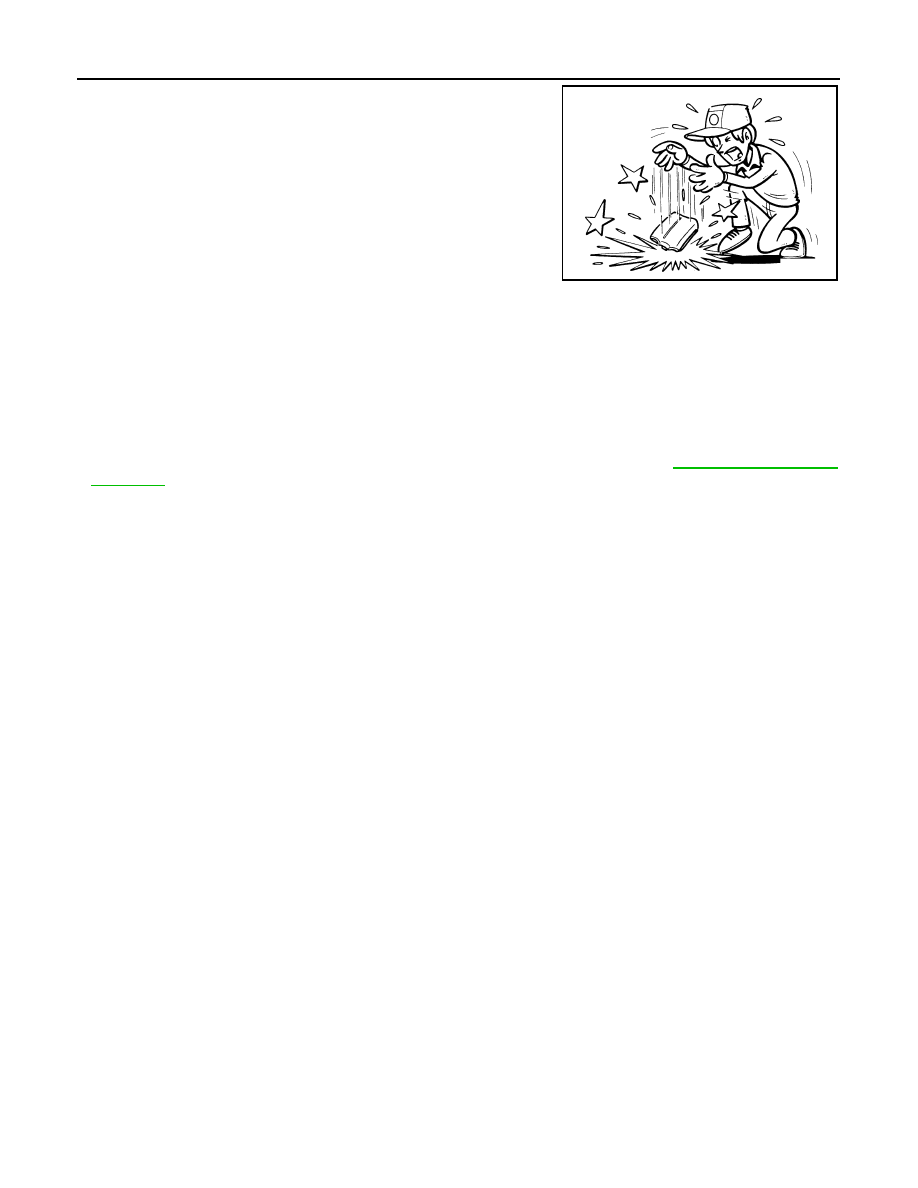

• Never impact the side curtain air bag module.
• Replace the side curtain air bag module if it has been dropped

or sustained an impact.

• Never insert any foreign objects (screwdriver, etc.) into the side curtain air bag module.
• Never disassemble the side curtain air bag module.
• Never expose the side curtain air bag module to temperatures exceeding 90

°

C (194

°

F).

• Never allow oil, grease, detergent, or water to come in contact with the side curtain air bag module.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• If malfunction is detected by the air bag warning lamp, after repair or replacement of the malfunc-

tioning parts, reset the memory using self-diagnosis or CONSULT-III. Refer to

SRC-19, "CONSULT-III

Function"

.

• After the work is completed, check that no system malfunction is detected by air bag warning lamp.
