Nissan Murano Z51. Manual - part 1237





SE-136

< REMOVAL AND INSTALLATION >

HEATED SEAT SWITCH

HEATED SEAT SWITCH

FRONT SEAT

FRONT SEAT : Exploded View

INFOID:0000000005518248

FRONT SEAT : Removal and Installation

INFOID:0000000005518249

REMOVAL

CAUTION:

When removing and installing, use shop cloths to protect from damage.
1.

Remove the console switch finisher (1). Refer to

IP-20, "Exploded View"

2.

Remove front heated seat switch (driver side) (2) from console
switch finisher. With flat bladed screw driver (A).

NOTE:
The same procedure is also performed for passenger side.

INSTALLATION

Install in the reverse order of removal.

REAR SEAT

1.

Front heated seat switch (driver
side)

2.

Front heated seat switch (passenger
side)

3.

Console switch finisher

JMJIA1453ZZ

: Pawl

JMJIA1454ZZ

HEATED SEAT SWITCH

SE-137

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

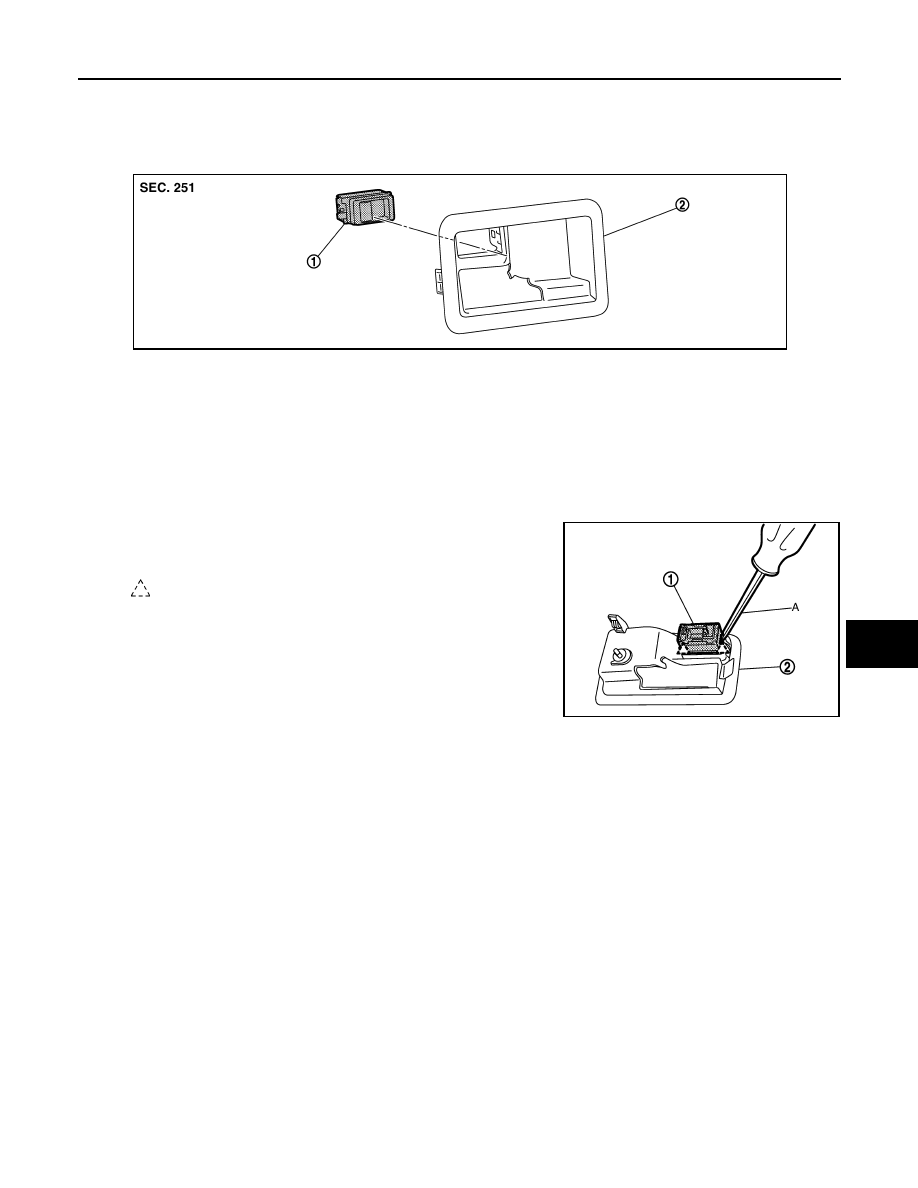

REAR SEAT : Exploded View

INFOID:0000000005518250

REAR SEAT : Removal and Installation

INFOID:0000000005518251

REMOVAL

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.
1.

Remove the heated seat switch finisher (2). Refer to

INT-16, "REAR DOOR FINISHER : Exploded View"

2.

Remove rear heated seat switch (1) from heated seat switch fin-
isher. With flat bladed screw driver (A).

INSTALLATION

Install in the reverse order of removal.

1.

Rear heated seat switch

2.

Heated seat switch finisher

JMJIA1456ZZ

: Pawl

JMJIA1455ZZ

SE-138

< REMOVAL AND INSTALLATION >

FRONT POWER RETURN SWITCH

FRONT POWER RETURN SWITCH

Exploded View

INFOID:0000000005518252

Refer to

IP-12, "Exploded View"

.

Removal and Installation

INFOID:0000000005518253

REMOVAL

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.
1.

Remove the instrument lower panel (LH) (1). Refer to

IP-13, "Removal and Installation"

2.

Remove front power return switch (1) from switch bracket. With
flat bladed screw driver (A).

INSTALLATION

Install in the reverse order of removal.

: Pawl

JMJIA1415ZZ

REAR POWER RETURN SWITCH

SE-139

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

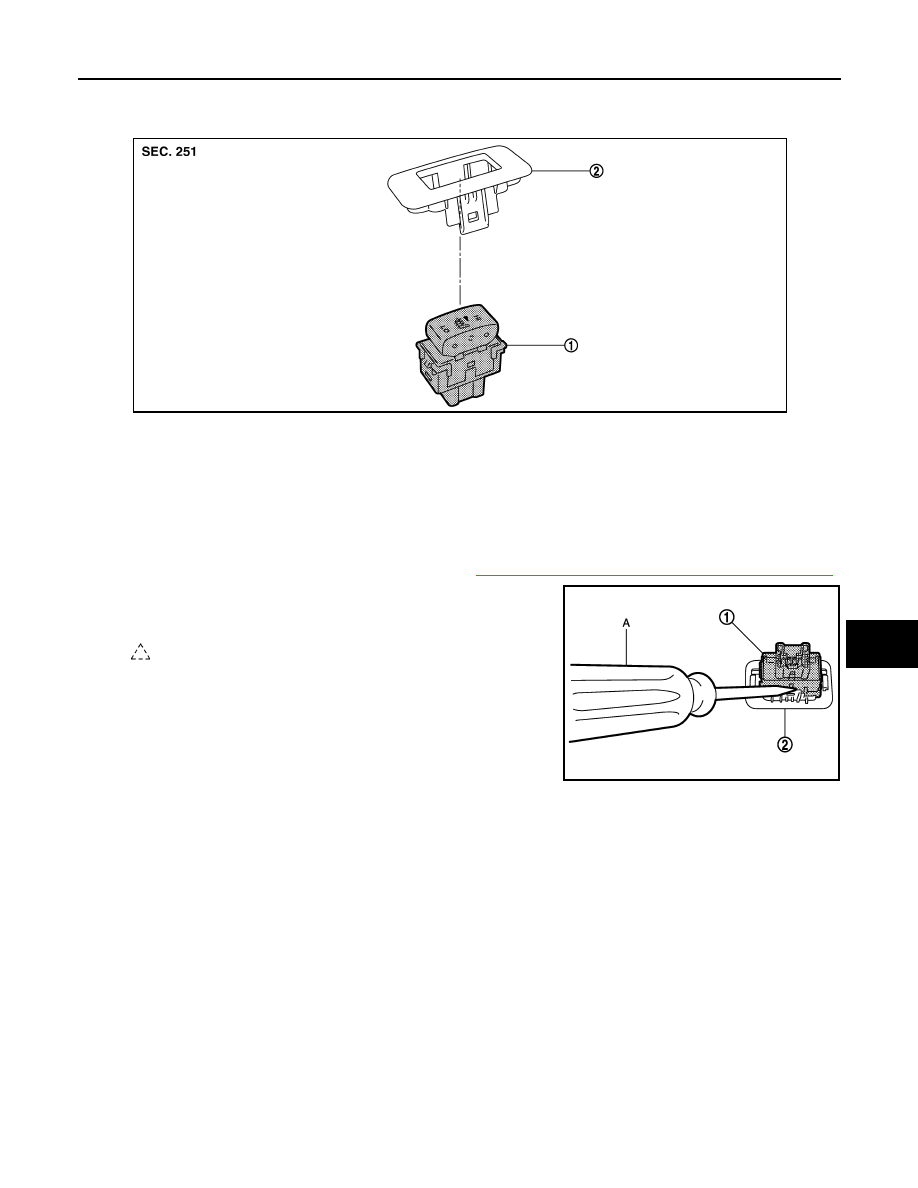

REAR POWER RETURN SWITCH

Exploded View

INFOID:0000000005518254

Removal and Installation

INFOID:0000000005518255

REMOVAL

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.

1.

Remove the seatback control lever escutcheon.

2.

Remove rear power return switch (1) from seatback control lever
escutcheon. With flat bladed screw driver (A).

INSTALLATION

Install in the reverse order of removal.

1.

Rear power return switch

2.

Seatback control lever escutcheon

JMJIA1411ZZ

: Pawl

JMJIA1412ZZ
