Nissan Murano Z51. Manual - part 1236





SE-132

< REMOVAL AND INSTALLATION >

SEATBACK CONTROL CABLE

Removal and Installation

INFOID:0000000005518241

REMOVAL

1.

Remove the seatback control lever escutcheon.

2.

Remove the luggage side lower finisher. Refer to

INT-35, "Removal and Installation"

.

3.

Remove the rear seat assembly. Refer to

SE-122, "Removal and Installation"

4.

Remove the mounting nuts (A), and then remove the seatback
control lever.

5.

Remove the rear seat mount bracket.
• Remove the seat mount bracket mounting bolts (A) and nuts

(B).

• Remove the seatback control cable bush (1).
• Remove the seatback control cable from the vehicle.

INSTALLATION

Install in the reverse order of removal.

16. Seat cushion link bush

17. Reclining device inner cover (out-

side)

18. Reclining device inner cover (inside)

19. Reclining device assembly

20. Reclining device outer cover

21. Reclining cover

22. Rear seat harness (RH)

23. Seatback board

24. Seatback board clip

25. Seatback frame

26. Dynamic dumper

27. Seatback control lever escutcheon

28. Seatback control cable

29. Seatback silencer

Refer to

GI-4, "Components"

for symbols in the figure.

JMJIA1448ZZ

JMJIA1464ZZ

REAR SEAT BACK POWER RETURN CONTROL UNIT

SE-133

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

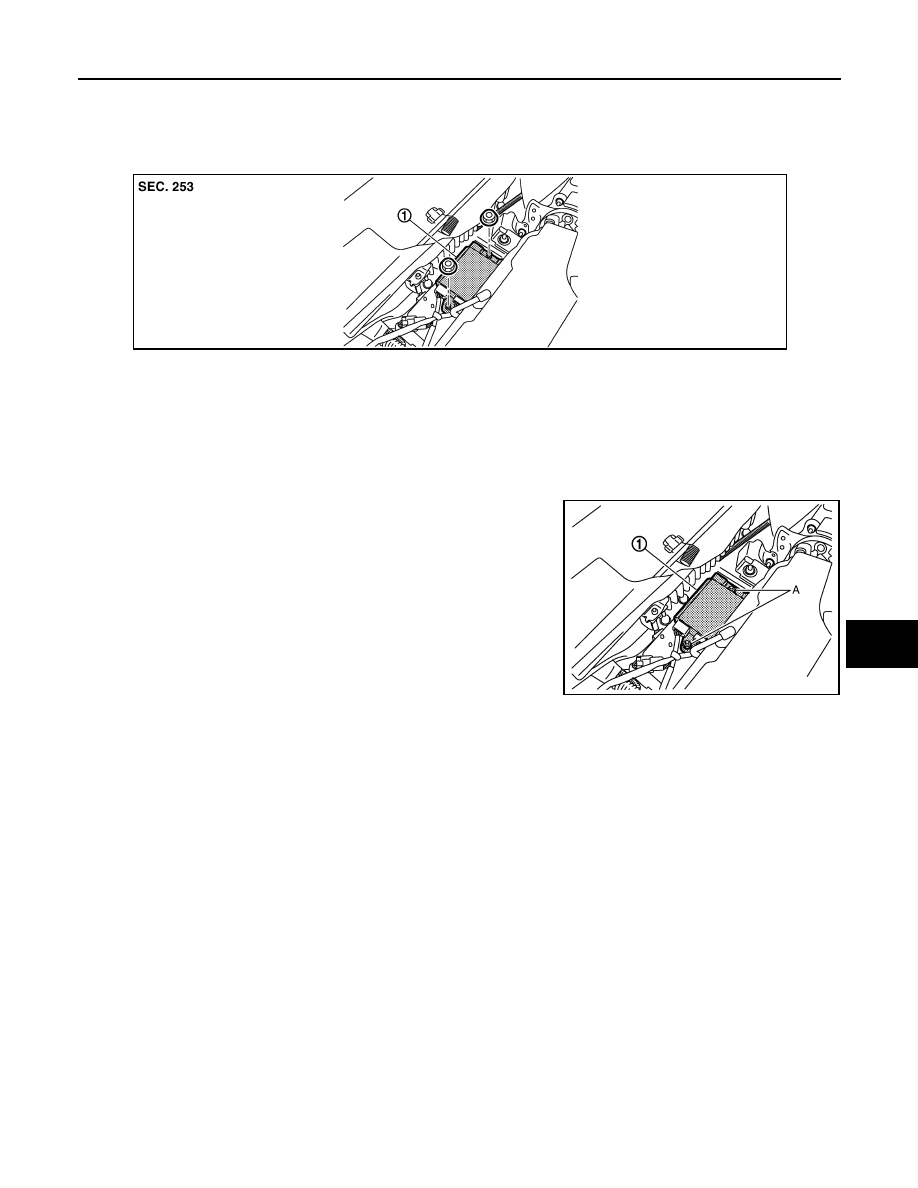

REAR SEAT BACK POWER RETURN CONTROL UNIT

Exploded View

INFOID:0000000005518242

Removal and Installation

INFOID:0000000005518243

REMOVAL

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.

1.

Remove mounting nuts (A).

2.

Remove rear seatback power return control unit (1).

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Be sure to clump the harness to the right place.

1.

Rear seatback power return control unit

JMJIA1413ZZ

JMJIA1414ZZ

SE-134

< REMOVAL AND INSTALLATION >

POWER SEAT SWITCH

POWER SEAT SWITCH

Exploded View

INFOID:0000000005518244

Refer to

SE-105, "Exploded View"

.

Removal and Installation

INFOID:0000000005518245

REMOVAL

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.

1.

Remove the seat cushion outer finisher (1). Refer to

SE-112,

"Removal and Installation"

.

2.

Remove screws (A).

3.

Remove the power seat switch (2) from the seat cushion outer
finisher.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Be sure to clump the harness to the right place.

JMJIA1451ZZ

LUMBAR SUPPORT SWITCH

SE-135

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

LUMBAR SUPPORT SWITCH

Exploded View

INFOID:0000000005518246

Refer to

SE-105, "Exploded View"

.

Removal and Installation

INFOID:0000000005518247

REMOVAL

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.
1.

Remove the seat cushion outer finisher (1). Refer to

SE-112, "Removal and Installation"

.

2.

Remove the lumbar support switch (2) from the seat cushion
outer finisher. With flat bladed screw driver (A).

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Be sure to clump the harness to the right place.

: Pawl

JMJIA1468ZZ
