Nissan Murano Z51. Manual - part 1233





SE-120

< REMOVAL AND INSTALLATION >

REAR SEAT

REAR SEAT

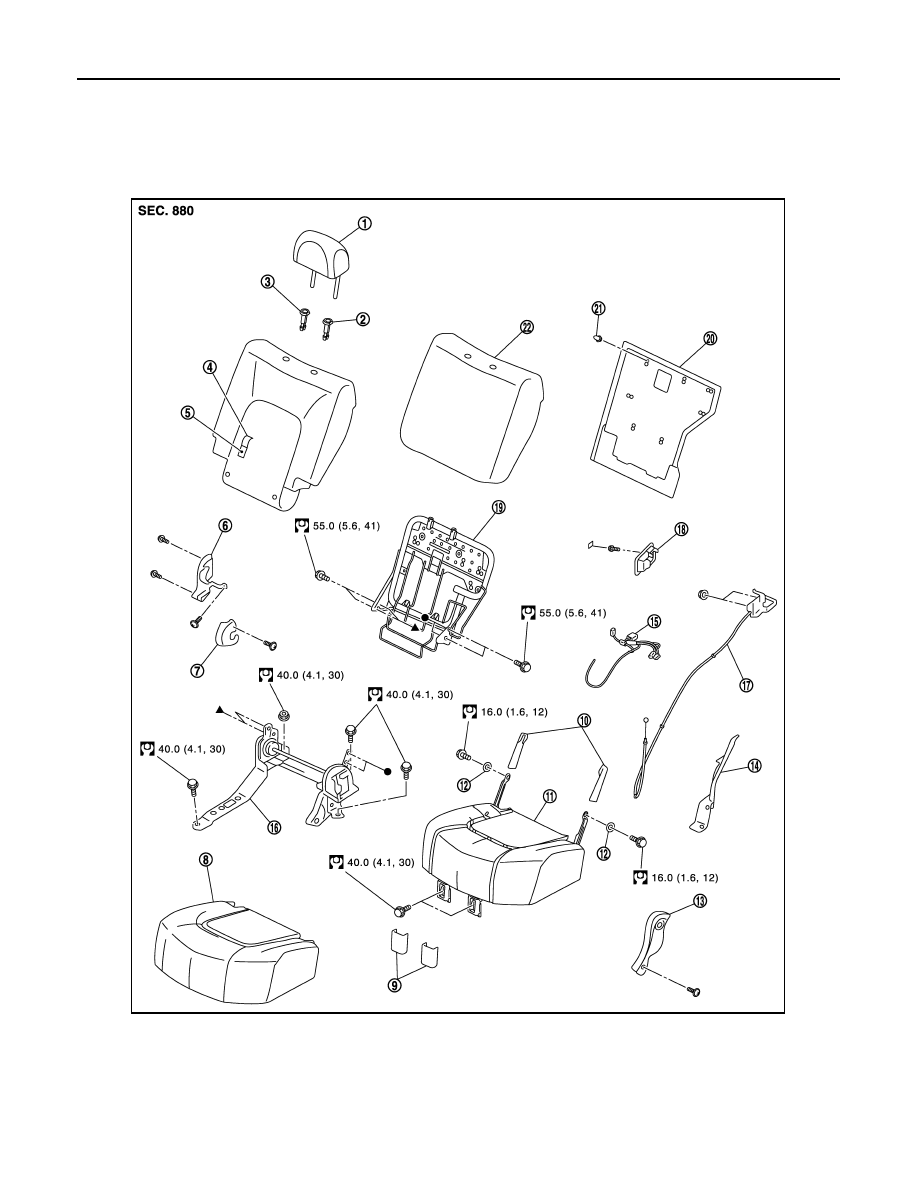

Exploded View

INFOID:0000000005518237

REAR SEAT (LH SIDE)

1.

Headrest (LH)

2.

Headrest holder (locked)

3.

Headrest holder (free)

4.

Seatback trim

5.

Seatback pad

6.

Reclining device inner cover (out-
side)

7.

Reclining device inner cover (inside) 8.

Seat cushion trim

9.

Seat cushion hinge cover

10. Seat cushion link cover

11.

Seat cushion pad and frame

12. Seat cushion link bush

13. Reclining device outer cover

14. Reclining cover

15. Rear seat harness (LH)

JMJIA1466GB

REAR SEAT

SE-121

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

REAR SEAT (RH SIDE)

16. Reclining device assembly

17. Seatback control cable

18. Seatback control lever escutcheon

19. Seatback frame

20. Seatback board

21. Seatback board clip

22. Seatback silencer

Refer to

GI-4, "Components"

for symbols in the figure.

1.

Headrest (RH)

2.

Headrest (center)

3.

Headrest holder (locked)

4.

Headrest holder (free)

5.

Seatback trim

6.

Seatback pad

7.

Armrest inner cover

8.

Cup holder

9.

Armrest

10. Armrest bush

11.

Armrest outer cover

12. Seat cushion trim

13. Seat cushion hinge cover

14. Seat cushion link cover

15. Seat cushion pad and frame

JMJIA1465GB

SE-122

< REMOVAL AND INSTALLATION >

REAR SEAT

Removal and Installation

INFOID:0000000005518238

REMOVAL

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.

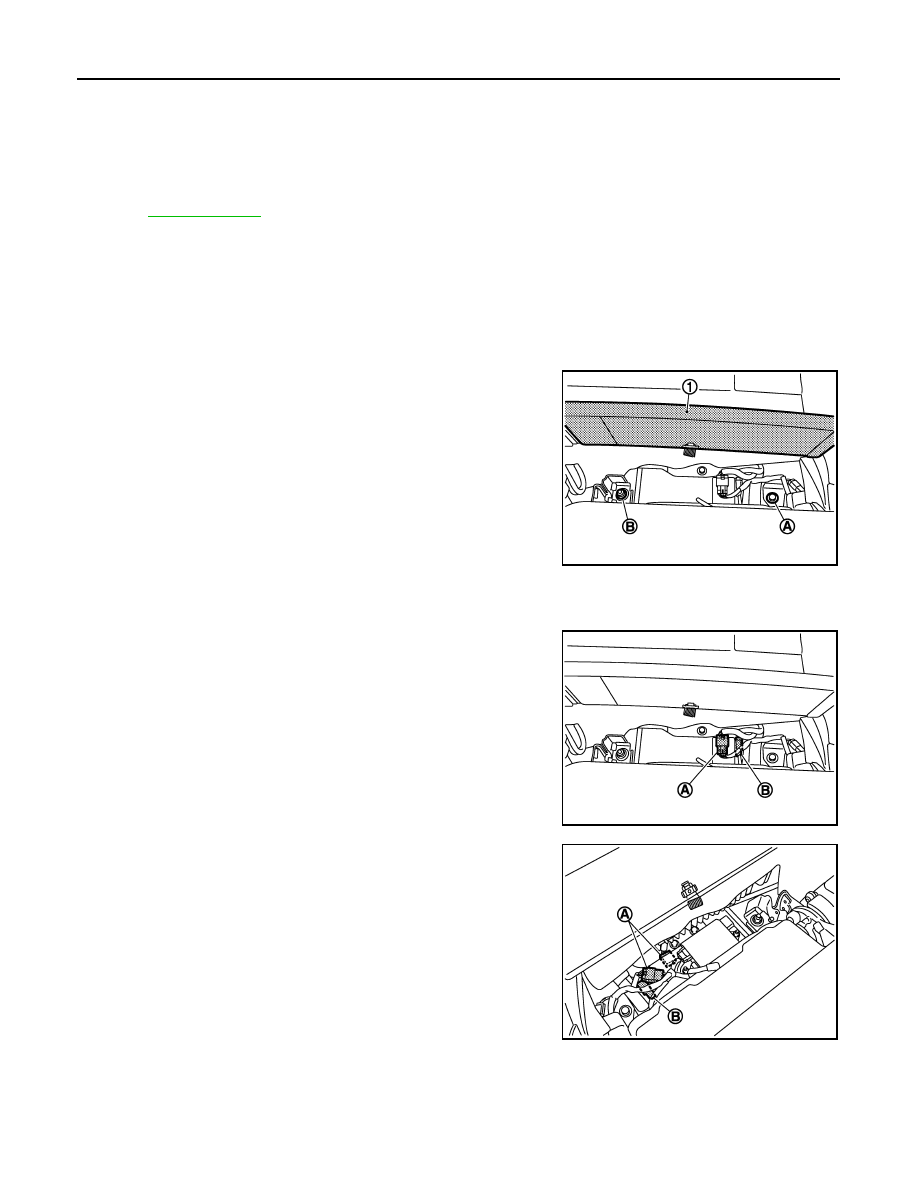

1.

Remove the seat mounting bolts and nuts.
• Pull up the luggage floor finisher front (1).
• Remove the seat mounting bolt (A) and nut (B).

2.

Disconnect the rear seat harness connector (A) and heater unit harness connector (B). (Power return seat
and heater seat model only)

a.

LH side

b.

RH side

3.

Remove the reclining cover.

16. Seat cushion link bush

17. Reclining device inner cover (out-

side)

18. Reclining device inner cover (inside)

19. Reclining device assembly

20. Reclining device outer cover

21. Reclining cover

22. Rear seat harness (RH)

23. Seatback board

24. Seatback board clip

25. Seatback frame

26. Dynamic dumper

27. Seatback control lever escutcheon

28. Seatback control cable

29. Seatback silencer

Refer to

GI-4, "Components"

for symbols in the figure.

JMJIA1476ZZ

JMJIA1477ZZ

JMJIA1478ZZ

REAR SEAT

SE-123

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

4.

Remove the seatback control cable (1) from reclining device
assembly and seat mounting bolt (A).

5.

Remove the seat cushion hinge cover.

6.

Remove the rear seat mounting bolts (A).

7.

Pull up the seat cushion and remove the seat mounting bolt (A).

8.

Remove the rear seat assembly from back door.

INSTALLATION

NOTE:
Tighten  rear seat mouniting bolts and nuts following the numerical order shown in the figure.
1.

Install the rear seat mounting bolt on behind the seatback (out
side) and nut on behind the seatback (inside).

2.

Install the rear seat mounting bolt on the seat cushion out side.

3.

Connect the rear seat harness connector and heater harness connector. (Power return seat and heater
seat only)

JMJIA1479ZZ

JMJIA1480ZZ

JMJIA1481ZZ

JMJIA1683ZZ
