SE-112

< REMOVAL AND INSTALLATION >

FRONT SEAT

Removal and Installation

INFOID:0000000005518235

REMOVAL

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.

1.

Remove the headrest.

2.

Remove the front slide cover.

3.

Remove the mounting bolts on the front side of the front seat.

4.

Remove the rear slide cover.

5.

Remove the mounting bolts on the rear side of the front seat.

6.

Set seatback in a standing position.

7.

Disconnect harness connector under the seat and remove harness securing clips.

CAUTION:

Before removal, turn ignition switch OFF, disconnect battery negative terminal and then wait for at
least 3 minutes.

8.

Remove seat from the vehicle.

CAUTION:

• When removing and installing, use shop cloths to protect parts from damage.
• When removing and installing, 2 workers are required so as to prevent it from dropping.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Before installation, turn ignition switch OFF, disconnect battery negative terminal and then wait for

at least 3 minutes.

• Clamp the harness in position.
NOTE:
After installing the front seat, perform additional service when removing battery negative terminal.(With auto-
matic drive positioner model) Refer to

ADP-8, "ADDITIONAL SERVICE WHEN REMOVING BATTERY NEGA-

TIVE TERMINAL : Description"

.

Disassembly and Assembly

INFOID:0000000005518236

SEATBACK

Disassembly

1.

Remove the seatback board.
• Remove the seatback board band from seat cushion bottom

side.

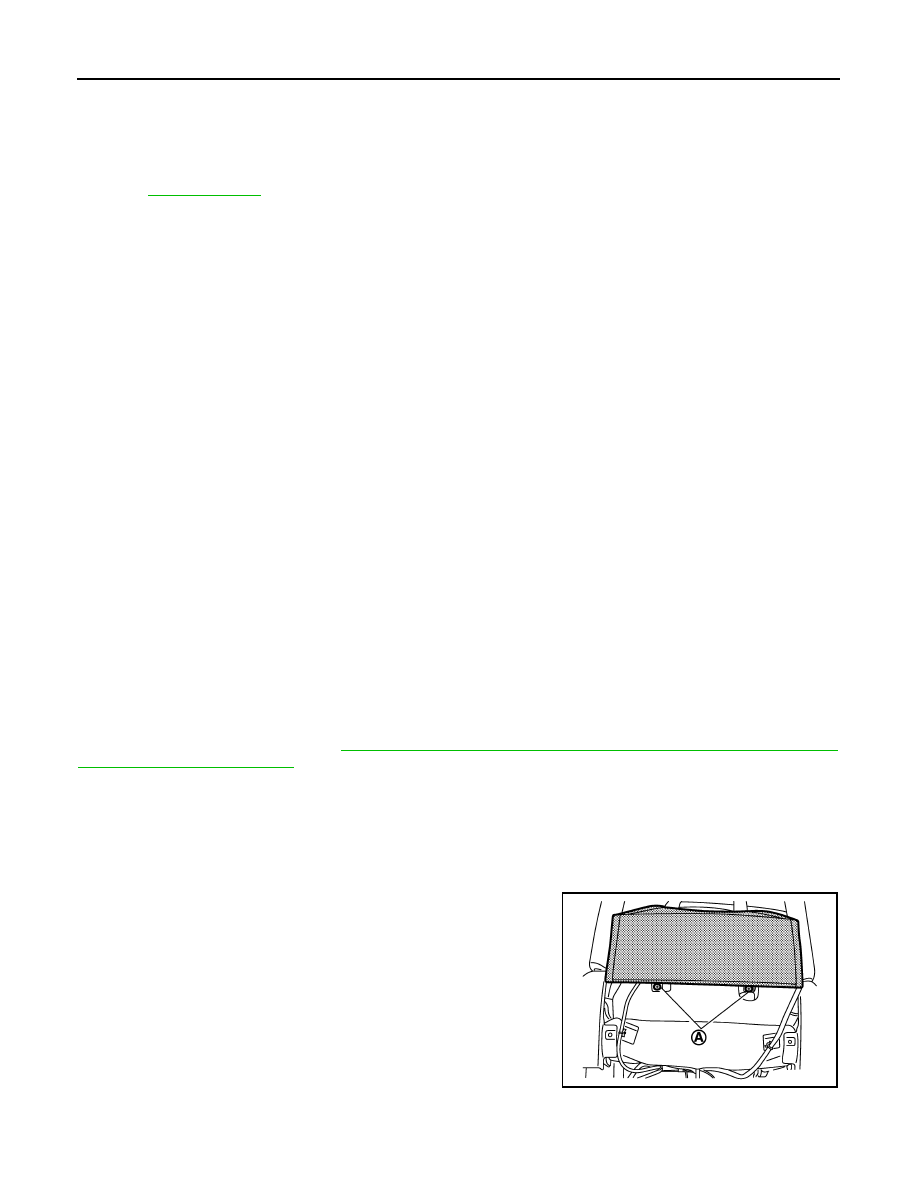

• Remove the seatback board mounting screws (A).

16. Seat belt buckle

17. Seat cushion inner finisher outside

18. Seat cushion inner finisher inside

(left)

19. Seat cushion trim

20. Seat cushion pad

21. Seatback trim

22. Seatback pad

23. Seatback silencer

24. Seatback frame

25. Seat cushion assembly

Refer to

GI-4, "Components"

 for symbols in the figure.

JMJIA1420ZZ

FRONT SEAT

SE-113

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

• Pull down the seatback board to release the pawls.

2.

Disconnect the harness connectors and remove the harness clamps.
• Remove the seatback trim retainer (1).

• Disconnect the seatback heater harness connector (A)

(Heater seat only), lumbar support harness connector (B)
(Driver's seat only) and reclining motor harness connector (C)
(Power seat only).

3.

Remove the side air bag module.
• Remove the seatback trim retainer.
• Remove the side air bag module cover mounting screws (A).
• Remove the side air bag module.

4.

Remove the lumbar support lever knob. (Manual lumbar support seat only.)

: Pawl

JMJIA1421ZZ

JMJIA1422ZZ

JMJIA1423ZZ

JMJIA1424ZZ

SE-114

< REMOVAL AND INSTALLATION >

FRONT SEAT

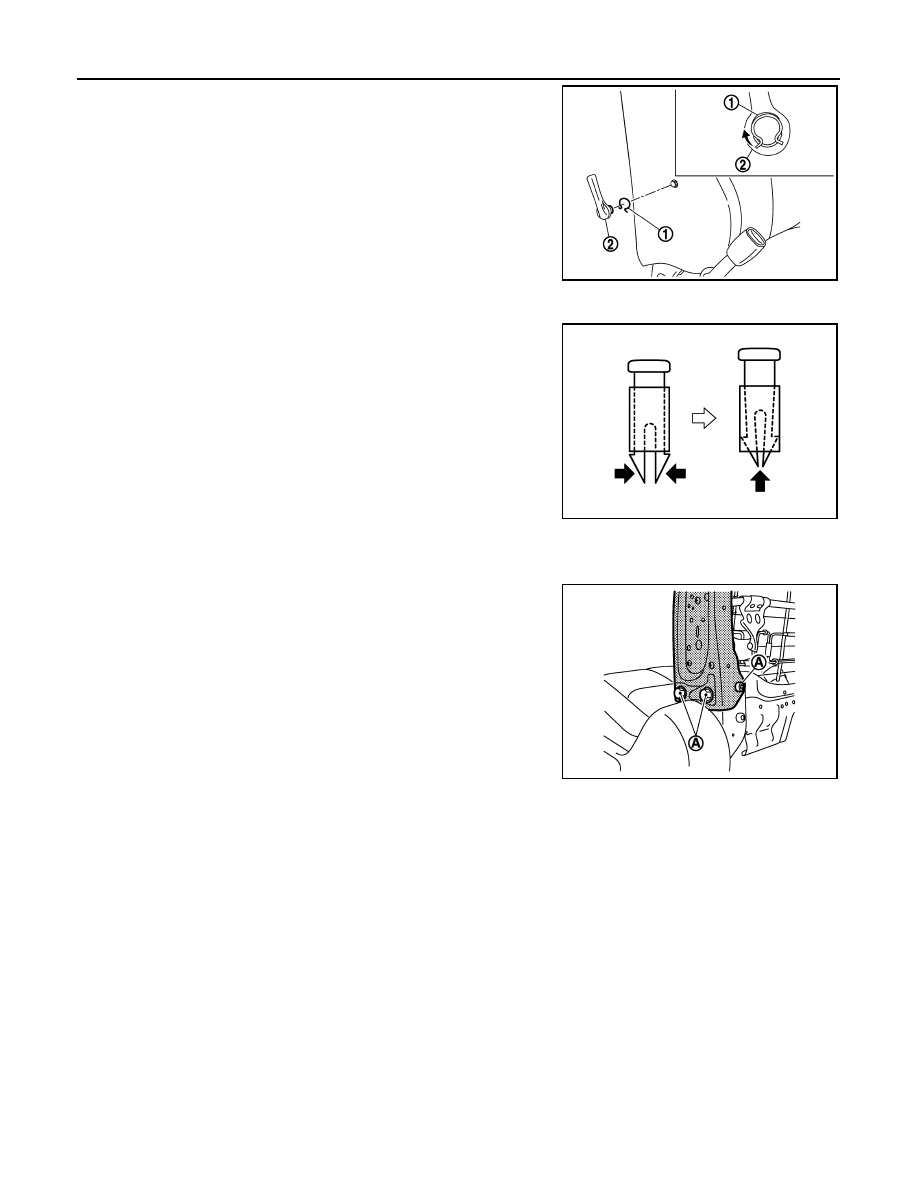

Pull snap ring (1) upward, and remove lumbar support lever
knob (2) from seatback frame with hook and pick tool.

5.

Remove the seatback trim and seatback pad.
• Remove the headrest holder.

CAUTION:

Before installing headrest holder check its orientation.
(front/rear and right/left)

• Remove the seatback trim and seatback pad from the seat-

back frame.

• Remove the hog rings, and separate the seatback trim and

seatback pad.

6.

Remove the seatback silencer.

7.

Remove the seatback frame.
Remove the seatback frame mounting bolts (A).

Assembly

Assemble in the reverse order of disassembly.

CAUTION:

Install the hog rings of seatback trim in position, and then securely connect the trim or trim cord with
the pad side wire.

SEAT CUSHION

Disassembly

CAUTION:

Never disassemble front passenger seat cushion assembly.
Always replace as an assembly.
For front passenger seat service parts, refer to the service part catalogue.
1.

Remove the seatback board.

JMJIA0252ZZ

PIIB4084J

JMJIA1425ZZ

FRONT SEAT

SE-115

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

• Remove the seatback board fixing band on the bottom of seat

cushion.

• Remove the seatback board mounting screws (A).

• Pull down the seatback board to release the pawls.

2.

Disconnect the harness connectors and remove the harness clamps.
• Remove the seatback trim retainer (1).

• Remove the seatback heater harness connector (A), lumbar

support harness connector (B) (Driver's power seat only) and
reclining motor harness connector (C).

JMJIA1420ZZ

: Pawl

JMJIA1421ZZ

JMJIA1422ZZ

JMJIA1423ZZ
