Nissan Murano Z51. Manual - part 1230

SE-108

< REMOVAL AND INSTALLATION >

FRONT SEAT

PASSENGER'S POWER SEAT

CAUTION:

Never disassembly the component parts of only front passenger seat in the dotted lines shown in the
figure below. (With occupant classification system control unit model)

16. Front outer slide cover

17. Lifter lever knob finisher

18. Lifter lever

19. Reclining lever

20. Seat cushion outer finisher outside

21. Seat cushion outer finisher inside

(left)

22. Seat slide outer cover

23. Rear outer slide cover

24. Rear inner slide cover

25. Side air bag module cover

26. Side air bag module

27. Side air bag module mounting brack-

et

28. Seatback board

29. Seatback silencer

Refer to

GI-4, "Components"

 for symbols in the figure.

FRONT SEAT

SE-109

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

1.

Headrest

2.

Headrest holder (locked)

3.

Headrest holder (free)

4.

Seatback board

5.

Side air bag module mounting brack-
et

6.

Side air bag module

7.

Side air bag module cover

8.

Rear outer slide cover

9.

Rear inner slide cover

10. Seat cushion outer finisher outside

11.

Seat cushion outer finisher inside
(right)

12. Seat reclining switch knob

13. Seat control switch knob

14. Seat control switch

15. Seat harness

JMJIA1417GB

SE-110

< REMOVAL AND INSTALLATION >

FRONT SEAT

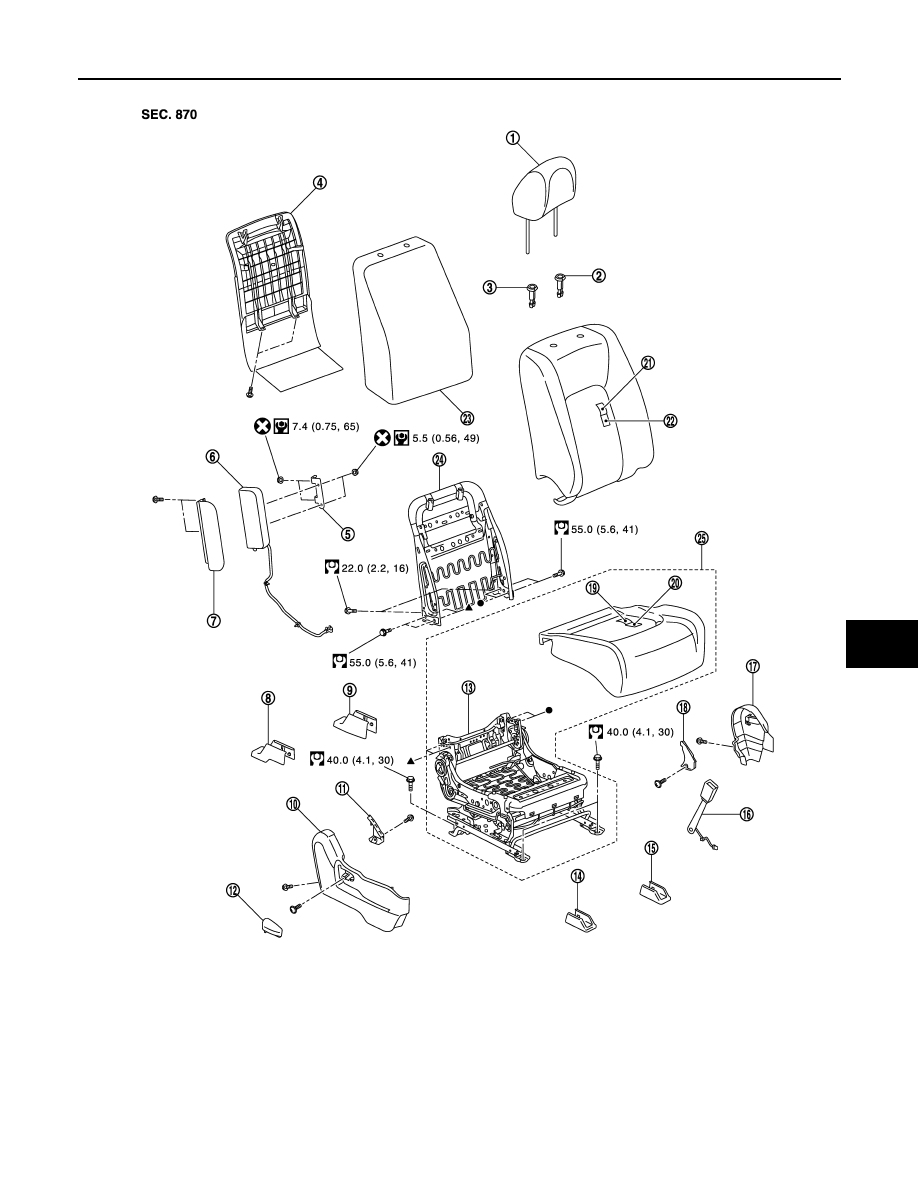

PASSENGER'S MANUAL SEAT

CAUTION:

Never disassembly the component parts of only front passenger seat in the dotted lines shown in the
figure below. (With occupant classification system control unit model)

16. Front outer slide cover

17. Front inner slide cover

18. Seat cushion front finisher

19. Seat cushion inner finisher outside

20. Seat cushion inner finisher inside

(left)

21. Seat belt buckle

22. Seat cushion trim

23. Seat cushion pad

24. Seat cushion frame

25. Seatback trim

26. Seatback pad

27. Seatback silencer

28. Seatback frame

29. Seat cushion assembly

Refer to

GI-4, "Components"

 for symbols in the figure.

FRONT SEAT

SE-111

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

1.

Headrest

2.

Headrest holder (locked)

3.

Headrest holder (free)

4.

Seatback board

5.

Side air bag module mounting brack-
et

6.

Side air bag module

7.

Side air bag module cover

8.

Rear outer slide cover

9.

Rear inner slide cover

10. Seat cushion outer finisher outside

11.

Seat cushion outer finisher inside
(right)

12. Reclining lever

13. Seat cushion frame

14. Front outer slide cover

15. Front inner slide cover

JMJIA1419GB
