SUNROOF MOTOR ASSEMBLY

SUNROOF MOTOR ASSEMBLY

Reference Value

INFOID:0000000005516847

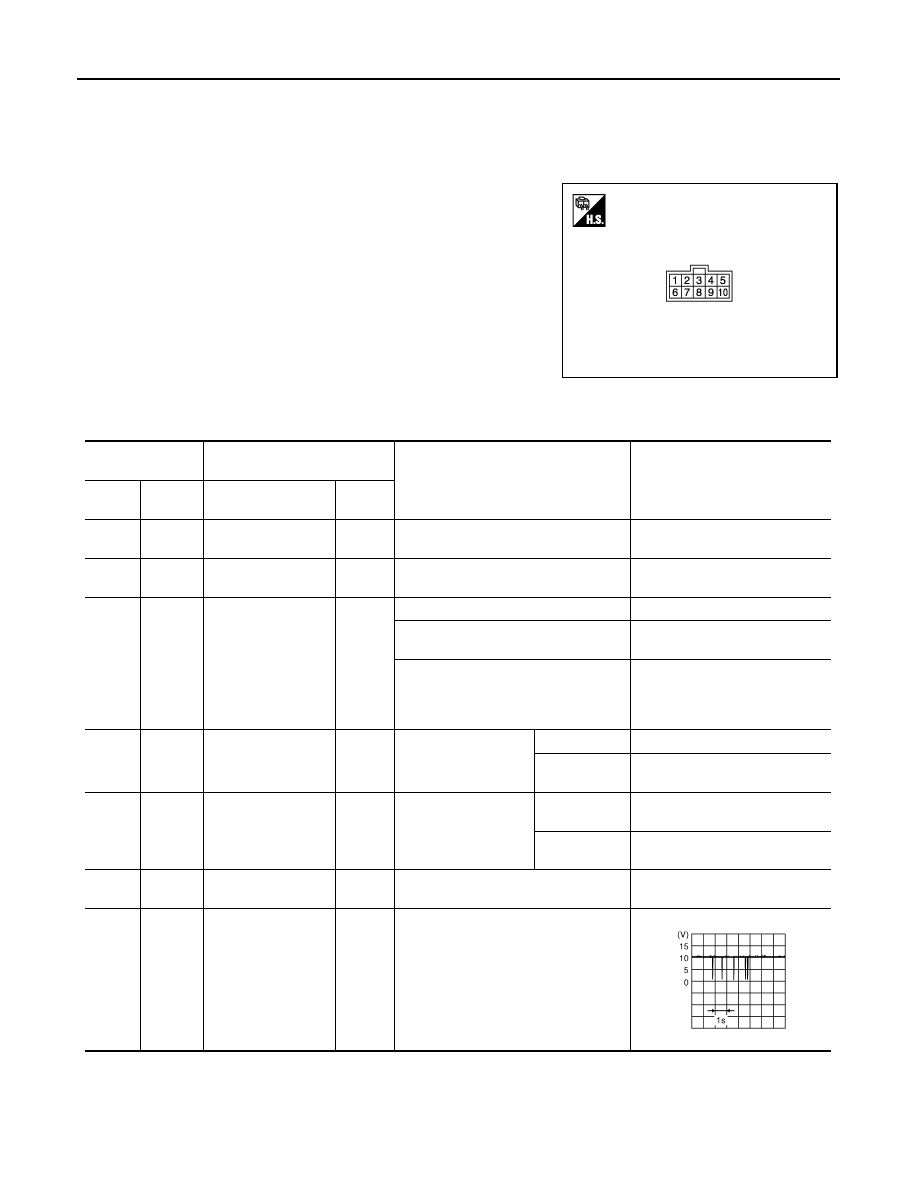

TERMINAL LAYOUT

PHYSICAL VALUES

JMKIA2225ZZ

Terminal No.

(Wire color)

Description

Condition

Voltage (V)

(Approx.)

+

-

Signal name

Input/

Output

1

(B)

Ground

Ground

—

—

0

2

(O)

Ground

Ground

—

—

0

3

(L)

Ground

RAP signal

Input

Ignition switch ON

Battery voltage

Within 45 second after ignition switch is
turned to OFF.

Battery voltage

When driver side or passenger side door
is opened during retained power opera-
tion or retained power operation is fin-
ished.

0

4

(Y)

Ground

Sunroof switch signal
(PUSH)

Input

Sunroof switch

PUSH

0

Other than
above

Battery voltage

5

(LG)

Ground

Sunroof switch signal
(OPEN)

Input

Sunroof switch

OPEN
(1st and 2nd)

0

Other than
above

Battery voltage

6

(R)

Ground

Battery voltage

—

—

Battery voltage

7

(P)

Ground

Communication line

Input/

Output

Ignition switch ON

JMKIA1869ZZ

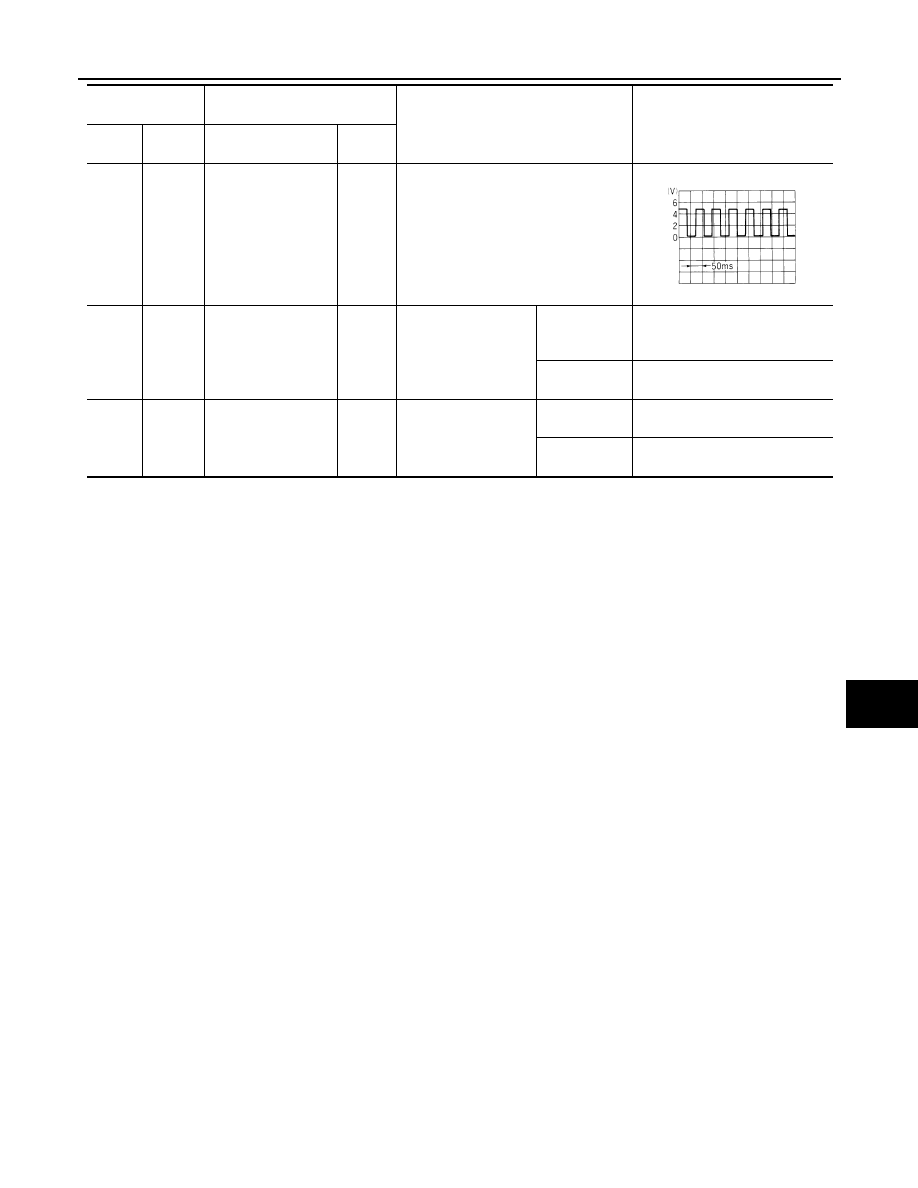

SUNROOF MOTOR ASSEMBLY

RF-65

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

8

(BR)

Ground

Vehicle speed signal
(2-pulse)

Input

Speed meter operated [When vehicle
speed is approx. 40km/h (25MPH)]

9

(W)

Ground

Sunroof switch signal
(2nd)

Input

Sunroof switch

OPEN or
CLOSE
(2nd)

0

Other than
above

Battery voltage

10

(V)

Ground

Sunroof switch signal
(CLOSE)

Input

Sunroof switch

CLOSE
(1st and 2nd)

0

Other than
above

Battery voltage

Terminal No.

(Wire color)

Description

Condition

Voltage (V)

(Approx.)

+

-

Signal name

Input/

Output
