RF-56

< ECU DIAGNOSIS INFORMATION >

BCM (BODY CONTROL MODULE)

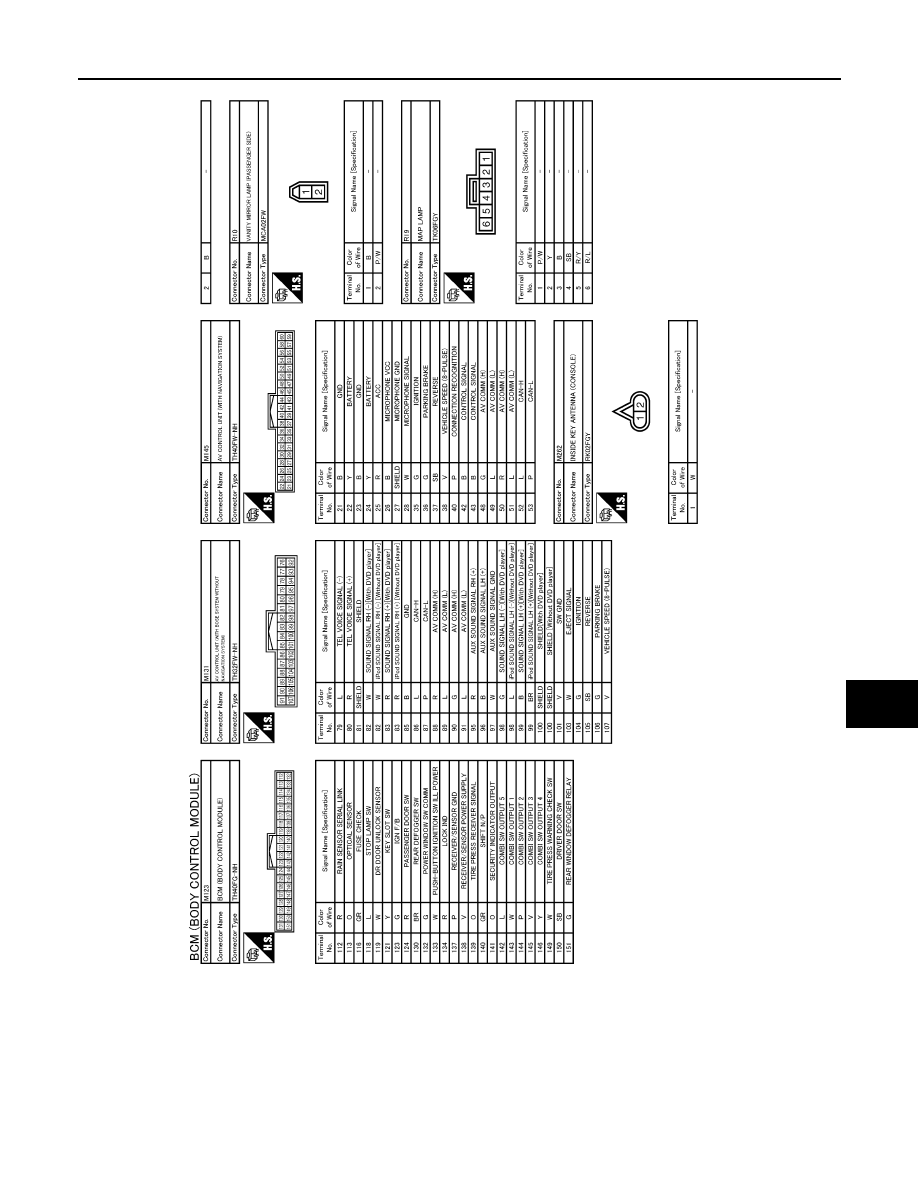

JCMWM4878GB

BCM (BODY CONTROL MODULE)

RF-57

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

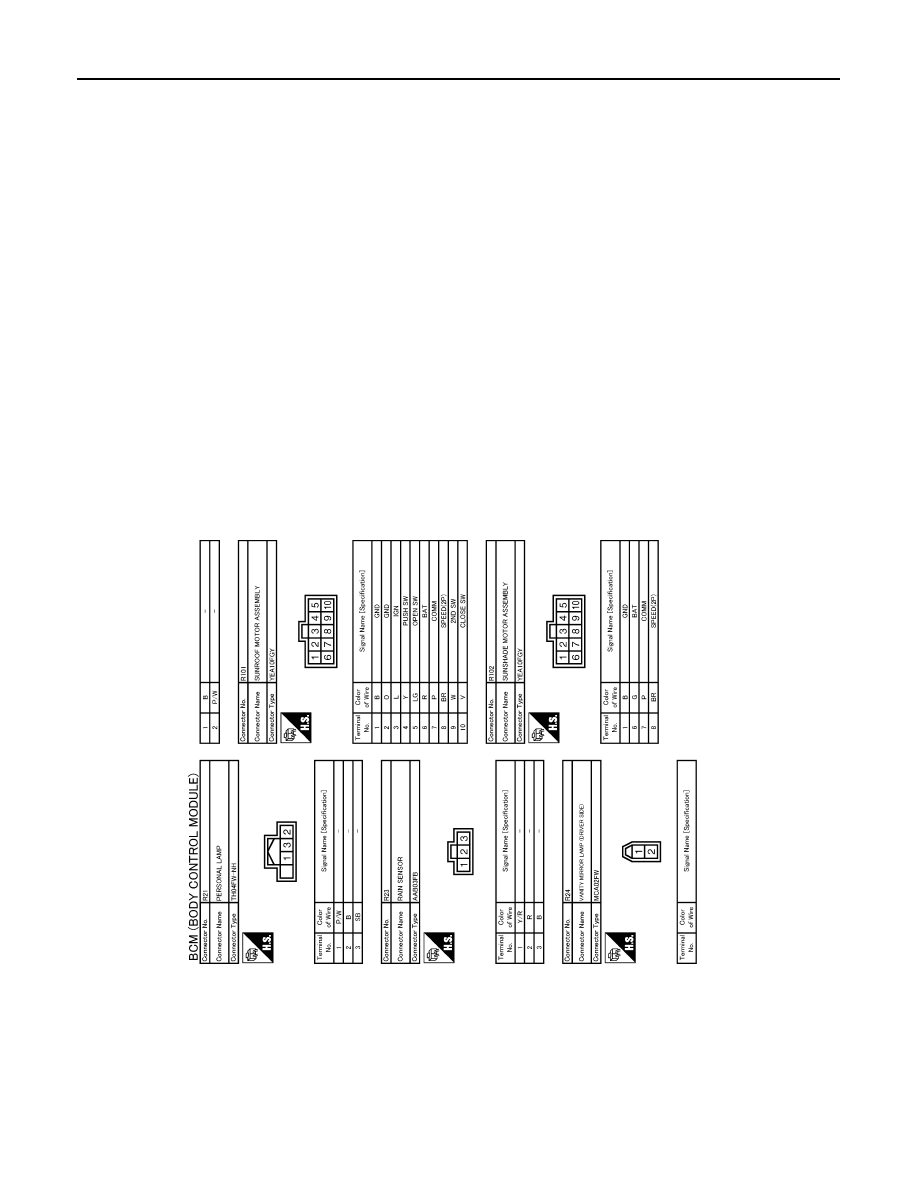

JCMWM4879GB

RF-58

< ECU DIAGNOSIS INFORMATION >

BCM (BODY CONTROL MODULE)

Fail-safe

INFOID:0000000005681520

FAIL-SAFE CONTROL BY DTC

BCM performs fail-safe control when any DTC are detected.

JCMWM4880GB

BCM (BODY CONTROL MODULE)

RF-59

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

Display contents of CONSULT

Fail-safe

Cancellation

B2013: ID DISCORD BCM-S/L

Inhibit engine cranking

Erase DTC

B2014: CHAIN OF S/L-BCM

Inhibit engine cranking

Erase DTC

B2190: NATS ANTENNA AMP

Inhibit engine cranking

Erase DTC

B2191: DIFFERENCE OF KEY

Inhibit engine cranking

Erase DTC

B2192: ID DISCORD BCM-ECM

Inhibit engine cranking

Erase DTC

B2193: CHAIN OF BCM-ECM

Inhibit engine cranking

Erase DTC

B2195: ANTI SCANNING

Inhibit engine cranking

Ignition switch ON

→

 OFF

B2557: VEHICLE SPEED

Inhibit steering lock

When normal vehicle speed signals are received from ABS actua-
tor and electric unit (control unit) for 500 ms

B2560: STARTER CONT RELAY

Inhibit engine cranking

500 ms after the following CAN signal communication status be-
comes consistent
• Starter control relay signal
• Starter relay status signal

B2601: SHIFT POSITION

Inhibit steering lock

500 ms after the following signal reception status becomes consis-
tent
• Selector lever P position switch signal
• P range signal (CAN)

B2602: SHIFT POSITION

Inhibit steering lock

5 seconds after the following BCM recognition conditions are ful-
filled
• Ignition switch is in the ON position
• Selector lever P position switch signal: Except P position (battery

voltage)

• Vehicle speed: 4 km/h (2.5 MPH) or more

B2603: SHIFT POSI STATUS

Inhibit steering lock

500 ms after the following BCM recognition conditions are fulfilled
• Ignition switch is in the ON position
• Selector lever P position switch signal: Except P position (battery

voltage)

• Selector lever P/N position signal: Except P and N positions (0 V)

B2604: PNP SW

Inhibit steering lock

500 ms after any of the following BCM recognition conditions are
fulfilled
• Status  1
- Ignition switch is in the ON position
- Selector lever P/N position signal: P and N position (battery volt-

age)

- P range signal or N range signal (CAN): ON
• Status  2
- Ignition switch is in the ON position
- Selector lever P/N position signal: Except P and N positions (0 V)
- P range signal and N range signal (CAN): OFF

B2605: PNP SW

Inhibit steering lock

500 ms after any of the following BCM recognition conditions are
fulfilled
• Ignition switch is in the ON position
- Power position: IGN
- Selector lever P/N position signal: Except P and N positions (0 V)
- Interlock/PNP switch signal (CAN): OFF
• Status  2
- Ignition switch is in the ON position
- Selector lever P/N position signal: P or N position (battery volt-

age)

- PNP switch signal (CAN): ON

B2606: S/L RELAY

Inhibit engine cranking

500 ms after the following CAN signal communication status be-
comes consistent
• Steering lock relay signal (Request signal)
• Steering lock relay signal (Condition signal)
