BOSE AMP.
AV-243
< ECU DIAGNOSIS INFORMATION >
[BOSE AUDIO WITHOUT NAVIGATION]
C
D
E
F
G
H
I
J
K
L
M
B
A
O
P

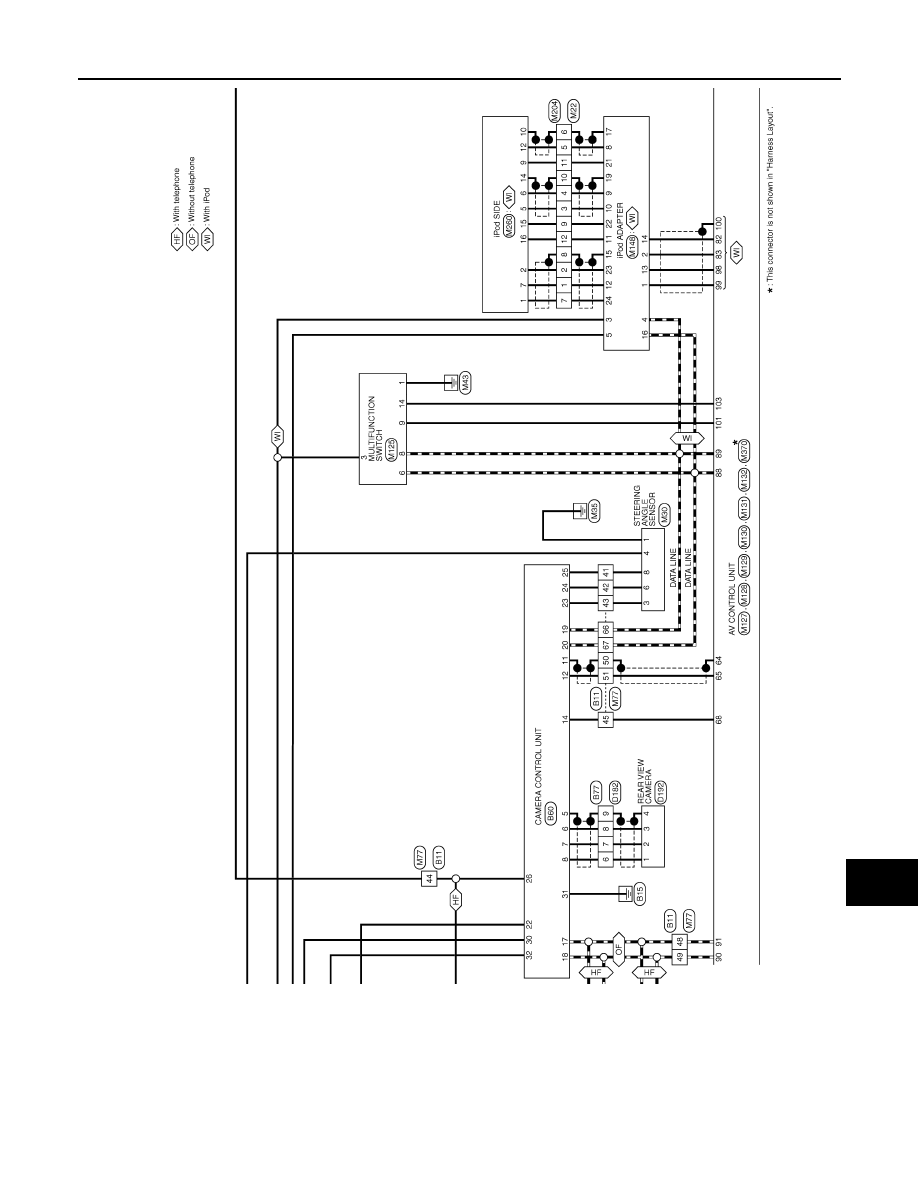

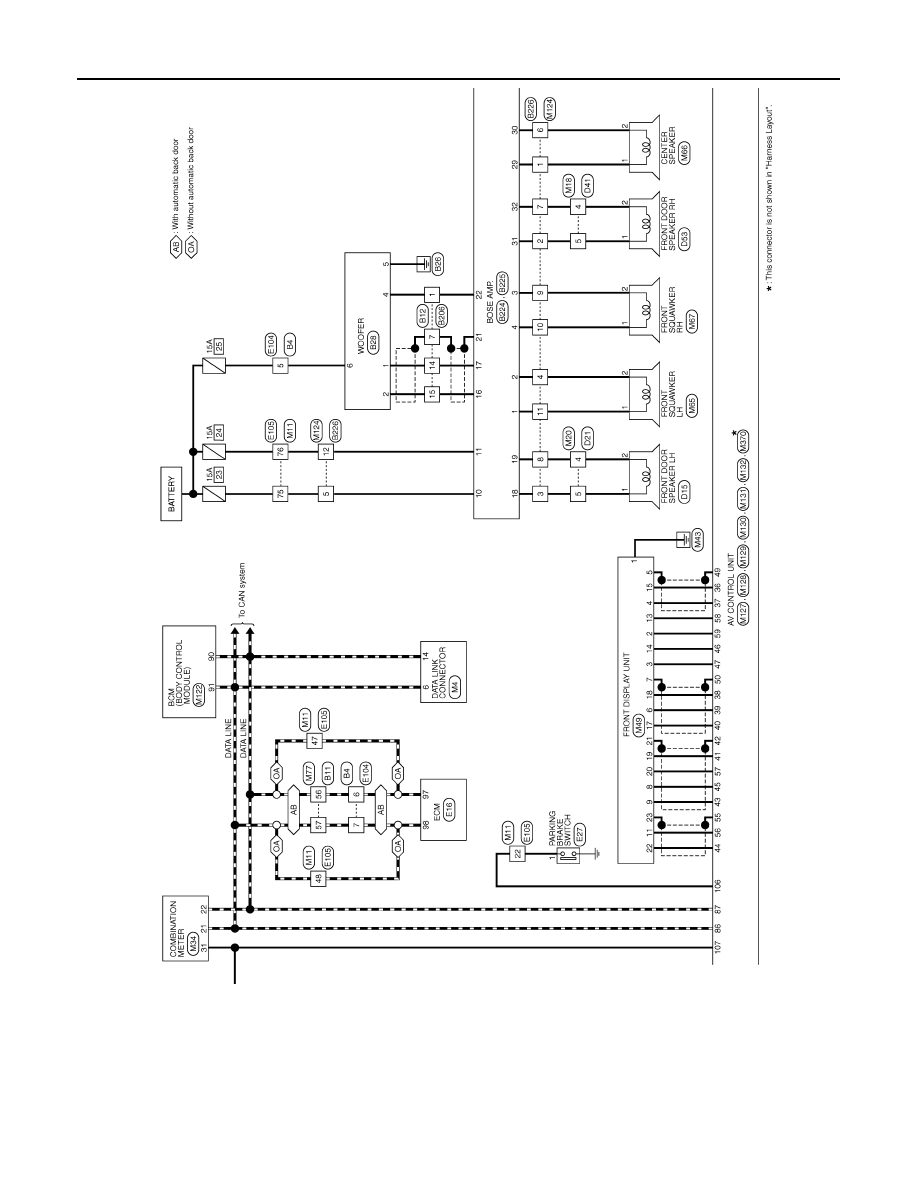

Wiring Diagram - BOSE AUDIO WITHOUT NAVIGATION WITHOUT DVD ENTER-
TAINMENT SYSTEM -
INFOID:0000000005528587
NOTE:
26
(GR/V)
25
(W/L)
Sound signal rear RH
Input
Ignition
switch
ON
Sound output.
28
(G)
15
(R)
Sound signal rear door
speaker LH
Output
Ignition
switch
ON
Sound output.
29
(V)
30
(P)
Sound signal center speak-
er
Output
Ignition
switch
ON
Sound output.
31
(BR)
32
(Y)
Sound signal front door
speaker RH
Output
Ignition
switch
ON
Sound output.
33
(W/R)
34
(B/R)
Sound signal front RH
Input
Ignition
switch
ON
Sound output.
35
(W/R)
36
(B/R)
Sound signal front LH
Input
Ignition
switch
ON
Sound output.
Terminal
(Wire color)
Description
Condition
Reference value
(Approx.)
+
–
Signal name
Input/
Output
SKIB3609E
SKIB3609E
SKIB3609E
SKIB3609E
SKIB3609E
SKIB3609E
