PARKING BRAKE SHOE

PB-5

< PERIODIC MAINTENANCE >

C

D

E

G

H

I

J

K

L

M

A

B

PB

N

O

P

PARKING BRAKE SHOE

Adjustment

INFOID:0000000005516250

1.

Adjust parking brake pedal stroke. Refer to

PB-3, "Inspection and Adjustment"

.

2.

Perform parking brake break-in (drag on) operation by driving vehicle under the following conditions:
• Drive forward
• Vehicle speed: Approx. 40 km/h (25 MPH) set (constant and forward)
• Parking brake operating force: Approx. 145 N (15 kg, 33 lb)
• Time: Approx. 10 sec.

CAUTION:

To prevent lining from getting too hot, allow a cool off period of approximately 5 minutes after
every break-in operation.

3.

After the break-in procedure, check parking pedal stroke of parking brake.

CAUTION:

If it is out of the specification, adjust again. Refer to

PB-3, "Inspection and Adjustment"

.

PB-6

< REMOVAL AND INSTALLATION >

PARKING BRAKE CONTROL

REMOVAL AND INSTALLATION

PARKING BRAKE CONTROL

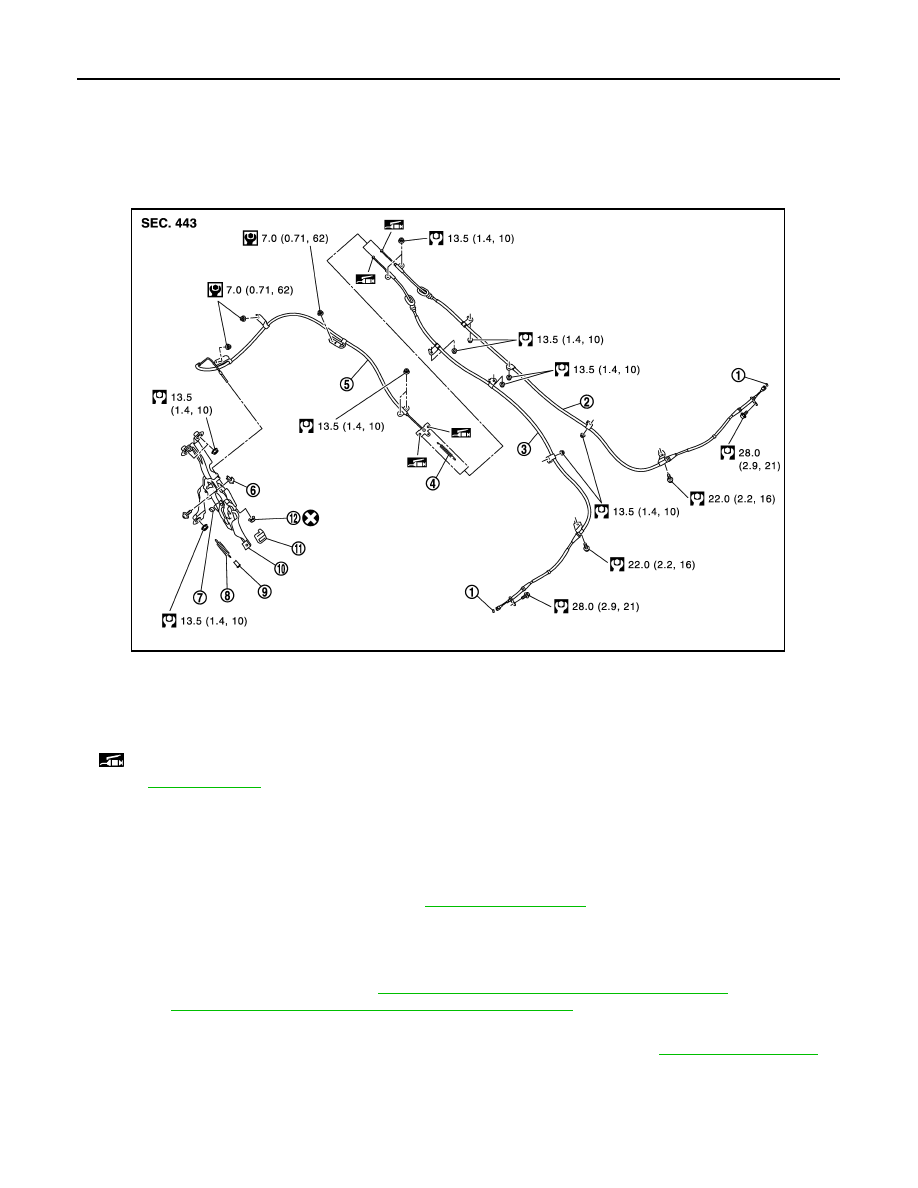

Exploded View

INFOID:0000000005516251

Removal and Installation

INFOID:0000000005516252

REMOVAL

1.

Remove rear tires with power tool.

2.

Remove instrument panel assembly. Refer to

IP-12, "Exploded View"

.

3.

Disconnect parking brake switch harness connector.

4.

Remove adjusting nut and loosen front cable.

5.

Remove device assembly.

6.

Remove rear ventilator duct. Refer to

VTL-62, "REAR FOOT DUCT 2 : Exploded View"

 (without 7 inch

display),

VTL-119, "REAR VENTILATOR DUCT 2 : Exploded View"

 (with 7 inch display).

7.

Separate front cable from rear cable, and remove front cable and return spring.

8.

Remove parking brake shoe, and remove rear cable from toggle lever. Refer to

PB-8, "Exploded View"

.

9.

Remove rear cable mounting bolts and nuts, pull out rear cable from vehicle.

INSTALLATION

Note the following, Install the reverse order of the removal.
• Never reuse the adjusting nut.

1.

Pin

2.

Rear cable (RH)

3.

Rear cable (LH)

4.

Return spring

5.

Front cable

6.

Parking brake switch

7.

Stopper rubber

8.

Return spring

9.

Silencer

10. Device assembly

11.

Pedal pad

12. Adjusting nut

: Apply multi-purpose grease.

Refer to

GI-4, "Components"

 for symbols not described on the above.

JPFIB0056GB

PARKING BRAKE CONTROL

PB-7

< REMOVAL AND INSTALLATION >

C

D

E

G

H

I

J

K

L

M

A

B

PB

N

O

P

Adjustment

INFOID:0000000005516253

ADJUSTMENT AFTER INSTALLATION

Adjust the parking brake pedal stroke. Refer to

PB-3, "Inspection and Adjustment"

.

PB-8

< REMOVAL AND INSTALLATION >

PARKING BRAKE SHOE

PARKING BRAKE SHOE

Exploded View

INFOID:0000000005516254

Removal and Installation

INFOID:0000000005516255

REMOVAL

WARNING:

Clean any dust from the parking brake shoes and back plates with a vacuum dust collector. Never
blow with compressed air.

1.

Remove rear tires with power tool.

2.

Remove disc rotor. Refer to

BR-43, "BRAKE CALIPER ASSEMBLY : Removal and Installation"

.

CAUTION:

Parking brake completely in the released position.

3.

If disc rotor cannot be removed, remove as follows:

a.

Fix the disc rotor with wheel nuts and remove the adjusting hole plug.

b.

Using suitable tool, rotate adjuster (1) in direction (B) to retract
and loosen parking brake shoe.

4.

Remove anti-rattle pins, retainers, anti-rattle spring, adjuster
spring and return springs.

CAUTION:

Never drop the removed parts.

5.

Remove parking brake shoes, adjuster assembly and toggle
lever.

CAUTION:

• The parking brake shoes for the front side are made of dif-

ferent materials from those for the rear side. Never misi-
dentify them when removing.

• Never drop the removed parts.

INSTALLATION

Install in the reverse order of removal.
• Apply PBC (Poly Butyl Cuprysil) grease or silicone-based grease to the back plate and brake shoe.

1.

Back plate

2.

Parking brake shoe

3.

Adjuster

4.

Adjuster spring

5.

Return spring

6.

Anti-rattle spring

7.

Retainer

8.

Anti-rattle pin

9.

Toggle lever

: Apply PBC (Poly Butyl Cuprysil) grease or silicone-based grease.

JPFIB0046ZZ
