Nissan Murano Z51. Manual - part 104

AV

AV CONTROL UNIT

AV-195

< ECU DIAGNOSIS INFORMATION >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

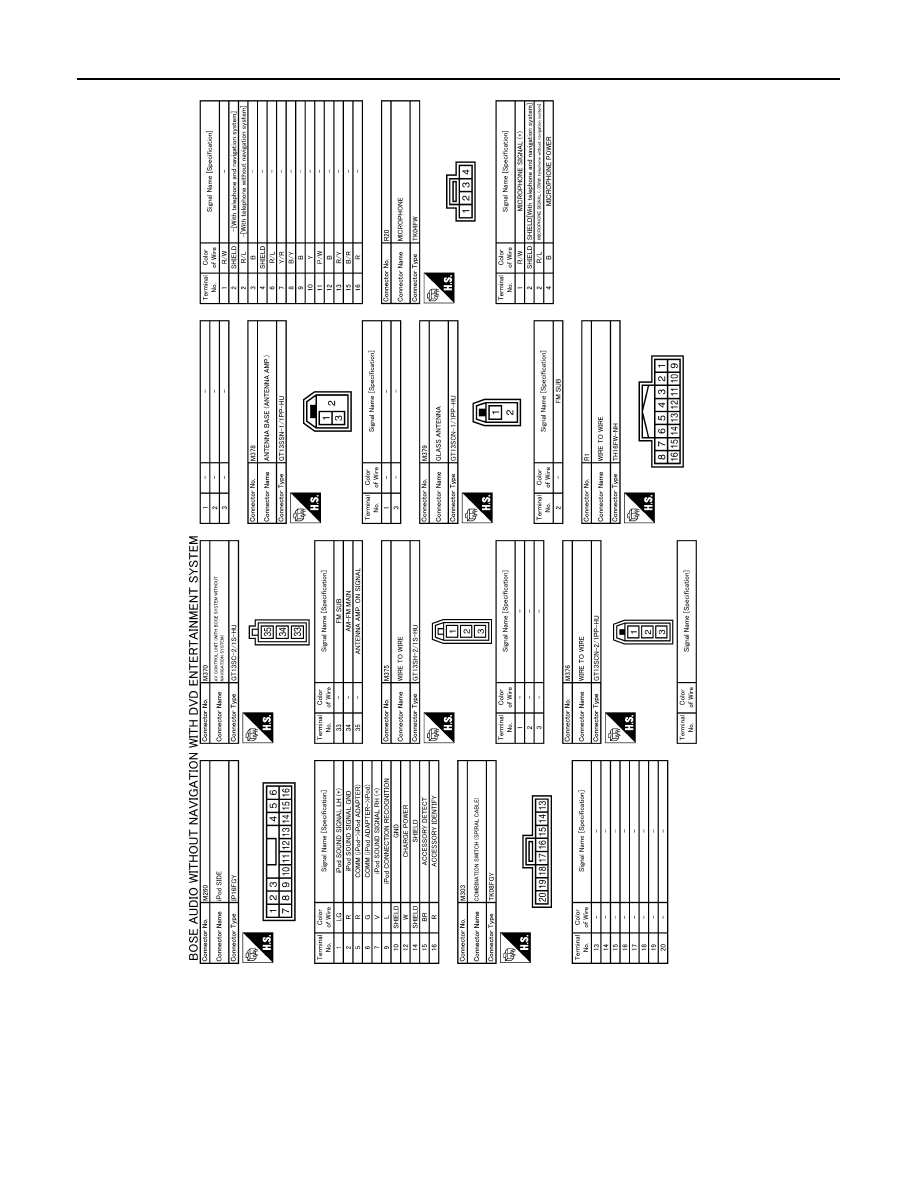

JCNWM3208GB

AV-196

< ECU DIAGNOSIS INFORMATION >

[BOSE AUDIO WITHOUT NAVIGATION]

AV CONTROL UNIT

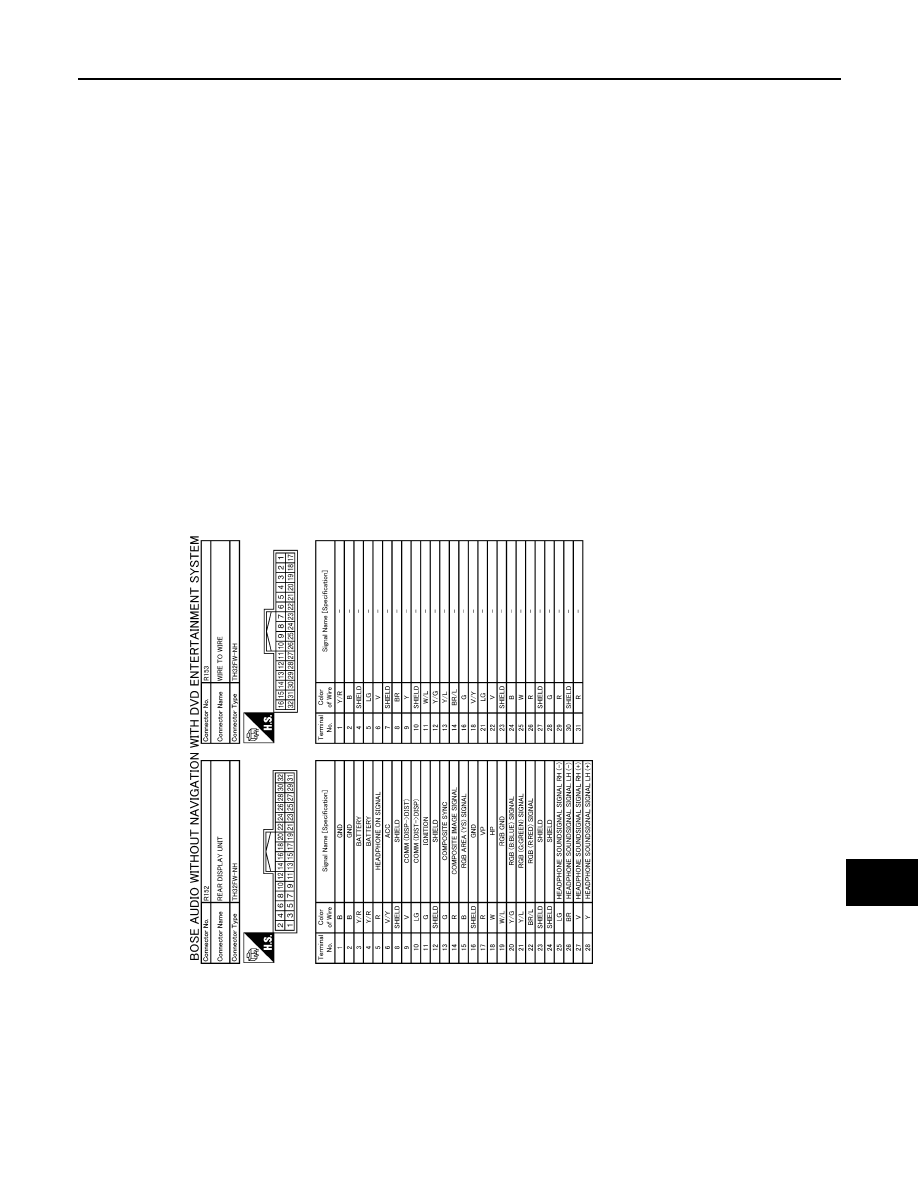

JCNWM3209GB

AV

AV CONTROL UNIT

AV-197

< ECU DIAGNOSIS INFORMATION >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

DTC Index

INFOID:0000000005528582

SELF-DIAGNOSIS RESULTS DISPLAY ITEM

JCNWM3210GB

AV-198

< ECU DIAGNOSIS INFORMATION >

[BOSE AUDIO WITHOUT NAVIGATION]

AV CONTROL UNIT

NOTE:

*: Non-equipped item is not displayed.

DTC

Display item

Refer to

U1000

CAN COMM CIRCUIT [U1000]

AV-93, "Diagnosis Procedure"

U1010

CONTROL UNIT (CAN) [U1010]

AV-94, "Diagnosis Procedure"

U1310

CONTROL UNIT (AV) [U1310]

AV-95, "DTC Logic"

U1200

Control Unit FLASH-ROM [U1200]

AV-96, "DTC Logic"

U1216

CAN CONT [U1216]

AV-97, "DTC Logic"

U1243

FRONT DISP CONN [U1243]

AV-98, "Diagnosis Procedure"

U1247

REAR DISP CONN [U1247]

AV-100, "Diagnosis Procedure"

U1250

CAMERA CONT CONN [U1250]

AV-102, "Diagnosis Procedure"

U1255

SAT CONN [U1255]

AV-103, "Diagnosis Procedure"

U1300
U1240

• AV COMM CIRCUIT [U1300]
• SWITCH CONN [U1240]

AV-105, "Description"

U1300
U1246

• AV COMM CIRCUIT [U1300]
• VIDEO DIST CONN [U1246]

AV-105, "Description"

U1300
U1248

• AV COMM CIRCUIT [U1300]
• DVD DECK CONN [U1248]

AV-105, "Description"

U1300
U1252

• AV COMM CIRCUIT [U1300]
• REAR CAMERA LAN CONN [U1252]

AV-105, "Description"

U1300
U1254

• AV COMM CIRCUIT [U1300]
• IPod CONN [U1254]

AV-105, "Description"

U1300
U1256

• AV COMM CIRCUIT [U1300]
• HAND FREE CONN [U1256]

AV-105, "Description"

U1300
U1252

U1256

*

• AV COMM CIRCUIT [U1300]
• REAR CAMERA LAN CONN [U1252]

• HAND FREE CONN [U1256]

*

AV-105, "Description"

U1300
U1248
U1252
U1256

• AV COMM CIRCUIT [U1300]
• DVD DECK CONN [U1248]
• REAR CAMERA LAN CONN [U1252]
• HAND FREE CONN [U1256]

AV-105, "Description"

U1300
U1246
U1248
U1252
U1254
U1256

• AV COMM CIRCUIT [U1300]
• VIDEO DIST CONN [U1246]
• DVD DECK CONN [U1248]
• REAR CAMERA LAN CONN [U1252]
• IPod CONN [U1254]
• HAND FREE CONN [U1256]

AV-105, "Description"

U1300
U1246
U1248
U1252
U1256

• AV COMM CIRCUIT [U1300]
• VIDEO DIST CONN [U1246]
• DVD DECK CONN [U1248]
• REAR CAMERA LAN CONN [U1252]
• HAND FREE CONN [U1256]

AV-105, "Description"

U1300
U1240

U1254

*

U1256

*

• AV COMM CIRCUIT [U1300]
• SWITCH CONN [U1240]

• IPod CONN [U1254]

*

• HAND FREE CONN [U1256]

*

AV-105, "Description"

U1300
U1240
U1246
U1248
U1252
U1254
U1256

• AV COMM CIRCUIT [U1300]
• SWITCH CONN [U1240]
• VIDEO DIST CONN [U1246]
• DVD DECK CONN [U1248]
• REAR CAMERA LAN CONN [U1252]
• IPod CONN [U1254]
• HAND FREE CONN [U1256]

AV-105, "Description"
