Nissan Murano Z51. Manual - part 1035





MIR-96

< REMOVAL AND INSTALLATION >

[WITHOUT ADP]

OUTSIDE MIRROR

1.

Place the glass mirror upward.

2.

Put a strip of protective tape (A) on the housing.

3.

Insert flat-bladed screwdriver (B) into the recess at lower side
between glass mirror (1) and actuator (2), and push up pawls to
remove glass mirror lower side.
NOTE:
 Insert a small slotted screwdriver into recess, and push up while
rotating (twist) to make work easier.

4.

Insert flat-bladed screwdriver at RH/LH side between glass mirror and actuator, and push up pawls to
remove glass mirror RH/LH side.
NOTE:
 Insert flat-bladed screwdriver into recesses, and push up while rotating (twist) to make work easier.

5.

Remove two terminals of mirror heater attachment. (With heater mirror model)

6.

Pull glass mirror as shown in the figure in order to disengage
both upper pawls, and then remove glass mirror.

ASSEMBLY

Install in the reverse order of removal.

CAUTION:

After installation, visually check that pawls are securely engaged.

DOOR MIRROR COVER

JMLIA0124ZZ

1.

Glass mirror

2.

Actuator

JMLIA0092ZZ

OUTSIDE MIRROR

MIR-97

< REMOVAL AND INSTALLATION >

[WITHOUT ADP]

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

DOOR MIRROR COVER : Exploded View

INFOID:0000000005513457

DOOR MIRROR COVER : Disassembly and Assembly

INFOID:0000000005513458

CAUTION:

Never damage the mirror bodies.

DISASSEMBLY

1.

Remove the glass mirror. Refer to

MIR-95, "GLASS MIRROR : Disassembly and Assembly"

.

2.

Remove the pawls, and disassemble the door mirror cover from the mirror assembly.

ASSEMBLY

Install in the reverse order of removal.
NOTE:
After installation, visually check that pawls are securely engaged.

1.

Door mirror cover

2.

Door mirror assembly

3.

Glass mirror

: Pawl

JMLIA0123ZZ

MIR-98

< REMOVAL AND INSTALLATION >

[WITHOUT ADP]

DOOR MIRROR REMOTE CONTROL SWITCH

DOOR MIRROR REMOTE CONTROL SWITCH

Exploded View

INFOID:0000000005513459

Refer to

INT-12, "FRONT DOOR FINISHER : Exploded View"

Removal and Installation

INFOID:0000000005513460

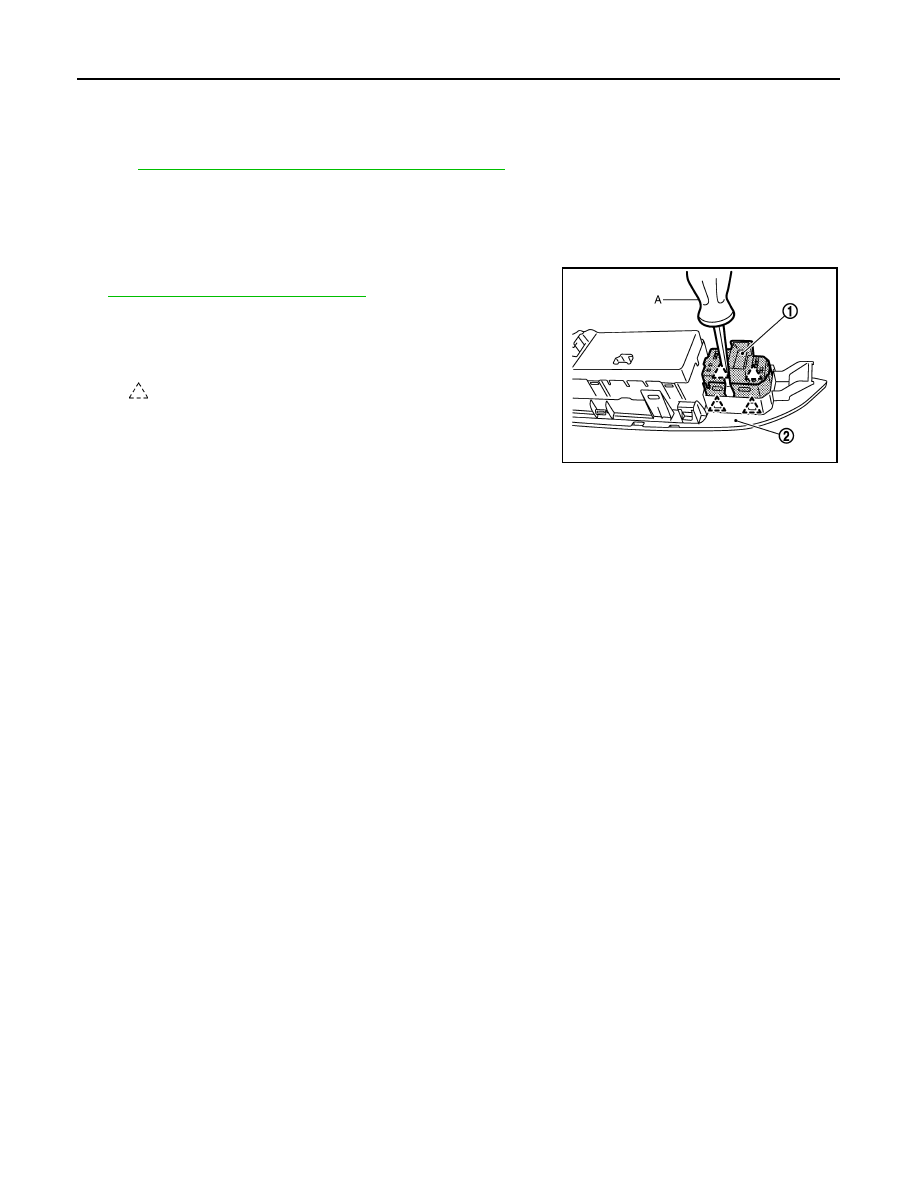

REMOVAL

1.

Remove the power window main switch finisher (2). Refer to

PWC-119, "Removal and Installation"

2.

Remove door mirror remote control switch (1) from power win-
dow main switch finisher (2) using flat-bladed screwdriver (A).

INSTALLATION

Install in the reverse order of removal.

: Pawl

JMLIA0118ZZ

MWI

MWI-1

DRIVER INFORMATION & MULTIMEDIA

C

D

E

F

G

H

I

J

K

L

M

B

SECTION

MWI

A

O

P

CONTENTS

METER, WARNING LAMP & INDICATOR

BASIC INSPECTION  ....................................

4

DIAGNOSIS AND REPAIR WORKFLOW  ..........

4

Work flow  ..................................................................

4

SYSTEM DESCRIPTION  ..............................

6

METER SYSTEM .................................................

6

METER SYSTEM  .........................................................

6

METER SYSTEM : System Diagram ........................

6

METER SYSTEM : System Description  ....................

6

METER SYSTEM : Component Parts Location  ........

9

METER SYSTEM : Component Description  ...........

10

SPEEDOMETER ........................................................

10

SPEEDOMETER : System Diagram  .......................

10

SPEEDOMETER : System Description ...................

10

SPEEDOMETER : Component Parts Location  .......

11

SPEEDOMETER : Component Description  ............

12

TACHOMETER ..........................................................

12

TACHOMETER : System Diagram  .........................

12

TACHOMETER : System Description  .....................

12

TACHOMETER : Component Parts Location  .........

13

TACHOMETER : Component Description  ..............

14

ENGINE COOLANT TEMPERATURE GAUGE  ........

14

ENGINE COOLANT TEMPERATURE GAUGE :
System Diagram ......................................................

14

ENGINE COOLANT TEMPERATURE GAUGE :
System Description  .................................................

14

ENGINE COOLANT TEMPERATURE GAUGE :
Component Parts Location ......................................

15

ENGINE COOLANT TEMPERATURE GAUGE :
Component Description ...........................................

16

FUEL GAUGE ............................................................

16

FUEL GAUGE : System Diagram  ...........................

16

FUEL GAUGE : System Description  .......................

16

FUEL GAUGE : Component Parts Location  ...........

17

FUEL GAUGE : Component Description  ................

18

ODO/TRIP METER .....................................................

18

ODO/TRIP METER : System Diagram  ....................

18

ODO/TRIP METER : System Description ................

18

ODO/TRIP METER : Component Parts Location ....

19

ODO/TRIP METER : Component Description  .........

20

SHIFT POSITION INDICATOR  ..................................

20

SHIFT POSITION INDICATOR : System Diagram ....

20

SHIFT POSITION INDICATOR : System Descrip-
tion ...........................................................................

20

SHIFT POSITION INDICATOR : Component
Parts Location ..........................................................

21

SHIFT POSITION INDICATOR : Component De-
scription ...................................................................

22

WARNING LAMPS/INDICATOR LAMPS  ..................

22

WARNING LAMPS/INDICATOR LAMPS : System
Diagram ...................................................................

22

WARNING LAMPS/INDICATOR LAMPS : System
Description ...............................................................

22

WARNING LAMPS/INDICATOR LAMPS : Com-
ponent Parts Location ..............................................

23

WARNING LAMPS/INDICATOR LAMPS : Com-
ponent Description ...................................................

24

METER ILLUMINATION CONTROL  .........................

24

METER ILLUMINATION CONTROL : System Di-
agram ......................................................................

24

METER ILLUMINATION CONTROL : System De-
scription ...................................................................

24

METER ILLUMINATION CONTROL : Component
Parts Location ..........................................................

25

METER ILLUMINATION CONTROL : Component
Description ...............................................................

26

INFORMATION DISPLAY ..........................................

26

INFORMATION DISPLAY : System Diagram ..........

26

INFORMATION DISPLAY : System Description  .....

26

INFORMATION DISPLAY : Component Parts Lo-
cation .......................................................................

29

INFORMATION DISPLAY : Component Descrip-
tion ...........................................................................

30
