Special Service Tools

INFOID:0000000005513449

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tools

INFOID:0000000005513450

Tool number
(Kent-Moore No.)
Tool name

Description

(J-39570)
Chassis ear

Location the noise

(J-43980)
NISSAN Squeak and Rattle
Kit

Repairing the cause of noise

SIIA0993E

SIIA0994E

Tool name

Description

Engine ear

Locating the noise

Remover tool

Remove clips, pawls, metal clips

Power tool

SIIA0995E

PIIB7923J

PIIB1407E

INSIDE MIRROR

MIR-93

< REMOVAL AND INSTALLATION >

[WITHOUT ADP]

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

REMOVAL AND INSTALLATION

INSIDE MIRROR

Exploded View

INFOID:0000000005513451

Removal and Installation

INFOID:0000000005513452

CAUTION:

Never reuse the inside mirror disassembled from mirror base.

REMOVAL

1.

Remove the inside mirror cover.

2.

Remove TORX bolt.

3.

Slide the inside mirror upward to remove.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

When inserting the inside mirror into the mirror base, be sure to push the pawl until it get connected to
the mirror base.

1.

Inside mirror

2.

Inside mirror cover

3.

Mirror base

4.

TORX bolt

Refer to

GI-4, "Components"

 for symbols in the figure.

JMLIA0136GB

MIR-94

< REMOVAL AND INSTALLATION >

[WITHOUT ADP]

OUTSIDE MIRROR

OUTSIDE MIRROR

DOOR MIRROR ASSEMBLY

DOOR MIRROR ASSEMBLY : Exploded View

INFOID:0000000005513453

REMOVAL

DISASSEMBLY

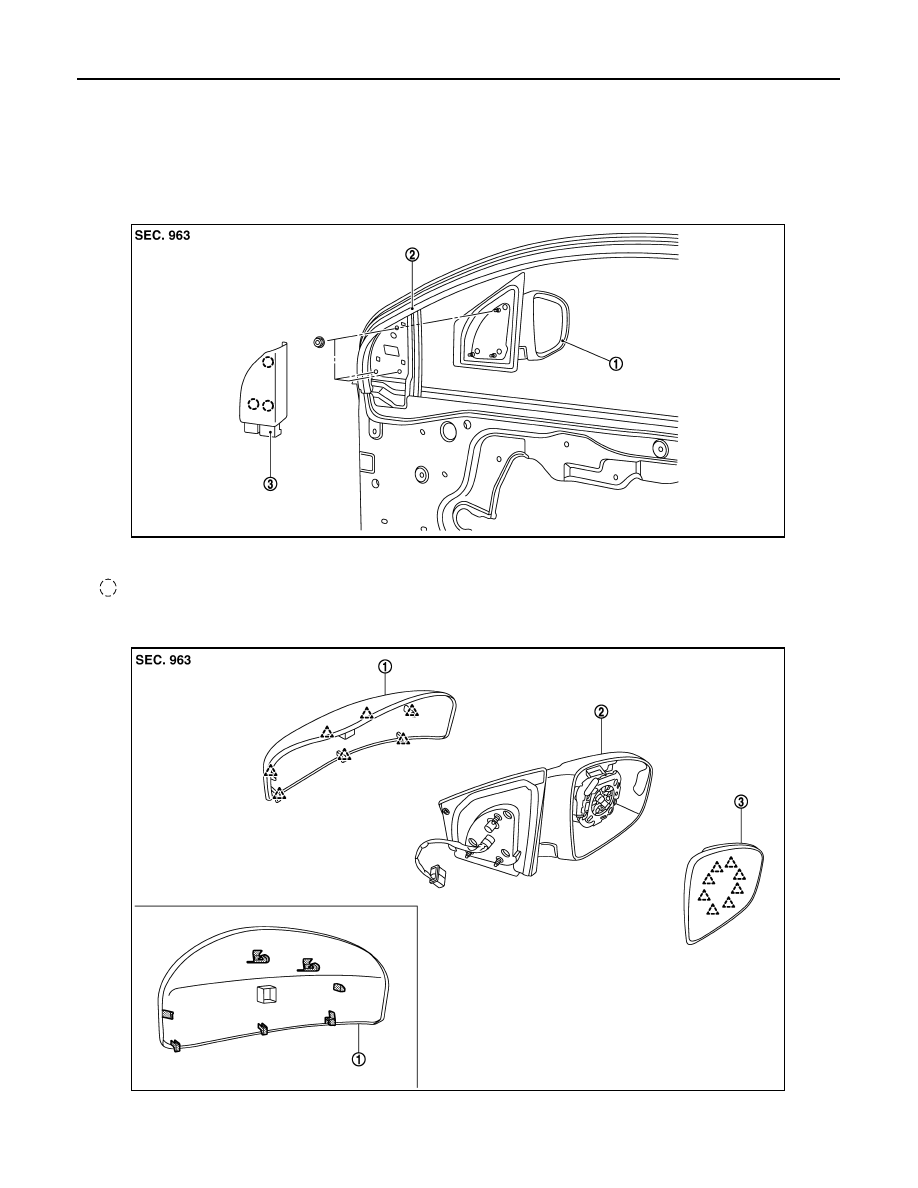

1.

Door mirror assembly

2.

Front door assembly

3.

Door mirror corner cover

: Clip

JMLIA0122ZZ

JMLIA0123ZZ

OUTSIDE MIRROR

MIR-95

< REMOVAL AND INSTALLATION >

[WITHOUT ADP]

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

DOOR MIRROR ASSEMBLY : Removal and Installation

INFOID:0000000005513454

CAUTION:

Never damage the mirror bodies.

REMOVAL

1.

Remove the front door finisher. Refer to

INT-12, "FRONT DOOR FINISHER : Removal and Installation"

.

2.

Remove the door mirror corner cover.

3.

Disconnect the door mirror harness connector.

4.

Remove the door mirror mounting nuts, and remove the door mirror assembly.

INSTALLATION

Install in the reverse order of removal.

GLASS MIRROR

GLASS MIRROR : Exploded View

INFOID:0000000005513455

GLASS MIRROR : Disassembly and Assembly

INFOID:0000000005513456

CAUTION:

Never damage the mirror bodies.

DISASSEMBLY

1.

Door mirror cover

2.

Door mirror assembly

3.

Glass mirror

: Pawl

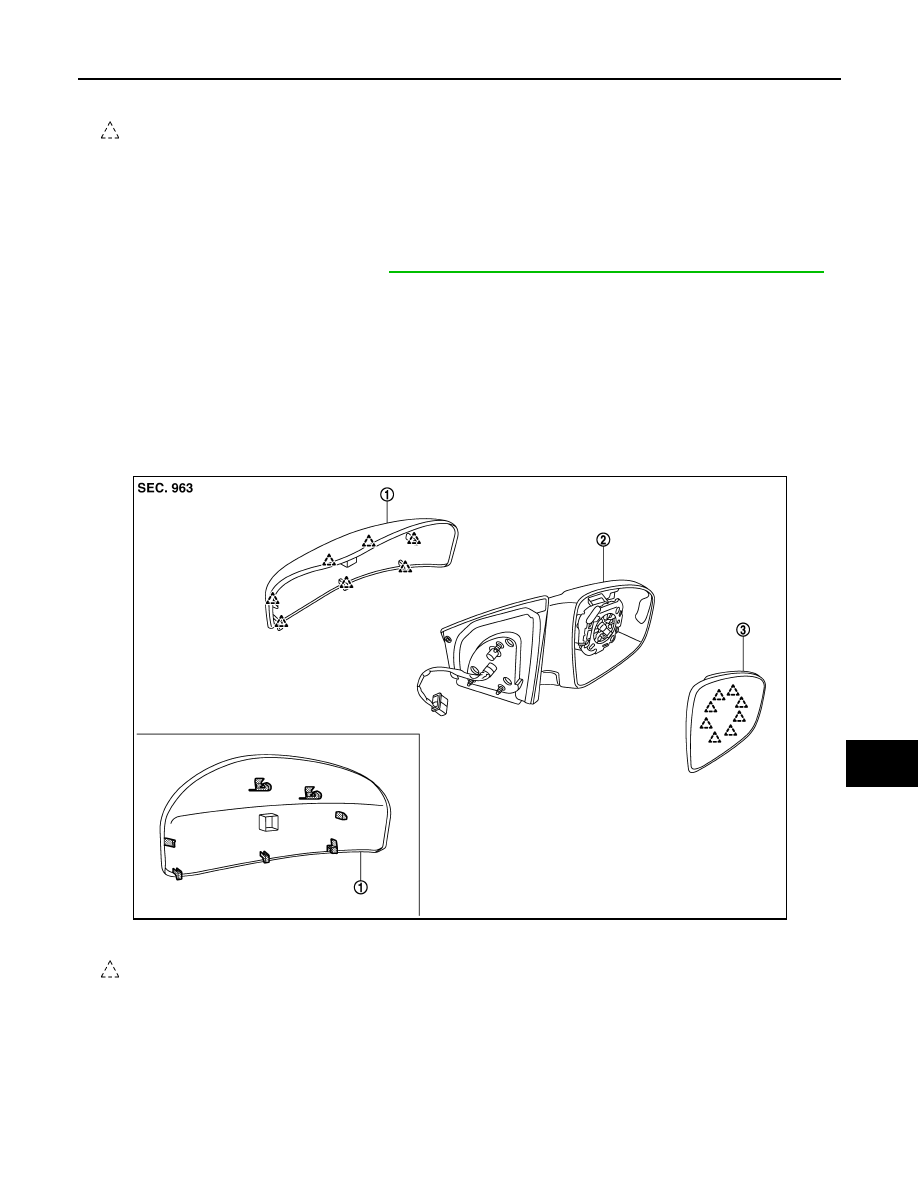

1.

Door mirror cover

2.

Door mirror assembly

3.

Glass mirror

: Pawl

JMLIA0123ZZ
