OIL PUMP

LU-15

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

J

K

L

M

A

LU

N

P

O

• If measured/calculated values are out of the standard, replace oil pump assembly.

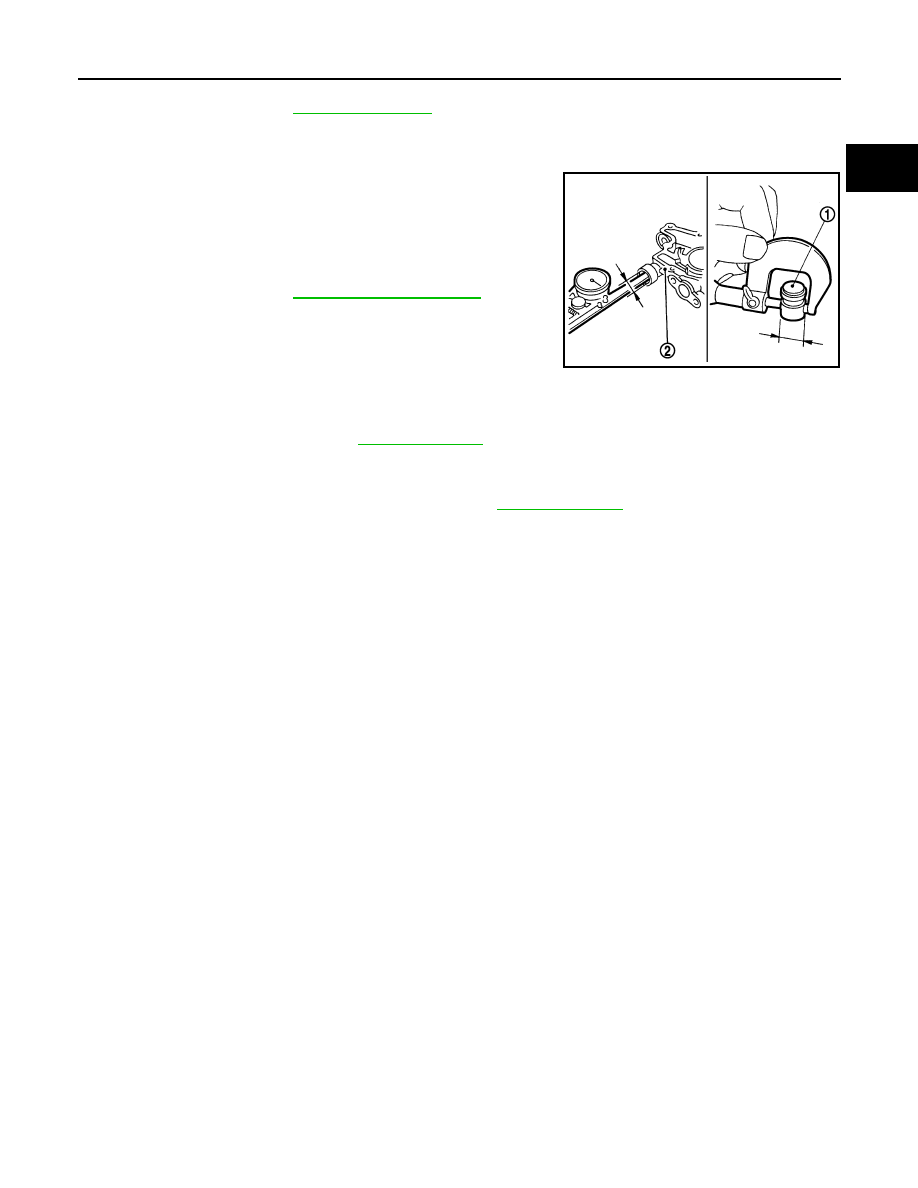

Regulator Valve Clearance

(Clearance) = (Regulator valve hole diameter) – (Regulator valve
outer diameter)

• If the calculated value is out of the standard, replace oil pump

assembly.

CAUTION:

• Coat regulator valve with engine oil.
• Check that it falls smoothly into valve hole by its own weight.

INSPECTION AFTER INSTALLATION

1.

Check the engine oil level. Refer to

LU-7, "Inspection"

.

2.

Start the engine, and check that there is no leakage of engine oil.

3.

Stop the engine and wait for 10 minutes.

4.

Check the engine oil level and adjust the level. Refer to

LU-7, "Inspection"

.

Standard

: Refer to

LU-16, "Oil Pump"

.

1

: Regulator valve

2

: Oil pump body

Standard

: Refer to

LU-16, "Regulator Valve"

.

JPBIA0081ZZ

LU-16

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Periodical Maintenance Specification

INFOID:0000000005515896

ENGINE OIL CAPACITY (APPROXIMATE)

Unit:

 (US qt, lmp qt)

Engine Oil Pressure

INFOID:0000000005515897

Unit: kPa (kg/cm

2

, psi)

*: Engine oil temperature at 80

°

C (176

°

F)

Oil Pump

INFOID:0000000005515898

Unit: mm (in)

Regulator Valve

INFOID:0000000005515899

Unit: mm (in)

Drain and refill

With oil filter change

4.6 (4-7/8, 4)

Without oil filter change

4.3 (4-1/2, 3-3/4)

Dry engine (Overhaul)

5.3 (5-5/8, 4-5/8)

Engine speed

Approximate discharge pressure*

Idle speed

More than 98 (1.0, 14)

2,000 rpm

More than 294 (3.0, 43)

Clearance between oil pump outer rotor and oil pump body

0.114 - 0.260 (0.0045 - 0.0102)

Tip clearance between oil pump inner rotor and oil pump outer rotor

Below 0.180 (0.0071)

Side clearance between oil pump inner rotor and oil pump body

0.030 - 0.070 (0.0012 - 0.0028)

Side clearance between oil pump outer rotor and oil pump body

0.050 - 0.110 (0.0020 - 0.0043)

Oil pump inner rotor to oil pump body clearance

0.045 - 0.091 (0.0018 - 0.0036)

Regulator valve to oil pump body clearance

0.040 - 0.097 (0.0016 - 0.0038)

MA-1

MAINTENANCE

C

D

E

F

G

H

I

J

K

L

M

B

MA

SECTION

MA

N

O

A

CONTENTS

MAINTENANCE

PREPARATION ............................................

3

PREPARATION ...................................................

3

FOR NORTH AMERICA  ..............................................

3

FOR NORTH AMERICA : Special Service Tool ........

3

FOR NORTH AMERICA : Commercial Service
Tool ...........................................................................

3

FOR MEXICO  ..............................................................

3

FOR MEXICO : Special Service Tool ........................

4

FOR MEXICO : Commercial Service Tool  ................

4

PERIODIC MAINTENANCE ..........................

5

GENERAL MAINTENANCE  ................................

5

FOR NORTH AMERICA  ..............................................

5

FOR NORTH AMERICA : Explanation of General
Maintenance ..............................................................

5

FOR MEXICO  ..............................................................

6

FOR MEXICO : General Maintenance  ......................

7

PERIODIC MAINTENANCE  ................................

8

FOR NORTH AMERICA  ..............................................

8

FOR NORTH AMERICA : Introduction of Periodic
Maintenance ..............................................................

8

FOR NORTH AMERICA : Schedule 1  ......................

8

FOR NORTH AMERICA : Schedule 2  ....................

10

FOR MEXICO  ............................................................

11

FOR MEXICO : Periodic Maintenance  ....................

11

RECOMMENDED FLUIDS AND LUBRI-
CANTS ................................................................

15

FOR NORTH AMERICA  ............................................

15

FOR NORTH AMERICA : Fluids and Lubricants ....

15

FOR NORTH AMERICA : Engine Oil Recommen-
dation ......................................................................

15

FOR NORTH AMERICA : Anti-Freeze Coolant
Mixture Ratio  ...........................................................

16

FOR MEXICO .............................................................

16

FOR MEXICO : Fluids and Lubricants .....................

16

FOR MEXICO : SAE Viscosity Number ...................

17

FOR MEXICO : Engine Coolant Mixture Ratio  ........

17

ENGINE MAINTENANCE .................................

18

DRIVE BELT  ..............................................................

18

DRIVE BELT : Exploded View .................................

18

DRIVE BELT : Checking ..........................................

18

DRIVE BELT : Tension Adjustment  ........................

18

ENGINE COOLANT  ...................................................

18

ENGINE COOLANT : Inspection  .............................

18

ENGINE COOLANT : Draining  ................................

19

ENGINE COOLANT : Refilling .................................

19

ENGINE COOLANT : Flushing ................................

21

RADIATOR CAP  ........................................................

21

RADIATOR CAP : Inspection  ..................................

22

RADIATOR .................................................................

22

RADIATOR : Inspection ...........................................

22

FUEL LINES ...............................................................

22

FUEL LINES : Inspection .........................................

23

AIR CLEANER FILTER  .............................................

23

AIR CLEANER FILTER : Removal and Installation

....

23

ENGINE OIL ...............................................................

23

ENGINE OIL : Draining ............................................

23

ENGINE OIL : Refilling  ............................................

24

OIL FILTER  ................................................................

24

OIL FILTER : Removal and Installation  ...................

24

OIL FILTER : Inspection  ..........................................

25

SPARK PLUG  ............................................................

25

SPARK PLUG : Removal and Installation  ...............

25

SPARK PLUG : Inspection  ......................................

26

POSITIVE CRANKCASE VENTILATION SYSTEM ....

26

MA-2

POSITIVE CRANKCASE VENTILATION SYS-
TEM : Inspection .....................................................

26

EVAP VAPOR LINES ................................................

27

EVAP VAPOR LINES : Inspection ..........................

27

CHASSIS MAINTENANCE  ................................

28

EXHAUST SYSTEM ..................................................

28

EXHAUST SYSTEM : Inspection ...........................

28

CVT FLUID  ................................................................

28

CVT FLUID : Inspection ..........................................

28

CVT FLUID : Changing ...........................................

29

TRANSFER OIL  ........................................................

30

TRANSFER OIL : Inspection  ..................................

30

TRANSFER OIL : Draining  .....................................

30

TRANSFER OIL : Refilling ......................................

30

REAR PROPELLER SHAFT .....................................

31

REAR PROPELLER SHAFT : Inspection  ...............

31

REAR DIFFERENTIAL GEAR OIL  ...........................

31

REAR DIFFERENTIAL GEAR OIL : Inspection ......

31

REAR DIFFERENTIAL GEAR OIL : Draining .........

32

REAR DIFFERENTIAL GEAR OIL : Refilling  .........

32

WHEELS (BONDING WEIGHT TYPE)  .....................

32

WHEELS (BONDING WEIGHT TYPE) : Adjust-
ment ........................................................................

32

BRAKE FLUID LEVEL AND LEAKS ........................

34

BRAKE FLUID LEVEL AND LEAKS : Inspection ...

34

BRAKE LINES AND CABLES ..................................

34

BRAKE LINES AND CABLES : Inspection  .............

34

BRAKE FLUID  ..........................................................

34

BRAKE FLUID : Changing ......................................

35

DISC BRAKE  ............................................................

35

DISC BRAKE : Inspection  ......................................

35

DISC BRAKE : Front Disc Brake  ............................

35

DISC BRAKE : Rear Disc Brake .............................

36

STEERING GEAR AND LINKAGE  ...........................

36

STEERING GEAR AND LINKAGE : Inspection ......

36

POWER STEERING FLUID AND LINES  ..................

36

POWER STEERING FLUID AND LINES : Inspec-
tion ..........................................................................

36

AXLE AND SUSPENSION PARTS  ...........................

36

AXLE AND SUSPENSION PARTS : Inspection  .....

37

DRIVE SHAFT  ...........................................................

37

DRIVE SHAFT : Inspection .....................................

37

BODY MAINTENANCE  .....................................

38

LOCKS, HINGES AND HOOD LATCH  .....................

38

LOCKS, HINGES AND HOOD LATCH : Lubricat-
ing ...........................................................................

38

SEAT BELT, BUCKLES, RETRACTORS, AN-
CHORS AND ADJUSTERS  ......................................

38

SEAT BELT, BUCKLES, RETRACTORS, AN-
CHORS AND ADJUSTERS : Inspection .................

38

SERVICE DATA AND SPECIFICATIONS
(SDS) ..........................................................

39

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

39

DRIVE BELT ..............................................................

39

DRIVE BELT : Drive Belt  ........................................

39

ENGINE COOLANT  ..................................................

39

ENGINE COOLANT : Periodical Maintenance
Specification ............................................................

39

ENGINE OIL  ..............................................................

39

ENGINE OIL :
Periodical Maintenance Specification ....................

39

SPARK PLUG  ...........................................................

39

SPARK PLUG : Spark Plug  ....................................

39

ROAD WHEEL  ..........................................................

39

ROAD WHEEL : Road Wheel  .................................

39
