Nissan Murano Z51. Manual - part 84





AV

RGB (R: RED) SIGNAL CIRCUIT (AV CONTROL UNIT TO FRONT DISPLAY

UNIT)

AV-115

< DTC/CIRCUIT DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

RGB (R: RED) SIGNAL CIRCUIT (AV CONTROL UNIT TO FRONT DISPLAY
UNIT)

Description

INFOID:0000000005528516

Transmit the image displayed with AV control unit with RGB image signal to the front display unit.

Diagnosis Procedure

INFOID:0000000005528517

1.

CHECK CONTINUITY RGB (R: RED) SIGNAL CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect front display unit connector and AV control unit connector.

3.

Check continuity between front display unit harness connector and AV control unit harness connector.

4.

Check continuity between front display unit harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair harness or connector.

2.

CHECK RGB (R: RED) SIGNAL

1.

Connect front display unit connector and AV control unit connector.

2.

Turn ignition switch ON.

3.

Check signal between front display unit harness connector and ground using an oscilloscope.

Is the inspection result normal?

YES

>> Replace front display unit.

NO

>> Replace AV control unit.

Front display unit

AV control unit

Continuity

Connector

Terminal

Connector

Terminal

M49

17

M129

40

Existed

Front display unit

Ground

Continuity

Connector

Terminal

M49

17

Not existed

(+)

(

)

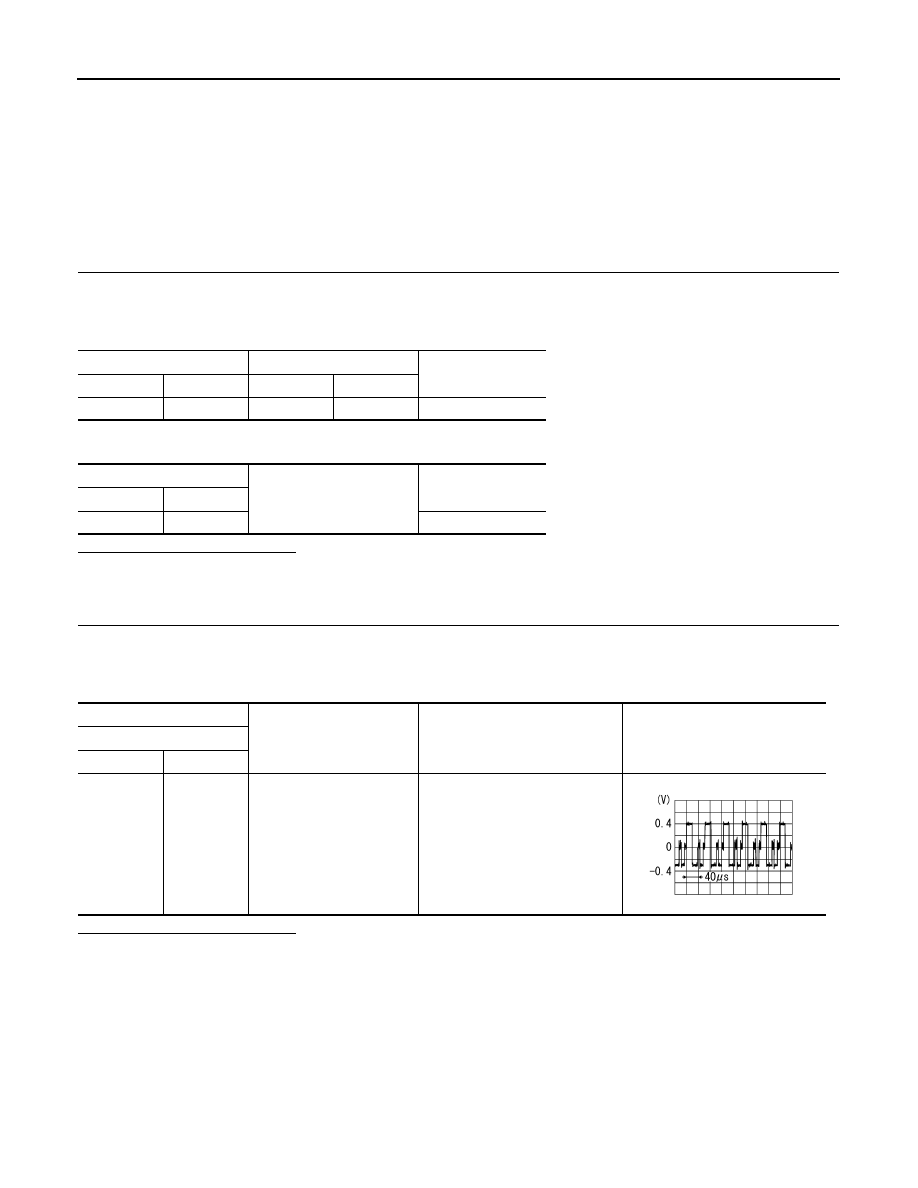

Condition

Signal

Front display unit

Connector

Terminal

M49

17

Ground

Start confirmation/adjustment
mode, and then display color bar
by selecting “Color Spectrum Bar”
on DISPLAY DIAGNOSIS screen.

SKIB2238J

AV-116

< DTC/CIRCUIT DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

RGB (G: GREEN) SIGNAL CIRCUIT (AV CONTROL UNIT TO FRONT DISPLAY

UNIT)

RGB (G: GREEN) SIGNAL CIRCUIT (AV CONTROL UNIT TO FRONT DIS-
PLAY UNIT)

Description

INFOID:0000000005528518

Transmit the image displayed with AV control unit with RGB image signal to the front display unit.

Diagnosis Procedure

INFOID:0000000005528519

1.

CHECK CONTINUITY RGB (G: GREEN) SIGNAL CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect front display unit connector and AV control unit connector.

3.

Check continuity between front display unit harness connector and AV control unit harness connector.

4.

Check continuity between front display unit harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair harness or connector.

2.

CHECK RGB (G: GREEN) SIGNAL

1.

Connect front display unit connector and AV control unit connector.

2.

Turn ignition switch ON.

3.

Check signal between front display unit harness connector and ground using an oscilloscope.

Is the inspection result normal?

YES

>> Replace front display unit.

NO

>> Replace AV control unit.

Front display unit

AV control unit

Continuity

Connector

Terminal

Connector

Terminal

M49

6

M129

39

Existed

Front display unit

Ground

Continuity

Connector

Terminal

M49

6

Not existed

(+)

(

)

Condition

Signal

Front display unit

Connector

Terminal

M49

6

Ground

Start confirmation/adjustment
mode, and then display color bar
by selecting “Color Spectrum Bar”
on DISPLAY DIAGNOSIS screen.

SKIB2236J

AV

RGB (B: BLUE) SIGNAL CIRCUIT (AV CONTROL UNIT TO FRONT DISPLAY

UNIT)

AV-117

< DTC/CIRCUIT DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

RGB (B: BLUE) SIGNAL CIRCUIT (AV CONTROL UNIT TO FRONT DIS-
PLAY UNIT)

Description

INFOID:0000000005528520

Transmit the image displayed with AV control unit with RGB image signal to the front display unit.

Diagnosis Procedure

INFOID:0000000005528521

1.

CHECK CONTINUITY RGB (B: BLUE) SIGNAL CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect front display unit connector and AV control unit connector.

3.

Check continuity between front display unit harness connector and AV control unit harness connector.

4.

Check continuity between front display unit harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair harness or connector.

2.

CHECK RGB (B: BLUE) SIGNAL

1.

Connect front display unit connector and AV control unit connector.

2.

Turn ignition switch ON.

3.

Check signal between front display unit harness connector and ground using an oscilloscope.

Is the inspection result normal?

YES

>> Replace front display unit.

NO

>> Replace AV control unit.

Front display unit

AV control unit

Continuity

Connector

Terminal

Connector

Terminal

M49

18

M129

38

Existed

Front display unit

Ground

Continuity

Connector

Terminal

M49

18

Not existed

(+)

(

)

Condition

Signal

Front display unit

Connector

Terminal

M49

18

Ground

Start confirmation/adjustment
mode, and then display color bar
by selecting “Color Spectrum Bar”
on DISPLAY DIAGNOSIS screen.

SKIB2237J

AV-118

< DTC/CIRCUIT DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

RGB SYNCHRONIZING SIGNAL CIRCUIT

RGB SYNCHRONIZING SIGNAL CIRCUIT

Description

INFOID:0000000005528522

Transmit the RGB synchronizing signal to the front display unit so as to synchronize the RGB image displayed
with AV control unit.

Diagnosis Procedure

INFOID:0000000005528523

1.

CHECK CONTINUITY RGB SYNCHRONIZING SIGNAL CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect front display unit connector and AV control unit connector.

3.

Check continuity between front display unit harness connector and AV control unit harness connector.

4.

Check continuity between front display unit harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair harness or connector.

2.

CHECK RGB SYNCHRONIZING SIGNAL

1.

Connect front display unit connector and AV control unit connector.

2.

Turn ignition switch ON.

3.

Check signal between front display unit harness connector and ground using an oscilloscope.

Is the inspection result normal?

YES

>> Replace front display unit.

NO

>> Replace AV control unit.

Front display unit

AV control unit

Continuity

Connector

Terminal

Connector

Terminal

M49

19

M129

41

Existed

Front display unit

Ground

Continuity

Connector

Terminal

M49

19

Not existed

(+)

(

)

Condition

Signal

Front display unit

Connector

Terminal

M49

19

Ground

SKIB3603E
