INSTRUMENT PANEL ASSEMBLY

[ ]: Number indicates step in removal procedures.

WARNING:

Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait 3 minutes or
more.

CAUTION:

When removing, always use a remover tool that is made of plastic.

REMOVAL

1.

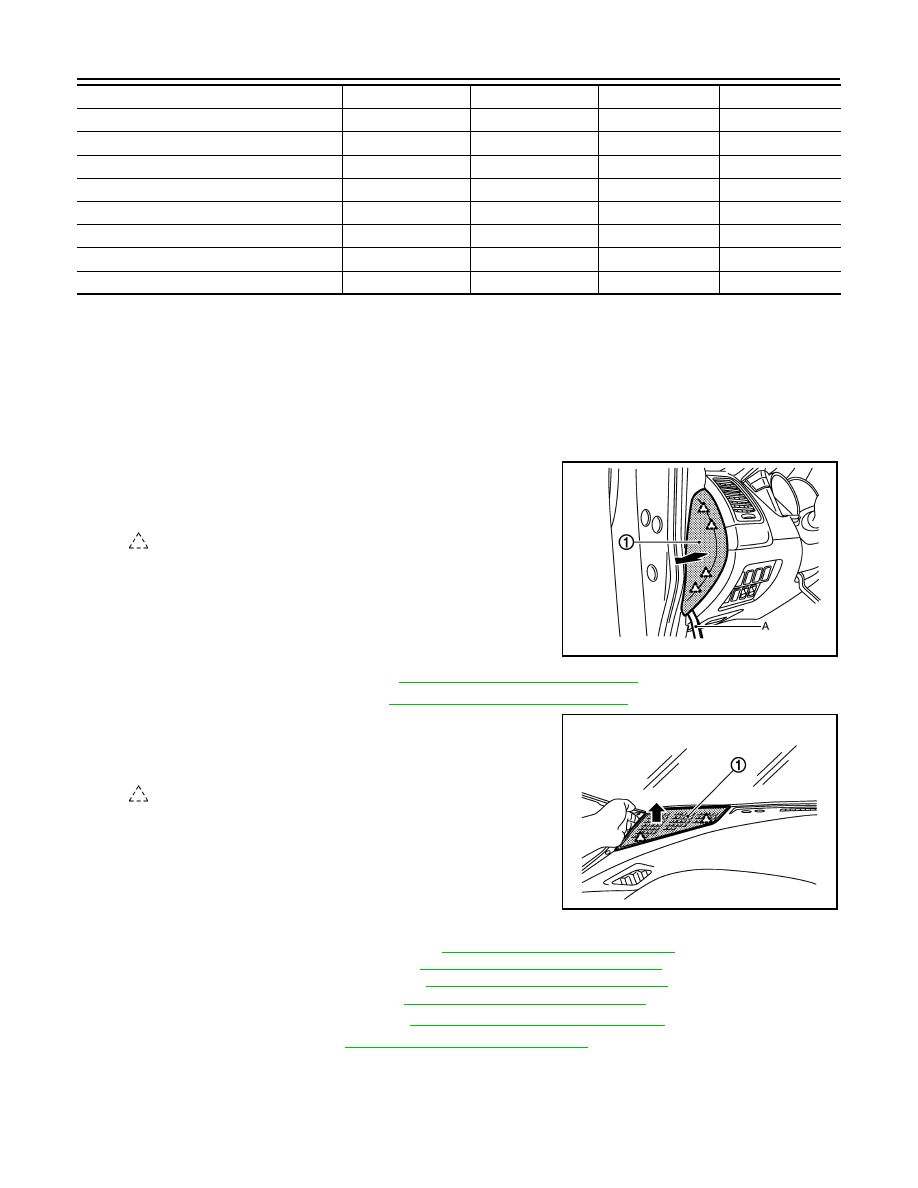

Remove instrument side finisher LH.
1.

Insert a remover tool (A) into lower space.

2.

Pull the instrument side finisher LH (1) crosswise.

2.

Remove front body side welt LH. Refer to

INT-20, "Removal and Installation"

.

3.

Remove front pillar garnish LH. Refer to

INT-20, "Removal and Installation"

.

4.

Remove speaker grille LH.
1.

Pull up speaker grille LH (1) to disengage pawls.

2.

Remove speaker grille LH.

5.

Remove front squawker LH. Refer to the following.
• For Base audio without color display: Refer to

AV-43, "Removal and Installation"

.

• For Base audio with color display: Refer to

AV-153, "Removal and Installation"

.

• For Bose audio without navigation: Refer to

AV-280, "Removal and Installation"

.

• For Bose audio with navigation: Refer to

AV-452, "Removal and Installation"

.

6.

Remove vehicle security indicator. Refer to

SEC-192, "Removal and Installation"

.

7.

Remove sunload sensor. Refer to

VTL-28, "Removal and Installation"

.

Instrument side finisher RH

[24]

Front body side welt RH

[25]

Front pillar garnish RH

[26]

Speaker grille RH

[27]

Front squawker RH

[28]

Instrument lower panel RH

[29]

Passenger air bag module harness connector

[30]

Passenger air bag module mounting bolt

[31]

Instrument panel assembly

[32]

: Pawl

JMJIA1314ZZ

: Pawl

JMJIA1315ZZ

INSTRUMENT PANEL ASSEMBLY

IP-17

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

8.

Remove instrument lower panel LH.
1.

Remove hood opener lever fixing bolts (A).

2.

Pull back instrument lower panel LH (1).

3.

Release data link connector (pawl) then remove it from
instrument lower panel LH.

4.

Disconnect harness connectors and aspirator duct.

9.

Remove driver air bag module. Refer to

SR-12, "Removal and Installation"

.

10. Remove steering wheel. Refer to

ST-36, "Removal and Installation"

.

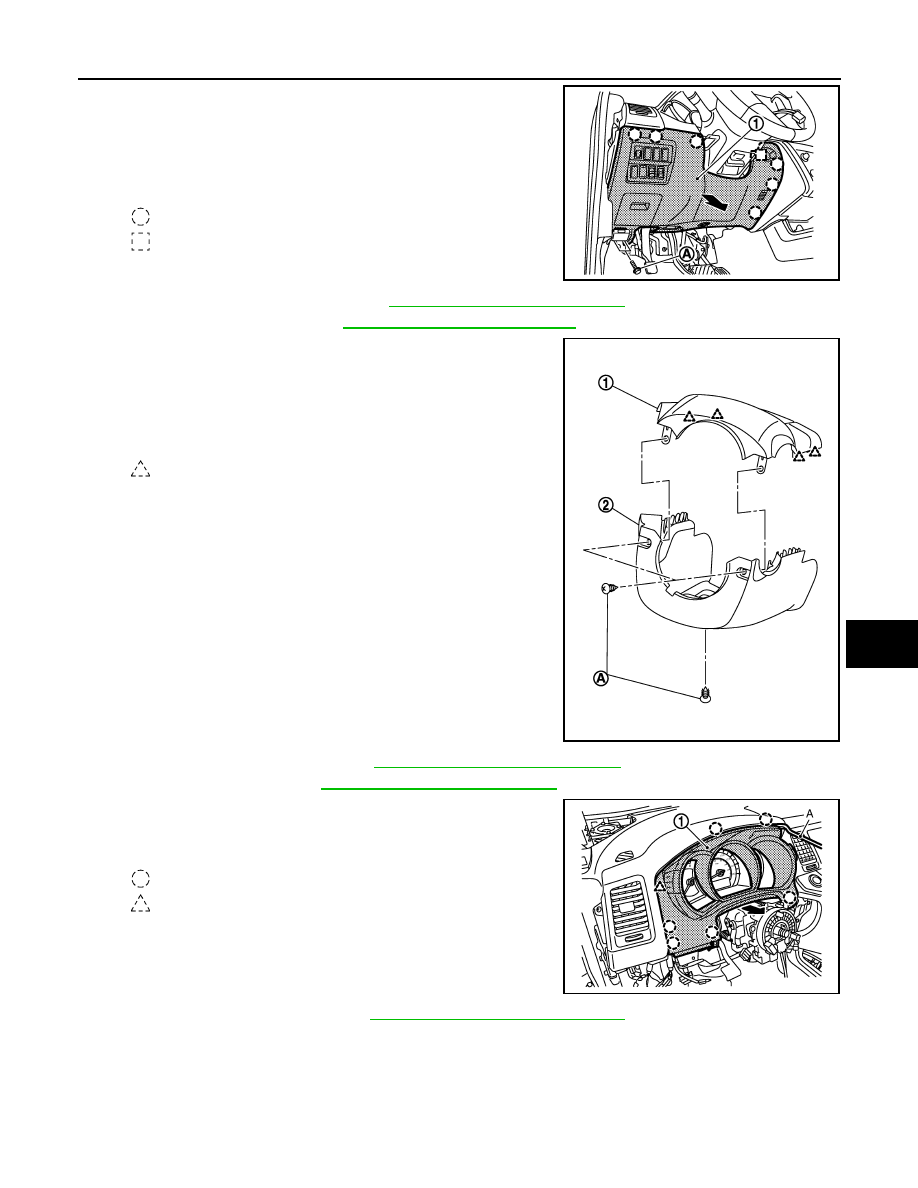

11. Remove steering column covers.

1.

Remove steering column cover fixing screws (A).

2.

Pull up steering column upper cover (1), and then remove
steering column upper cover.

3.

Pull down steering column lower cover (2), and then remove
steering column lower cover.

12. Remove combination switch. Refer to

BCS-99, "Removal and Installation"

.

13. Remove spiral cable. Refer to

SR-15, "Removal and Installation"

.

14. Remove cluster lid A.

1.

Pull back cluster lid A (1), and disengage clips and pawl.

2.

Remove cluster lid A.

15. Remove combination meter. Refer to

MWI-105, "Removal and Installation"

.

: Clip

: Metal clip

JMJIA1316ZZ

: Pawl

JMJIA1317ZZ

: Clip

: Pawl

JMJIA1318ZZ

IP-18

< REMOVAL AND INSTALLATION >

INSTRUMENT PANEL ASSEMBLY

16. Remove cluster lid C (lower).

1.

Disengage cluster lid C (lower) (1) fixing clips and pawls
with remover tool (A).

2.

Pull down cluster lid C (lower).

3.

Disconnect illumination lamp harness connector.

17. Remove instrument stay cover LH.

1.

Remove instrument stay cover LH (1) fixing screw (A).

2.

Disengage instrument stay cover LH fixing clips and pawls
with remover tool.

3.

Pull back and pull up instrument stay cover LH.

4.

Disconnect push button ignition switch harness connector

18. Remove instrument stay cover RH.

1.

Remove instrument stay cover RH (1) fixing screw (A).

2.

Disengage instrument stay cover RH fixing clips and pawls
with remover tool.

3.

Pull back and pull up instrument stay cover RH.

4.

Disconnect hazard switch harness connector.

19. Remove cluster lid D.

1.

Remove cluster lid D (1) fixing screws (A).

2.

Pull back cluster lid D.

3.

Disconnect harness connector.

20. Remove cluster lid C.

1.

Remove cluster lid C (1) fixing screws (A).

2.

Pull back cluster lid C.

3.

Disconnect harness connectors.

: Clip

: Pawl

JMJIA1319ZZ

: Clip

: Pawl

JMJIA1320ZZ

: Clip

: Pawl

JMJIA1321ZZ

: Pawl

JMJIA1322ZZ

JMJIA1323ZZ

INSTRUMENT PANEL ASSEMBLY

IP-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

21. Remove AV control unit or audio unit.

• AV control unit: Refer to the following.

For Base audio with color display: Refer to

AV-149, "Removal and Installation"

.

For Bose audio without navigation: Refer to

AV-276, "Removal and Installation"

.

For Bose audio with navigation: Refer to

AV-448, "Removal and Installation"

.

• Audio unit: Refer to

AV-39, "Removal and Installation"

.

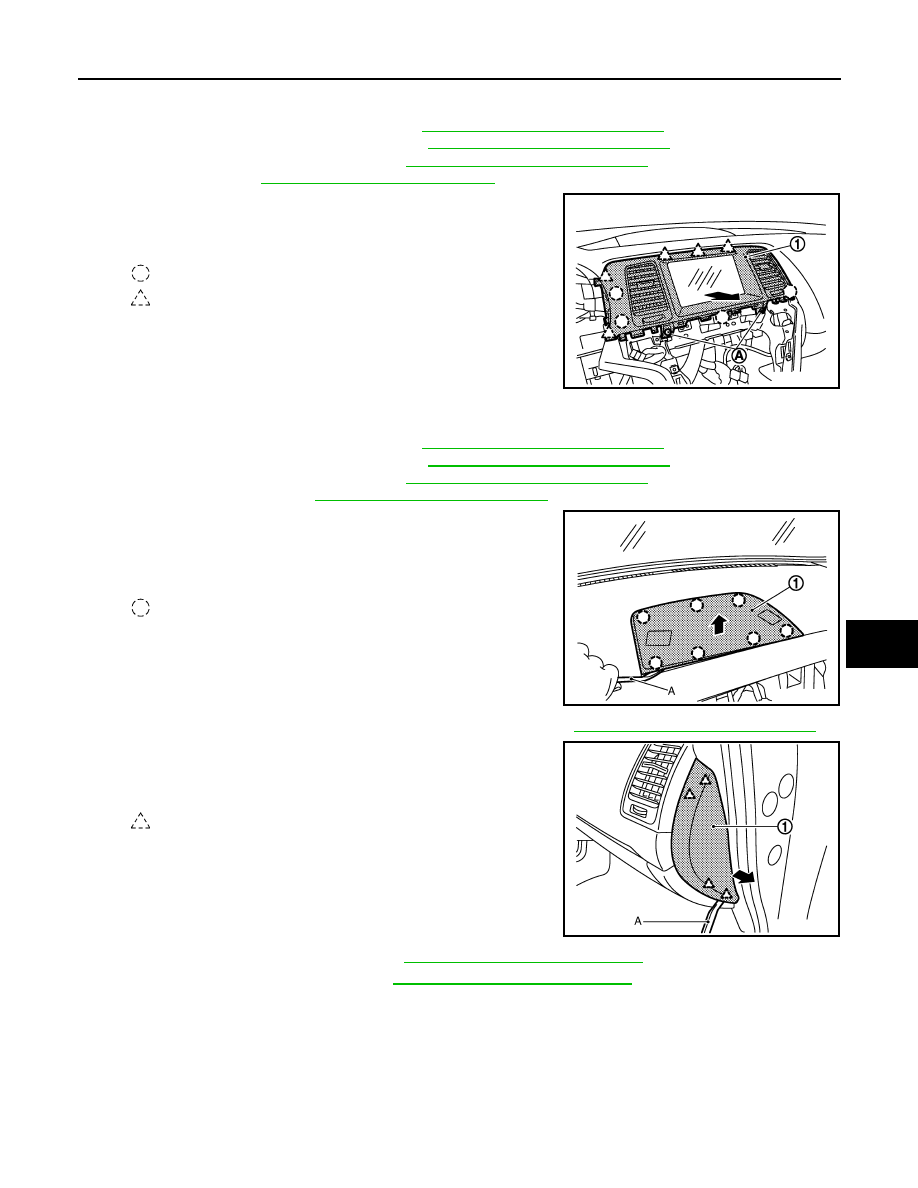

22. Remove center ventilator assembly.

1.

Remove center ventilator assembly (1) fixing screws (A).

2.

Pull back center ventilator assembly.

23. Remove display unit or audio display unit.

• Display unit: Refer to the following.

For Base audio with color display: Refer to

AV-150, "Removal and Installation"

.

For Bose audio without navigation: Refer to

AV-277, "Removal and Installation"

.

For Bose audio with navigation: Refer to

AV-449, "Removal and Installation"

.

• Audio display unit: Refer to

AV-40, "Removal and Installation"

.

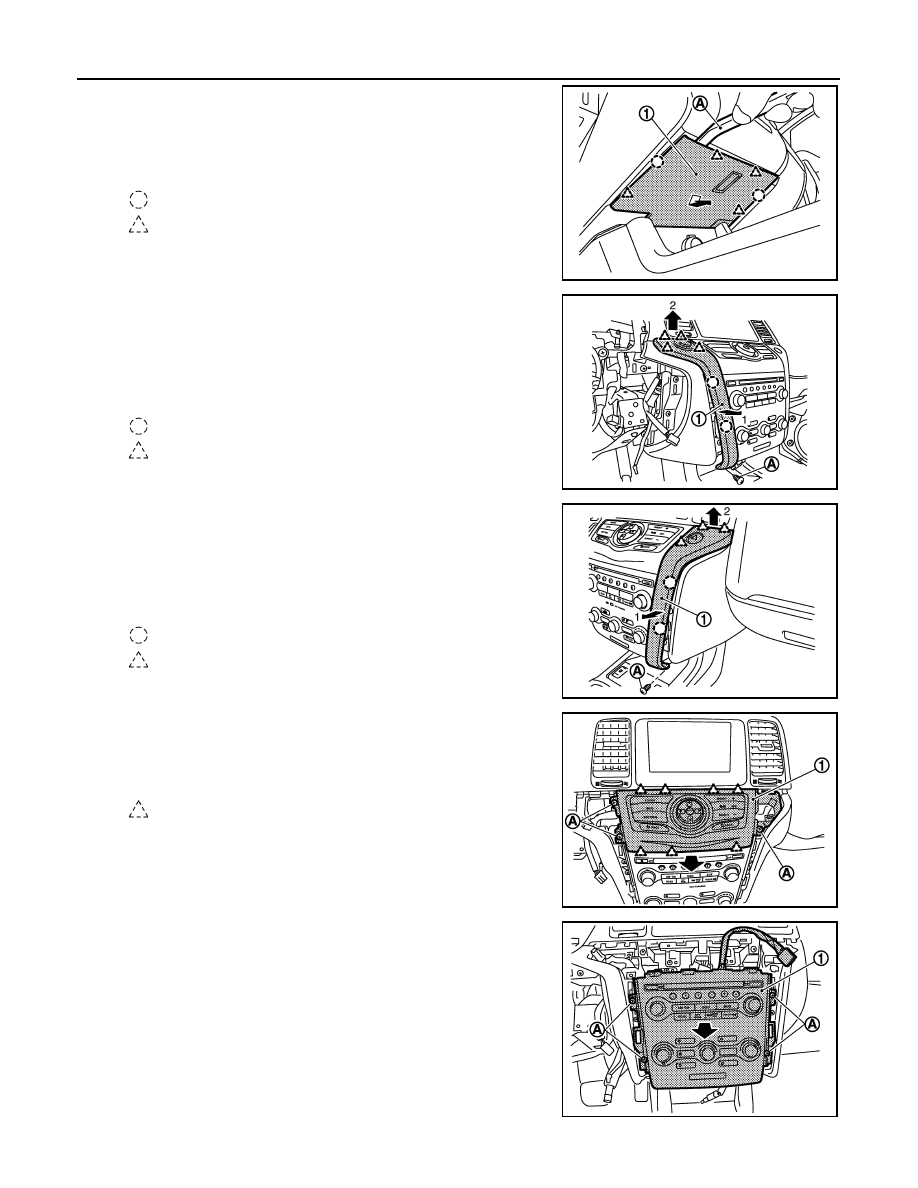

24. Remove center speaker grille.

1.

Disengage center speaker grille (1) fixing clips with remover
tool (A).

2.

Pull up center speaker grille.

25. Remove center speaker (BOSE audio with NAVI models). Refer to

AV-454, "Removal and Installation"

.

26. Remove instrument side finisher RH.

1.

Insert a remover tool (A) into lower space.

2.

Pull the instrument side finisher RH (1) crosswise.

27. Remove front body side welt RH. Refer to

INT-20, "Removal and Installation"

.

28. Remove front pillar garnish RH. Refer to

INT-20, "Removal and Installation"

.

: Clip

: Pawl

JMJIA1325ZZ

: Clip

JMJIA1327ZZ

: Pawl
