Special Service Tools

INFOID:0000000009719636

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

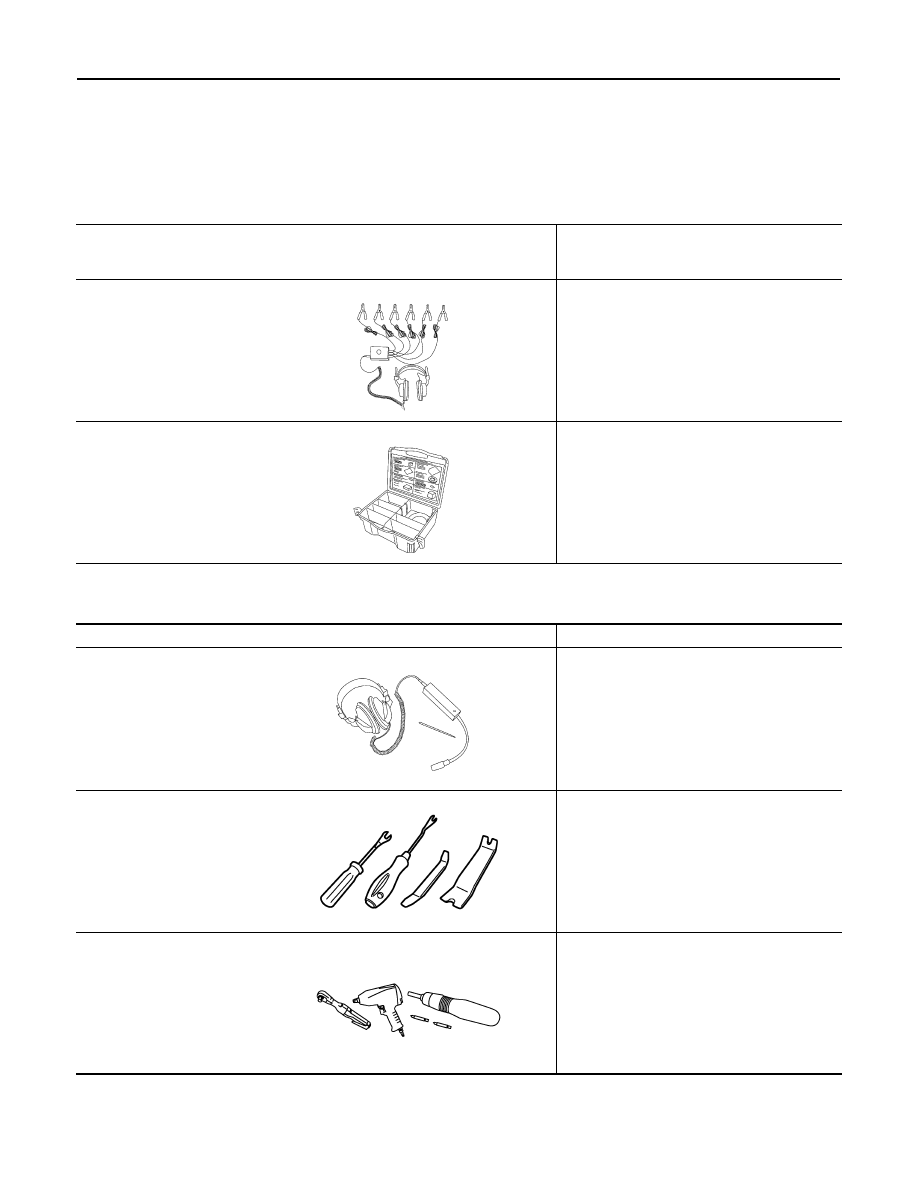

Commercial Service Tools

INFOID:0000000009719637

Tool number

(Kent-Moore No.)

Tool name

Description

(J-39570)
Chassis ear

Locates the noise

(J-50397)
NISSAN Squeak and Rattle
Kit

Repairs the cause of noise

SIIA0993E

SIIA0994E

Tool name

Description

Engine ear

Locates the noise

Remover tool

Removes clips, pawls and metal clips

Power tool

Loosening bolts, nuts and screws

SIIA0995E

JMKIA3050ZZ

PIIB1407E

CLIP LIST

IP-13

< PREPARATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

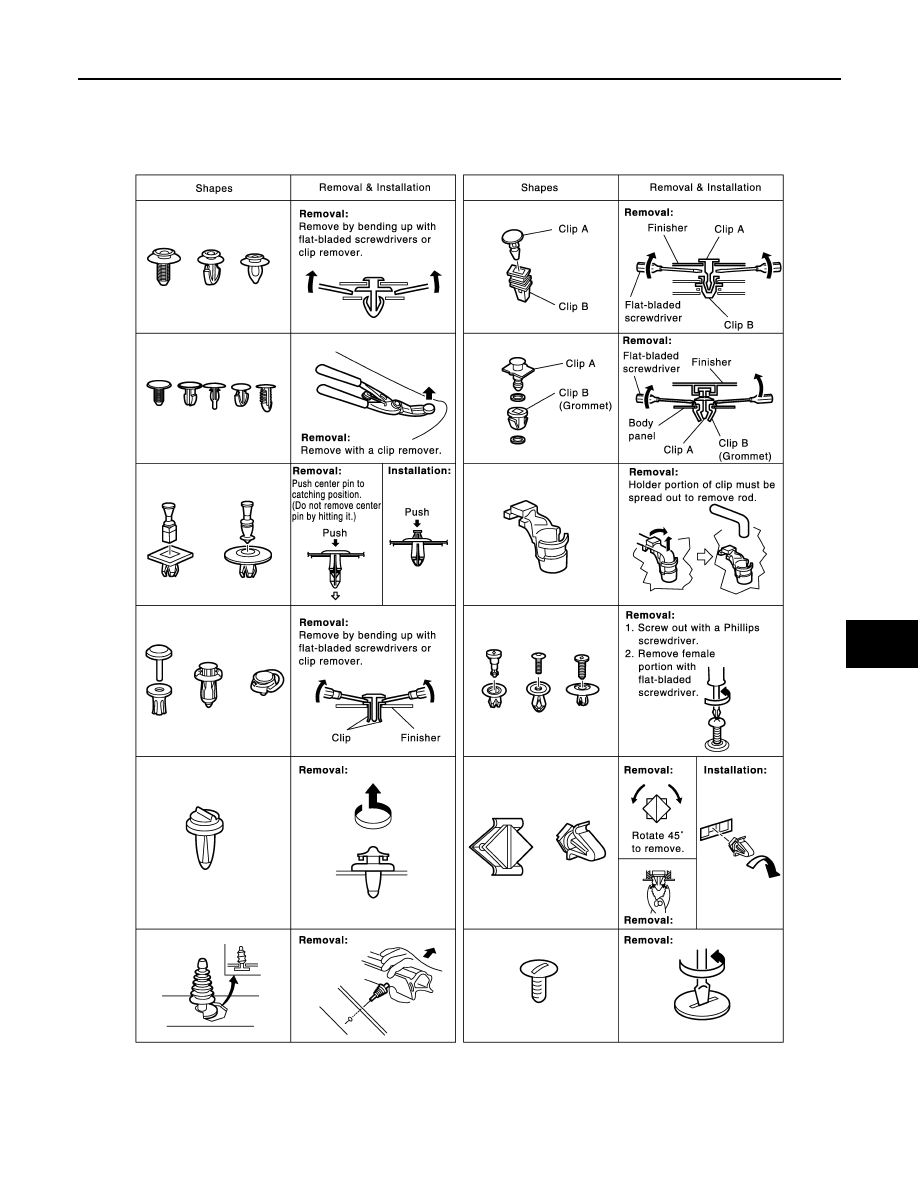

CLIP LIST

Clip List

INFOID:0000000009719638

JMJIA3734GB

IP-14

< REMOVAL AND INSTALLATION >

INSTRUMENT PANEL ASSEMBLY

REMOVAL AND INSTALLATION

INSTRUMENT PANEL ASSEMBLY

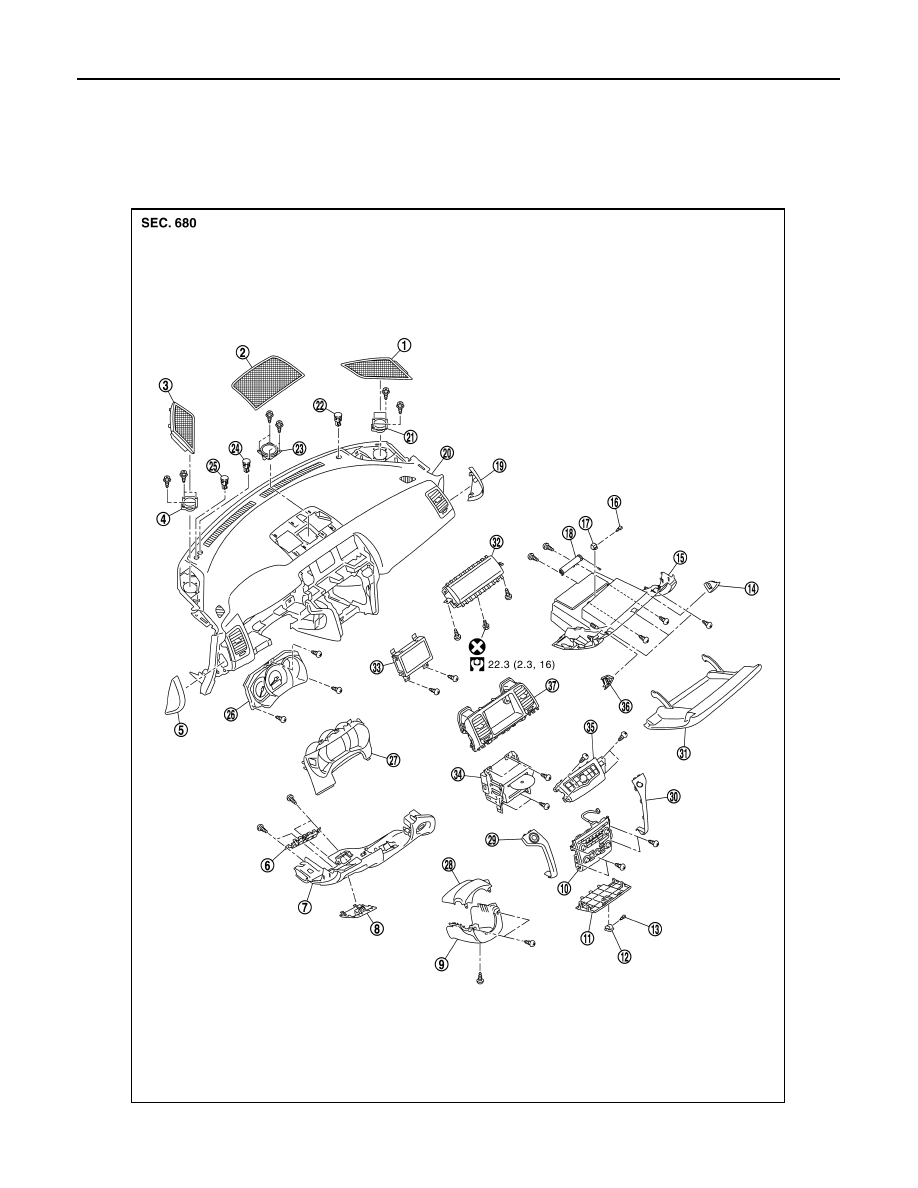

Exploded View

INFOID:0000000009719639

JSJIA0091GB

INSTRUMENT PANEL ASSEMBLY

IP-15

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

Removal and Installation

INFOID:0000000009719640

WORK STEP

When removing instrument panel assembly, combination meter, AV control unit (or audio unit), and front dis-
play unit take steps in the order shown by the number below.

1.

Speaker grille RH

2.

Center speaker grille

3.

Speaker grille LH

4.

Front squawker LH

5.

Instrument side finisher LH

6.

Switch bracket

7.

Instrument lower panel LH

8.

Fuse block lid

9.

Steering column lower cover

10. Cluster lid C

11.

Cluster lid C (lower)

12. Illumination lamp

13. Socket and bulb

14. Glove box striker RH

15. Instrument lower panel RH

16. Socket and bulb

17. Glove box lamp

18. Glove box dumper

19. Instrument side finisher RH

20. Instrument panel assembly

21. Front squawker RH

22. Optical sensor

23. Center speaker

24. Sunload sensor

25. Security indicator

26. Combination meter

27. Cluster lid A

28. Steering column upper cover

29. Instrument stay cover LH

30. Instrument stay cover RH

31. Glove box lid

32. Passenger air bag module

33. Display unit

34. AV C/U (audio unit)

35. Cluster lid D

36. Glove box striker LH

37. Center ventilator assembly

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

PARTS

INSTRUMENT

PANEL ASSEMBLY

COMBINATION

METER

AV CONTROL

UNIT

(or AUDIO UNIT)

DISPLAY UNIT (or

AUDIO DISPLAY

UNIT)

Instrument side finisher LH

[1]

[1]

Front body side welt LH

[2]

Front pillar garnish LH

[3]

Speaker grille LH

[4]

Front squawker LH

[5]

Instrument lower panel LH

[6]

[2]

Driver air bag module

[7]

Steering wheel

[8]

Steering column cover

[9]

[3]

Combination switch

[10]

Spiral cable

[11]

Cluster lid A

[12]

[4]

Combination meter

[13]

[5]

Cluster lid C (lower)

[14]

Instrument stay cover LH

[15]

[1]

[1]

Instrument stay cover RH

[16]

[2]

[2]

Cluster lid D

[17]

[3]

[3]

Cluster lid C

[18]

[4]

[4]

AV control unit (or audio unit)

[19]

[5]

[5]

Center ventilator assembly

[20]

[6]

Display unit (or audio display unit)

[21]

[7]

Center speaker grille

[22]

Center speaker

[23]
