PERSONAL LAMP

PERSONAL LAMP

Exploded View

INFOID:0000000009718457

NOTE:
Replace the personal lamp case as a set (right and left). After removing the headlining assembly, remove the
personal lamp case. Refer to

INT-26, "NORMAL ROOF : Exploded View"

 (Normal roof) or

INT-30, "SUNROOF

: Exploded View"

 (With sunroof).

Removal and Installation

INFOID:0000000009718458

CAUTION:

Disconnect the battery negative terminal or remove the fuse.

REMOVAL

1.

Remove the headlining assembly. Refer to

INT-26, "NORMAL ROOF : Removal and Installation"

 (Normal

roof) or

INT-30, "SUNROOF : Removal and Installation"

 (With sunroof).

2.

Insert any appropriate tool into the gap between the lens. Remove the lens.

3.

Press the both side pawls (A) to the arrow direction (

).

Remove the personal lamp finisher.

4.

Remove the personal lamp case from the headlining assembly.

NOTE:
Replace the personal lamp case as a set (right and left).

INSTALLATION

Install in the reverse order of removal.
NOTE:
The following is easier to install the personal lamp finisher.

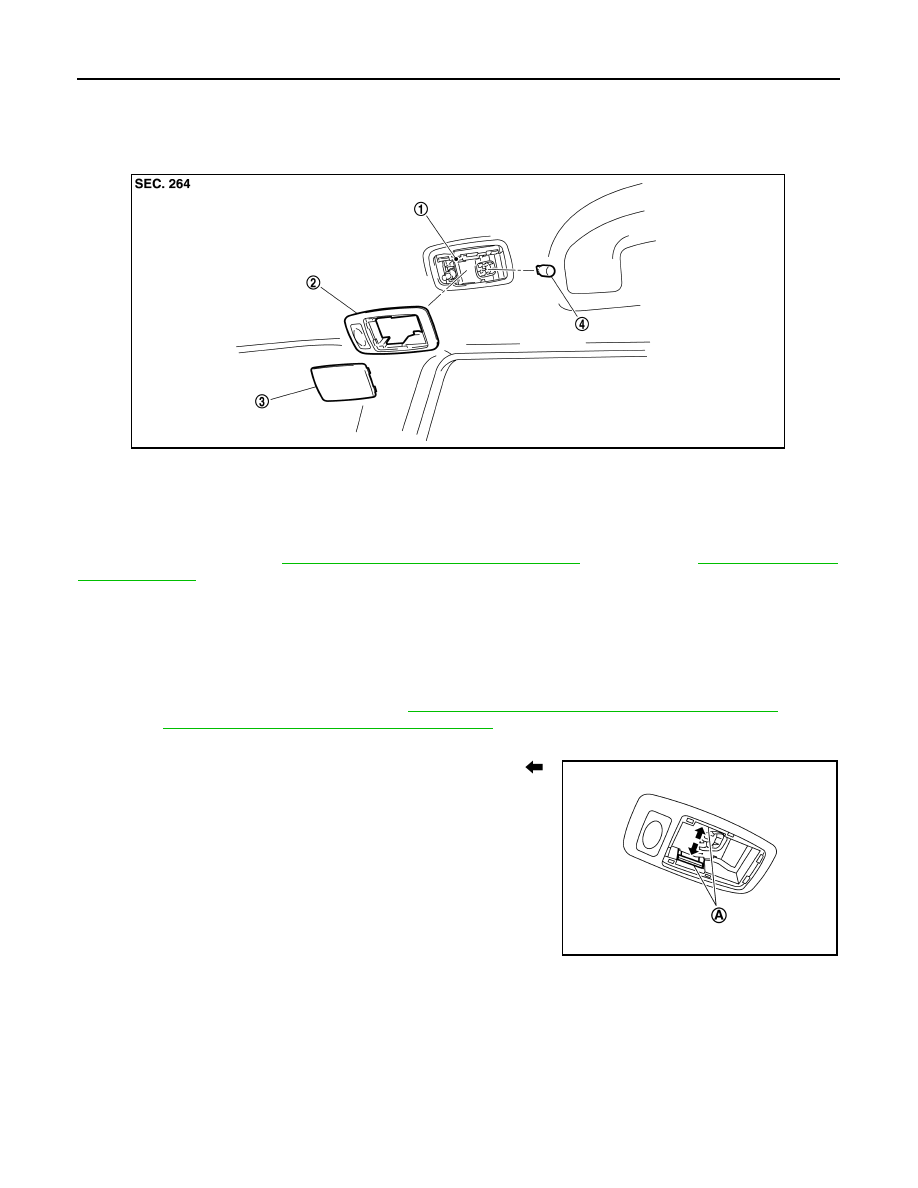

1.

Personal lamp case

2.

Personal lamp finisher

3.

Lens

4.

Bulb

JPLIA0834ZZ

JPLIA0087ZZ

PERSONAL LAMP

INL-133

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

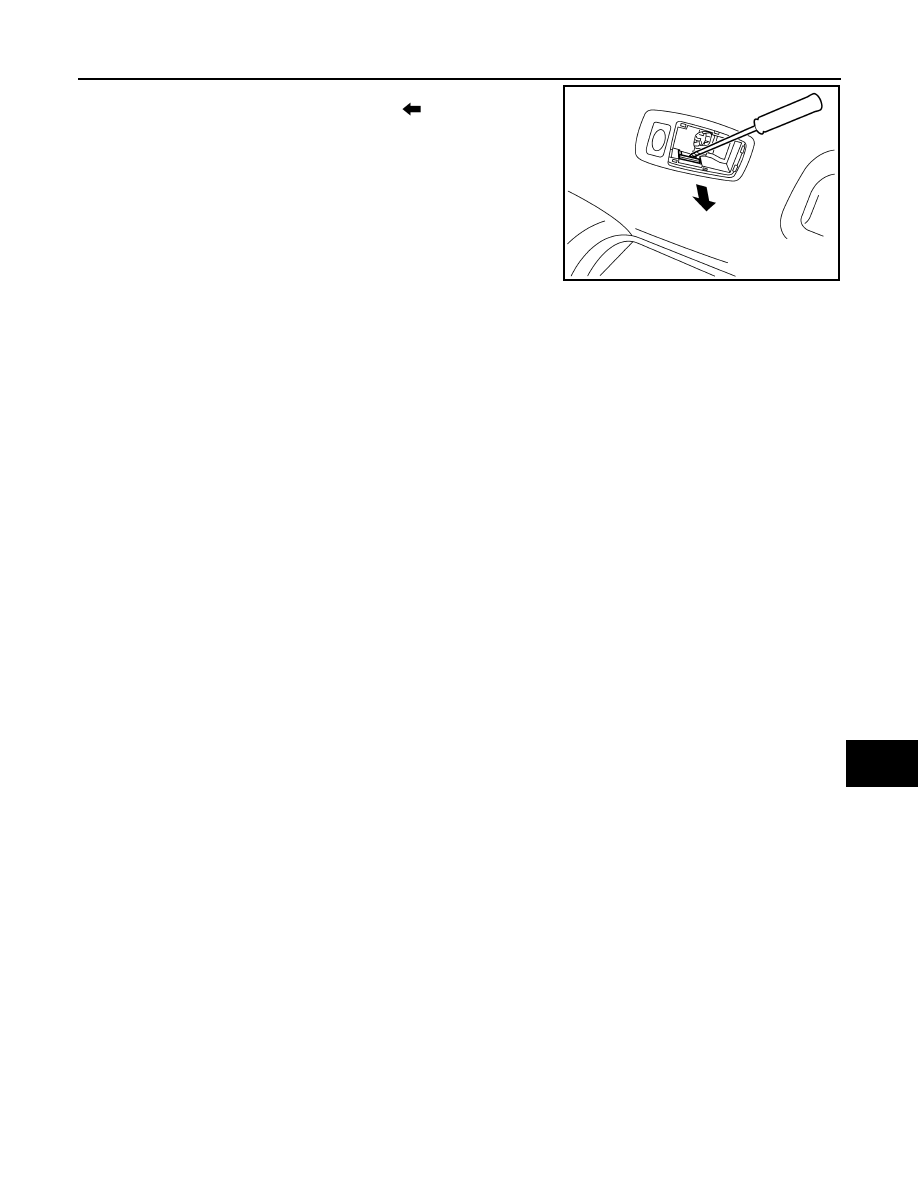

• Press the personal lamp finisher to the headlining. Pull the per-

sonal lamp case pawl to the arrow direction (

) with any appropri-

ate tool.

Replacement

INFOID:0000000009718459

CAUTION:

• Disconnect the battery negative terminal or remove the fuse.
• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
• Never touch bulb by hand while it is lit or right after being turned off.
• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

PERSONAL LAMP BULB

1.

Insert any appropriate tool into the gap between the lens. Remove the lens.

2.

Remove the bulb.

JPLIA0835ZZ

INL-134

< REMOVAL AND INSTALLATION >

LUGGAGE ROOM LAMP

LUGGAGE ROOM LAMP

Exploded View

INFOID:0000000009718460

Removal and Installation

INFOID:0000000009718461

CAUTION:

Disconnect the battery negative terminal or remove the fuse.

REMOVAL

1.

Insert any appropriate tool into the gap between the luggage room lamp assembly and back door finisher
inner. Remove the luggage room lamp assembly.

2.

Disconnect the connector.

INSTALLATION

Install in the reverse order of removal.

Replacement

INFOID:0000000009718462

CAUTION:

• Disconnect the battery negative terminal or remove the fuse.
• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
• Never touch bulb by hand while it is lit or right after being turned off.
• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

LUGGAGE ROOM LAMP BULB

1.

Remove the luggage room lamp assembly.

2.

Remove the bulb.

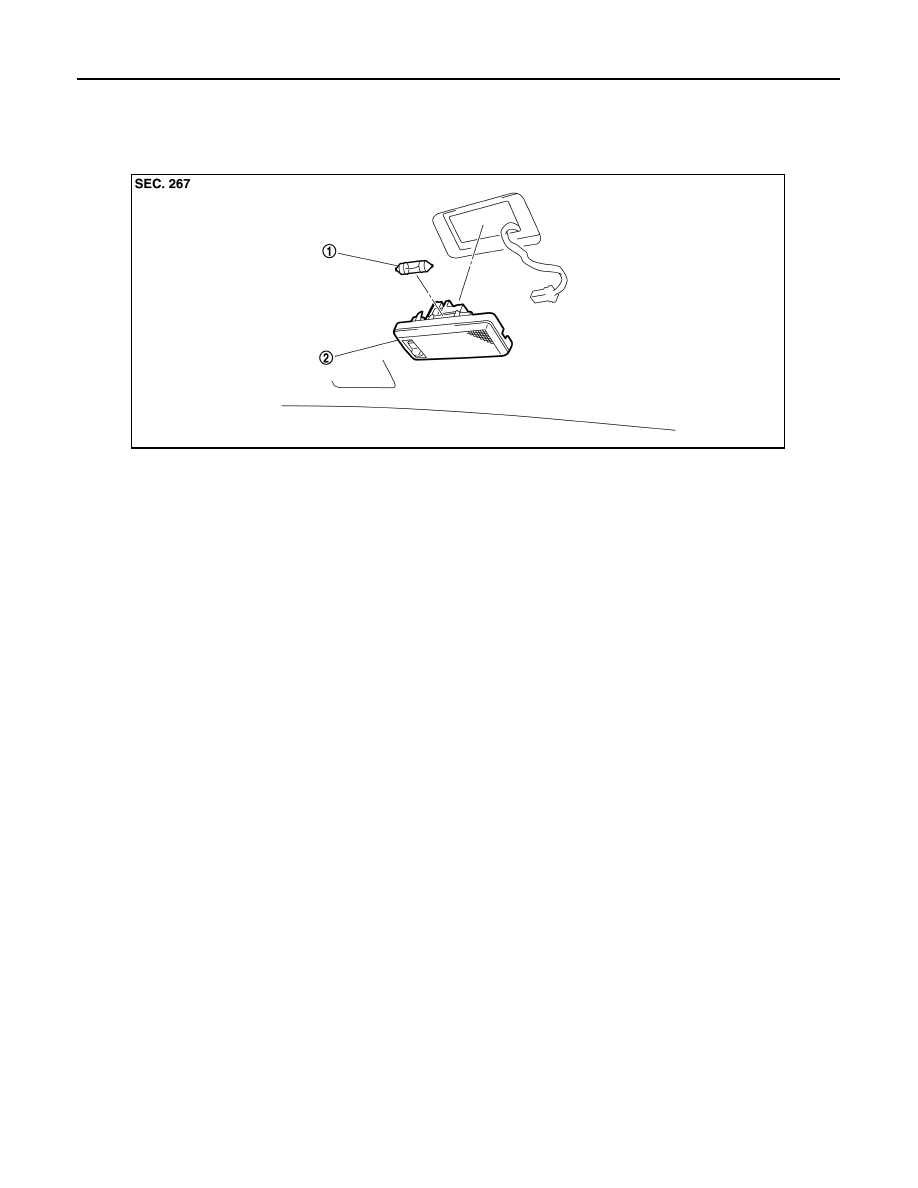

1.

Bulb

2.

Luggage room lamp assembly

JPLIA0838ZZ

SERVICE DATA AND SPECIFICATIONS (SDS)

INL-135

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Bulb Specifications

INFOID:0000000009718463

Item

Type

Wattage (W)

Push-button ignition switch illumination

LED

—

Map lamp

Wedge

8

Mood lamp

Map lamp

LED

—

Front door grip

LED

—

Vanity mirror lamp

—

2

Console pocket lamp

Wedge

1.4

Ashtray illumination

Wedge

1.4

Glove box lamp

Wedge

1.4

Step lamp

Wedge

2.7

Personal lamp

Wedge

8

Luggage room lamp

—

8
