Nissan Murano. Manual - part 903

INL-124

< REMOVAL AND INSTALLATION >

MAP LAMP

SUN ROOF

Removal and Installation

INFOID:0000000009718442

REMOVAL

CAUTION:

Disconnect the battery negative terminal or remove the fuse.

NORMAL ROOF

1.

Remove headlining. Refer to

INT-26, "NORMAL ROOF : Removal and Installation"

.

2.

Disconnect harness connector.

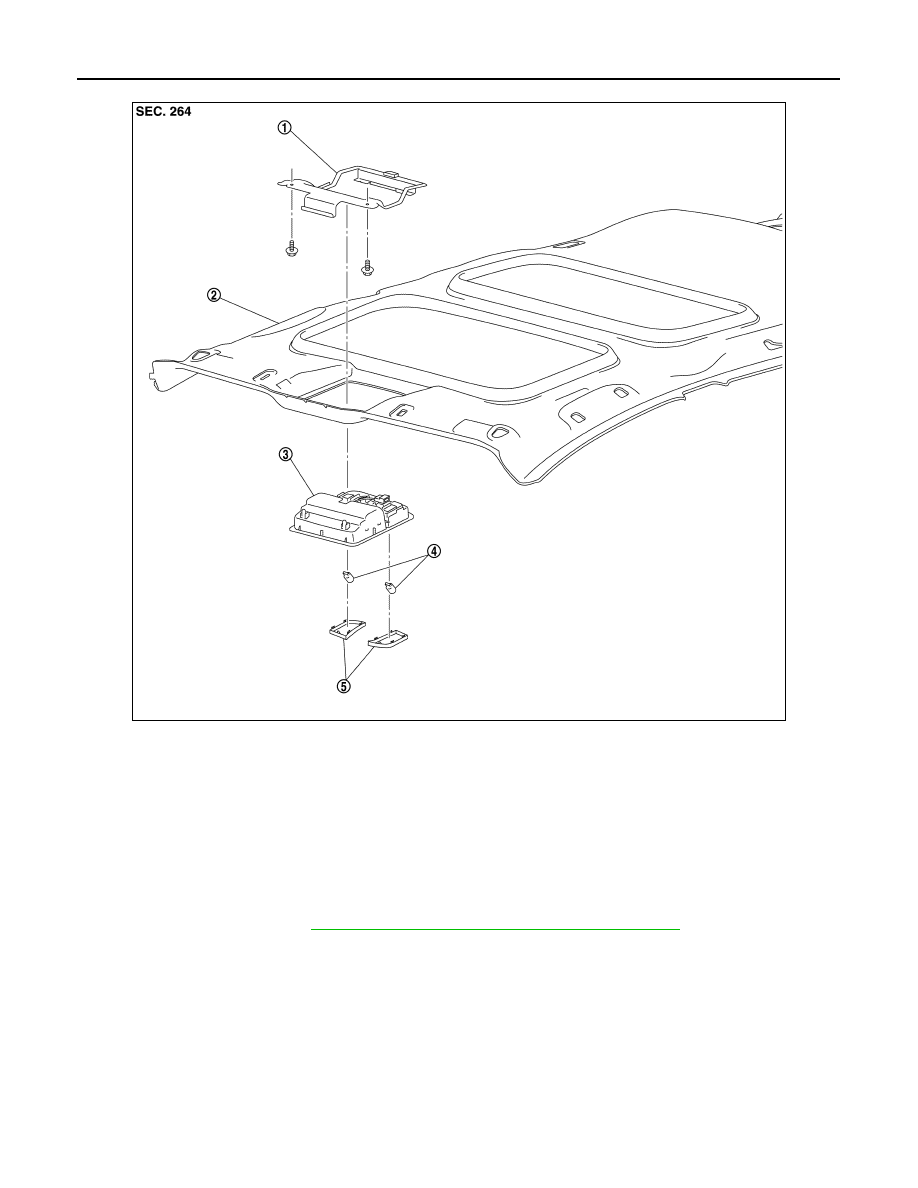

JMLIA2529ZZ

1.

Map lamp bracket

2.

Headlining

3.

Map lamp assembly

4.

Bulb

5.

Lens

MAP LAMP

INL-125

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

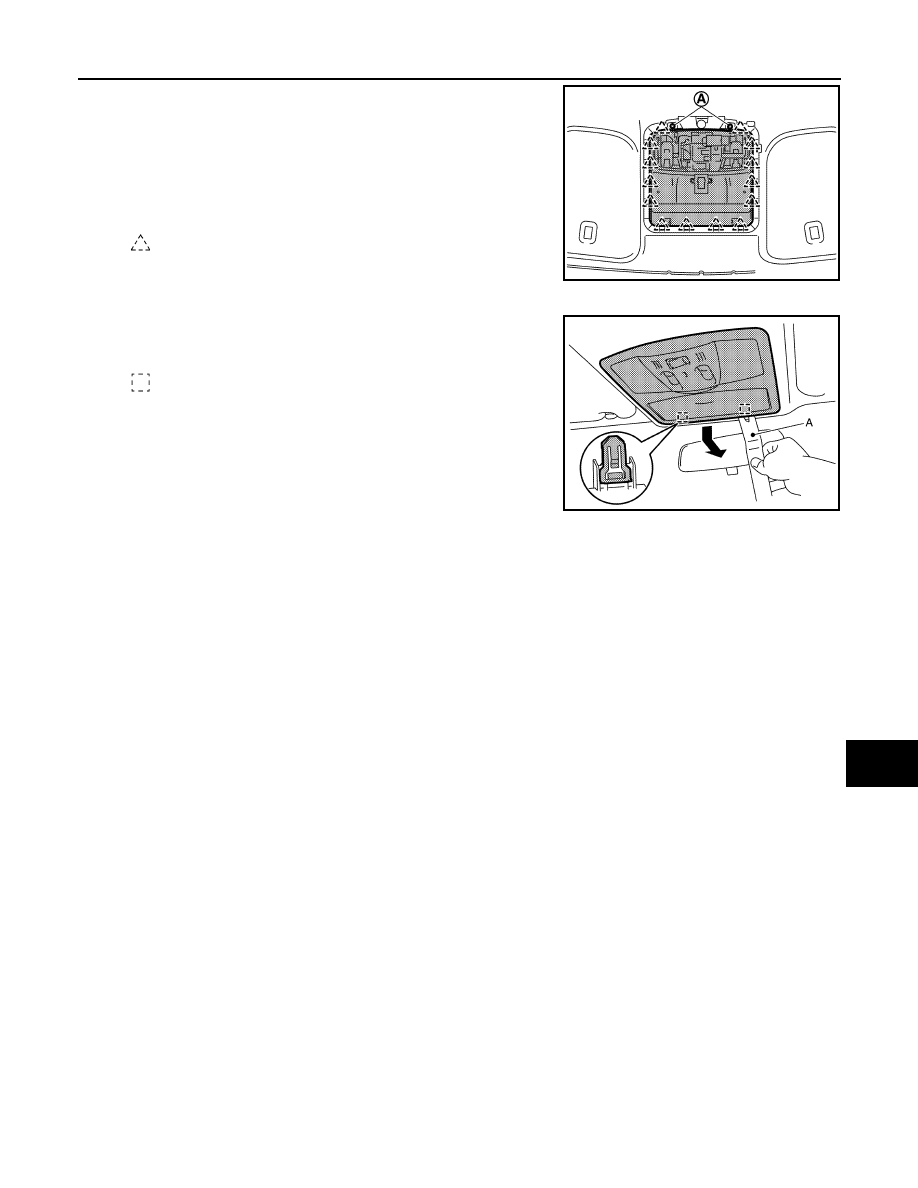

3.

Remove map lamp bracket fixing screws (A), and then remove
map lamp bracket.

4.

Disengage map lamp assembly fixing pawls, and then remove
map lamp assembly.

CAUTION:

When removing, support map lamp assembly by hand so
that it dose not drop during the operation.

SUN ROOF

1.

Disengage map lamp assembly fixing metal clips using a
remover tool (A).

2.

Disconnect harness connector, and then remove map lamp
assembly.

INSTALLATION

Install in the reverse order of removal.

Replacement

INFOID:0000000009718443

CAUTION:

• Disconnect the battery negative terminal or remove the fuse.
• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
• Never touch bulb by hand while it is lit or right after being turned off.
• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

MAP LAMP BULB

1.

Insert any appropriate tool into the gap between the lens. Remove the lens.

2.

Remove the bulb.

: Pawl

JMLIA2530ZZ

: Metal clip

JMLIA1525ZZ

INL-126

< REMOVAL AND INSTALLATION >

MOOD LAMP

MOOD LAMP

MAP LAMP

MAP LAMP : Replacement

INFOID:0000000009718444

MAP LAMP

Mood lamp (map lamp) is integrated into the map lamp assembly. Refer to

INL-123, "Exploded View"

.

FRONT DOOR GRIP

FRONT DOOR GRIP : Replacement

INFOID:0000000009718445

FRONT DOOR

Mood lamp (front door grip) is integrated into the front door trim. Refer to

INT-13, "FRONT DOOR FINISHER :

Exploded View"

.

VANITY MIRROR LAMP

INL-127

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

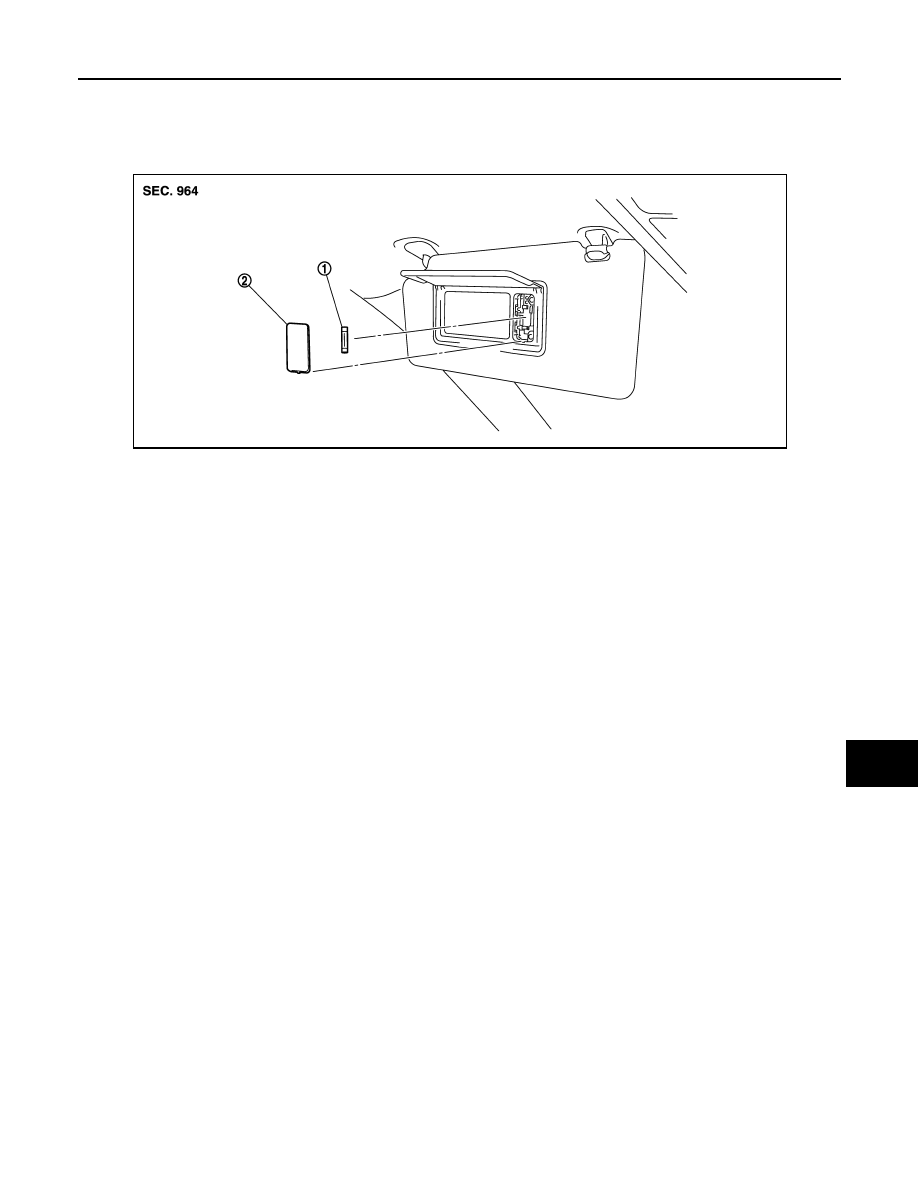

VANITY MIRROR LAMP

Exploded View

INFOID:0000000009718446

Replacement

INFOID:0000000009718447

CAUTION:

• Disconnect the battery negative terminal or remove the fuse.
• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
• Never touch bulb by hand while it is lit or right after being turned off.
• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

VANITY MIRROR LAMP BULB

1.

Insert any appropriate tool into the gap between the lens. Remove the lens.

2.

Remove the bulb.

1.

Bulb

2.

Lens

JPLIA0988ZZ
