INL-16

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (BCM)

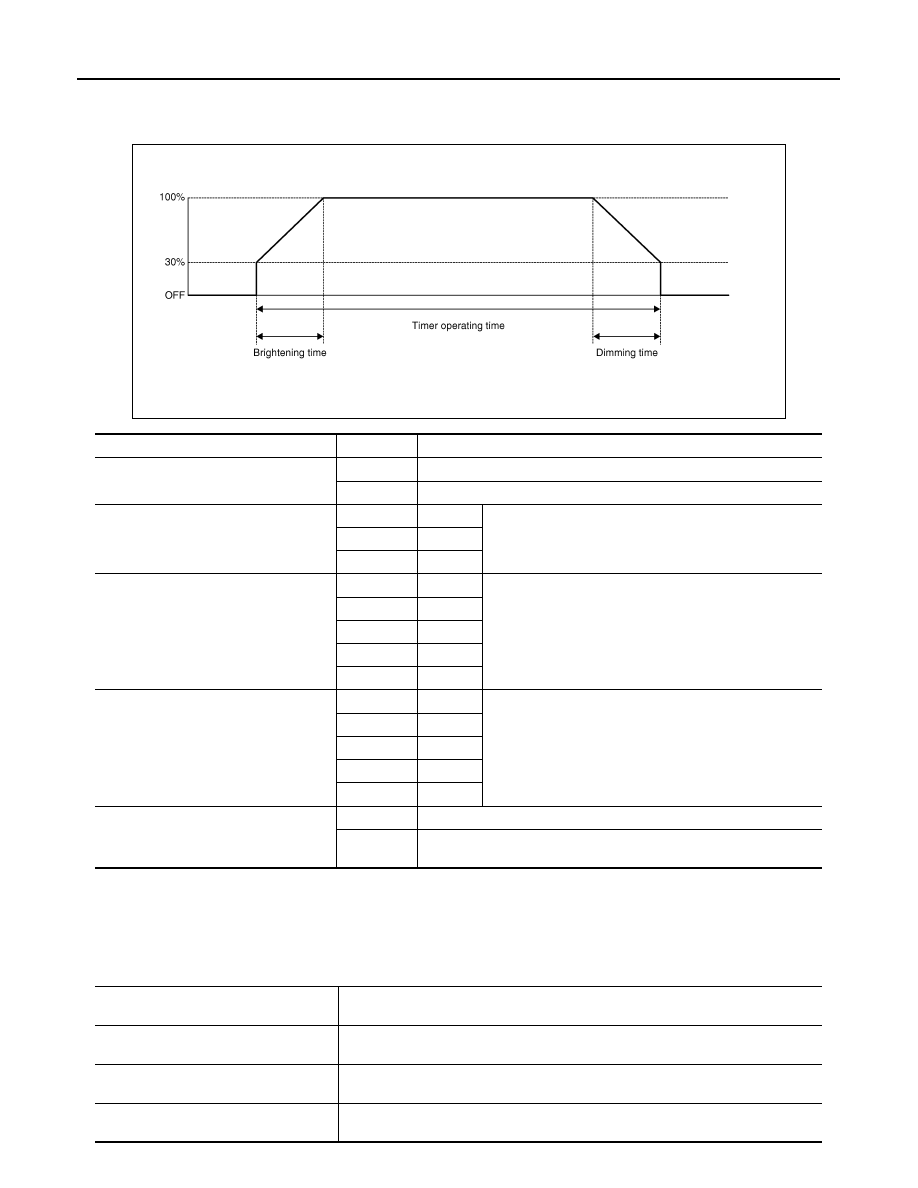

INT LAMP : CONSULT Function (BCM - INT LAMP)

INFOID:0000000009718412

WORK SUPPORT

*: Factory setting

DATA MONITOR

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

JPLIA0093GB

Service item

Setting item

Setting

SET I/L D-UNLCK INTCON

ON*

With the interior room lamp timer function

OFF

Without the interior room lamp timer function

ROOM LAMP TIMER SET

MODE 2

7.5 sec.

Sets the interior room lamp ON time. (Timer operating time)

MODE 3*

15 sec.

MODE 4

30 sec.

ROOM LAMP ON TIME SET

MODE 1

0.5 sec.

Sets the interior room lamp gradual brightening time.

MODE 2*

1 sec.

MODE 3

2 sec.

MODE 4

3 sec.

MODE 5

0 sec.

ROOM LAMP OFF TIME SET

MODE 1

0.5 sec.

Sets the interior room lamp gradual dimming time.

MODE 2

1 sec.

MODE 3

2 sec.

MODE 4*

3 sec.

MODE 5

0 sec.

R LAMP TIMER LOGIC SET

MODE 1*

Interior room lamp timer activates with synchronizing all doors.

MODE 2

Interior room lamp timer activates with synchronizing the driver door
only.

Monitor item

[Unit]

Description

REQ SW-DR
[On/Off]

The switch status input from request switch (driver side)

REQ SW-AS
[On/Off]

The switch status input from front request switch (passenger side)

PUSH SW
[On/Off]

The switch status input from push-button ignition switch

DIAGNOSIS SYSTEM (BCM)

INL-17

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

ACTIVE TEST

BATTERY SAVER

BATTERY SAVER : CONSULT Function (BCM - BATTERY SAVER)

INFOID:0000000009718413

WORK SUPPORT

KEY SW-SLOT
[On/Off]

Key switch status input from key slot

DOOR SW-DR
[On/Off]

The switch status input from front door switch (driver side)

DOOR SW-AS
[On/Off]

The switch status input from front door switch (passenger side)

DOOR SW-RR
[On/Off]

The switch status input from rear door switch RH

DOOR SW-RL
[On/Off]

The switch status input from rear door switch LH

DOOR SW-BK
[On/Off]

NOTE:
The item is indicated, but not monitored.

CDL LOCK SW
[On/Off]

Lock switch status received from door lock/unlock switch by power window switch se-
rial link

CDL UNLOCK SW
[On/Off]

Unlock switch status received from door lock/unlock switch by power window switch
serial link

KEY CYL LK-SW
[On/Off]

Lock switch status received from key cylinder lock/unlock switch by power window
switch serial link

KEY CYL UN-SW
[On/Off]

Unlock switch status received from key cylinder lock/unlock switch by power window
switch serial link

BACK DOOR SW
[On/Off]

The switch status input from back door switch

RKE-LOCK
[On/Off]

Lock signal status received from remote keyless entry receiver

RKE-UNLOCK
[On/Off]

Unlock signal status received from remote keyless entry receiver

Monitor item

[Unit]

Description

Test item

Operation

Description

INT LAMP

On

Outputs the interior room lamp control signal to turn map lamp and personal lamp ON
(Map lamp switch is in DOOR position).

Off

Stops the interior room lamp control signal to turn map lamp and personal lamp OFF.

STEP LAMP TEST

On

Outputs the step lamp control signal to turn step lamp ON.

Off

Stops the step lamp control signal to turn step lamp OFF.

LUGGAGE LAMP TEST

On

NOTE:
The item is displayed, but cannot be tested.

Off

Service item

Setting item

Setting

BATTERY SAVER SET

On*

With the exterior lamp battery saver function

Off

Without the exterior lamp battery saver function

ROOM LAMP BAT SAV SET

On*

With the interior room lamp battery saver function

Off

Without the interior room lamp battery saver function

INL-18

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (BCM)

*: Factory setting

DATA MONITOR

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

ACTIVE TEST

ROOM LAMP TIMER SET

MODE 1

30 min.

Sets the interior room lamp battery saver timer operating
time.

MODE 2

60 min.

MODE 3*

15 min.

Service item

Setting item

Setting

Monitor item

[Unit]

Description

REQ SW-DR
[On/Off]

The switch status input from request switch (driver side)

REQ SW-AS
[On/Off]

The switch status input from front request switch (passenger side)

REQ SW-RR
[On/Off]

NOTE:
The item is indicated, but not monitored.

REQ SW-RL
[On/Off]

PUSH SW
[On/Off]

The switch status input from push-button ignition switch

KEY SW-SLOT
[On/Off]

Key switch status input from key slot

UNLK SEN-DR
[On/Off]

Driver door unlock status input from unlock sensor

DOOR SW-DR
[On/Off]

The switch status input from front door switch (driver side)

DOOR SW-AS
[On/Off]

The switch status input from front door switch (passenger side)

DOOR SW-RR
[On/Off]

The switch status input from rear door switch RH

DOOR SW-RL
[On/Off]

The switch status input from rear door switch LH

DOOR SW-BK
[On/Off]

NOTE:
The item is indicated, but not monitored.

CDL LOCK SW
[On/Off]

Lock switch status received from door lock/unlock switch by power window switch se-
rial link

CDL UNLOCK SW
[On/Off]

Unlock switch status received from door lock/unlock switch by power window switch
serial link

KEY CYL LK-SW
[On/Off]

Lock switch status received from key cylinder lock/unlock switch by power window
switch serial link

KEY CYL UN-SW
[On/Off]

Unlock switch status received from key cylinder lock/unlock switch by power window
switch serial link

BACK DOOR SW
[On/Off]

The switch status input from back door switch

RKE-LOCK
[On/Off]

Lock signal status received from remote keyless entry receiver

RKE-UNLOCK
[On/Off]

Unlock signal status received from remote keyless entry receiver

DIAGNOSIS SYSTEM (BCM)

INL-19

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

*: Each lamp switch is in ON position.

Test item

Operation

Description

BATTERY SAVER

Off

Cuts the interior room lamp power supply to turn interior room lamp OFF.

On

Outputs the interior room lamp power supply to turn interior room lamp ON.*
