INL-8

< SYSTEM DESCRIPTION >

INTERIOR ROOM LAMP CONTROL SYSTEM

BCM turns the push-button ignition switch illumination OFF in any of the following conditions.
• The push-button ignition switch illumination ON conditions do not satisfy.
• All of the following conditions with ignition switch OFF
- Each illumination (tail lamp) OFF
- The push-button ignition switch illumination ON conditions do not change (15 seconds after the ignition

switch OFF) or the driver door is UNLOCK

 LOCK.

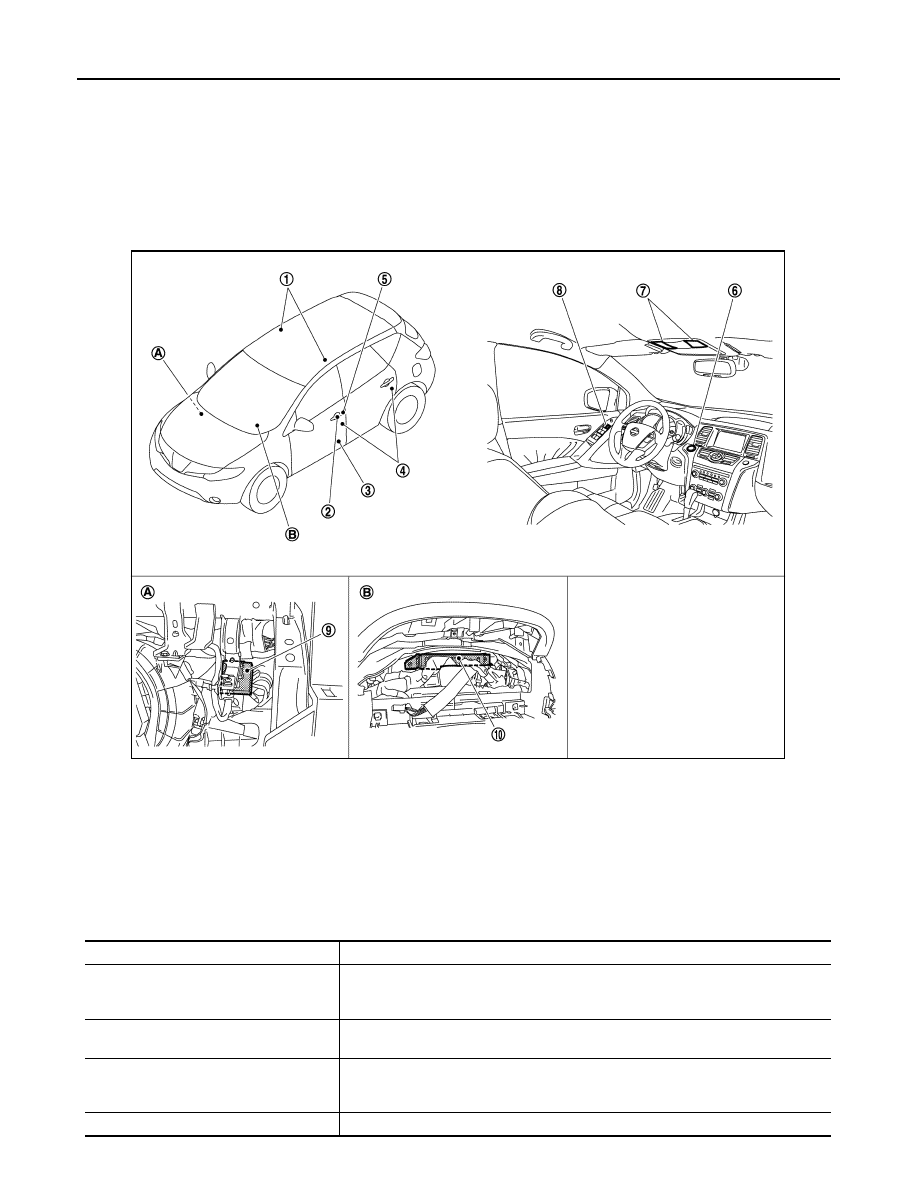

Component Parts Location

INFOID:0000000009718401

Component Description

INFOID:0000000009718402

1.

Personal lamp

2.

Request switch

3.

Step lamp

4.

Door switch

5.

Key cylinder switch

6.

Push-button ignition switch illumination

7.

Map lamp

8.

Door lock switch

9.

Remote keyless entry receiver

10. BCM

A.

Over the glove box

B.

Behind the combination meter

JPLIA0889ZZ

Part

Description

BCM

• Activates the interior room lamp timer depending on the vehicle condition to turn the

interior room lamp ON/OFF.

• Turns the step lamp ON /OFF according to any door switch status.

Remote keyless entry receiver

• Receives the lock/unlock signal from keyfob.
• Transmits the lock/unlock signal to BCM.

• Request switch
• Key cylinder lock/unlock switch
• Door lock/unlock switch

Inputs the lock/unlock signal to BCM.

Door switch

Inputs the door switch signal to BCM.

INTERIOR ROOM LAMP BATTERY SAVER SYSTEM

INL-9

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

INTERIOR ROOM LAMP BATTERY SAVER SYSTEM

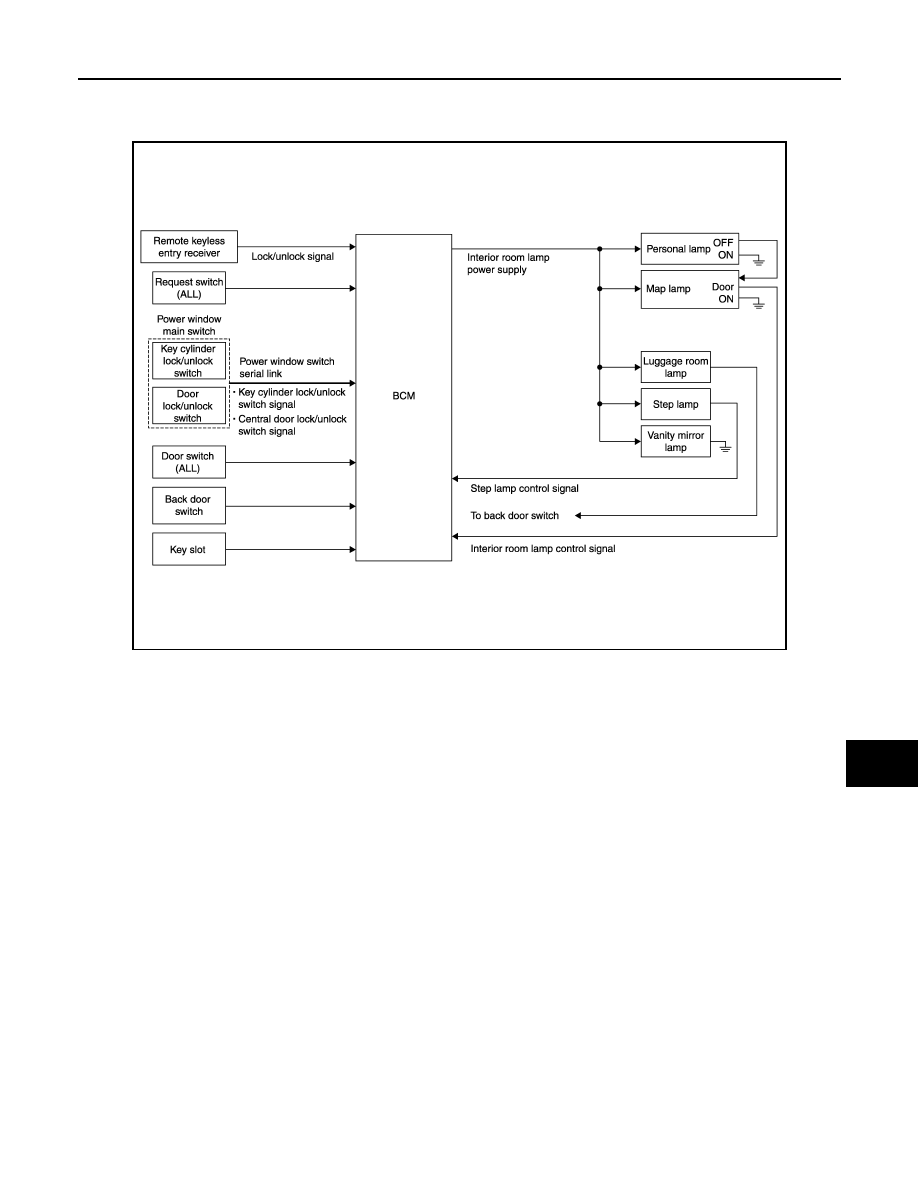

System Diagram

INFOID:0000000009718403

System Description

INFOID:0000000009718404

OUTLINE

• Interior room lamp battery saver is controlled by BCM.
• BCM turns applicable lamps OFF depending on the vehicle condition. This function prevents the battery

from over-discharging if the driver neglect turning OFF the any lamps.

Applicable lamps

• Map lamp
• Personal lamp
• Step lamp
• Luggage room lamp
• Vanity mirror lamp

INTERIOR ROOM LAMP BATTERY SAVER FUNCTION

• When the ignition switch is turned OFF, BCM operates the timer for a period of time to cut the interior room

lamp power supply.

• BCM restart the timer when any of the following signals changes while operating the timer.
- Ignition switch status
- Door switch signal (ALL)
- Door lock/unlock signal (Remote keyless entry receiver, each request switch, key cylinder lock/unlock

switch, door lock/unlock switch)

- Back door switch signal
- Key switch signal (Key slot)
• BCM provides the interior room lamp power supply continuously when the ignition switch position is other

than OFF.

NOTE:

JPLIA0986GB

INL-10

< SYSTEM DESCRIPTION >

INTERIOR ROOM LAMP BATTERY SAVER SYSTEM

Each function of interior room lamp battery saver can be set by CONSULT. Refer to

INL-17, "BATTERY

SAVER : CONSULT Function (BCM - BATTERY SAVER)"

.

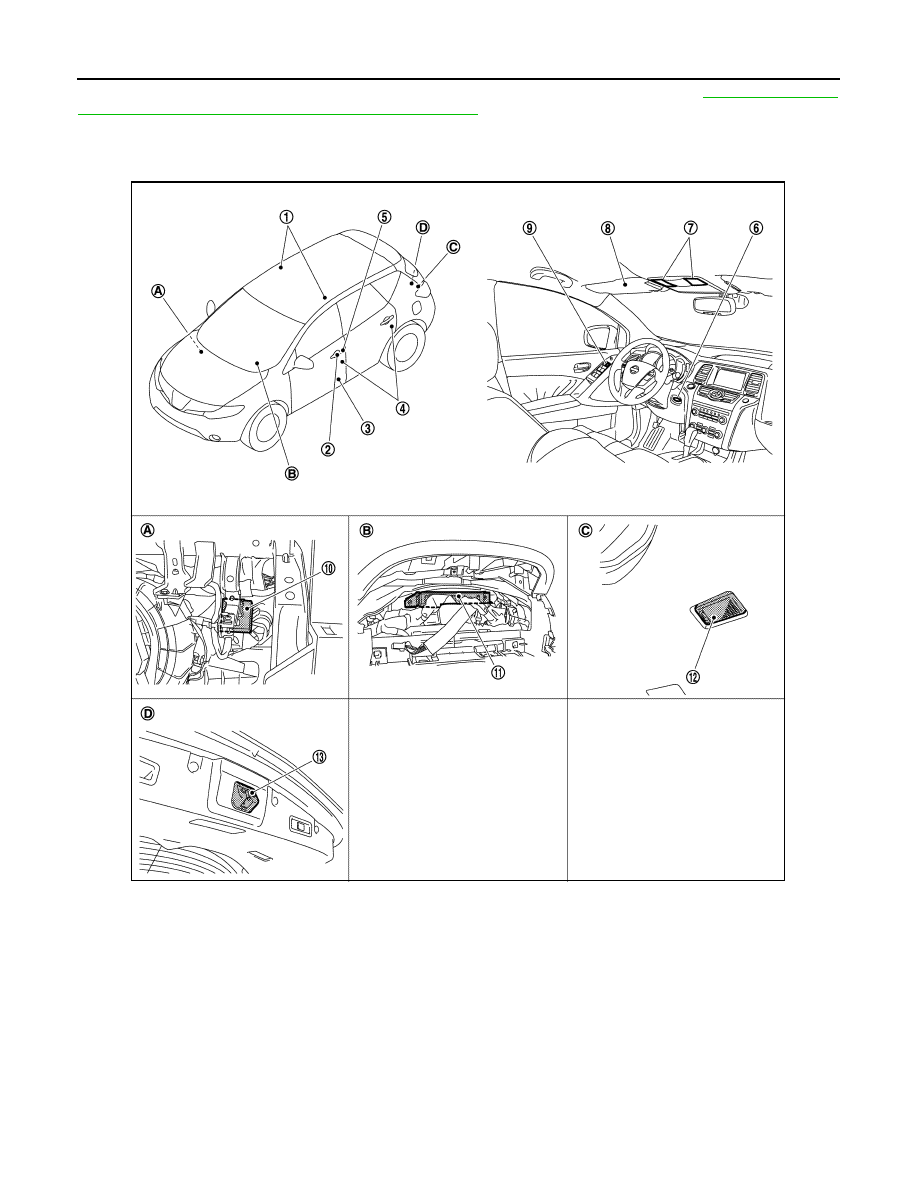

Component Parts Location

INFOID:0000000009718405

1.

Personal lamp

2.

Request switch

3.

Step lamp

4.

Door switch

5.

Key cylinder switch

6.

Key slot

7.

Map lamp

8.

Vanity mirror lamp

9.

Door lock switch

10. Remote keyless entry receiver

11.

BCM

12.

Luggage room lamp

13. Back door switch

A.

Over the glove box

B.

Behind the combination meter

C.

Back door

D.

Back door lock assembly

JPLIA0846ZZ

INTERIOR ROOM LAMP BATTERY SAVER SYSTEM

INL-11

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

Component Description

INFOID:0000000009718406

Part

Description

BCM

Operates the interior room lamp battery saver depending on the vehicle condition to
cut the interior room lamp power supply.

Remote keyless entry receiver

• Receives the lock/unlock signal from keyfob.
• Transmits the lock/unlock signal to BCM.

• Request switch
• Key cylinder lock/unlock switch
• Door lock/unlock switch

Inputs the lock/unlock signal to BCM.

• Door switch
• Back door switch

Inputs a switch signal to BCM.

Key slot

Inputs the Intelligent Key in status to BCM.
