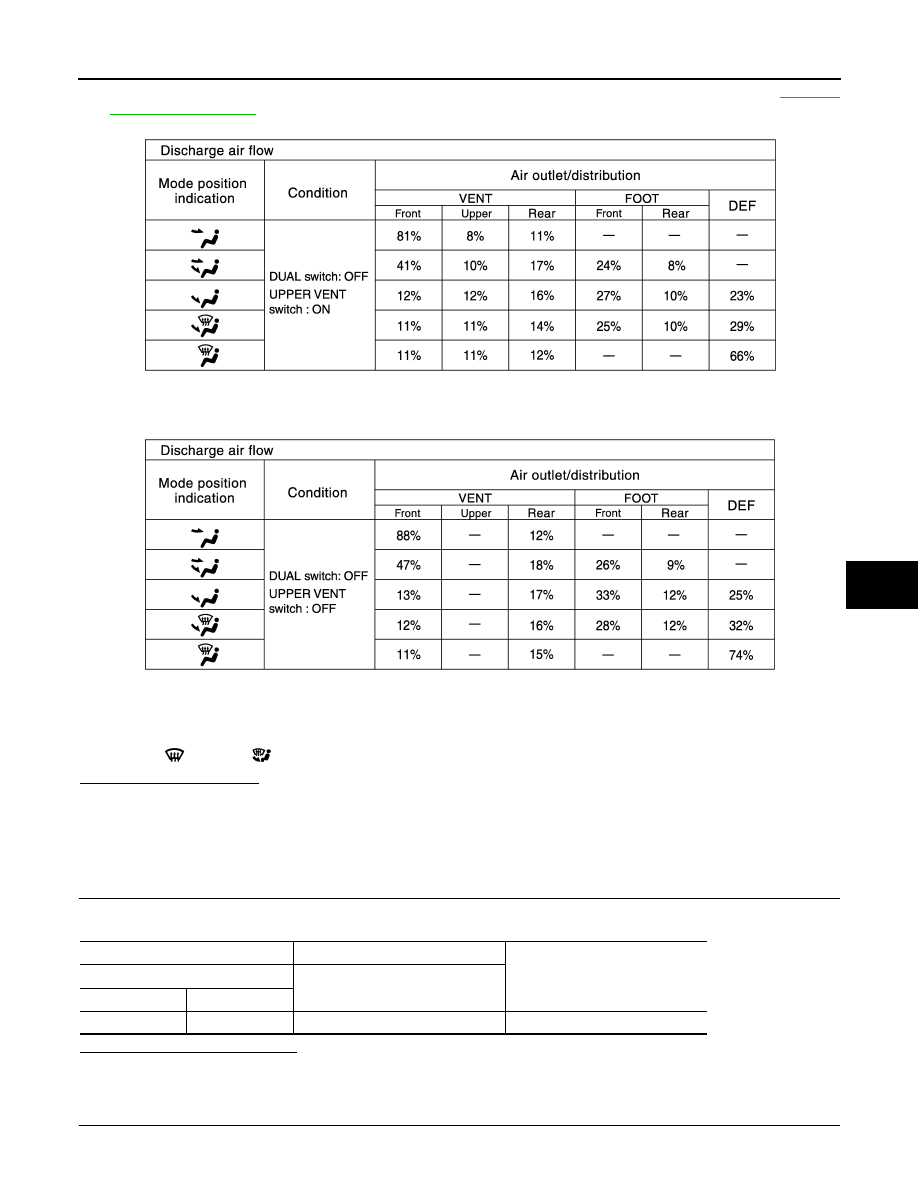

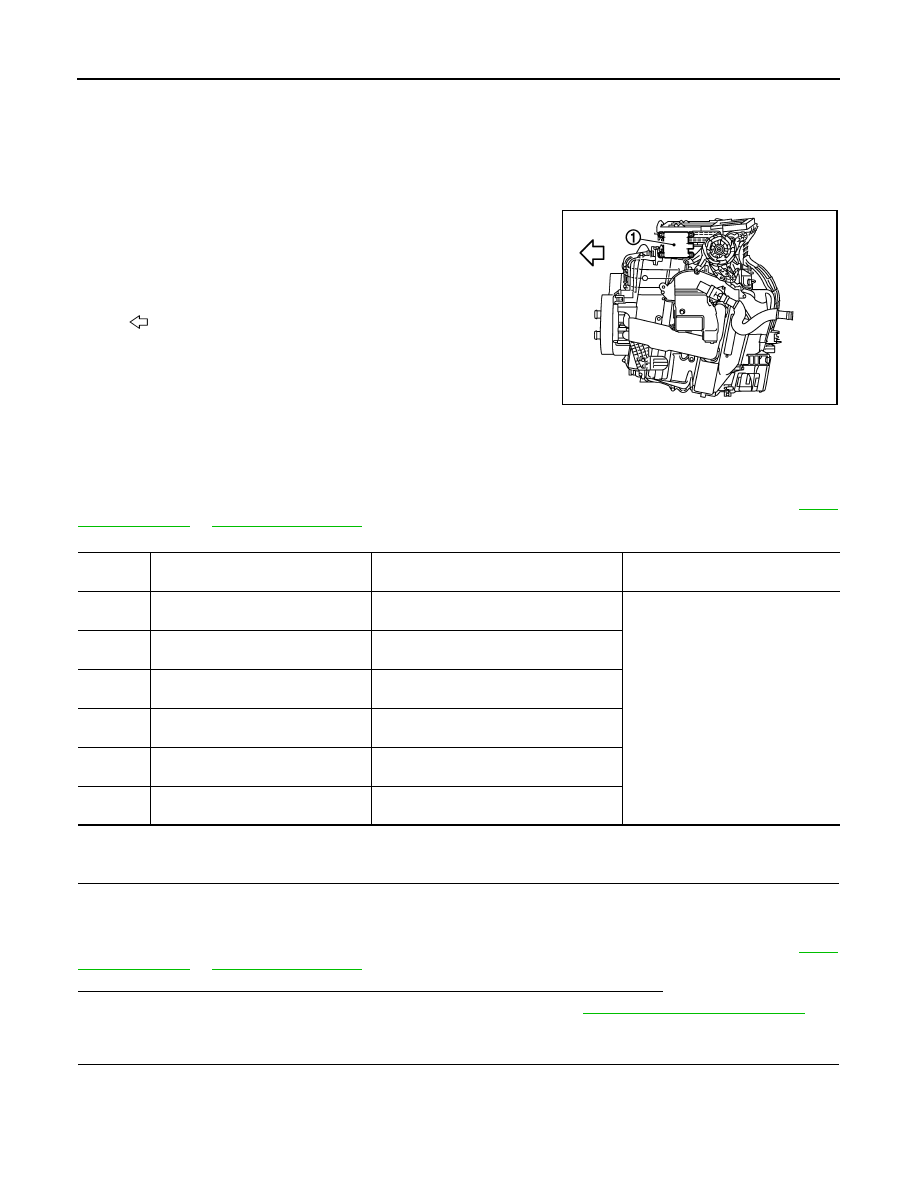

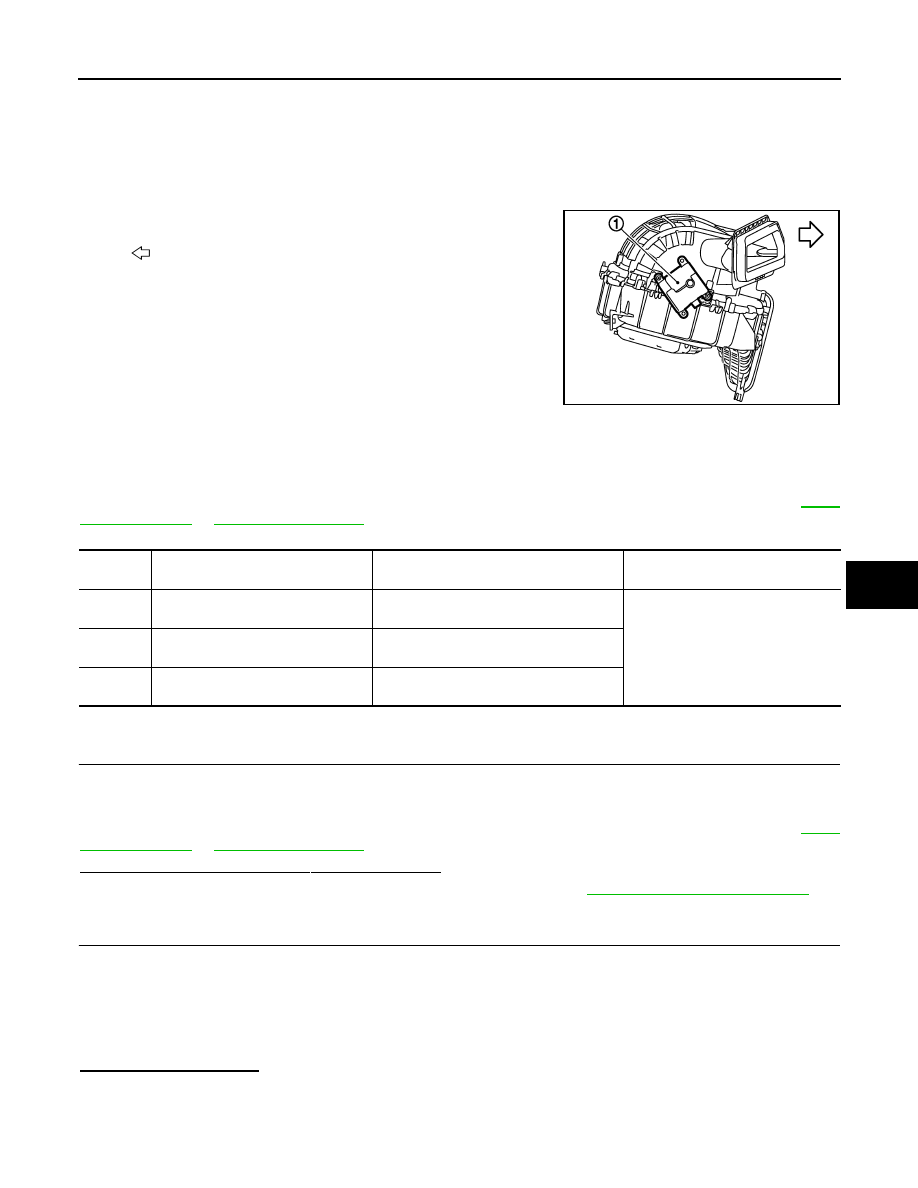

HAC-62 < DTC/CIRCUIT DIAGNOSIS > [WITHOUT 7 INCH DISPLAY] B2636, B2637, B2638, B2639, B2654, B2655 MODE DOOR MOTOR B2636, B2637, B2638, B2639, B2654, B2655 MODE DOOR MOTOR Description INFOID:0000000009722079 COMPONENT DESCRIPTION Mode Door Motor • The mode door motor (1) are attached to the heater & cooling unit assembly. • It rotates so that air is discharged from the outlet set by the A/C auto amp. Motor rotation is conveyed to a link which activates the DTC Logic INFOID:0000000009722080 DTC DETECTION LOGIC NOTE: . DTC CONFIRMATION PROCEDURE 1. CHECK WITH SELF-DIAGNOSIS FUNCTION OF CONSULT 1. Using CONSULT, perform “SELF-DIAGNOSIS RESULTS” of HVAC. 2. Check if any DTC No. is displayed in the self-diagnosis results. NOTE: . Is DTC No.“ B2636 ”, “ B2637 ”, “B2638 ”, “B2639 ”, “B2654 ” or “B2655 ” displayed? YES >> Perform trouble diagnosis for the mode door motor. Refer to NO >> GO TO 2. 2. FUNCTION INSPECTION 1. Press MODE switch and DEF switch. 2. Each position indicator should change shape. : Vehicle front JPIIA0513ZZ DTC Items (CONSULT screen terms) Diagnostic item is detected when... Possible cause B2636 DR VENT DOOR FAIL When the malfunctioning door position is • Mode door motor (PBR internal circuit is open or shorted) • A/C auto amp. communication line is open or B2637 DR B/L DOOR FAIL When the malfunctioning door position is B2638 DR D/F1 DOOR FAIL When the malfunctioning door position is B2639 DR DEF DOOR FAIL When the malfunctioning door position is B2654 D/F2 DOOR FAIL When the malfunctioning door position is B2655 B/L2 DOOR FAIL When the malfunctioning door position is |
