Nissan Murano. Manual - part 821





HAC-58

< DTC/CIRCUIT DIAGNOSIS >

[WITHOUT 7 INCH DISPLAY]

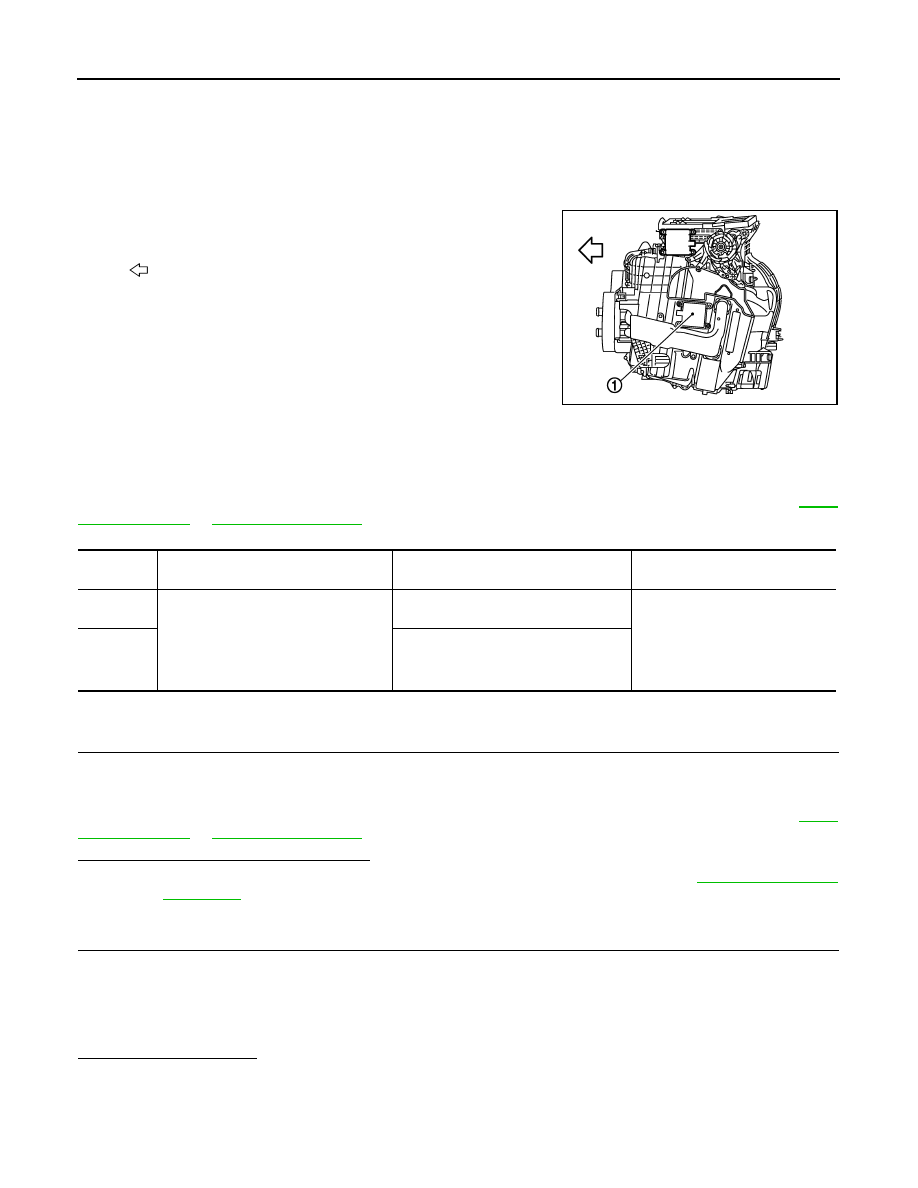

B2632, B2633 AIR MIX DOOR MOTOR (DRIVER SIDE)

B2632, B2633 AIR MIX DOOR MOTOR (DRIVER SIDE)

Description

INFOID:0000000009722073

COMPONENT DESCRIPTION

Air Mix Door Motor (Driver Side)

• The air mix door motor (driver side) (1) are attached to the heater

& cooling unit assembly.

• It rotates so that the air mix door is opened or closed to a position

set by the A/C auto amp.

• Motor rotation is then conveyed through a shaft and the air mix

door position feedback is then sent to the A/C auto amp. by PBR
built-in air mix door motor.

DTC Logic

INFOID:0000000009722074

DTC DETECTION LOGIC

NOTE:
If DTC is displayed along with DTC U1000 or U1010, first diagnose the DTC U1000 or U1010. Refer to

HAC-

44, "DTC Logic"

 or

HAC-45, "DTC Logic"

DTC CONFIRMATION PROCEDURE

1.

CHECK WITH SELF-DIAGNOSIS FUNCTION OF CONSULT

1.

Using CONSULT, perform “SELF-DIAGNOSIS RESULTS” of HVAC.

2.

Check if any DTC No. is displayed in the self-diagnosis results.

NOTE:
If DTC is displayed along with DTC U1000 or U1010, first diagnose the DTC U1000 or U1010. Refer to

HAC-

44, "DTC Logic"

 or

HAC-45, "DTC Logic"

Is DTC No.“B2632” or “B2633” displayed?

YES

>> Perform trouble diagnosis for the air mix door motor (driver side). Refer to

HAC-59, "Diagnosis

Procedure"

NO

>> GO TO 2.

2.

FUNCTION INSPECTION

1.

Press temperature control “UP” switch (driver side) until 32

°

C (90

°

F) is displayed.

2.

Check for warm air at discharge air outlets.

3.

Operate the compressor.

4.

Press temperature control “DOWN” switch (driver side) until 18

°

C (60

°

F) is displayed.

5.

Check for cool air at air discharge outlets.

Does it operate normally?

YES

>> INSPECTION END

NO

>> Check air mix door motor (driver side) installation, and repair or replace the malfunctioning parts.

:

Vehicle front

JPIIA0515ZZ

DTC

Items

 (CONSULT screen terms)

Diagnostic item is detected when...

Possible cause

B2632

DR AIR MIX DOOR MOT

Air mix door PBR (driver side) position
95% or less

• Air mix door motor (PBR internal

circuit is open or shorted)

• A/C auto amp.
• Harness and connector

(LAN communication line is
open or shorted)

B2633

Air mix door PBR (driver side) position
5% or more

B2632, B2633 AIR MIX DOOR MOTOR (DRIVER SIDE)

HAC-59

< DTC/CIRCUIT DIAGNOSIS >

[WITHOUT 7 INCH DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

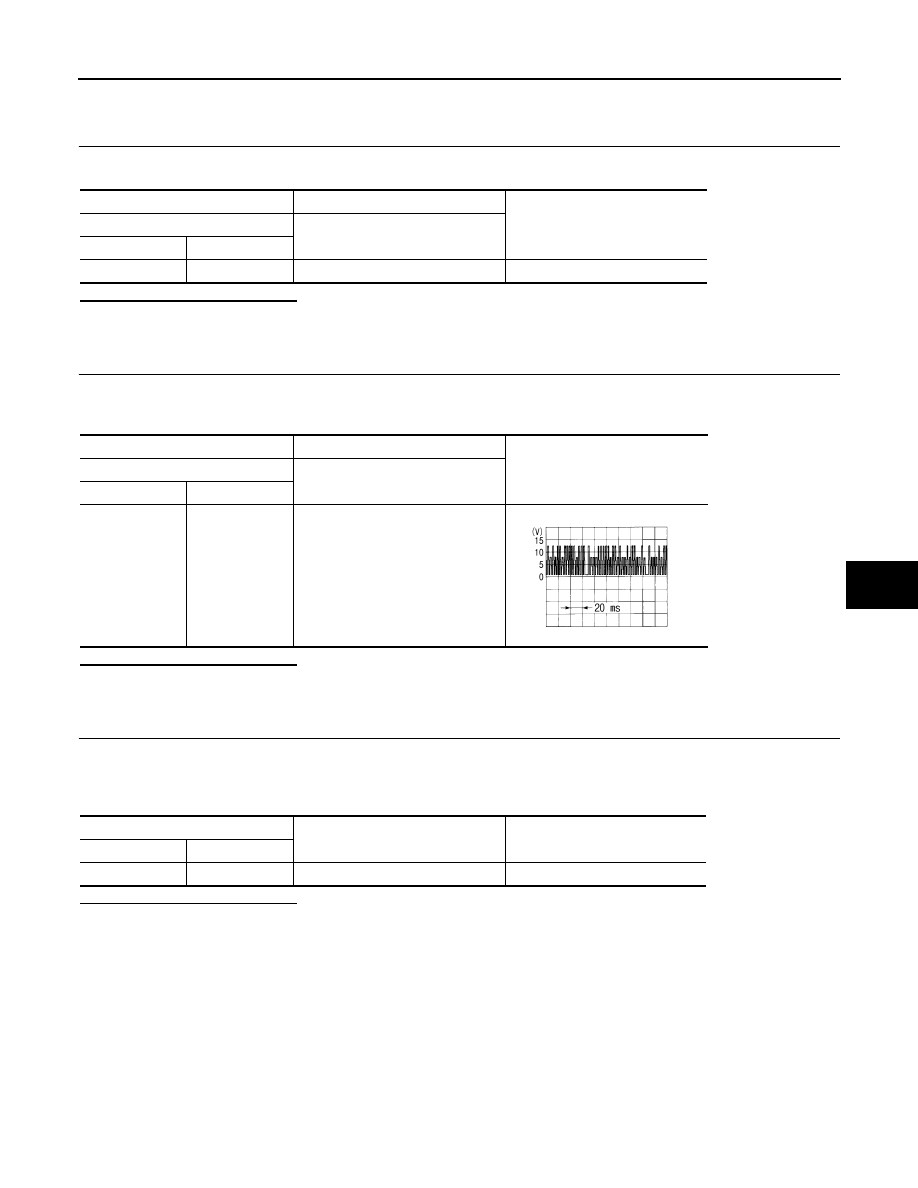

Diagnosis Procedure

INFOID:0000000009722075

1.

CHECK POWER SUPPLY FOR AIR MIX DOOR MOTOR (DRIVER SIDE)

Check voltage between air mix door motor (driver side) harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair the harnesses or connectors.

2.

CHECK SIGNAL FOR AIR MIX DOOR MOTOR (DRIVER SIDE)

Check the output waveform (LAN signal) between air mix door motor (driver side) harness connector and
ground using an oscilloscope.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair the harnesses or connectors.

3.

CHECK AIR MIX DOOR MOTOR (DRIVER SIDE) GROUND CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect air mix door motor (driver side) connector.

3.

Check continuity between air mix door motor (driver side) harness connector and ground.

Is the inspection result normal?

YES

>> Replace air mix door motor (driver side).

NO

>> Repair harness or connector.

(+)

(

)

Voltage

Air mix door motor (driver side)

Connector

Terminal

M306

1

Ground

Battery voltage

(+)

(

)

Voltage

Air mix door motor (driver side)

Connector

Terminal

M306

3

Ground

SJIA1453J

Air mix door motor (driver side)

Continuity

Connector

Terminal

M306

2

Ground

Existed

HAC-60

< DTC/CIRCUIT DIAGNOSIS >

[WITHOUT 7 INCH DISPLAY]

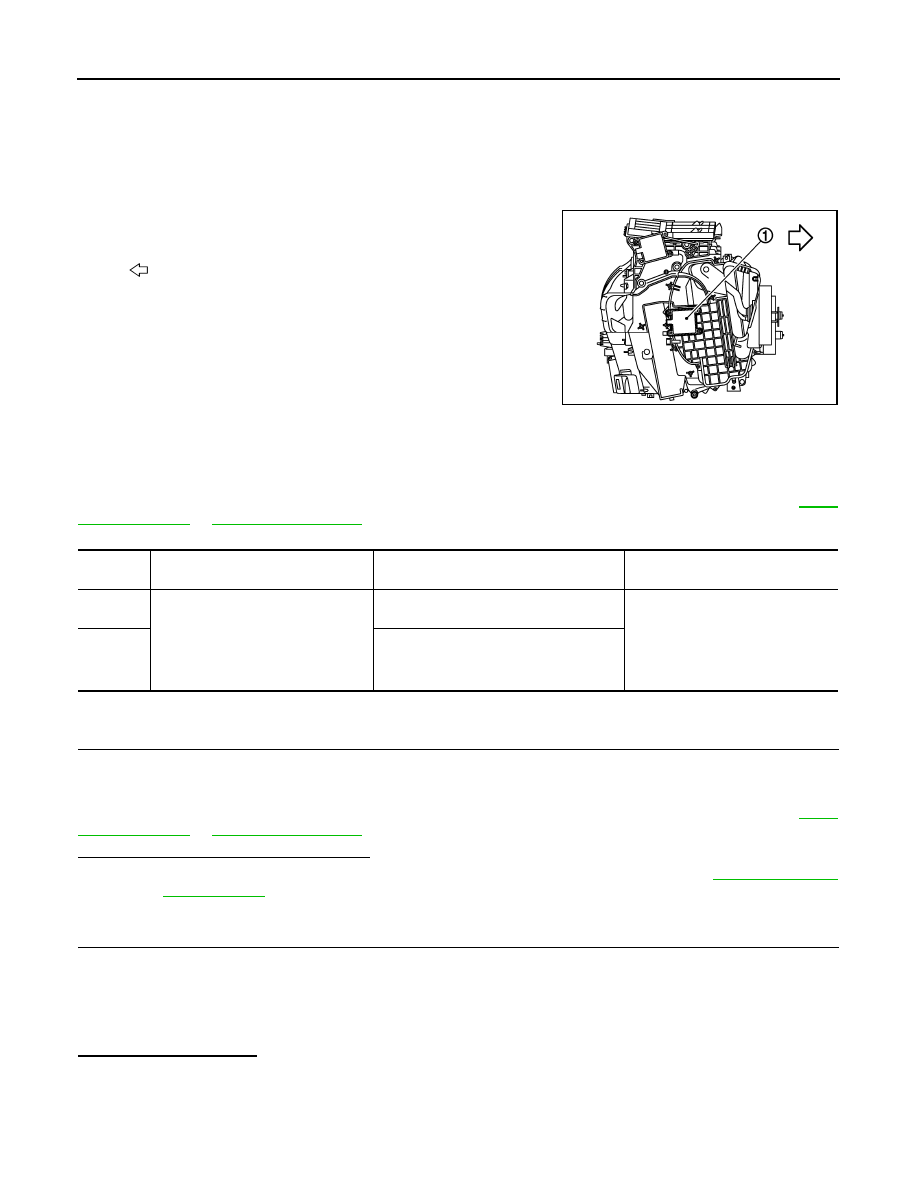

B2634, B2635 AIR MIX DOOR MOTOR (PASSENGER SIDE)

B2634, B2635 AIR MIX DOOR MOTOR (PASSENGER SIDE)

Description

INFOID:0000000009722076

COMPONENT DESCRIPTION

Air Mix Door Motor (Passenger Side)

• The air mix door motor (passenger side) (1) are attached to the

heater & cooling unit assembly.

• It rotates so that the air mix door is opened or closed to a position

set by the A/C auto amp.

• Motor rotation is then conveyed through a shaft and the air mix

door position feedback is then sent to the A/C auto amp. by PBR
built-in air mix door motor.

DTC Logic

INFOID:0000000009722077

DTC DETECTION LOGIC

NOTE:
If DTC is displayed along with DTC U1000 or U1010, first diagnose the DTC U1000 or U1010. Refer to

HAC-

44, "DTC Logic"

 or

HAC-45, "DTC Logic"

DTC CONFIRMATION PROCEDURE

1.

CHECK WITH SELF-DIAGNOSIS FUNCTION OF CONSULT

1.

Using CONSULT, perform “SELF-DIAGNOSIS RESULTS” of HVAC.

2.

Check if any DTC No. is displayed in the self-diagnosis results.

NOTE:
If DTC is displayed along with DTC U1000 or U1010, first diagnose the DTC U1000 or U1010. Refer to

HAC-

44, "DTC Logic"

 or

HAC-45, "DTC Logic"

Is DTC No.“B2634” or “B2635” displayed?

YES

>> Perform trouble diagnosis for the air mix door motor (passenger side). Refer to

HAC-61, "Diagno-

sis Procedure"

NO

>> GO TO 2.

2.

FUNCTION INSPECTION

1.

Press temperature control “UP” switch (passenger side) until 32

°

C (90

°

F) is displayed.

2.

Check for warm air at discharge air outlets.

3.

Operate the compressor.

4.

Press temperature control “DOWN” switch (passenger side) until 18

°

C (60

°

F) is displayed.

5.

Check for cool air at air discharge outlets.

Does it operate normally?

YES

>> INSPECTION END

NO

>> Check air mix door motor (passenger side) installation, and repair or replace the malfunctioning

parts.

:

Vehicle front

JPIIA0526ZZ

DTC

Items

 (CONSULT screen terms)

Diagnostic item is detected when...

Possible cause

B2634

PASS AIR MIX DOOR MOT

Air mix door PBR (passenger side) position
95% or less

• Air mix door motor (PBR internal

circuit is open or shorted)

• A/C auto amp.
• Harness and connector

(LAN communication line is open
or shorted)

B2635

Air mix door PBR (passenger side) position
5% or more

B2634, B2635 AIR MIX DOOR MOTOR (PASSENGER SIDE)

HAC-61

< DTC/CIRCUIT DIAGNOSIS >

[WITHOUT 7 INCH DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

Diagnosis Procedure

INFOID:0000000009722078

1.

CHECK POWER SUPPLY FOR AIR MIX DOOR MOTOR (PASSENGER SIDE)

Check voltage between air mix door motor (passenger side) harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair the harnesses or connectors.

2.

CHECK SIGNAL FOR AIR MIX DOOR MOTOR (PASSENGER SIDE)

Check the output waveform (LAN signal) between air mix door motor (passenger side) harness connector and
ground using an oscilloscope.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair the harnesses or connectors.

3.

CHECK AIR MIX DOOR MOTOR (PASSENGER SIDE) GROUND CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect air mix door motor (passenger side) connector.

3.

Check continuity between air mix door motor (passenger side) harness connector and ground.

Is the inspection result normal?

YES

>> Replace air mix door motor (passenger side).

NO

>> Repair harness or connector.

(+)

(

)

Voltage

Air mix door motor (passenger side)

Connector

Terminal

M307

1

Ground

Battery voltage

(+)

(

)

Voltage

Air mix door motor (passenger side)

Connector

Terminal

M307

3

Ground

SJIA1453J

Air mix door motor (passenger side)

Continuity

Connector

Terminal

M307

2

Ground

Existed
