TOW TRUCK TOWING

GI-39

< PRECAUTION >

C

D

E

F

G

H

I

J

K

L

M

B

GI

N

O

P

AWD MODELS

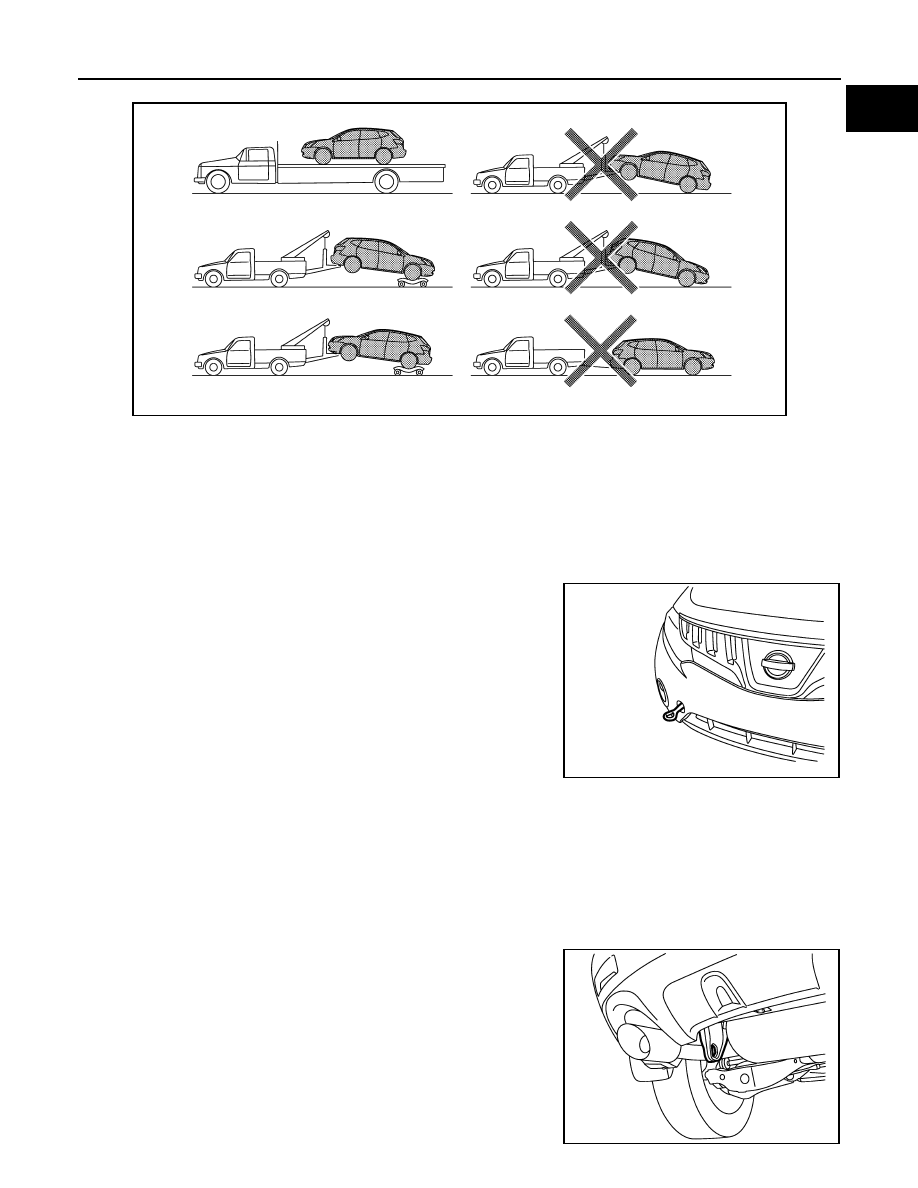

NISSAN recommends that a dolly be used as illustrated when towing AWD models.

CAUTION:

Never tow AWD models with any of the wheels on the ground as this may cause serious and expen-
sive damage to the powertrain.

Vehicle Recovery (Freeing a Stuck Vehicle)

INFOID:0000000009720542

FRONT

Securely install the vehicle recovery hook stored with jacking tools.
Check that the hook is properly secured in the stored place after use.

WARNING:

• Stand clear of a stuck vehicle.
• Never spin your tires at high speed. This could cause them to

explode and result in serious injury. Parts of your vehicle
could also overheat and be damaged.

CAUTION:

• Tow chains or cables must be attached only to the vehicle

recovery hooks or main structural members of the vehicle.
Otherwise, the vehicle body will be damaged.

• Never use the vehicle tie downs to free a vehicle stuck in

sand, snow, mud, etc. Never tow the vehicle using the vehicle tie downs or recovery hooks.

• Always pull the cable straight out from the front of the vehicle. Never pull on the hook at an angle.
• Pulling devices should be routed so they never touch any part of the suspension, steering, brake or

cooling systems.

• Pulling devices such as ropes or canvas straps are not recommended for use in vehicle towing or

recovery.

REAR

WARNING:

• Rear hook is not available.

JMAIA0069ZZ

JMAIA0083ZZ

JMAIA0084ZZ

GI-40

< BASIC INSPECTION >

SERVICE INFORMATION FOR ELECTRICAL INCIDENT

BASIC INSPECTION

SERVICE INFORMATION FOR ELECTRICAL INCIDENT

Work Flow

INFOID:0000000009720543

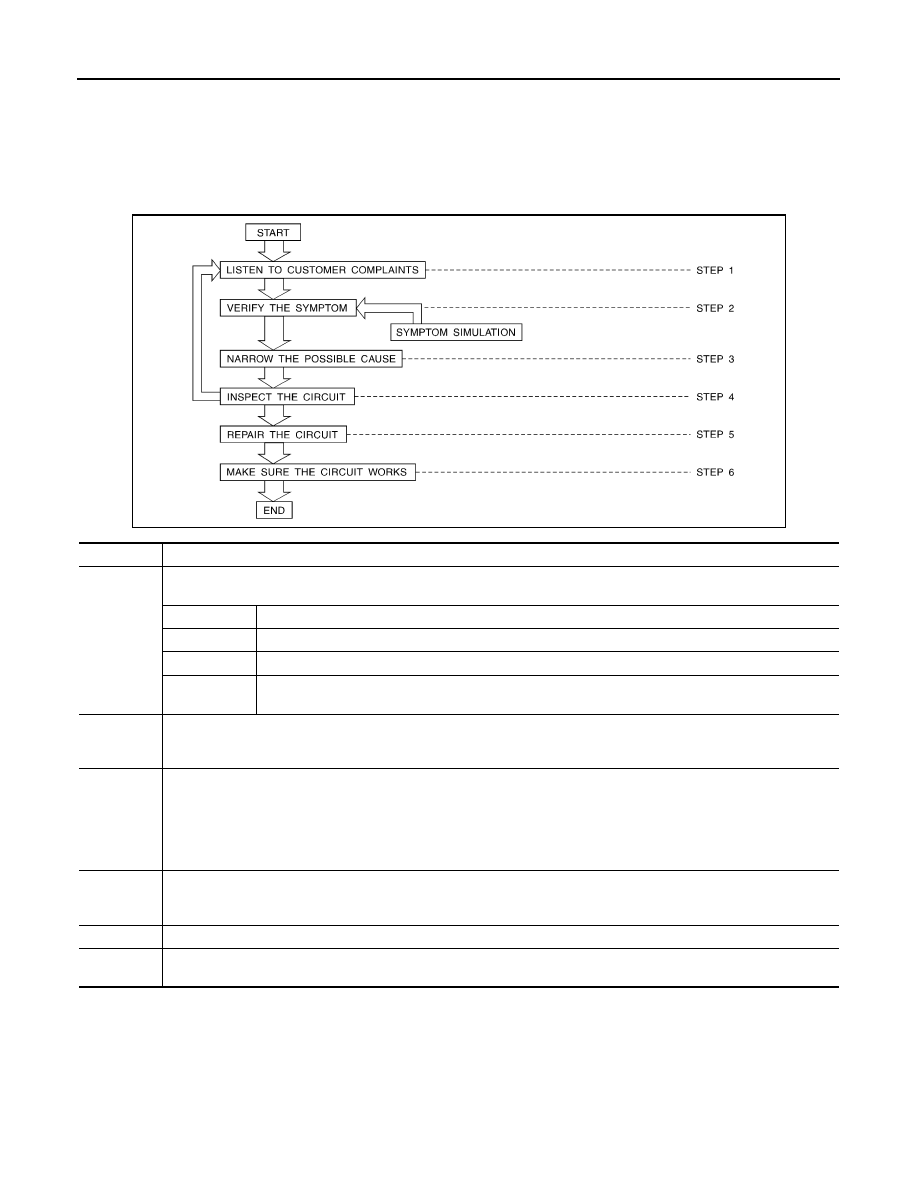

WORK FLOW

Control Units and Electrical Parts

INFOID:0000000009720544

PRECAUTIONS

• Never reverse polarity of battery terminals.
• Install only parts specified for a vehicle.
• Before replacing the control unit, check the input and output and functions of the component parts.
• Do not apply excessive force when disconnecting a connector.

SGI838

STEP

DESCRIPTION

STEP 1

Get detailed information about the conditions and the environment when the incident occurred.
The following are key pieces of information required to make a good analysis:

WHAT

Vehicle Model, Engine, Transmission/Transaxle and the System (i.e. Radio).

WHEN

Date, Time of Day, Weather Conditions, Frequency.

WHERE

Road Conditions, Altitude and Traffic Situation.

HOW

System Symptoms, Operating Conditions (Other Components Interaction).
Service History and if any After Market Accessories have been installed.

STEP 2

Operate the system, road test if necessary.
Verify the parameter of the incident.
If the problem cannot be duplicated, refer to “Incident Simulation Tests”.

STEP 3

Get the proper diagnosis materials together including:
• Power Supply Routing
• System Operation Descriptions
• Applicable Service Manual Sections
• Check for any Service Bulletins
Identify where to begin diagnosis based upon your knowledge of the system operation and the customer comments.

STEP 4

Inspect the system for mechanical binding, loose connectors or wiring damage.
Determine which circuits and components are involved and diagnose using the Power Supply Routing and Harness Lay-
outs.

STEP 5

Repair or replace the incident circuit or component.

STEP 6

Operate the system in all modes. Verify the system works properly under all conditions. Check you have not inadvert-
ently created a new incident during your diagnosis or repair steps.

SERVICE INFORMATION FOR ELECTRICAL INCIDENT

GI-41

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

L

M

B

GI

N

O

P

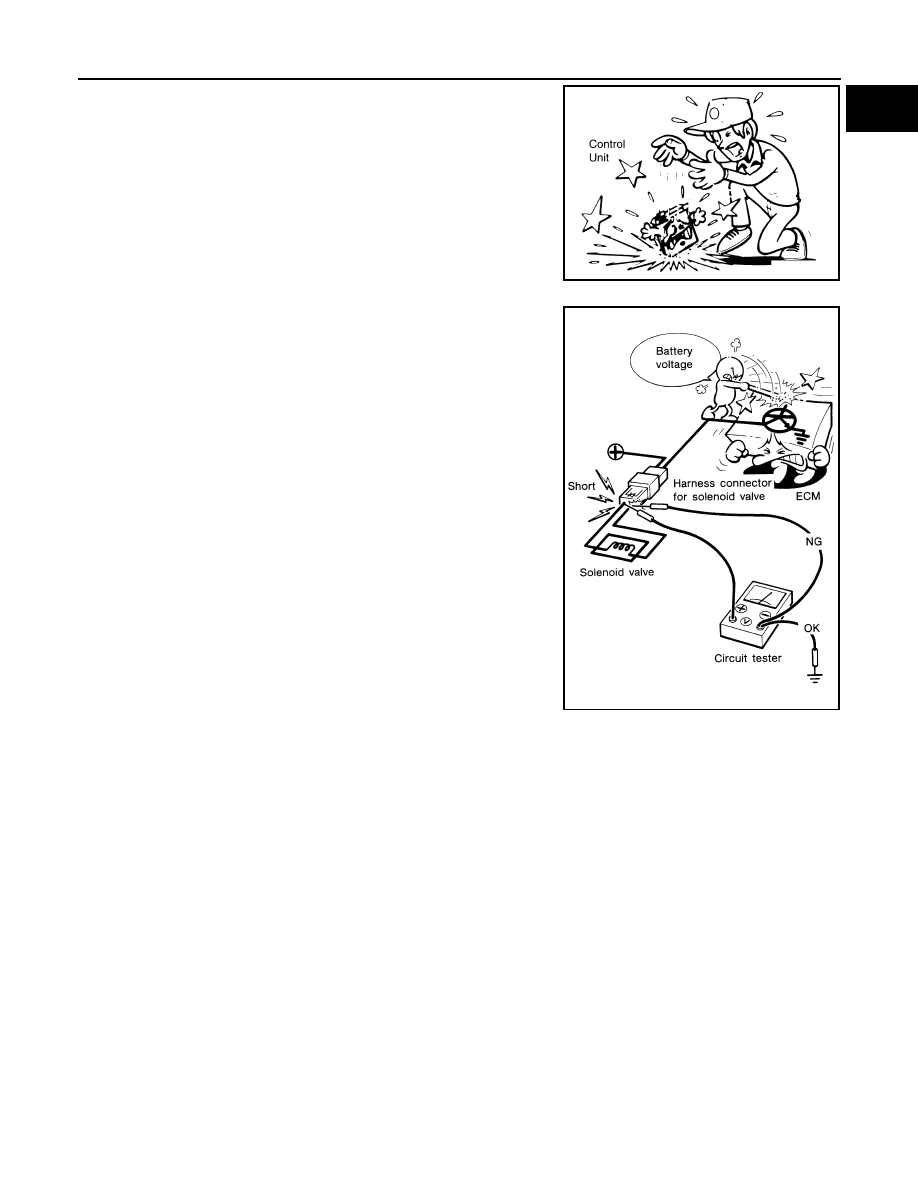

• Do not apply excessive shock to the control unit by dropping or hit-

ting it.

• Be careful to prevent condensation in the control unit due to rapid

temperature changes and do not let water or rain get on it. If water
is found in the control unit, dry it fully and then install it in the vehi-
cle.

• Be careful not to let oil to get on the control unit connector.
• Avoid cleaning the control unit with volatile oil.
• Do not disassemble the control unit, and do not remove the upper

and lower covers.

• When using a DMM, be careful not to let test probes get close to

each other to prevent the power transistor in the control unit from
damaging battery voltage because of short circuiting.

• When checking input and output signals of the control unit, use the

specified check adapter.

How to Check Terminal

INFOID:0000000009720545

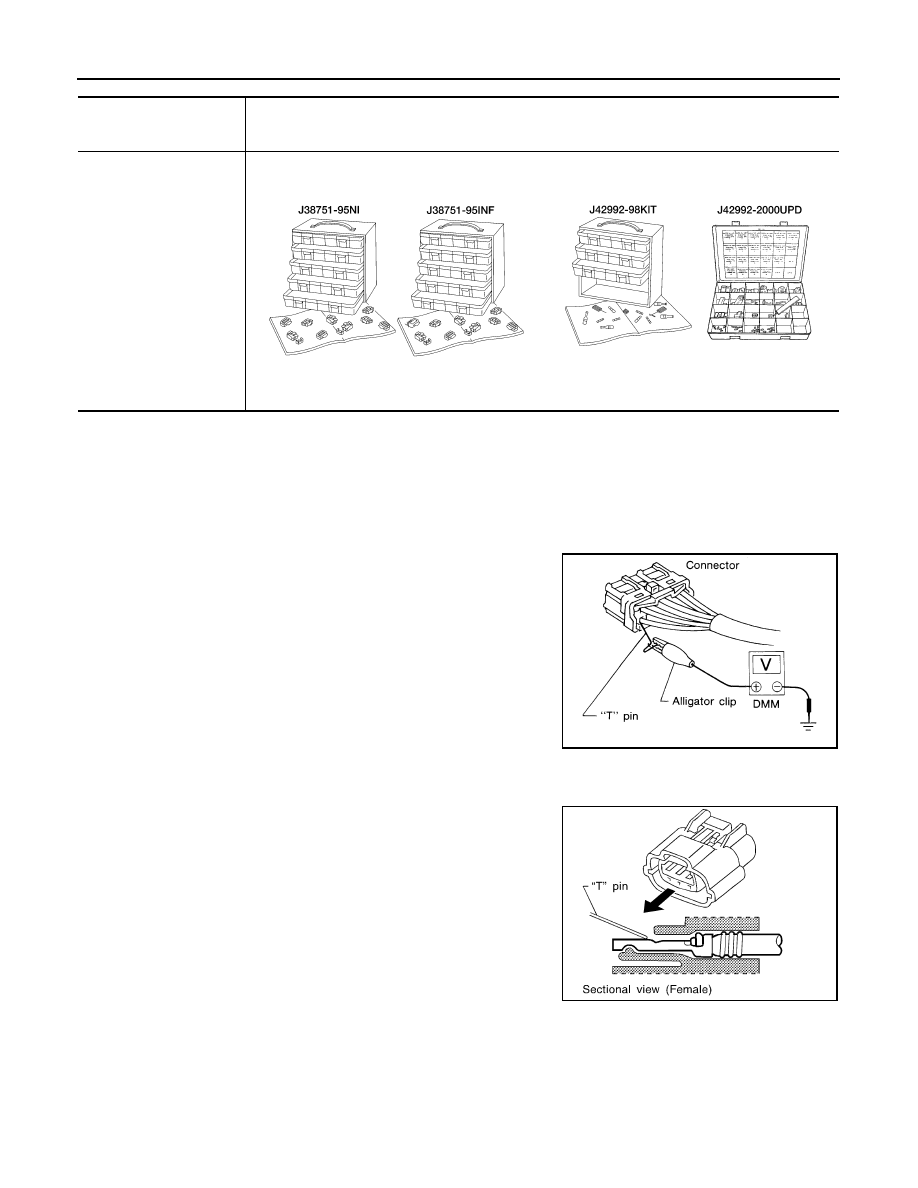

CONNECTOR AND TERMINAL PIN KIT

• Use the connector and terminal pin kits listed below when replacing connectors or terminals.
• The connector and terminal pin kits contain some of the most commonly used NISSAN/INFINITI connectors

and terminals. For detailed connector and terminal pin replacement procedures, refer to the latest NISSAN/
INFINITI CONNECTOR AND TERMINAL PIN SERVICE MANUAL.

SAIA0255E

SEF348N

GI-42

< BASIC INSPECTION >

SERVICE INFORMATION FOR ELECTRICAL INCIDENT

HOW TO PROBE CONNECTORS

• Connector damage and an intermittent connection can result from improperly probing of the connector dur-

ing circuit checks.

• The probe of a digital multimeter (DMM) may not correctly fit the connector cavity. To correctly probe the

connector, follow the procedures below using a “T” pin. For the best contact grasp the “T” pin using an alliga-
tor clip.

Probing from Harness Side

Standard type (not waterproof type) connector should be probed
from harness side with “T” pin.
• If the connector has a rear cover such as a ECM connector,

remove the rear cover before probing the terminal.

• Do not probe waterproof connector from harness side. Damage to

the seal between wire and connector may result.

Probing from Terminal Side

FEMALE TERMINAL

• There is a small notch above each female terminal. Probe each

terminal with the “T” pin through the notch.
Do not insert any object other than the same type male terminal
into female terminal.

Tool number

(Kent-Moore No.)

Tool name

Description

-
(J38751-95NI)
Connector and terminal
pin kit (NISSAN)
-
(J38751-95INF)
Connector and terminal
pin kit (INFINITI)
-
(J42992-98KIT)
OBD and terminal repair
kit
-
(J42992-2000UPD)
OBD-II Connector Kit Up-
date

WAIA0004E

WAIA0005E

SGI841

SEL265V
