PRECAUTIONS

GI-31

< PRECAUTION >

C

D

E

F

G

H

I

J

K

L

M

B

GI

N

O

P

FOR MEXICO : Precaution for Procedure without Cowl Top Cover

INFOID:0000000009720529

When performing the procedure after removing cowl top cover, cover
the lower end of windshield with urethane, etc to prevent damage to
windshield.

FOR MEXICO : Precautions For Xenon Headlamp Service

INFOID:0000000009720528

WARNING:

Comply with the following warnings to prevent any serious accident.
• Disconnect the battery cable (negative terminal) or the power supply fuse before installing, remov-

ing, or touching the xenon headlamp (bulb included). The xenon headlamp contains high-voltage
generated parts.

• Never work with wet hands.
• Check the xenon headlamp ON-OFF status after assembling it to the vehicle. Never turn the xenon

headlamp ON in other conditions. Connect the power supply to the vehicle-side connector.
(Turning it ON outside the lamp case may cause fire or visual impairments.)

• Never touch the bulb glass immediately after turning it OFF. It is extremely hot.

CAUTION:

Comply with the following cautions to prevent any error and malfunction.
• Install the xenon bulb securely. (Insufficient bulb socket installation may melt the bulb, the connec-

tor, the housing, etc. by high-voltage leakage or corona discharge.)

• Never perform HID circuit inspection with a tester.
• Never touch the xenon bulb glass with hands. Never put oil and grease on it.
• Dispose of the used xenon bulb after packing it in thick vinyl without breaking it.
• Never wipe out dirt and contamination with organic solvent (thinner, gasoline, etc.).

Precautions for Removing of Battery Terminal

INFOID:0000000010005015

•  When removing the 12V battery terminal, turn OFF the ignition

switch and wait at least 30 seconds.
NOTE:
ECU may be active for several tens of seconds after the ignition
switch is turned OFF. If the battery terminal is removed before ECU
stops, then a DTC detection error or ECU data corruption may
occur.

•  For vehicles with the 2-batteries, be sure to connect the main bat-

tery and the sub battery before turning ON the ignition switch.
NOTE:
If the ignition switch is turned ON with any one of the terminals of
main battery and sub battery disconnected, then DTC may be
detected.

•  After installing the 12V battery, always check "Self Diagnosis Result" of all ECUs and erase DTC.

NOTE:
The removal of 12V battery may cause a DTC detection error.

PIIB3706J

SEF289H

GI-32

< PRECAUTION >

PRECAUTIONS

General Precautions

INFOID:0000000009720531

• Do not operate the engine for an extended period of time without

proper exhaust ventilation.
Keep the work area well ventilated and free of any inflammable
materials. Special care should be taken when handling any inflam-
mable or poisonous materials, such as gasoline, refrigerant gas,
etc. When working in a pit or other enclosed area, be sure to prop-
erly ventilate the area before working with hazardous materials.
Do not smoke while working on the vehicle.

• Before jacking up the vehicle, apply wheel chocks or other tire

blocks to the wheels to prevent the vehicle from moving. After jack-
ing up the vehicle, support the vehicle weight with safety stands at
the points designated for proper lifting before working on the vehi-
cle.
These operations should be done on a level surface.

• When removing a heavy component such as the engine or tran-

saxle/transmission, be careful not to lose your balance and drop
them. Also, do not allow them to strike adjacent parts, especially
the brake tubes and master cylinder.

• Before starting repairs which do not require battery power:

Turn off ignition switch.
Disconnect the negative battery terminal.

• If the battery terminals are disconnected, recorded memory of

radio and each control unit is erased.

• For vehicles with two batteries, be sure to remove both batteries

when instructed to remove 12V battery in the service manual. If
specified as main battery or sub battery, then do as instructed.

• To prevent serious burns:

Avoid contact with hot metal parts.
Do not remove the radiator cap when the engine is hot.

• Dispose of drained oil or the solvent used for cleaning parts in an

appropriate manner.

• Do not attempt to top off the fuel tank after the fuel pump nozzle

shuts off automatically.
Continued refueling may cause fuel overflow, resulting in fuel spray
and possibly a fire.

• Clean all disassembled parts in the designated liquid or solvent

prior to inspection or assembly.

• Replace oil seals, gaskets, packings, O-rings, locking washers,

cotter pins, self-locking nuts, etc. with new ones.

• Replace inner and outer races of tapered roller bearings and needle bearings as a set.
• Arrange the disassembled parts in accordance with their assembled locations and sequence.
• Do not touch the terminals of electrical components which use microcomputers (such as ECM).

Static electricity may damage internal electronic components.

• After disconnecting vacuum or air hoses, attach a tag to indicate the proper connection.
• Use only the fluids and lubricants specified in this manual.
• Use approved bonding agent, sealants or their equivalents when required.

SGI285

SGI231

SEF289H

SGI233

PRECAUTIONS

GI-33

< PRECAUTION >

C

D

E

F

G

H

I

J

K

L

M

B

GI

N

O

P

• Use hand tools, power tools (disassembly only) and recommended

special tools where specified for safe and efficient service repairs.

• When repairing the fuel, oil, water, vacuum or exhaust systems,

check all affected lines for leakage.

• Before servicing the vehicle:

Protect fenders, upholstery and carpeting with appropriate covers.
Take caution that keys, buckles or buttons do not scratch paint.

WARNING:

To prevent ECM from storing the diagnostic trouble codes, never carelessly disconnect the harness
connectors which are related to the engine control system and TCM (transmission control module)
system. The connectors should be disconnected only when working according to the WORK FLOW of
TROUBLE DIAGNOSES in EC and TM sections.

Three Way Catalyst

INFOID:0000000009720532

If a large amount of unburned fuel flows into the catalyst, the catalyst temperature will be excessively high. To
prevent this, follow the instructions.
• Use unleaded gasoline only. Leaded gasoline will seriously damage the three way catalyst.
• When checking for ignition spark or measuring engine compression, make tests quickly and only when nec-

essary.

• Do not run engine when the fuel tank level is low, otherwise the engine may misfire, causing damage to the

catalyst.

Do not place the vehicle on flammable material. Keep flammable material off the exhaust pipe and the three
way catalyst.

Multiport Fuel Injection System or Engine Control System

INFOID:0000000009720533

• Before connecting or disconnecting any harness connector for the

multiport fuel injection system or ECM:
Turn ignition switch to “OFF” position.
Disconnect negative battery terminal.
Otherwise, there may be damage to ECM.

• Before disconnecting pressurized fuel line from fuel pump to injec-

tors, be sure to release fuel pressure.

• Be careful not to jar components such as ECM and mass air flow

sensor.

Hoses

INFOID:0000000009720534

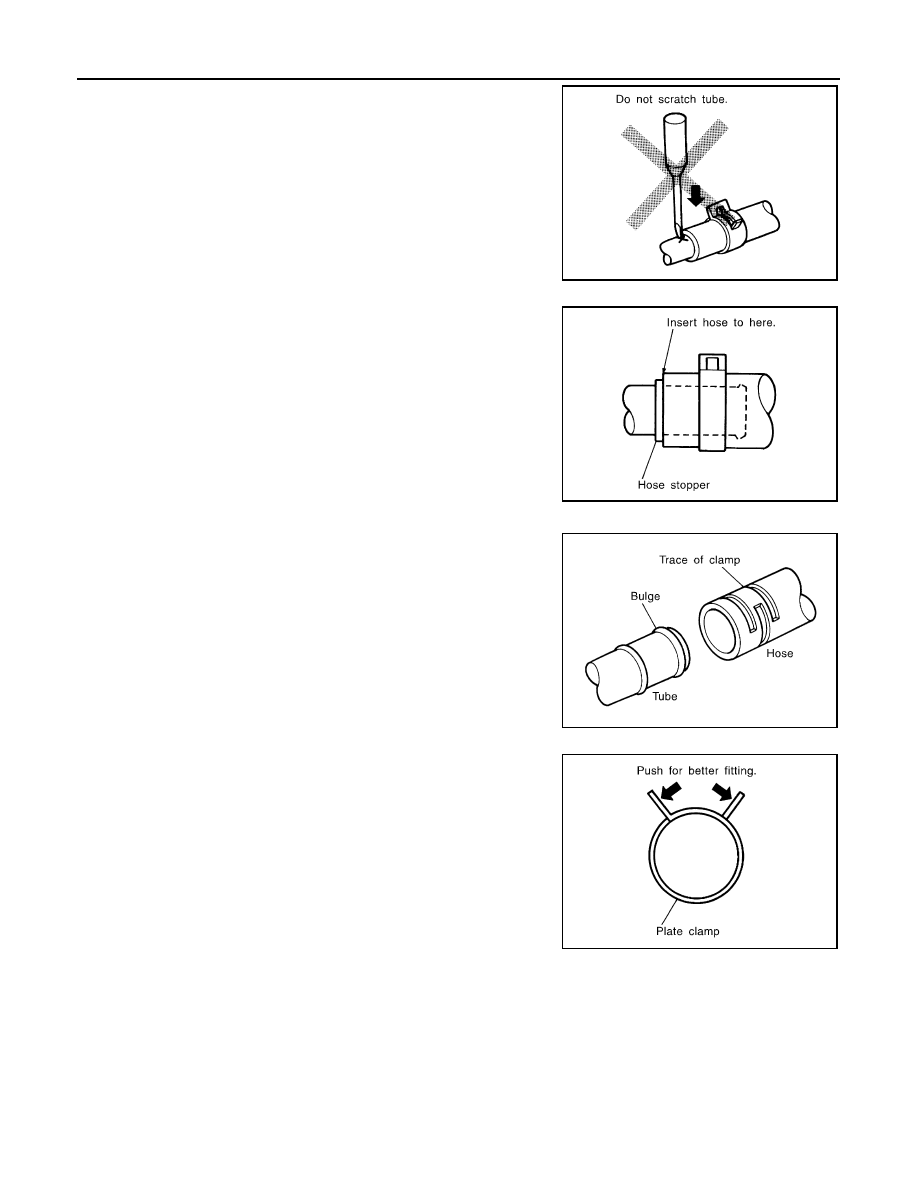

HOSE REMOVAL AND INSTALLATION

JPAIA0335ZZ

SGI234

SGI787

GI-34

< PRECAUTION >

PRECAUTIONS

• To prevent damage to rubber hose, do not pry off rubber hose with

tapered tool or screwdriver.

• To reinstall the rubber hose securely, check that hose insertion

length and orientation is correct. (If tube is equipped with hose
stopper, insert rubber hose into tube until it butts up against hose
stopper.)

HOSE CLAMPING

• If old rubber hose is re-used, install hose clamp in its original posi-

tion (at the indentation where the old clamp was). If there is a trace
of tube bulging left on the old rubber hose, align rubber hose at
that position.

• Discard old clamps; replace with new ones.

• After installing plate clamps, apply force to them in the direction of

the arrow, tightening rubber hose equally all around.

Engine Oils

INFOID:0000000009720535

Prolonged and repeated contact with used engine oil may cause skin cancer. Try to avoid direct skin contact
with used oil.
If skin contact is made, wash thoroughly with soap or hand cleaner as soon as possible.

HEALTH PROTECTION PRECAUTIONS

• Avoid prolonged and repeated contact with oils, particularly used engine oils.
• Wear protective clothing, including impervious gloves where practicable.
• Do not put oily rags in pockets.
• Avoid contaminating clothes, particularly underpants, with oil.
