FRONT FOG LAMP

2.

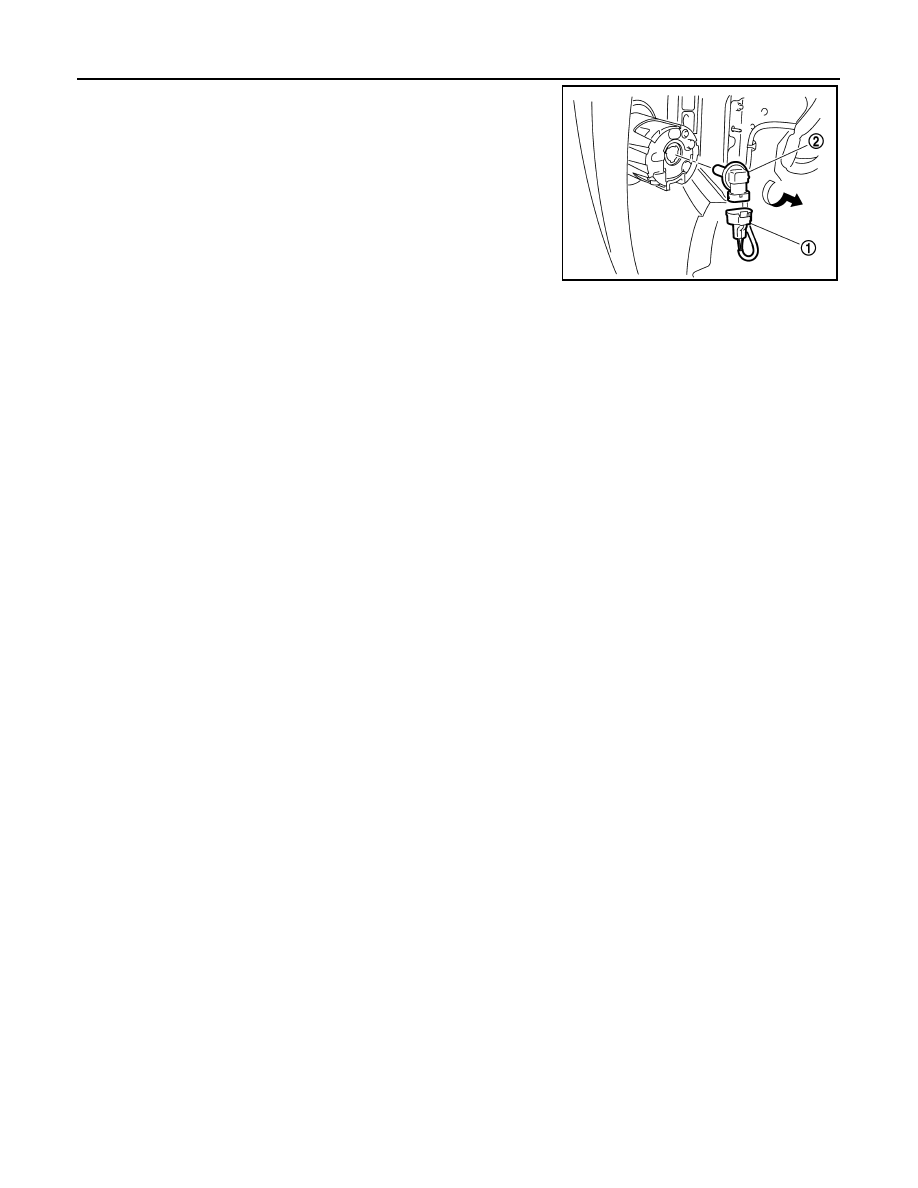

Remove the front fog lamp bulb connector (1).

3.

Rotate the bulb (2) counterclockwise and unlock it.

JPLIA0816ZZ

OPTICAL SENSOR

EXL-365

< REMOVAL AND INSTALLATION >

[HALOGEN TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

OPTICAL SENSOR

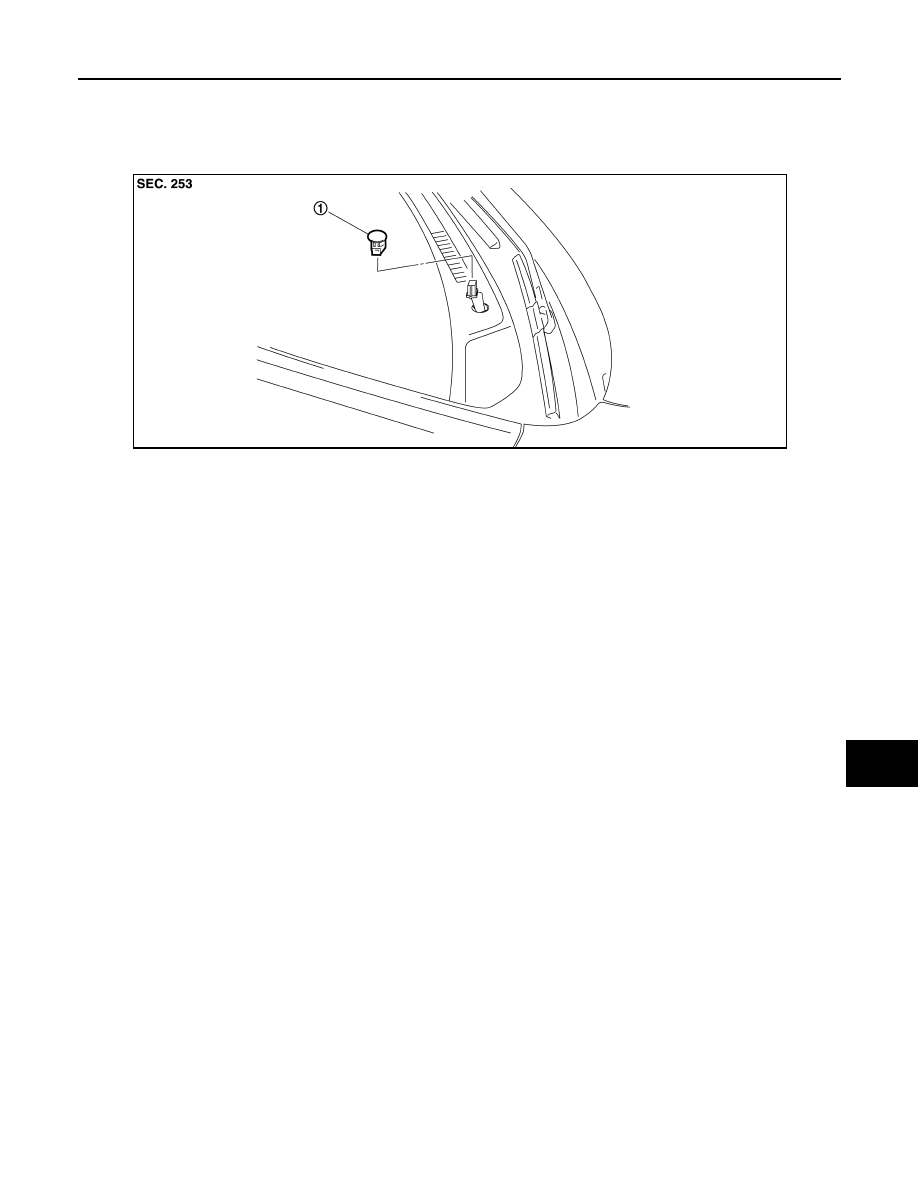

Exploded View

INFOID:0000000009723096

Removal and Installation

INFOID:0000000009723097

REMOVAL

1.

Insert an appropriate tool between the optical sensor and the instrument upper panel. Pull out the optical
sensor upward.

2.

Disconnect the optical sensor connector. And then remove the optical sensor.

INSTALLATION

Install in the reverse order of removal.

1.

Optical sensor

JPLIA0818ZZ

EXL-366

< REMOVAL AND INSTALLATION >

[HALOGEN TYPE]

LIGHTING & TURN SIGNAL SWITCH

LIGHTING & TURN SIGNAL SWITCH

Exploded View

INFOID:0000000009723098

Removal and Installation

INFOID:0000000009723099

Lighting & turn signal switch is integrated in the combination switch. Refer to

BCS-99, "Exploded View"

.

HAZARD SWITCH

EXL-367

< REMOVAL AND INSTALLATION >

[HALOGEN TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

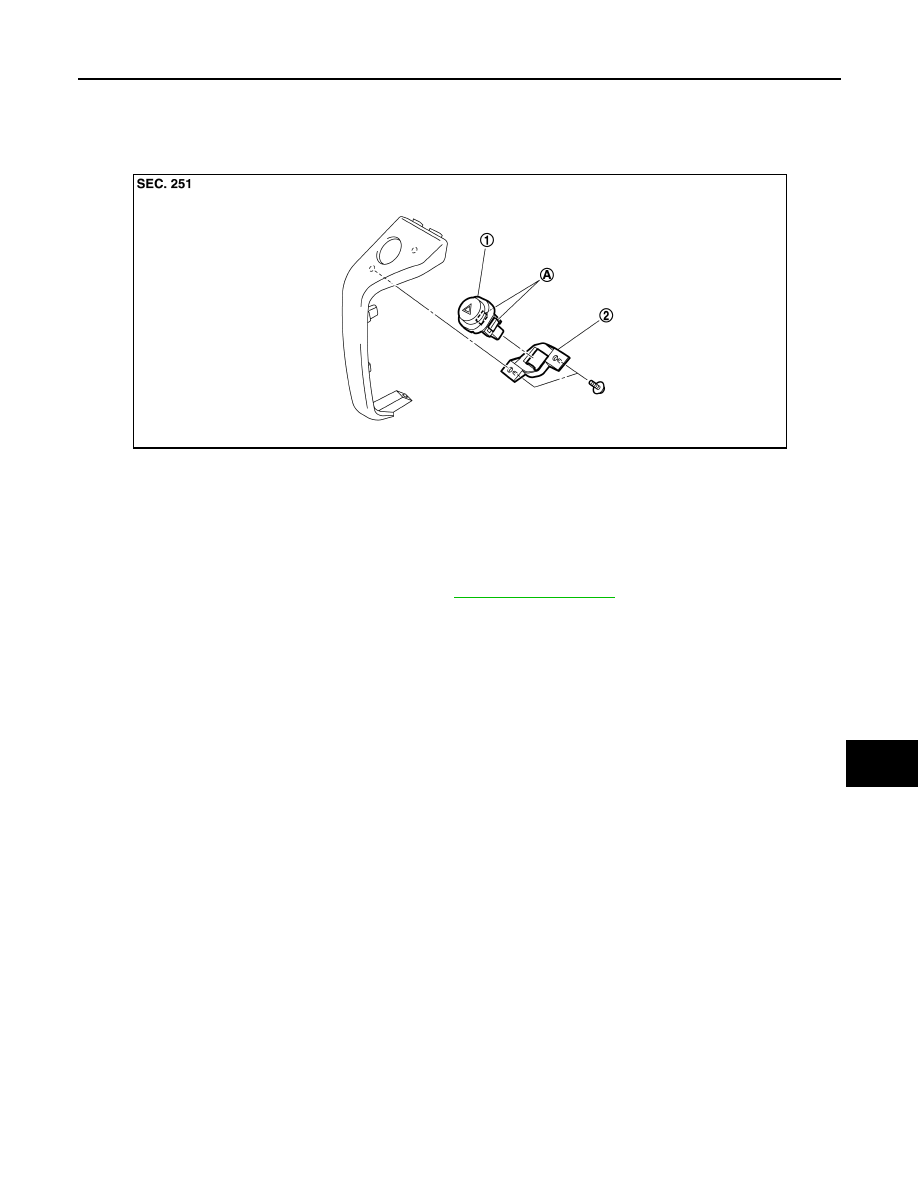

HAZARD SWITCH

Exploded View

INFOID:0000000009723100

Removal and Installation

INFOID:0000000009723101

REMOVAL

1.

Remove the instrument stay cover (RH). Refer to

IP-14, "Exploded View"

.

2.

Remove the screws. And then remove the switch bracket from the instrument stay cover.

3.

Remove the hazard switch.

INSTALLATION

Install in the reverse order of removal.

1.

Hazard switch

2.

Switch bracket

A.

Pawls

JPLIA0819ZZ
