FRONT COMBINATION LAMP

REMOVAL AND INSTALLATION

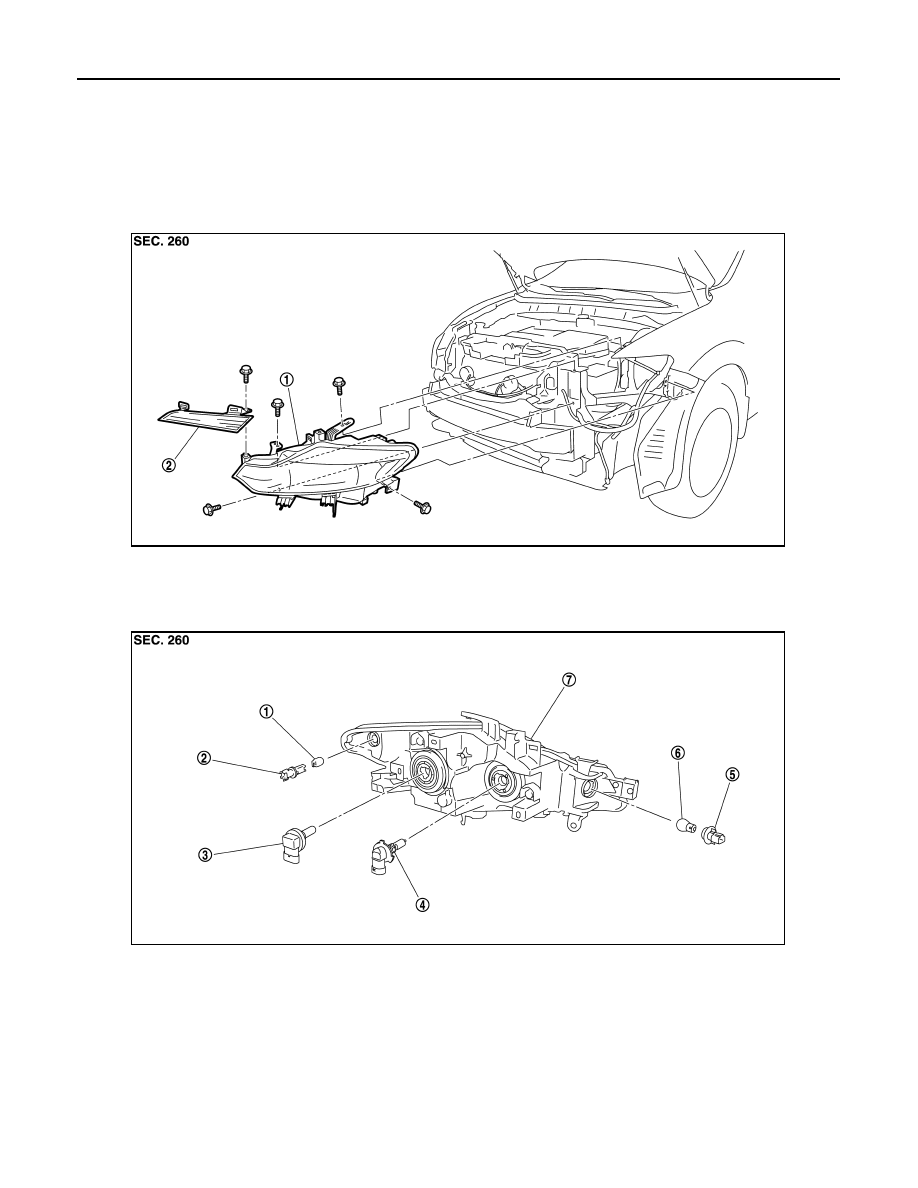

FRONT COMBINATION LAMP

Exploded View

INFOID:0000000009723089

REMOVAL

DISASSEMBLY

Removal and Installation

INFOID:0000000009723090

REMOVAL

CAUTION:

Disconnect the battery negative terminal or remove the fuse.

1.

Front combination lamp

2.

Headlamp extension panel

JPLIA0812ZZ

1.

Front side marker lamp bulb

2.

Front side marker lamp bulb socket

3.

Halogen bulb (LO)

4.

Halogen bulb (HI)

5.

Front turn signal/parking lamp bulb socket 6.

Front turn signal/parking lamp bulb

7.

Headlamp housing assembly

JPLIA0829ZZ

FRONT COMBINATION LAMP

EXL-361

< REMOVAL AND INSTALLATION >

[HALOGEN TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

1.

Remove the front grille. Refer to

EXT-21, "Exploded View"

.

2.

Remove the headlamp extension panel.

3.

Remove the front bumper fascia. Refer to

EXT-14, "Exploded View"

.

4.

Remove the headlamp mounting bolts.

5.

Remove the harness clips from the headlamp housing.

6.

Pull out the headlamp assembly forward the vehicle.

7.

Disconnect the connector before removing the headlamp assembly.

INSTALLATION

Install in the reverse order of removal.
NOTE:
After installation, perform aiming adjustment. Refer to

EXL-355, "Description"

.

Replacement

INFOID:0000000009723091

CAUTION:

• Disconnect the battery negative terminal or remove the fuse.
• After installing the bulb, install the resin cap and the bulb socket securely for watertightness.
• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
• Never touch bulb by hand while it is lit or right after being turned off.
• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

HEADLAMP BULB (LO)

1.

Remove the fender rubber protector in the engine room.

2.

Rotate the bulb counterclockwise and unlock it.

3.

Disconnect the headlamp bulb connector.

4.

Remove the bulb from the headlamp housing assembly.

HEADLAMP BULB (HI)

1.

Rotate the bulb counterclockwise and unlock it.

2.

Disconnect the headlamp bulb connector.

3.

Remove the bulb from the headlamp housing assembly.

FRONT TURN SIGNAL/PARKING LAMP BULB

1.

Remove the front grille. Refer to

EXT-21, "Exploded View"

.

2.

Rotate the front turn signal/parking lamp bulb socket counterclockwise and unlock it.

3.

Remove the bulb from the front turn signal/parking lamp bulb socket.

FRONT SIDE MARKER LAMP BULB

1.

Remove the fender rubber protector in the engine room.

2.

Rotate the front side marker lamp bulb socket counterclockwise and unlock it.

3.

Remove the bulb from the front side marker lamp bulb socket.

Disassembly and Assembly

INFOID:0000000009723092

DISASSEMBLY

1.

Rotate the headlamp bulb (LO) counterclockwise and unlock it

2.

Disconnect the headlamp bulb (LO) connector. And remove the bulb from the headlamp housing assem-
bly.

3.

Rotate the headlamp bulb (HI) counterclockwise and unlock it

4.

Disconnect the headlamp bulb (HI) connector. And remove the bulb from the headlamp housing assem-
bly.

5.

Rotate the front turn signal/parking lamp bulb socket counterclockwise and unlock it.

6.

Remove the bulb from the front turn signal/parking lamp bulb socket.

7.

Rotate the front side marker lamp bulb socket counterclockwise and unlock it.

EXL-362

< REMOVAL AND INSTALLATION >

[HALOGEN TYPE]

FRONT COMBINATION LAMP

8.

Remove the bulb from the front side marker lamp bulb socket.

ASSEMBLY

Assemble in the reverse order of disassembly.

FRONT FOG LAMP

EXL-363

< REMOVAL AND INSTALLATION >

[HALOGEN TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

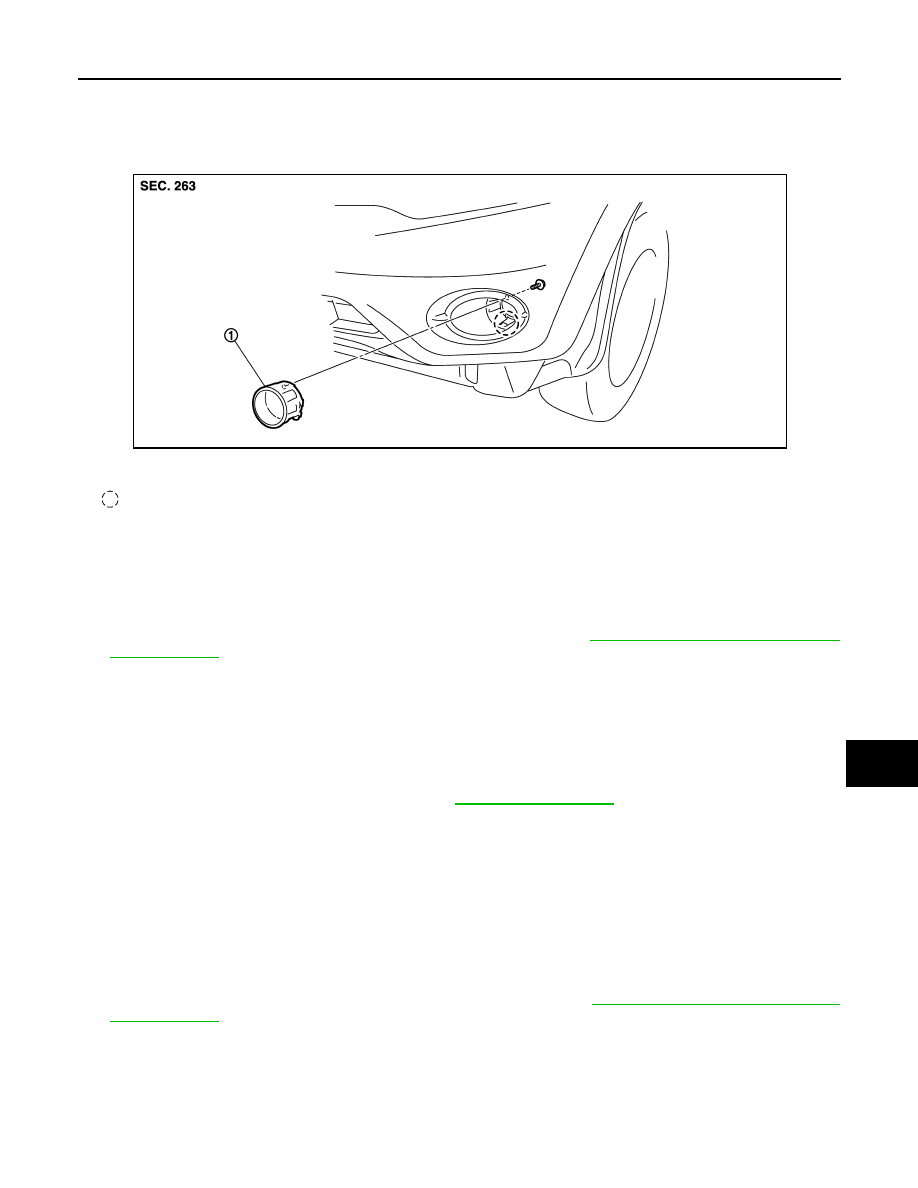

FRONT FOG LAMP

Exploded View

INFOID:0000000009723093

Removal and Installation

INFOID:0000000009723094

CAUTION:

Disconnect the battery negative terminal or remove the fuse.

REMOVAL

1.

Remove the front fender protector. Keep a service area. Refer to

EXT-26, "FENDER PROTECTOR :

Exploded View"

.

2.

Remove the front fog lamp connector.

3.

Remove the screw.

4.

Disengage the pawl. And then remove the front fog lamp.

INSTALLATION

Installation is the reverse order of removal.
NOTE:
After installation, perform aiming adjustment. Refer to

EXL-358, "Description"

Replacement

INFOID:0000000009723095

CAUTION:

• Disconnect the battery negative terminal or remove the fuse.
• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
• Never touch bulb by hand while it is lit or right after being turned off.
• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

FRONT FOG LAMP BULB

1.

Remove the front fender protector. Keep the service area. Refer to

EXT-26, "FENDER PROTECTOR :

Exploded View"

.

1.

Front fog lamp

: Pawl

JPLIA1592ZZ
