Nissan Murano. Manual - part 641





EM-138

< UNIT DISASSEMBLY AND ASSEMBLY >

CYLINDER BLOCK

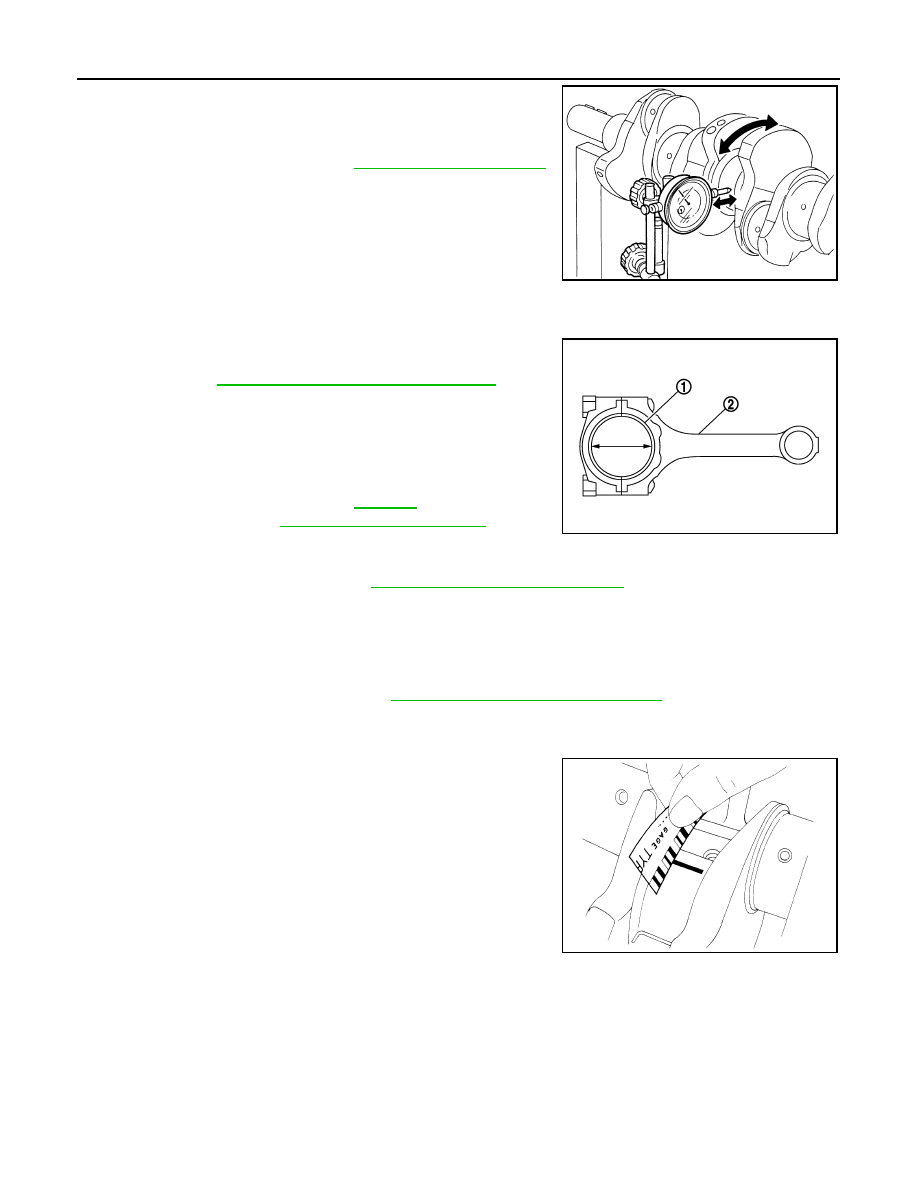

• Place a dial indicator straight up on the No. 3 journal.
• While rotating crankshaft, read the movement of the pointer on a

dial indicator. (Total indicator reading)

• If it exceeds the limit, replace crankshaft.

CONNECTING ROD BEARING OIL CLEARANCE

Method by Calculation

• Install connecting rod bearings (1) to connecting rod (2) and con-

necting rod cap, and tighten connecting rod bolts to the specified
torque. Refer to

EM-123, "Disassembly and Assembly"

 for the

tightening procedure.

• Measure the inner diameter of connecting rod bearing with an

inside micrometer.

(Oil clearance) = (Connecting rod bearing inner diameter) – (Crank-
shaft pin journal diameter)

• If the calculated value exceeds the limit, select proper connecting

rod bearing according to connecting rod big end diameter and crankshaft pin journal diameter to obtain the
specified bearing oil clearance. Refer to

EM-142, "Connecting Rod Bearing"

.

Method of Using Plastigage

• Remove oil and dust on crankshaft pin journal and the surfaces of each bearing completely.
• Cut a plastigage slightly shorter than the bearing width, and place it in crankshaft axial direction, avoiding oil

holes.

• Install connecting rod bearings to connecting rod and connecting rod bearing cap, and tighten connecting

rod bolts to the specified torque. Refer to

EM-123, "Disassembly and Assembly"

 for the tightening proce-

dure.

CAUTION:

Never rotate crankshaft.

• Remove connecting rod bearing cap and bearings, and using the

scale on the plastigage bag, measure the plastigage width.
NOTE:
The procedure when the measured value exceeds the limit is
same as that described in the “Method by Calculation”.

MAIN BEARING OIL CLEARANCE

Method by Calculation

Standard and limit

: Refer to

EM-151, "Cylinder Block"

.

SEM346D

Standard and limit

: Refer to

EM-155,

"Connecting Rod Bearing"

.

JPBIA0230ZZ

JPBIA0231ZZ

CYLINDER BLOCK

EM-139

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

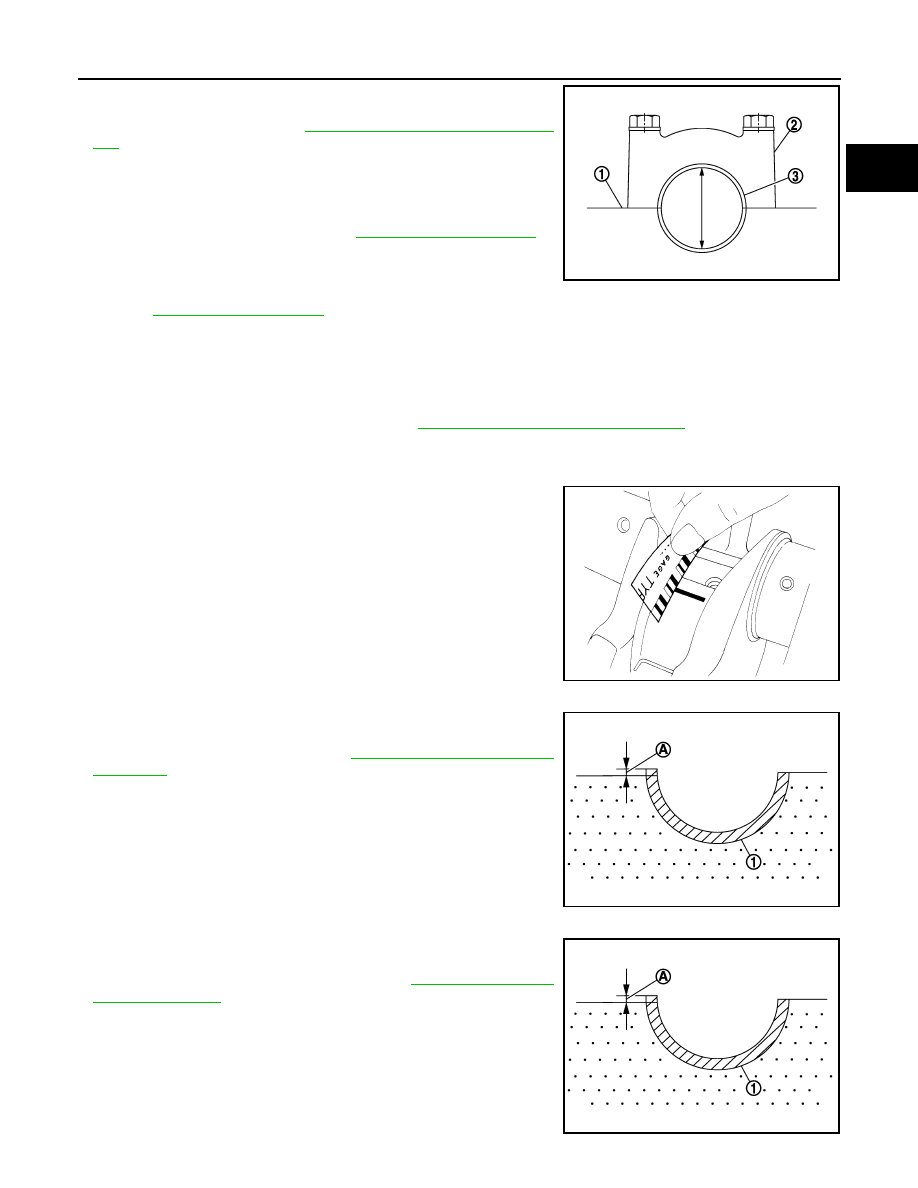

• Install main bearings (3) to cylinder block (1) and main bearing

caps (2), and main bearing cap bolts with main bearing beam to
the specified torque. Refer to

EM-123, "Disassembly and Assem-

bly"

 for the tightening procedure.

• Measure the inner diameter of main bearing with a bore gauge.
(Oil clearance) = (Main bearing inner diameter) – (Crankshaft main
journal diameter)

• If the calculated value exceeds the limit, select proper main bear-

ing according to main bearing inner diameter and crankshaft main
journal diameter to obtain the specified bearing oil clearance.
Refer to

EM-143, "Main Bearing"

.

Method of Using Plastigage

• Remove engine oil and dust on crankshaft journal and the surfaces of each bearing completely.
• Cut a plastigage slightly shorter than the bearing width, and place it in crankshaft axial direction, avoiding oil

holes.

• Install main bearing to cylinder block and main bearing caps, and tighten main bearing cap bolts with main

bearing beam to the specified torque. Refer to

EM-123, "Disassembly and Assembly"

 for the tightening pro-

cedure.

CAUTION:

Never rotate crankshaft.

• Remove main bearing caps and bearings, and using the scale on

the plastigage bag, measure the plastigage width.
NOTE:
The procedure when the measured value exceeds the limit is
same as that described in the “Method by Calculation”.

MAIN BEARING CRUSH HEIGHT

• When main bearing cap is removed after being tightened to the

specified torque with main bearings (1) installed, the tip end of
bearing must protrude. Refer to

EM-123, "Disassembly and

Assembly"

 for the tightening procedure.

• If the standard is not met, replace main bearings.

CONNECTING ROD BEARING CRUSH HEIGHT

• When connecting rod bearing cap is removed after being tightened

to the specified torque with connecting rod bearings (1) installed,
the tip end of bearing must protrude. Refer to

EM-123, "Disassem-

bly and Assembly"

 for the tightening procedure.

• If the standard is not met, replace connecting rod bearings.

Standard and limit

: Refer to

EM-154, "Main Bearing"

.

JPBIA0232ZZ

JPBIA0231ZZ

A

: Crush height

Standard

: There must be crush height.

JPBIA0233ZZ

A

: Crush height

Standard

: There must be crush height.

JPBIA0233ZZ

EM-140

< UNIT DISASSEMBLY AND ASSEMBLY >

CYLINDER BLOCK

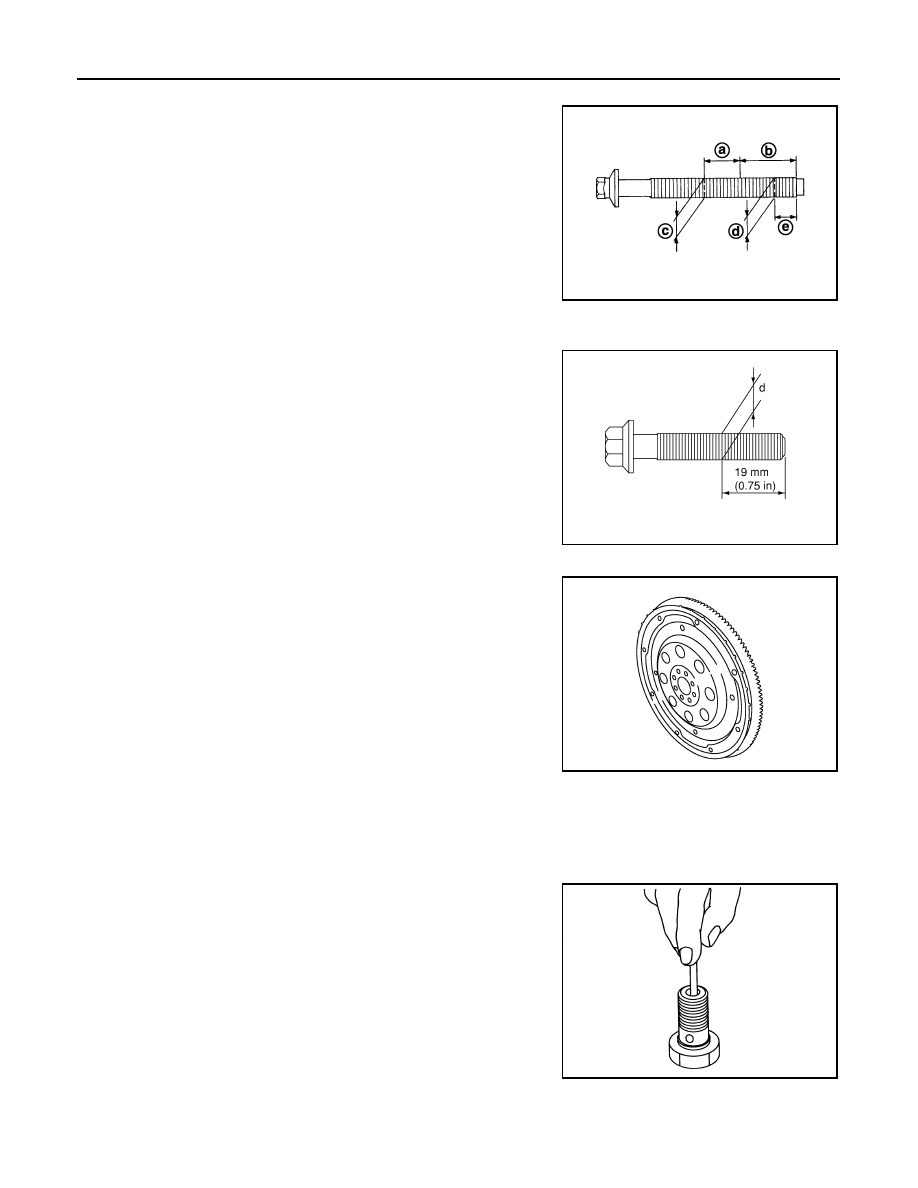

MAIN BEARING CAP BOLT OUTER DIAMETER

• Measure the outer diameters (c), (d) at two positions as shown in

the figure.

• If reduction appears in (a) range, regard it (c).

• If it exceeds the limit (large difference in dimensions), replace main

bearing cap bolt with new one.

CONNECTING ROD BOLT OUTER DIAMETER

• Measure the outer diameter (d) at position shown in the figure.
• If the reduction appears in a position other than (d), regard it as (d).

• When (d) exceeds the limit (when it becomes thinner), replace

connecting rod bolt with new one.

DRIVE PLATE

• Check drive plate and signal plate for deformation or damage.

CAUTION:

• Never disassemble drive plate.
• Never place drive plate with signal plate facing down.
• When handling signal plate, take care not to damage or

scratch it.

• Handle signal plate in a manner that prevents it from becom-

ing magnetized.

• If anything is found, replace drive plate.

OIL JET

• Check nozzle for deformation and damage.
• Blow compressed air from nozzle, and check for clogs.
• If it is not satisfied, clean or replace oil jet.

OIL JET RELIEF VALVE

• Using a clean plastic stick, press check valve in oil jet relief valve.

Check that valve moves smoothly with proper reaction force.

• If it is not satisfied, replace oil jet relief valve.

a

: 20 mm (0.79 in)

b

: 30 mm (1.18 in)

e

: 10 mm (0.39 in)

Limit [(d) – (c)]

: 0.11 mm (0.0043 in)

JPBIA0234ZZ

Standard

: 7.90 - 8.00 mm (0.3110 - 0.3150 in)

Limit

: 7.75 mm (0.3051 in)

PBIC0912E

JPBIA0192ZZ

EMU0468D

HOW TO SELECT PISTON AND BEARING

EM-141

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

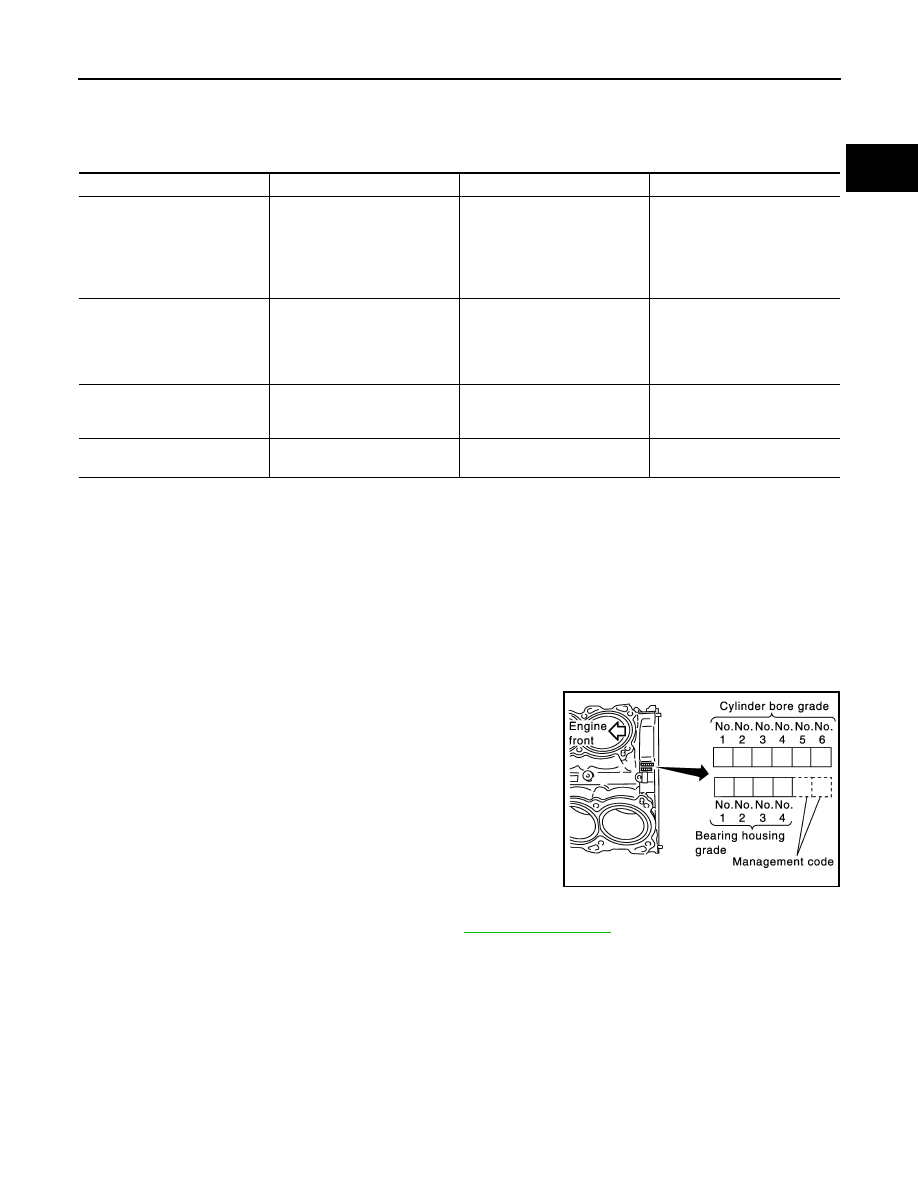

HOW TO SELECT PISTON AND BEARING

Description

INFOID:0000000009718009

 *: For the service parts, the grade for fitting cannot be selected between piston pin and connecting rod. (Only “0” grade is available.) The
information at the shipment from the plant is described as a reference.

• The identification grade stamped on each part is the grade for the dimension measured in new condition.

This grade cannot apply to reused parts.

• For reused or repaired parts, measure the dimension accurately. Determine the grade by comparing the

measurement with the values of each selection table.

• For details of the measurement method of each part, the reuse standards and the selection method of the

selective fitting parts, refer to the text.

Piston

INFOID:0000000009718010

WHEN NEW CYLINDER BLOCK IS USED

Check the cylinder bore grade (“1”, “2” or “3”) on rear side of cylinder
block, and select piston of the same grade.
NOTE:
Piston is available with piston pin as a set for the service part. (Only
“0” grade piston pin is available.)

WHEN CYLINDER BLOCK IS REUSED

1.

Measure the cylinder bore inner diameter. Refer to

EM-131, "Inspection"

.

2.

Determine the bore grade by comparing the measurement with the values under the cylinder bore inner
diameter of the “PISTON SELECTION TABLE”.

Selection points

Selection parts

Selection items

Selection methods

Between cylinder block and
crankshaft

Main bearing

Main bearing grade
(bearing thickness)

Determined by match of cylin-
der block bearing housing
grade (inner diameter of hous-
ing) and crankshaft journal
grade (outer diameter of jour-
nal)

Between crankshaft and con-
necting rod

Connecting rod bearing

Connecting rod bearing grade
(bearing thickness)

Combining service grades for
connecting rod big end diame-
ter and crankshaft pin outer di-
ameter determine connecting
rod bearing selection.

Between cylinder block and pis-
ton

Piston and piston pin assembly
(Piston is available together
with piston pin as assembly.)

Piston grade
(piston skirt diameter)

Piston grade = cylinder bore
grade (inner diameter of bore)

Between piston and connecting
rod*

SEM756G
