Nissan Murano. Manual - part 640





EM-134

< UNIT DISASSEMBLY AND ASSEMBLY >

CYLINDER BLOCK

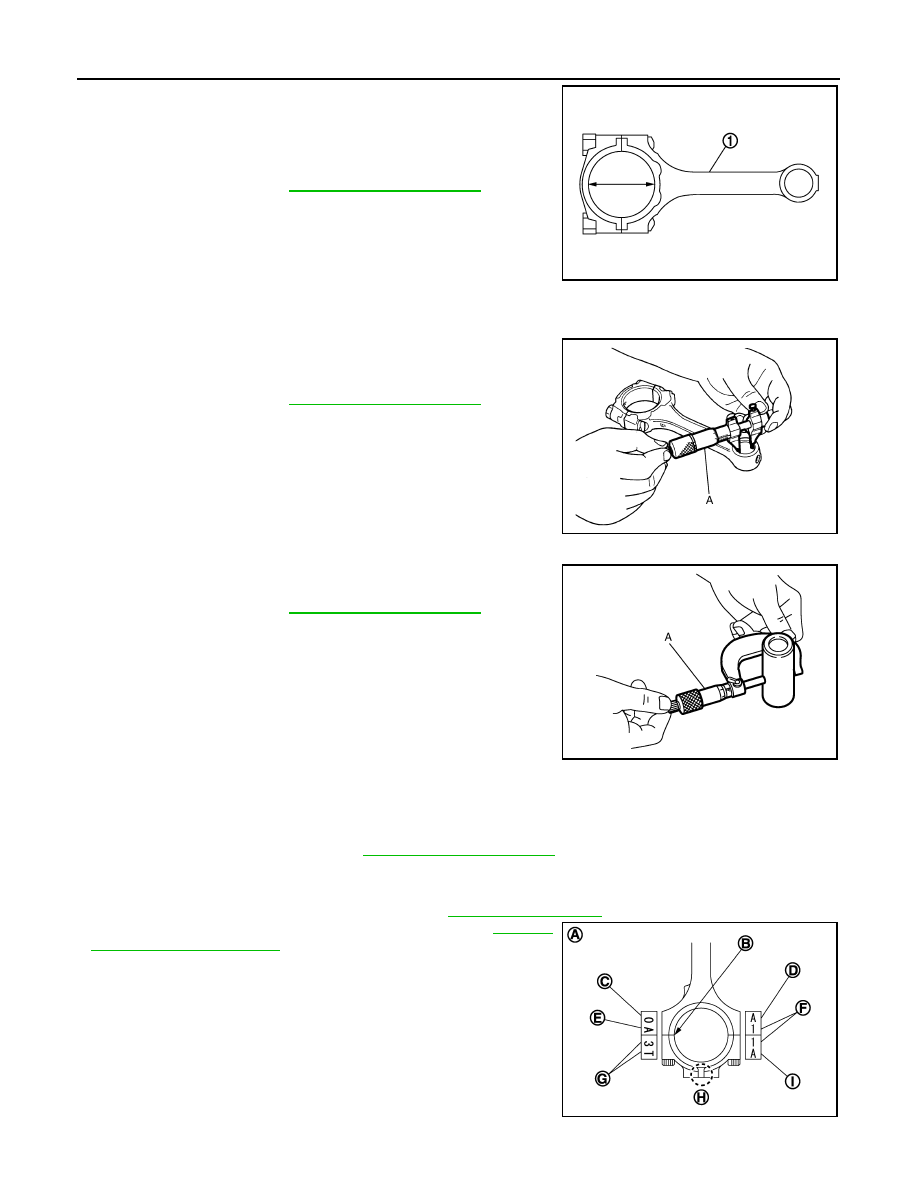

• Measure the inner diameter of connecting rod big end with an

inside micrometer.

• If out of the standard, replace connecting rod assembly.

CONNECTING ROD BUSHING OIL CLEARANCE

Connecting Rod Bushing Inner Diameter

Measure the inner diameter of connecting rod bushing with an inside
micrometer (A).

Piston Pin Outer Diameter

Measure the outer diameter of piston pin with a micrometer (A).

Connecting Rod Bushing Oil Clearance

(Connecting rod bushing oil clearance) = (Connecting rod bushing inner diameter) – (Piston pin outer diame-
ter)

• If the calculated value exceeds the limit, replace connecting rod assembly and/or piston and piston pin

assembly.

• If replacing piston and piston pin assembly, refer to

EM-141, "Description"

.

• If replacing connecting rod assembly, refer to

EM-142,

"Connecting Rod Bearing"

 to select the connecting rod bearing.

1

: Connecting rod

Standard

: Refer to

EM-151, "Cylinder Block"

.

JPBIA0222ZZ

Standard

: Refer to

EM-151, "Cylinder Block"

.

JPBIA0223ZZ

Standard

: Refer to

EM-151, "Cylinder Block"

.

JPBIA0218ZZ

Standard and limit

: Refer to

EM-151, "Cylinder Block"

.

A

:  Sample  codes

B

: Bearing stopper groove

C

: Small-end diameter grade

D

: Standard stamp

E

: Weight grade

F

: Cylinder No.

G

: Management code

JPBIA0208ZZ

CYLINDER BLOCK

EM-135

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

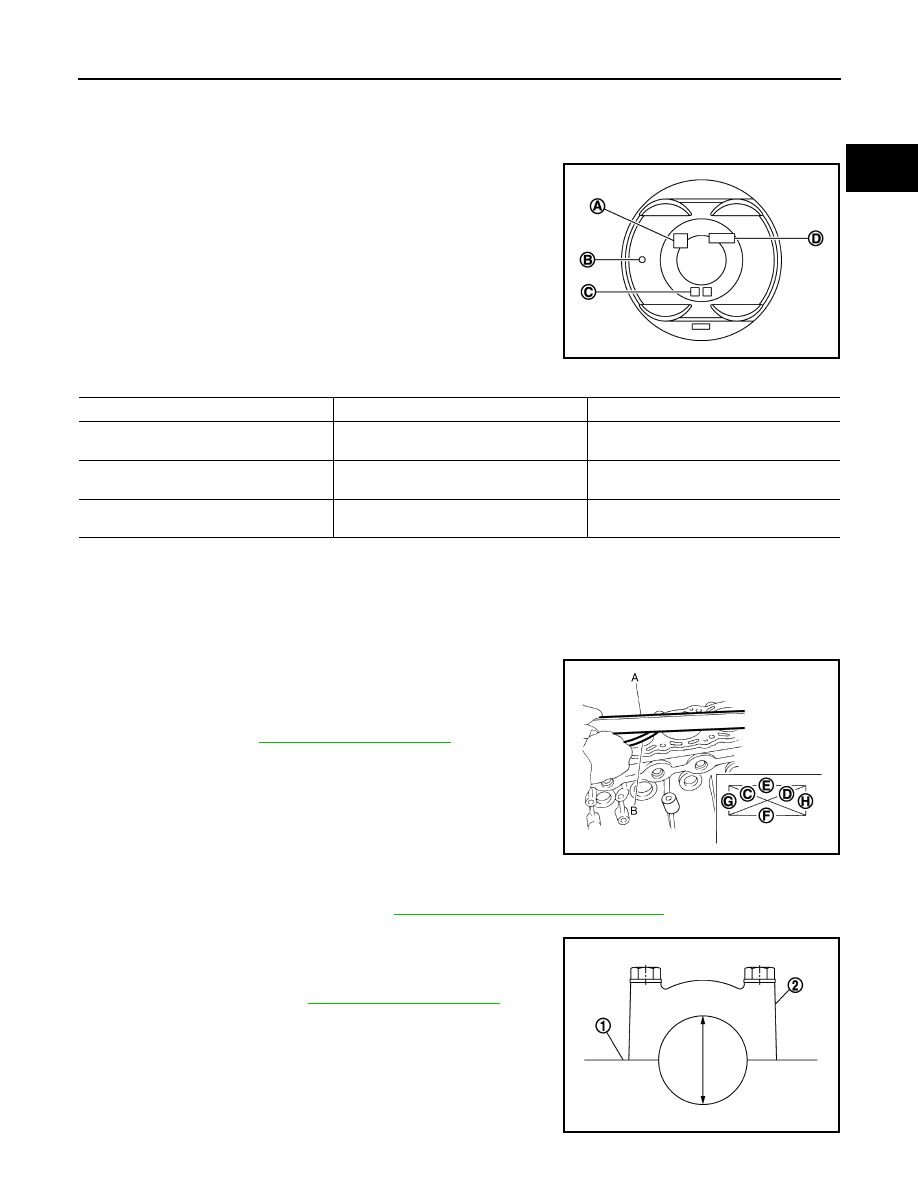

Factory installed parts grading:

• Service parts apply only to grade “0”.

Unit: mm (in)

*: After installing in connecting rod

CYLINDER BLOCK DISTORTION

• Using a scraper, remove gasket on the cylinder block surface, and also remove engine oil, scale, carbon, or

other contamination.

CAUTION:

Be careful not to allow gasket flakes to enter engine oil or engine coolant passages.

• Measure the distortion on the cylinder block upper face at some

different points in six directions (C), (D), (E), (F), (G), and (H) with a
straightedge (A) and a feeler gauge (B).

• If it exceeds the limit, replace cylinder block.

MAIN BEARING HOUSING INNER DIAMETER

• Install main bearing caps and main bearing beam without installing main bearings, and tighten main bearing

cap bolts to the specified torque. Refer to

EM-123, "Disassembly and Assembly"

 for the tightening proce-

dure.

• Measure the inner diameter of main bearing housing with a bore

gauge.

• If out of the standard, replace cylinder block (1) and main bearing

caps (2) as assembly.
NOTE:
Cylinder block cannot be replaced as a single part, because it is
machined together with main bearing caps.

H

: Front mark

I

: Management code

A

: Piston grade number

B

:  Front  mark

C

: Piston pin grade number

D

: Identification code

JPBIA2199ZZ

Grade

0

1

Connecting rod bushing inner diameter *

22.000 - 22.006

(0.8661 - 0.8664)

22.006 - 22.012

(0.8664 - 0.8666)

Piston pin hole diameter

21.993 - 21.999

(0.8659 - 0.8661)

21.999 - 22. 005

(0.8661 - 0.8663)

Piston pin outer diameter

21.989 - 21.995

(0.8657 - 0.8659)

21.995 - 22.001

(0.8659 - 0.8662)

Limit

: Refer to

EM-151, "Cylinder Block"

.

JPBIA0224ZZ

Standard

: Refer to

EM-151, "Cylinder Block"

.

JPBIA0225ZZ

EM-136

< UNIT DISASSEMBLY AND ASSEMBLY >

CYLINDER BLOCK

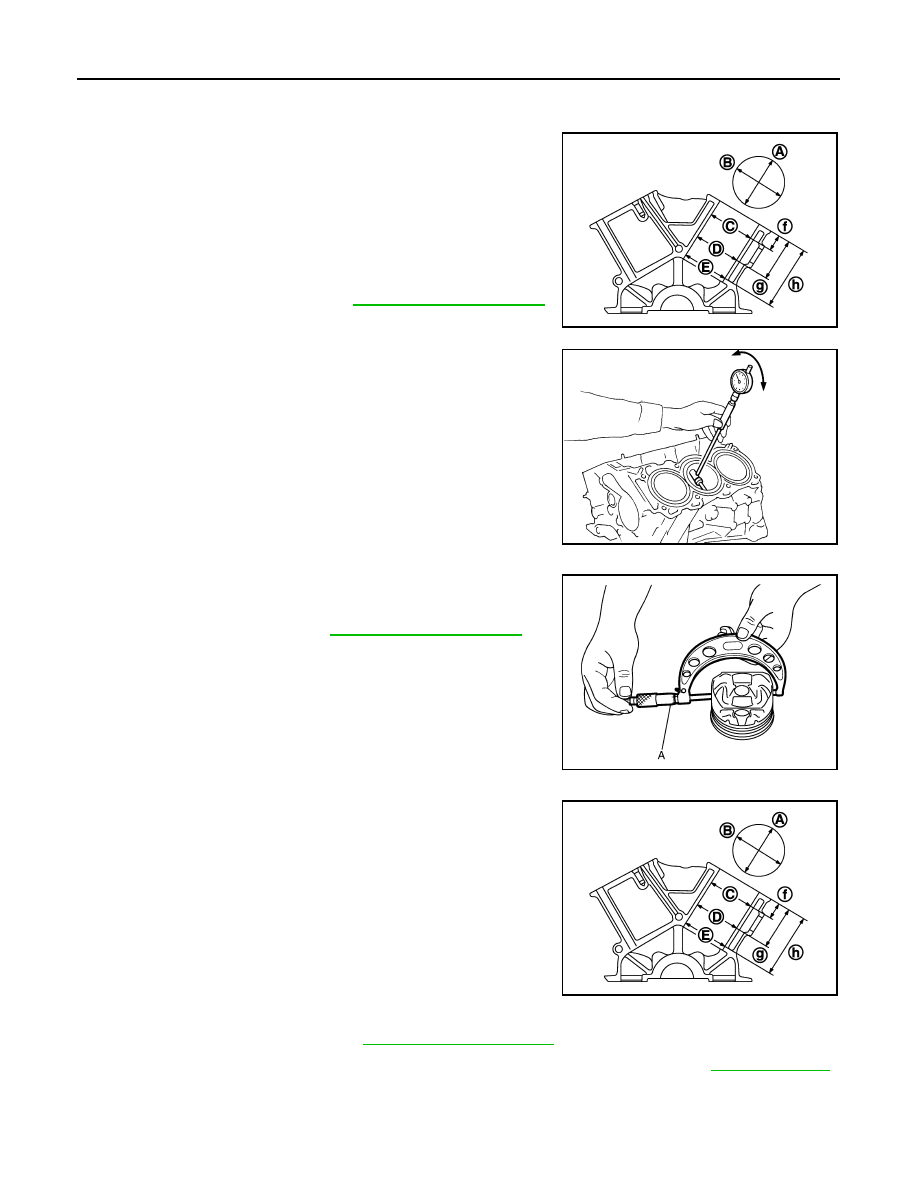

PISTON TO CYLINDER BORE CLEARANCE

Cylinder Bore inner Diameter

• Using a bore gauge, measure cylinder bore for wear, out-of-round

and taper at six different points on each cylinder. [(A) and (B) direc-
tions at (C), (D) and (E)] is in longitudinal direction of engine.

• If the measured value exceeds the limit, or if there are scratches

and/or seizure on the cylinder inner wall, hone or rebore the inner
wall.

• Oversize piston is provided. When using oversize piston, rebore

cylinder so that the clearance of the piston to cylinder bore satis-
fies the standard.

CAUTION:

When using oversize piston, use oversize pistons for all cylin-
ders with oversize piston rings.

Piston Skirt Diameter

Measure the outer diameter of piston skirt with a micrometer (A).

Piston-to-Cylinder Bore Clearance

Calculate by piston skirt diameter and cylinder bore inner diameter
[direction (B), position (D)].

(Clearance) = (Cylinder bore inner diameter) – (Piston skirt diame-
ter).

• If the calculated value exceeds the limit, replace piston and piston pin assembly. Refer to

EM-141, "Piston"

.

Reboring Cylinder Bore

1.

Cylinder bore size is determined by adding piston to cylinder bore clearance to piston skirt diameter.

f

: 10 mm (0.39 in)

g

: 60 mm (2.36 in)

h

: 120 mm (4.72 in)

Standard and limit

: Refer to

EM-151, "Cylinder Block"

.

JPBIA0226ZZ

Oversize (O/S)

: 0.2 mm (0.008 in)

SEM843E

Measure point

: Refer to

EM-151, "Cylinder Block"

.

Standard

JPBIA0227ZZ

A

:  Direction  A

C

: Position C

E

: Position E

f

: 10 mm (0.39 in)

g

: 60 mm (2.36 in)

h

: 120 mm (4.72 in)

Standard and limit

: Refer to

EM-151, "Cylinder Block"

.

JPBIA0226ZZ

CYLINDER BLOCK

EM-137

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

2.

Install main bearing caps and main bearing beam, and tighten to the specified torque. Otherwise, cylinder
bores may be distorted in final assembly.

3.

Cut cylinder bores.
NOTE:
• When any cylinder needs boring, all other cylinders must also be bored.
• Do not cut too much out of cylinder bore at a time. Cut only 0.05 mm (0.0020 in) or so in diameter at a

time.

4.

Hone cylinders to obtain the specified piston to cylinder bore clearance.

5.

Measure finished cylinder bore for the out-of-round and taper.
NOTE:
Measurement should be done after cylinder bore cools down.

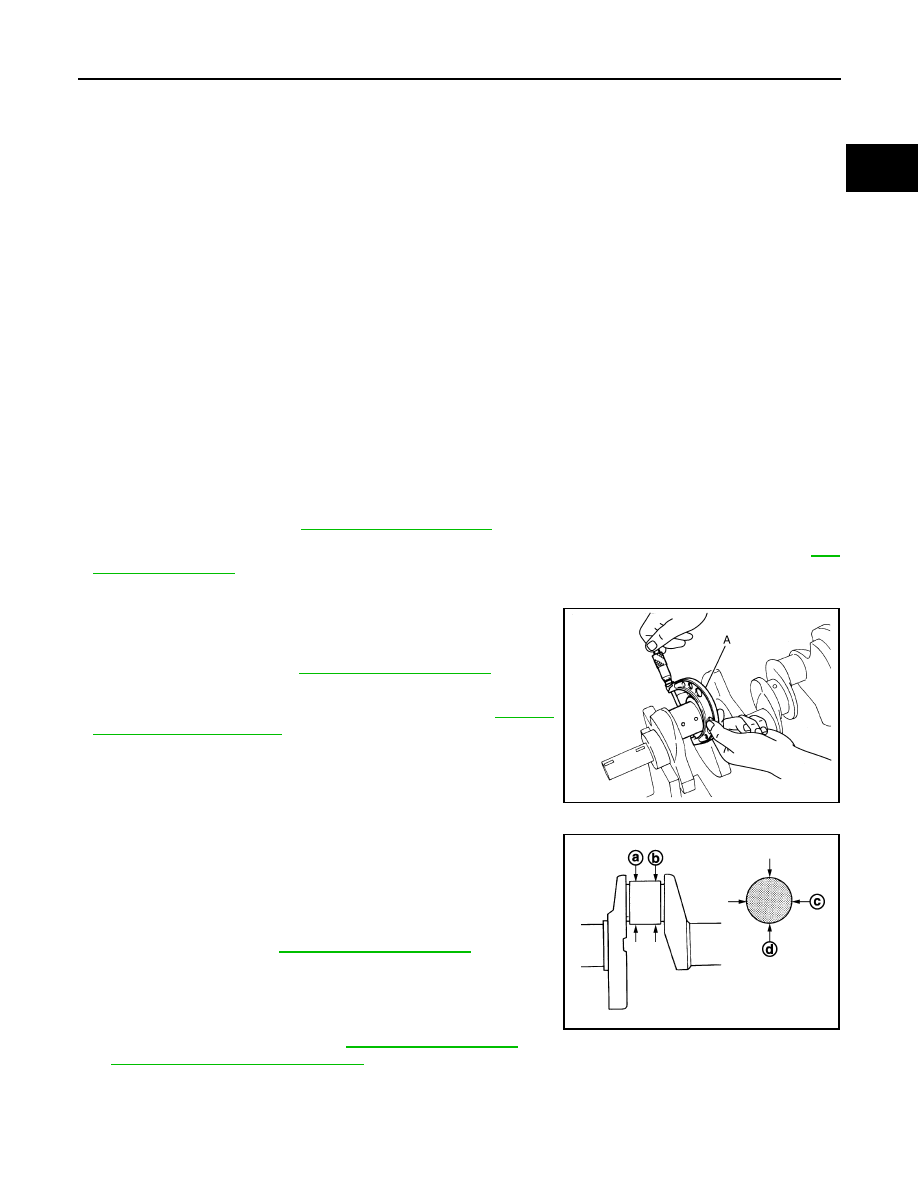

CRANKSHAFT MAIN JOURNAL DIAMETER

• Measure the outer diameter of crankshaft main journals with a micrometer.

• If out of the standard, measure the main bearing oil clearance. Then use undersize bearing. Refer to

EM-

143, "Main Bearing"

.

CRANKSHAFT PIN JOURNAL DIAMETER

• Measure the outer diameter of crankshaft pin journal with a

micrometer (A).

• If out of the standard, measure the connecting rod bearing oil

clearance. Then use undersize bearing. Refer to

EM-142,

"Connecting Rod Bearing"

.

CRANKSHAFT OUT-OF-ROUND AND TAPER

• Measure the dimensions at four different points as shown in the

figure on each main journal and pin journal with a micrometer.

• Out-of-round is indicated by the difference in the dimensions

between (d) and (c) at (a) and (b).

• Taper is indicated by the difference in the dimensions between.

• If the measured value exceeds the limit, correct or replace crank-

shaft.

• If corrected, measure the bearing oil clearance of the corrected

main journal and/or pin journal. Then select the main bearing and/
or connecting rod bearing. Refer to

EM-143, "Main Bearing"

 and/

or

EM-142, "Connecting Rod Bearing"

.

CRANKSHAFT RUNOUT

• Place V-block on precise flat table, and support the journals on the both end of crankshaft.

Rebored size calculation: D = A + B – C

where,

A: Piston skirt diameter as measured

B: Piston to cylinder bore clearance (standard value)

C: Honing allowance 0.02 mm (0.0008 in)

D: Bored diameter

Standard

: Refer to

EM-151, "Cylinder Block"

.

Standard

: Refer to

EM-151, "Cylinder Block"

.

JPBIA0228ZZ

Limit

: Refer to

EM-151, "Cylinder Block"

.

JPBIA0229ZZ
