EM-102

< UNIT DISASSEMBLY AND ASSEMBLY >

CAMSHAFT

5.

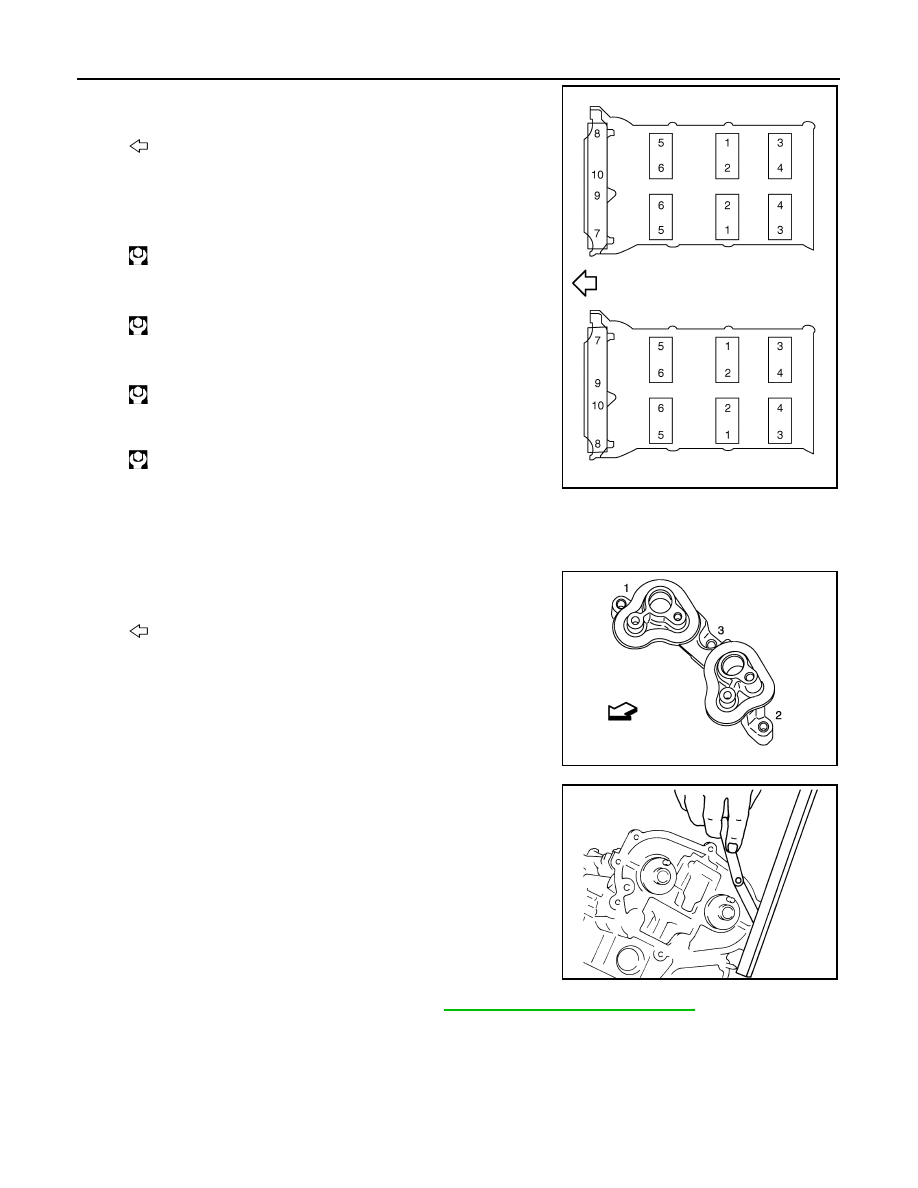

Tighten camshaft bracket bolts in the following steps, in numeri-
cal order as shown in the figure.

CAUTION:

Do not reuse washers.

a.

Tighten No. 7 to 10 in order as shown.

b.

Tighten No. 1 to 6 in order as shown.

c.

Tighten No. 1 to 10 in numerical order as shown.

d.

Tighten No. 1 to 10 in numerical order as shown.

CAUTION:

After tightening mounting bolts of camshaft brackets (No.
1), be sure to wipe off excessive liquid gasket from the parts list below.

• Mating surface of rocker cover
• Mating surface of rear timing chain case

6.

Tighten camshaft sensor bracket bolts in numerical order as
shown in the figure.

NOTE:
The order of tightening bolts in the same for bank 1 and bank 2.

7.

Measure difference in levels between front end faces of cam-
shaft bracket (No. 1) and cylinder head.

• Measure two positions (both intake and exhaust side) for a

single bank.

• If the measured value is out of the standard, reinstall camshaft

bracket (No. 1).

8.

Inspect and adjust the valve clearance. Refer to

EM-22, "Inspection and Adjustment"

.

9.

Install in the reverse order of removal after this step.

Inspection

INFOID:0000000009717998

INSPECTION AFTER REMOVAL

Camshaft Runout

: Engine front

: 1.96 N·m (0.20 kg-m, 1 ft-lb)

: 1.96 N·m (0.20 kg-m, 1 ft-lb)

: 5.88 N·m (0.60 kg-m, 4 ft-lb)

: 10.4 N·m (1.1 kg-m, 8 ft-lb)

: Engine front

JPBIA0257ZZ

JPBIA1960ZZ

Standard

0.14 to 0.14 mm (

0.0055 to 0.0055 in)

EMQ0044D

CAMSHAFT

EM-103

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

1.

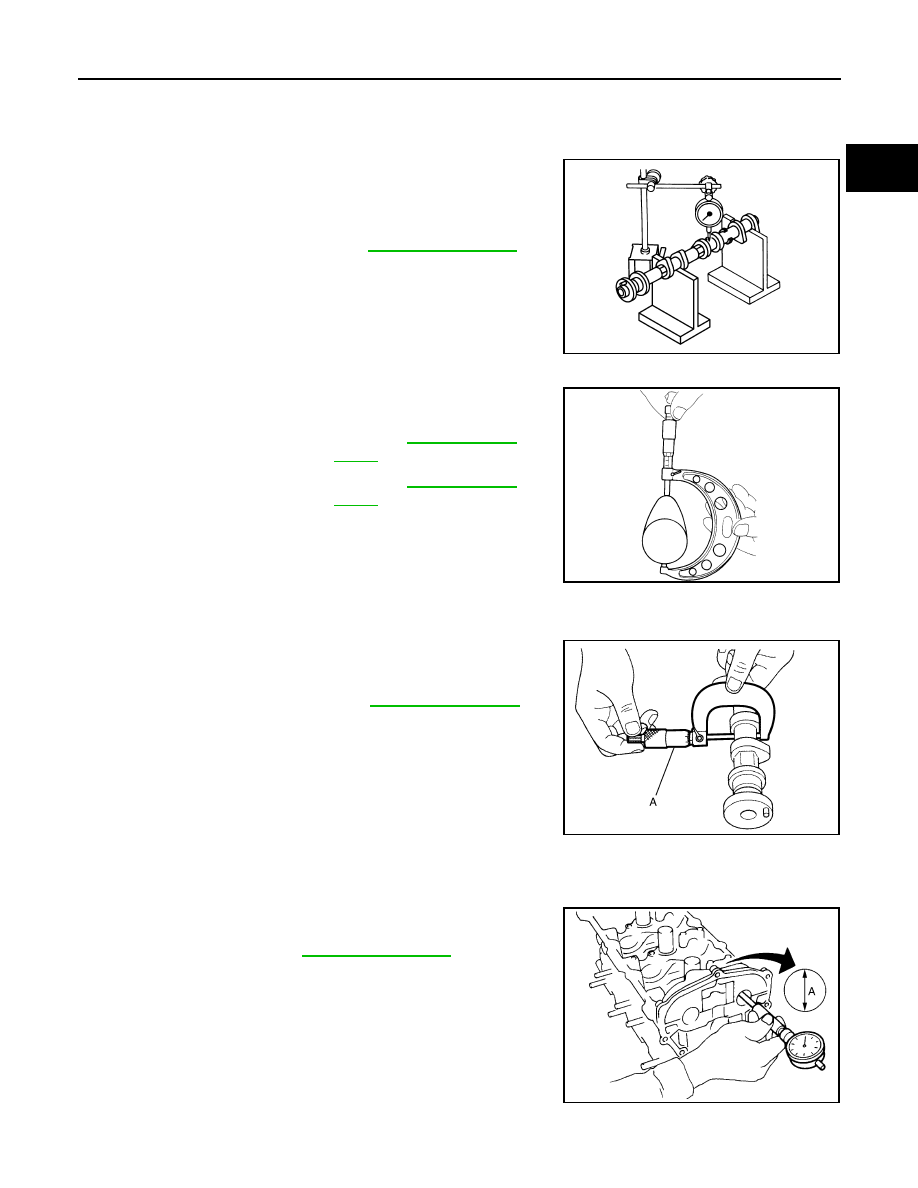

Put V-block on precise flat table, and support No. 2 and 4 journals of camshaft.

CAUTION:

Never support No. 1 journal (on the side of camshaft sprocket) because it has a different diameter
from the other three locations.

2.

Set a dial indicator vertically to No. 3 journal.

3.

Turn camshaft to one direction with hands, and measure the
camshaft runout on a dial indicator. (Total indicator reading)

4.

If it exceeds the limit, replace camshaft.

Camshaft Cam Height

1.

Measure the camshaft cam height with a micrometer.

2.

If wear exceeds the limit, replace camshaft.

Camshaft Journal Oil Clearance

CAMSHAFT JOURNAL DIAMETER

• Measure the outer diameter of camshaft journal with a micrometer

(A).

CAMSHAFT BRACKET INNER DIAMETER

• Tighten camshaft bracket bolt with the specified torque. Refer to “INSTALLATION” for the tightening proce-

dure.

• Measure inner diameter (A) of camshaft bracket with a bore gauge.

CAMSHAFT JOURNAL OIL CLEARANCE

Standard and limit

: Refer to

EM-147, "Camshaft"

.

PBIC0929E

Standard cam height

: Refer to

EM-147, "Cam-

shaft"

.

 (Intake and exhaust)

Cam wear limit

: Refer to

EM-147, "Cam-

shaft"

.

EMQ0072D

Standard and limit

: Refer to

EM-147, "Camshaft"

.

JPBIA0122ZZ

Standard

: Refer to

EM-147, "Camshaft"

.

PBIC1645E

EM-104

< UNIT DISASSEMBLY AND ASSEMBLY >

CAMSHAFT

• (Oil clearance) = (Camshaft bracket inner diameter) – (Camshaft journal diameter).

• If the calculated value exceeds the limit, replace either or both camshaft and cylinder head.

NOTE:
Camshaft brackets cannot be replaced as single parts, because there are machined together with cylinder
head. Replace whole cylinder head assembly.

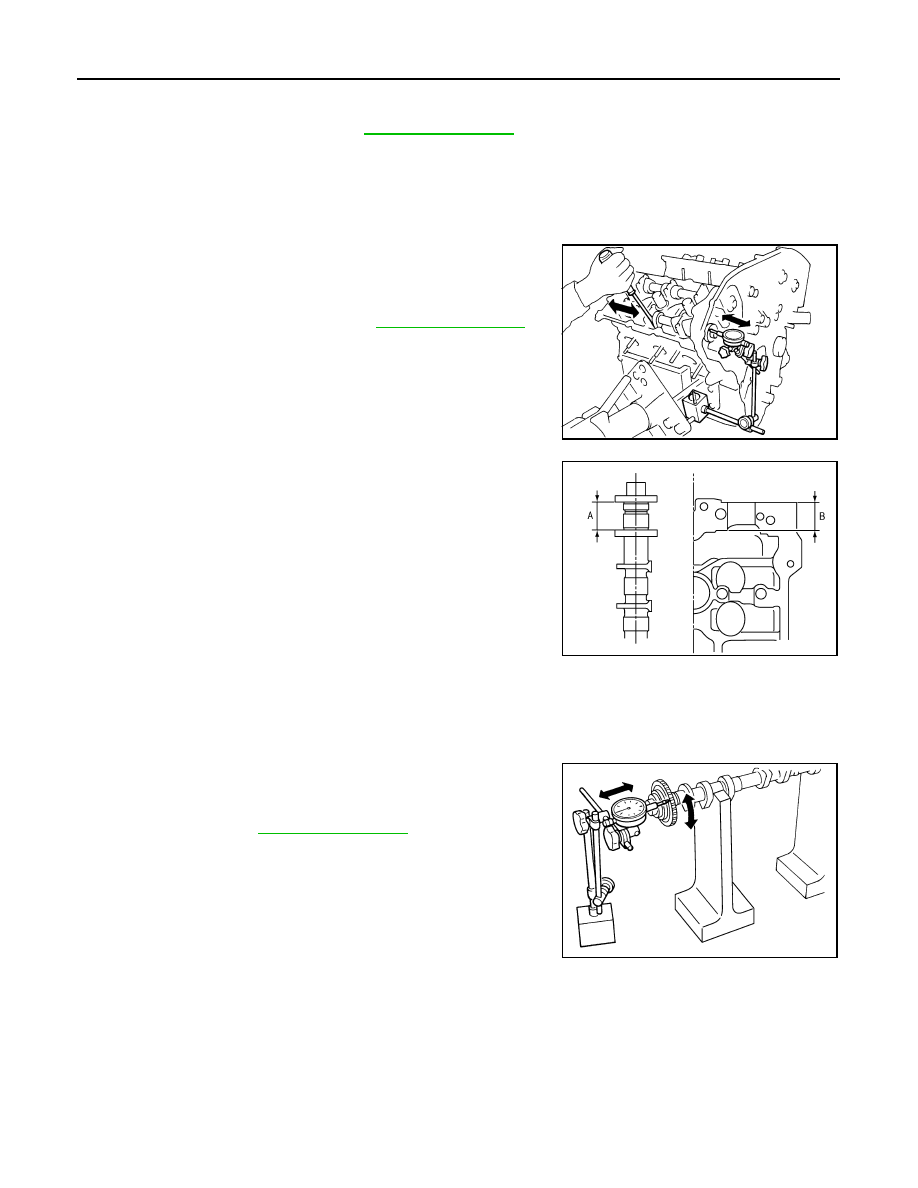

Camshaft End Play

• Install a dial indicator in thrust direction on front end of camshaft.

Measure the end play of a dial indicator when camshaft is moved
forward/backward (in direction to axis).

• Measure the following parts if out of the limit.
- Dimension “A” for camshaft No. 1 journal

- Dimension “B” for cylinder head No. 1 journal bearing

• Refer to the standards above, and then replace camshaft and/or

cylinder head.

Camshaft Sprocket Runout

1.

Put V-block on precise flat table, and support No. 2 and 4 journals of camshaft.

CAUTION:

Never support No. 1 journal (on the side of camshaft sprocket) because it has a different diameter
from the other three locations.

2.

Measure the camshaft sprocket runout with a dial indicator.
(Total indicator reading)

• If it exceeds the limit, replace camshaft sprocket.

Valve Lifter

Standard and limit

Refer to

EM-147, "Camshaft"

.

Standard and limit

: Refer to

EM-147, "Camshaft"

.

SEM864E

Standard

: 27.500 - 27.548 mm (1.0827 - 1.0846 in)

Standard

: 27.360 - 27.385 mm (1.0772 - 1.0781 in)

KBIA2404J

Limit

: Refer to

EM-147, "Camshaft"

.

PBIC0930E

CAMSHAFT

EM-105

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

Check if surface of valve lifter has any wear or cracks.
• If anything above is found, replace valve lifter. Refer to

EM-147,

"Camshaft"

.

Valve Lifter Clearance

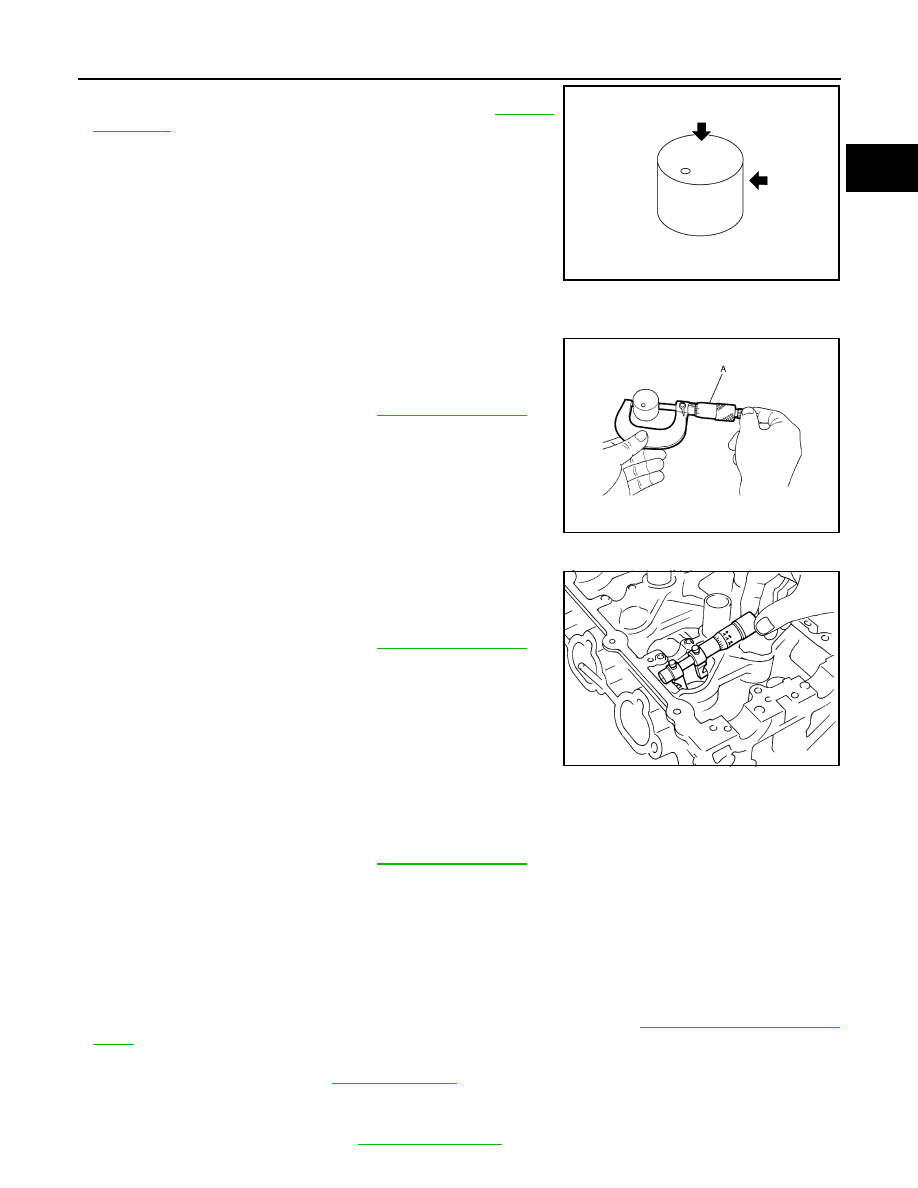

VALVE LIFTER OUTER DIAMETER

• Measure the outer diameter at 1/2 height of valve lifter with a

micrometer (A) since valve lifter is in barrel shape.

VALVE LIFTER HOLE DIAMETER

• Measure the inner diameter of valve lifter hole of cylinder head with

an inside micrometer.

VALVE LIFTER CLEARANCE

• (Valve lifter clearance) = (Valve lifter hole diameter) – (Valve lifter outer diameter)

• If the calculated value is out of the standard, referring to each standard of valve lifter outer diameter and

valve lifter hole diameter, replace either or both valve lifter and cylinder head.

INSPECTION AFTER INSTALLATION

Inspection of Camshaft Sprocket (INT) Oil Groove

CAUTION:

• Perform this inspection only when DTC P0011 is detected in self-diagnostic results of CONSULT and

it is directed according to inspection procedure of EC section. Refer to

EC-155, "Diagnosis Proce-

dure"

.

• Check when engine is cold so as to prevent burns from the splashing engine oil.

1.

Check engine oil level. Refer to

LU-8, "Inspection"

.

2.

Perform the following procedure so as to prevent the engine from being unintentionally started while
checking.

a.

Release the fuel pressure. Refer to

EC-532, "Inspection"

.

KBIA0182E

Standard

: Refer to

EM-147, "Camshaft"

.

(Intake and exhaust)

JPBIA0125ZZ

Standard

: Refer to

EM-147, "Camshaft"

.

(Intake and exhaust)

SEM867E

Standard

: Refer to

EM-147, "Camshaft"

.

(Intake and exhaust)
