COOLING FAN CONTROL

1.

Cooling fan motor-1

2.

Cooling fan motor-1 harness con-
nector

3.

Cooling fan motor-1 harness con-
nector

4.

Cooling fan motor-2

5.

Engine coolant temperature sensor

: Vehicle front

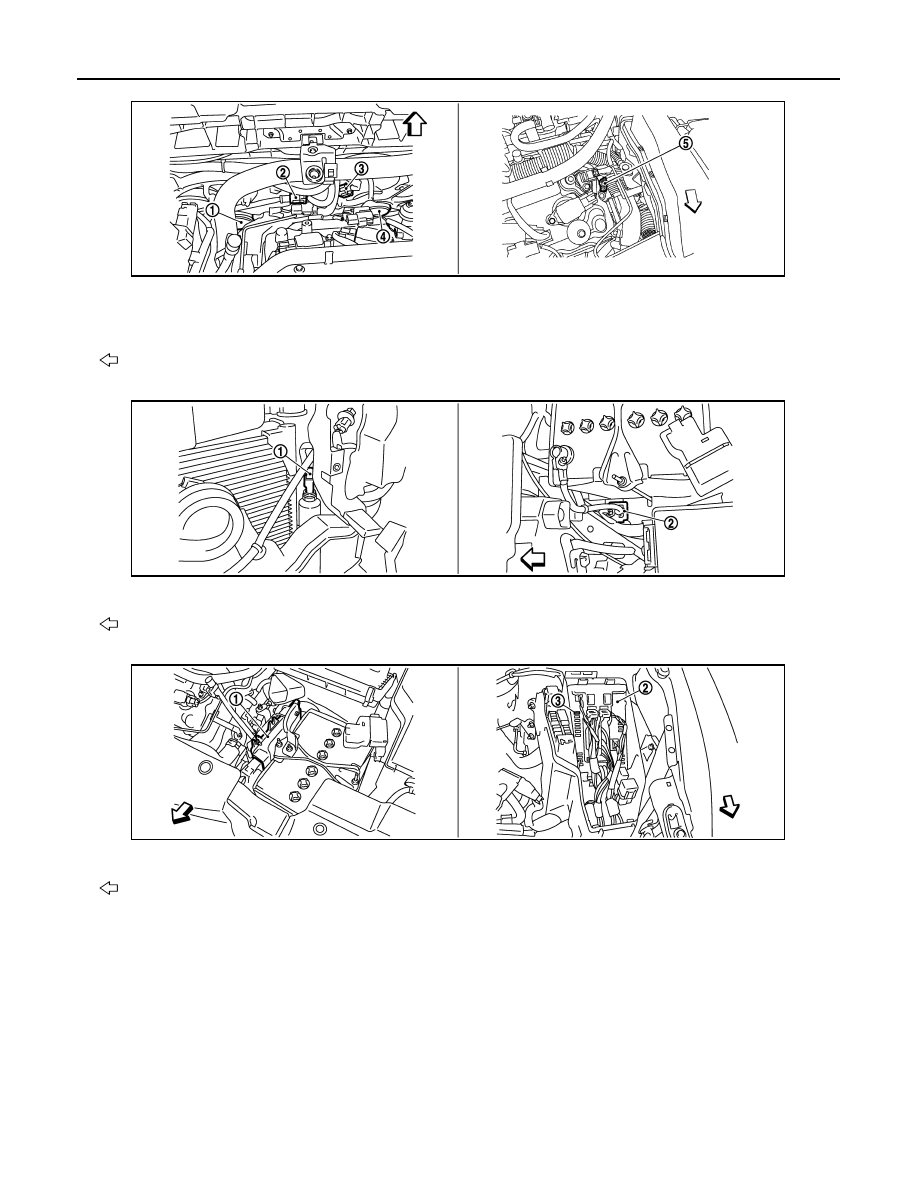

1.

Refrigerant pressure sensor

2.

Battery current sensor

: Vehicle front

1.

ECM

2.

IPDM E/R

3.

Fuel pump fuse

: Vehicle front

JMBIA1112ZZ

JMBIA1113ZZ

JMBIA1115ZZ

COOLING FAN CONTROL

EC-79

< SYSTEM DESCRIPTION >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

JMBIA1832GB

1.

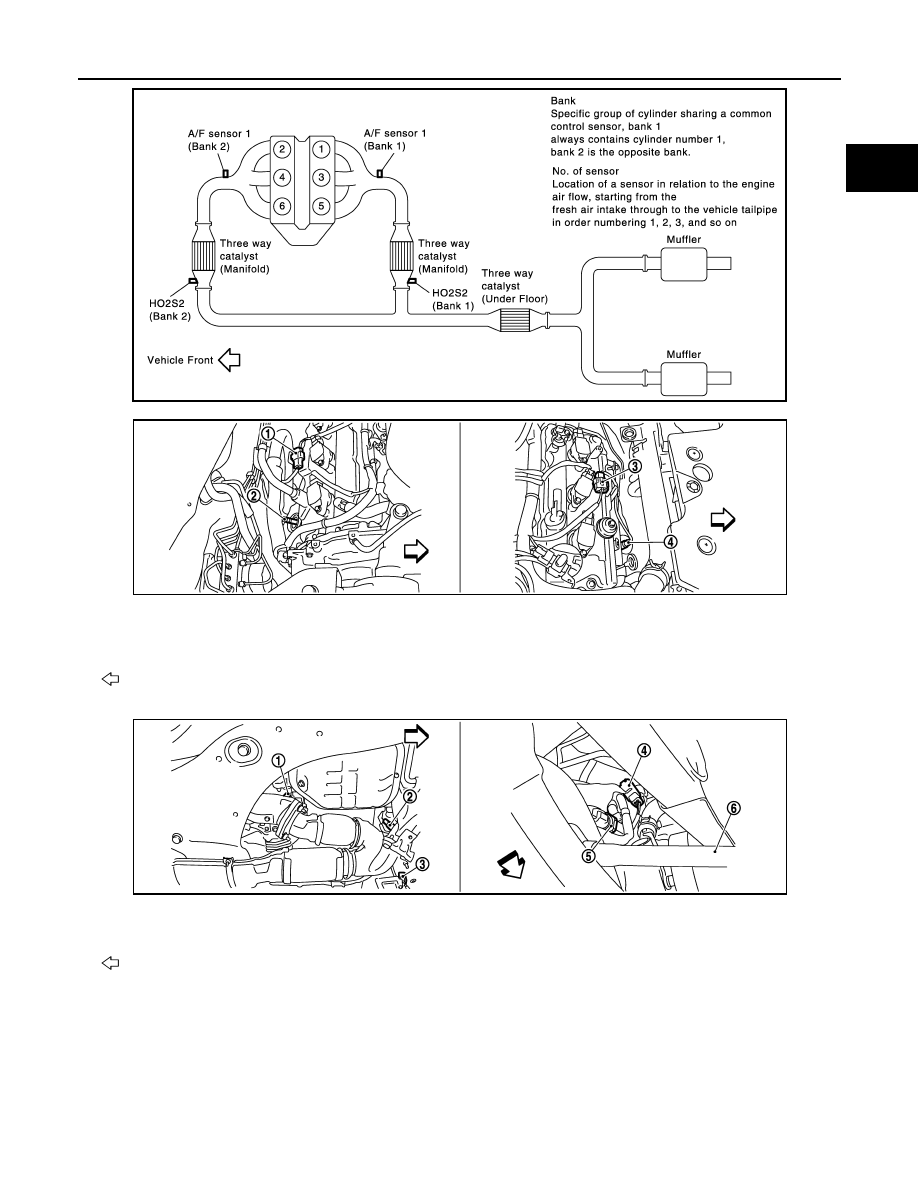

A/F sensor 1 (bank 1) harness con-
nector

2.

A/F sensor 1 (bank 1)

3.

A/F sensor 1 (bank 2) harness con-
nector

4.

A/F sensor 1 (bank 2)

: Vehicle front

1.

HO2S2 (bank 1)

2.

HO2S2 (bank 2)

3.

HO2S2 (bank 2) harness connector

4.

HO2S2 (bank 1) harness connector

5.

Power steering pressure sensor

6.

Drive shaft (RH)

: Vehicle front

JMBIA1116ZZ

JMBIA1117ZZ

EC-80

< SYSTEM DESCRIPTION >

[VQ35DE]

COOLING FAN CONTROL

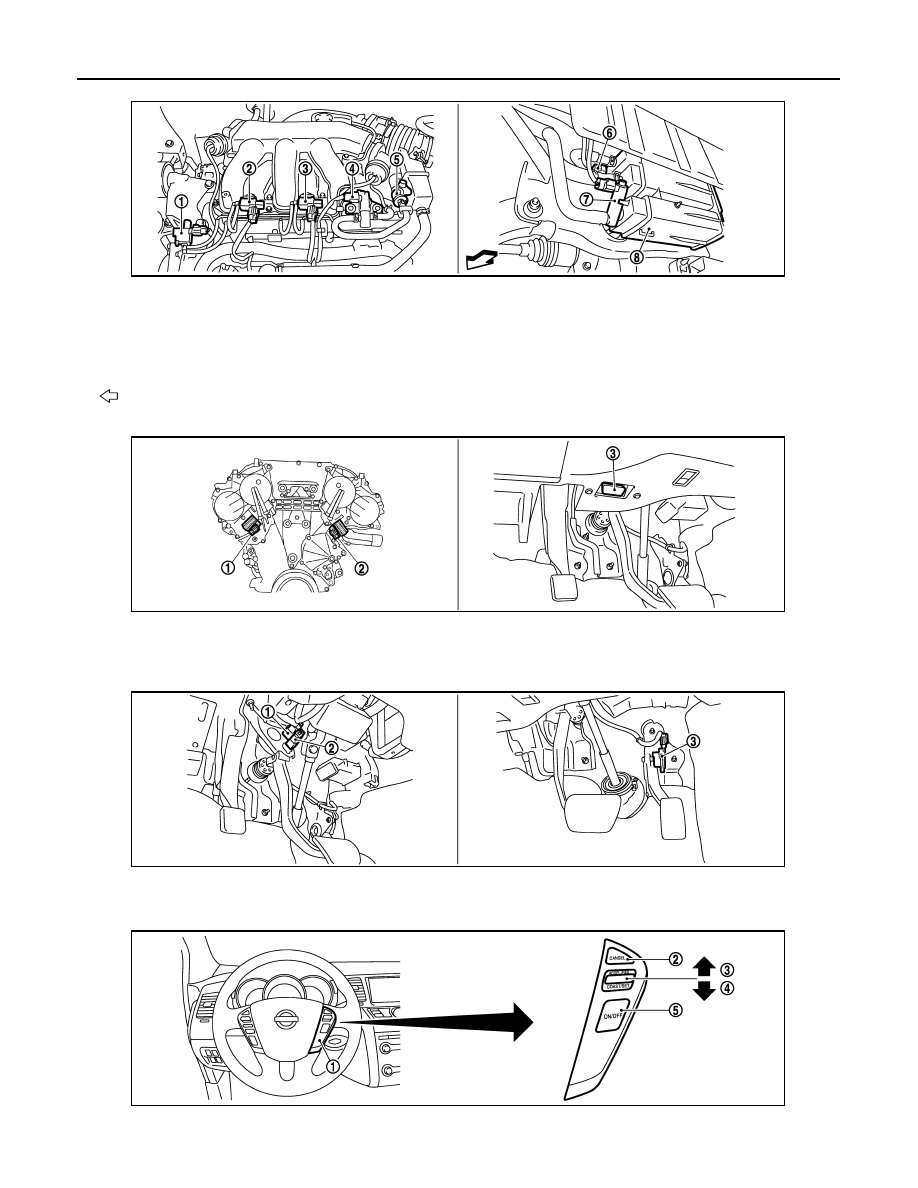

1.

Electronic controlled engine mount
control solenoid valve

2.

VIAS control solenoid valve 1

3.

VIAS control solenoid valve 2

4.

EVAP canister purge volume control
solenoid valve

5.

EVAP service port

6.

EVAP control system pressure sen-
sor

7.

EVAP canister vent control valve

8.

EVAP canister

: Vehicle front

1.

Intake valve timing control solenoid
valve (bank 1)

2.

Intake valve timing control solenoid
valve (bank 2)

3.

Data link connector

1.

Stop lamp switch

2.

ASCD brake switch

3.

Accelerator pedal position sensor

JMBIA1111ZZ

JMBIA1118ZZ

JMBIA1119ZZ

JMBIA1120ZZ

COOLING FAN CONTROL

EC-81

< SYSTEM DESCRIPTION >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Component Description

INFOID:0000000009719846

1.

ASCD steering switch

2.

CANSEL switch

3.

RESUME/ACCELERATE switch

4.

SET/COAST switch

5.

MAIN switch

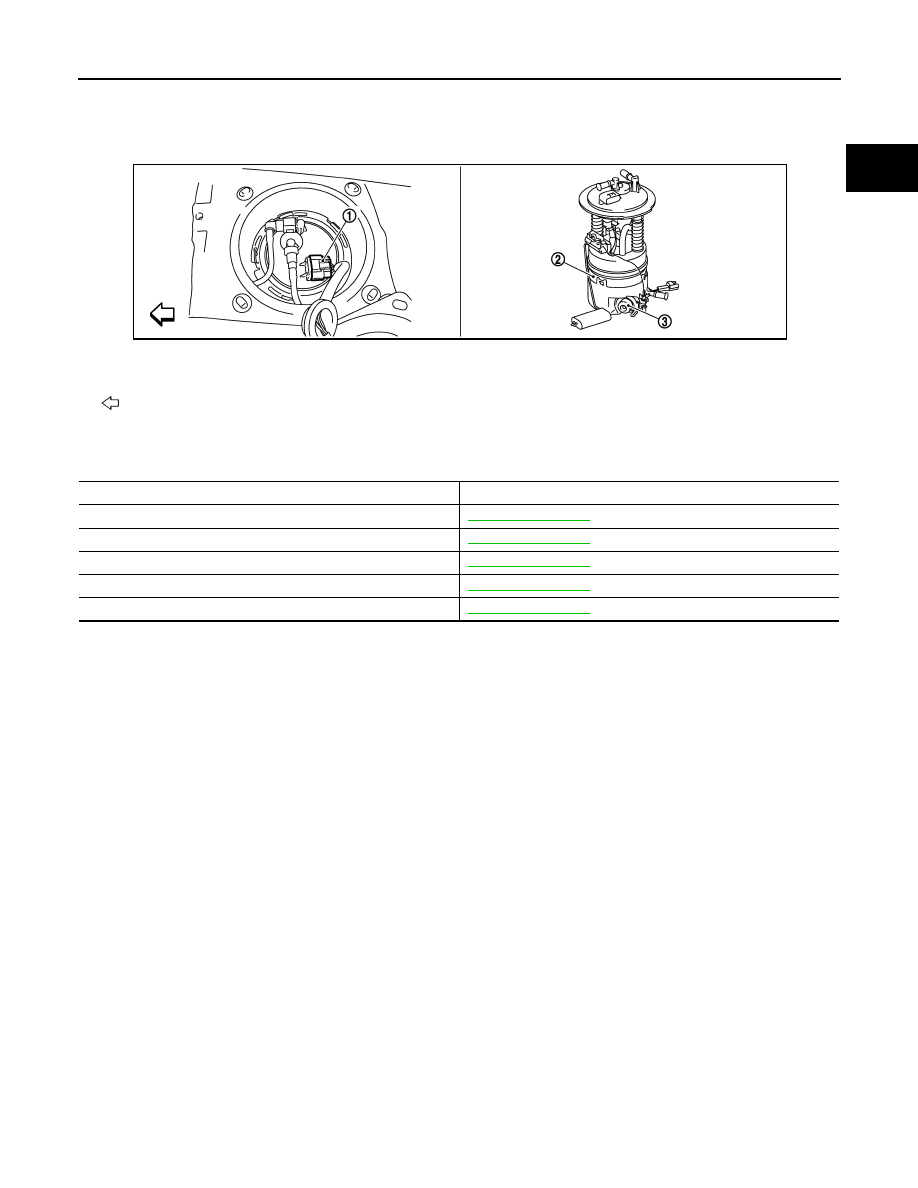

1.

Fuel level sensor unit and fuel pump
harness connector

2.

Fuel level sensor unit and fuel pump 3.

Fuel pressure regulator

: Vehicle front

JMBIA1121ZZ

Component

Reference

Camshaft position sensor (PHASE)

EC-279, "Description"

Cooling fan motor

EC-436, "Description"

Crankshaft position sensor (POS)

EC-275, "Description"

Engine coolant temperature sensor

EC-182, "Description"

Refrigerant pressure sensor

EC-465, "Description"
