AUTOMATIC SPEED CONTROL DEVICE (ASCD)

1.

ECM

2.

IPDM E/R

3.

Fuel pump fuse

: Vehicle front

JMBIA1832GB

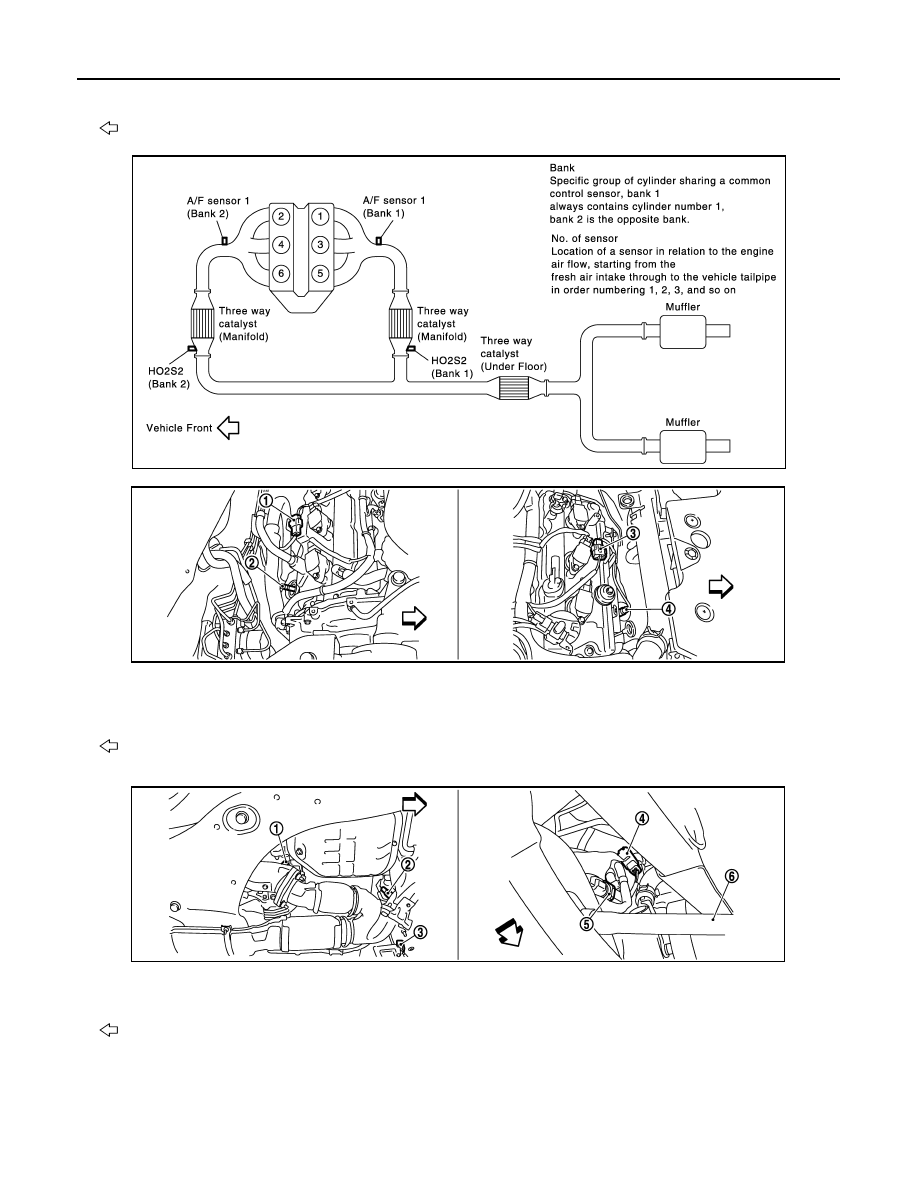

1.

A/F sensor 1 (bank 1) harness con-
nector

2.

A/F sensor 1 (bank 1)

3.

A/F sensor 1 (bank 2) harness con-
nector

4.

A/F sensor 1 (bank 2)

: Vehicle front

1.

HO2S2 (bank 1)

2.

HO2S2 (bank 2)

3.

HO2S2 (bank 2) harness connector

4.

HO2S2 (bank 1) harness connector

5.

Power steering pressure sensor

6.

Drive shaft (RH)

: Vehicle front

JMBIA1116ZZ

JMBIA1117ZZ

AUTOMATIC SPEED CONTROL DEVICE (ASCD)

EC-71

< SYSTEM DESCRIPTION >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

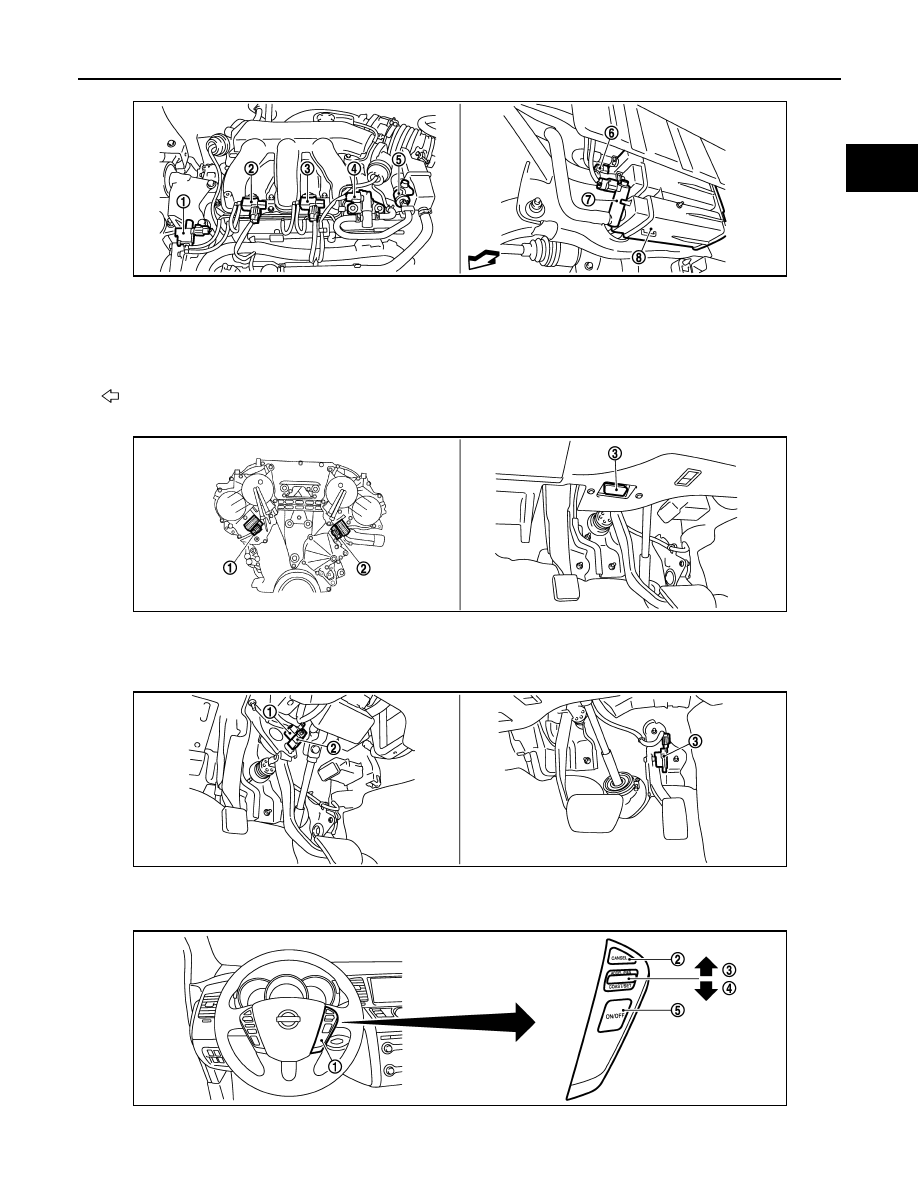

1.

Electronic controlled engine mount
control solenoid valve

2.

VIAS control solenoid valve 1

3.

VIAS control solenoid valve 2

4.

EVAP canister purge volume control
solenoid valve

5.

EVAP service port

6.

EVAP control system pressure sen-
sor

7.

EVAP canister vent control valve

8.

EVAP canister

: Vehicle front

1.

Intake valve timing control solenoid
valve (bank 1)

2.

Intake valve timing control solenoid
valve (bank 2)

3.

Data link connector

1.

Stop lamp switch

2.

ASCD brake switch

3.

Accelerator pedal position sensor

JMBIA1111ZZ

JMBIA1118ZZ

JMBIA1119ZZ

JMBIA1120ZZ

EC-72

< SYSTEM DESCRIPTION >

[VQ35DE]

AUTOMATIC SPEED CONTROL DEVICE (ASCD)

Component Description

INFOID:0000000009719841

1.

ASCD steering switch

2.

CANSEL switch

3.

RESUME/ACCELERATE switch

4.

SET/COAST switch

5.

MAIN switch

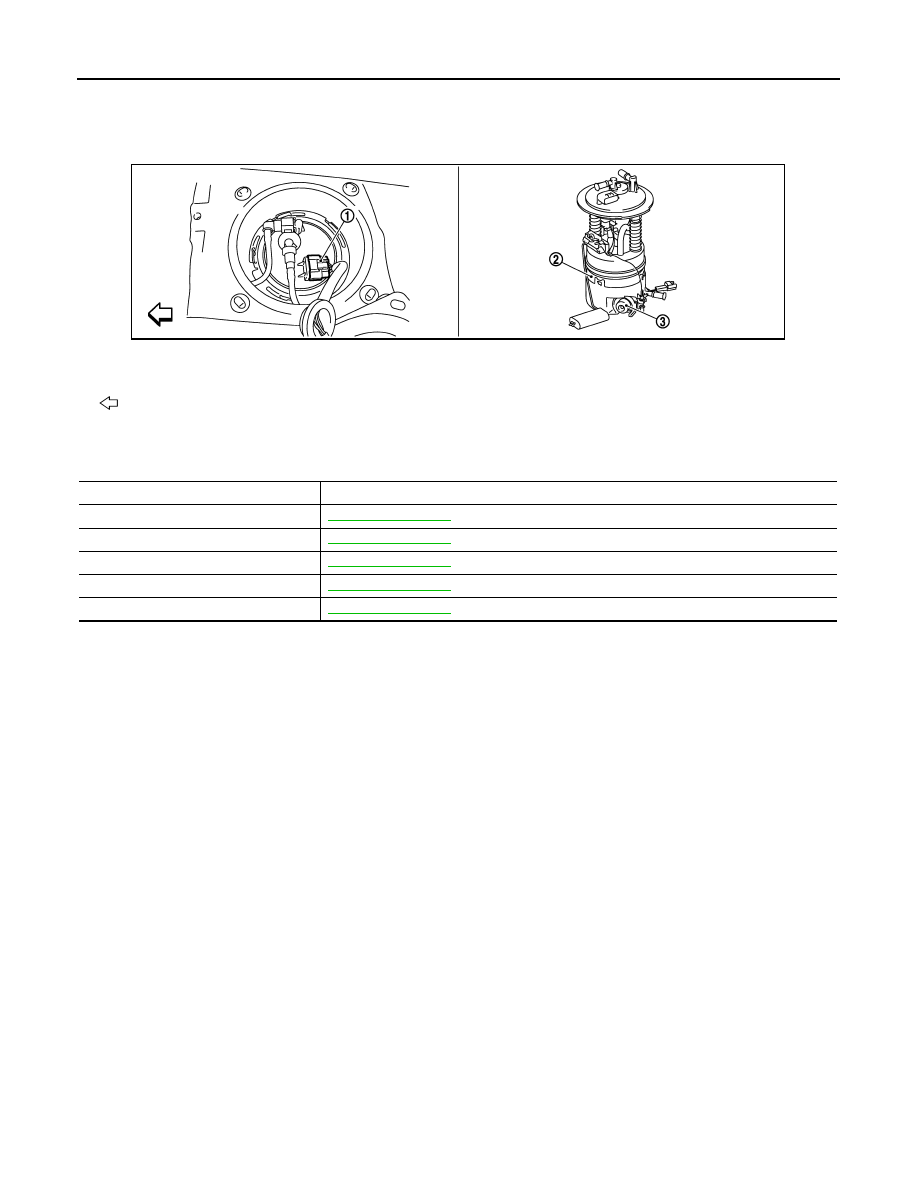

1.

Fuel level sensor unit and fuel pump
harness connector

2.

Fuel level sensor unit and fuel pump 3.

Fuel pressure regulator

: Vehicle front

JMBIA1121ZZ

Component

Reference

ASCD brake switch

EC-383, "Description"

ASCD indicator

EC-435, "Description"

ASCD steering switch

EC-380, "Description"

Electric throttle control actuator

EC-417, "Description"

Stop lamp switch

EC-400, "Description"

CAN COMMUNICATION

EC-73

< SYSTEM DESCRIPTION >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

CAN COMMUNICATION

System Description

INFOID:0000000009719842

CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
Refer to

LAN-29, "CAN Communication Signal Chart"

, about CAN communication for detail.
