AUTOMATIC BACK DOOR CLOSE SWITCH

DLK-371

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

AUTOMATIC BACK DOOR CLOSE SWITCH

Exploded View

INFOID:0000000009719304

Refer to

INT-38, "Exploded View"

.

Removal and Installation

INFOID:0000000009719305

REMOVAL

1.

Remove the automatic back door close switch finisher. Refer to

INT-38, "Removal and Installation"

.

2.

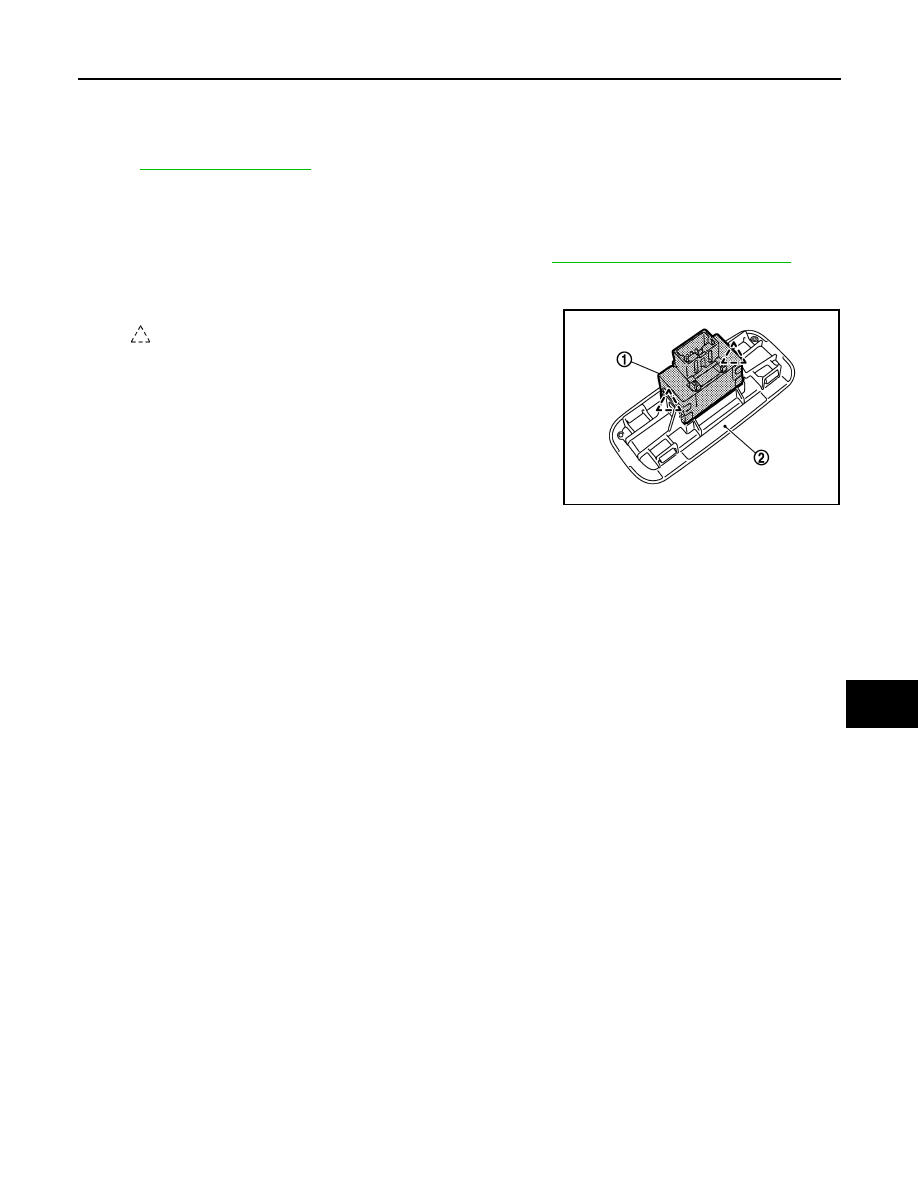

Widen the pawl, and remove the automatic back door close switch (1) from automatic back door close
switch finisher (2).

INSTALLATION

Install in the reverse order of removal.

:

Pawl

JMKIA1847ZZ

DLK-372

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

AUTOMATIC BACK DOOR SWITCH

AUTOMATIC BACK DOOR SWITCH

Exploded View

INFOID:0000000009719306

Refer to

IP-14, "Exploded View"

.

Removal and Installation

INFOID:0000000009719307

REMOVAL

1.

Remove the instrument driver lower panel. Refer to

IP-15, "Removal and Installation"

.

2.

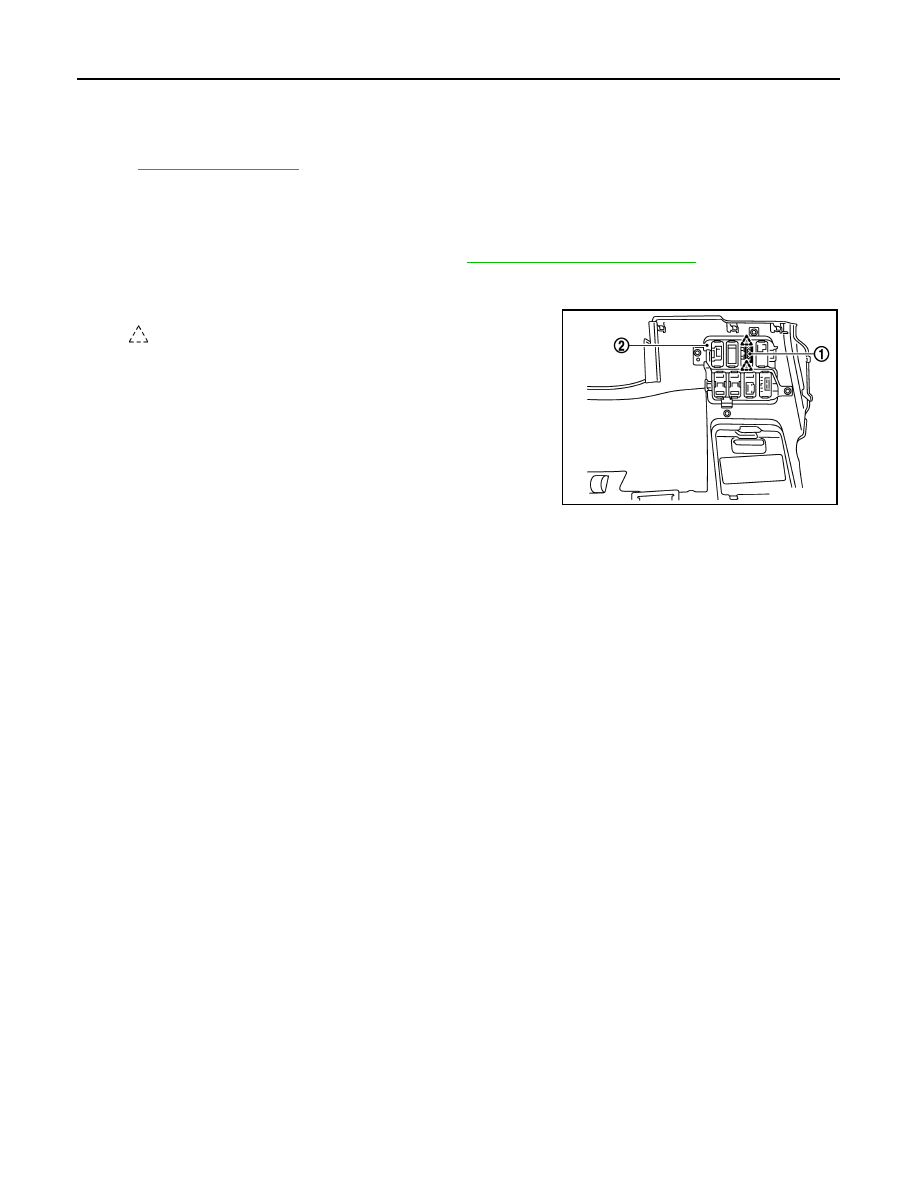

Widen the pawl, and remove the automatic back door switch (1) from automatic back door switch finisher
(2).

INSTALLATION

Install in the reverse order of removal.

:

Pawl

JMKIA1848ZZ

DLN-1

TRANSMISSION & DRIVELINE

C

E

F

G

H

I

J

K

L

M

SECTION

DLN

A

B

DLN

N

O

P

CONTENTS

DRIVELINE

TRANSFER: TY20A

BASIC INSPECTION  ....................................

4

DIAGNOSIS AND REPAIR WORK FLOW  .........

4

Work Flow  .................................................................

4

SYSTEM DESCRIPTION  ..............................

5

AWD SYSTEM .....................................................

5

System Diagram ........................................................

5

System Description  ...................................................

6

Component Parts Location ........................................

8

Component Description .............................................

9

DIAGNOSIS SYSTEM (AWD CONTROL
UNIT) ..................................................................

10

CONSULT Function  ................................................

10

DTC/CIRCUIT DIAGNOSIS  .........................

12

C1201 AWD CONTROL UNIT ............................

12

Description ..............................................................

12

DTC Logic  ...............................................................

12

Diagnosis Procedure ...............................................

12

C1203 ABS ACTUATOR AND ELECTRIC
UNIT (CONTROL UNIT)  .....................................

13

Description ..............................................................

13

DTC Logic  ...............................................................

13

Diagnosis Procedure ...............................................

13

C1204 AWD SOLENOID  ....................................

14

Description ..............................................................

14

DTC Logic  ...............................................................

14

Diagnosis Procedure ...............................................

14

Component Inspection  ............................................

15

C1205 AWD ACTUATOR RELAY  .....................

16

Description ..............................................................

16

DTC Logic  ...............................................................

16

Diagnosis Procedure ...............................................

16

C1210 ECM  .......................................................

18

Description ...............................................................

18

DTC Logic ................................................................

18

Diagnosis Procedure  ...............................................

18

U1000 CAN COMM CIRCUIT  ...........................

19

Description ...............................................................

19

DTC Logic ................................................................

19

Diagnosis Procedure  ...............................................

19

U1010 CONTROL UNIT (CAN) .........................

20

Description ...............................................................

20

DTC Logic ................................................................

20

Diagnosis Procedure  ...............................................

20

POWER SUPPLY AND GROUND CIRCUIT  ....

21

Description ...............................................................

21

Diagnosis Procedure  ...............................................

21

AWD LOCK SWITCH ........................................

23

Description ...............................................................

23

Component Function Check  ....................................

23

Diagnosis Procedure  ...............................................

23

Component Inspection .............................................

24

AWD WARNING LAMP  ....................................

25

Description ...............................................................

25

Component Function Check  ....................................

25

Diagnosis Procedure  ...............................................

25

AWD LOCK INDICATOR LAMP .......................

27

Description ...............................................................

27

Component Function Check  ....................................

27

Diagnosis Procedure  ...............................................

27

ECU DIAGNOSIS INFORMATION ..............

28

AWD CONTROL UNIT  ......................................

28

Reference Value ......................................................

28

Wiring Diagram - AWD SYSTEM -  ..........................

30

Fail-Safe ..................................................................

35

DTC Inspection Priority Chart ..................................

36

DLN-2

DTC Index  ..............................................................

36

SYMPTOM DIAGNOSIS  .............................

37

AWD WARNING LAMP DOES NOT TURN ON

...

37

Description ..............................................................

37

Diagnosis Procedure  ..............................................

37

AWD WARNING LAMP DOES NOT TURN
OFF ....................................................................

38

Description ..............................................................

38

Diagnosis Procedure  ..............................................

38

HEAVY TIGHT-CORNER BRAKING SYMP-
TOM OCCURS  ...................................................

39

Description ..............................................................

39

Diagnosis Procedure  ..............................................

39

VEHICLE DOES NOT ENTER AWD MODE  .....

40

Description ..............................................................

40

Diagnosis Procedure  ..............................................

40

AWD WARNING LAMP BLINKS QUICKLY  .....

41

Description ..............................................................

41

AWD WARNING LAMP BLINKS SLOWLY  ......

42

Description ..............................................................

42

Diagnosis Procedure  ..............................................

42

NOISE, VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOTING  ............................

43

NVH Troubleshooting Chart  ...................................

43

PRECAUTION .............................................

44

PRECAUTIONS  .................................................

44

FOR USA AND CANADA  .........................................

44

FOR USA AND CANADA : Precaution for Supple-
mental Restraint System (SRS) "AIR BAG" and
"SEAT BELT PRE-TENSIONER" ...........................

44

FOR USA AND CANADA : Precaution for Proce-
dure without Cowl Top Cover  .................................

44

FOR USA AND CANADA : Precautions for Re-
moving of Battery Terminal .....................................

45

FOR USA AND CANADA : Service Notice or Pre-
cautions for Transfer ...............................................

45

FOR MEXICO  ............................................................

45

FOR MEXICO : Precaution for Supplemental Re-
straint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER" .................................................

45

FOR MEXICO : Precaution for Procedure without
Cowl Top Cover  ......................................................

46

FOR MEXICO : Precautions for Removing of Bat-
tery Terminal ...........................................................

46

FOR MEXICO : Service Notice or Precautions for
Transfer ..................................................................

46

PREPARATION ...........................................

48

PREPARATION .................................................

48

Special Service Tool  ...............................................

48

Commercial Service Tool ........................................

50

PERIODIC MAINTENANCE  .......................

51

TRANSFER OIL .................................................

51

Inspection ................................................................

51

Draining ...................................................................

51

Refilling ...................................................................

51

REMOVAL AND INSTALLATION ..............

53

AWD CONTROL UNIT  ......................................

53

Exploded View  ........................................................

53

Removal and Installation .........................................

53

UNIT REMOVAL AND INSTALLATION  ....

55

TRANSFER ASSEMBLY ...................................

55

Exploded View  ........................................................

55

Removal and Installation .........................................

55

UNIT DISASSEMBLY AND ASSEMBLY ...

57

ADAPTER CASE ...............................................

57

Exploded View  ........................................................

57

Disassembly ............................................................

58

Assembly ................................................................

59

Inspection After Disassembly ..................................

60

GEAR RING .......................................................

61

Exploded View  ........................................................

61

Disassembly ............................................................

62

Assembly ................................................................

63

Inspection After Disassembly ..................................

64

DRIVE PINION ...................................................

65

Exploded View  ........................................................

65

Disassembly ............................................................

66

Assembly ................................................................

67

Adjustment ..............................................................

69

Inspection After Disassembly ..................................

74

TRANSFER CASE .............................................

76

Exploded View  ........................................................

76

Disassembly ............................................................

77

Assembly ................................................................

77

Inspection ................................................................

79

SERVICE DATA AND SPECIFICATIONS
(SDS) ..........................................................

80

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

80

General Specifications  ............................................

80

Preload Torque  .......................................................

80

Backlash .................................................................

80

Companion Flange Runout  .....................................

80

REAR PROPELLER SHAFT: 3F63A-EDJ75
