AUTOMATIC BACK DOOR CONTROL UNIT

DLK-247

< ECU DIAGNOSIS INFORMATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

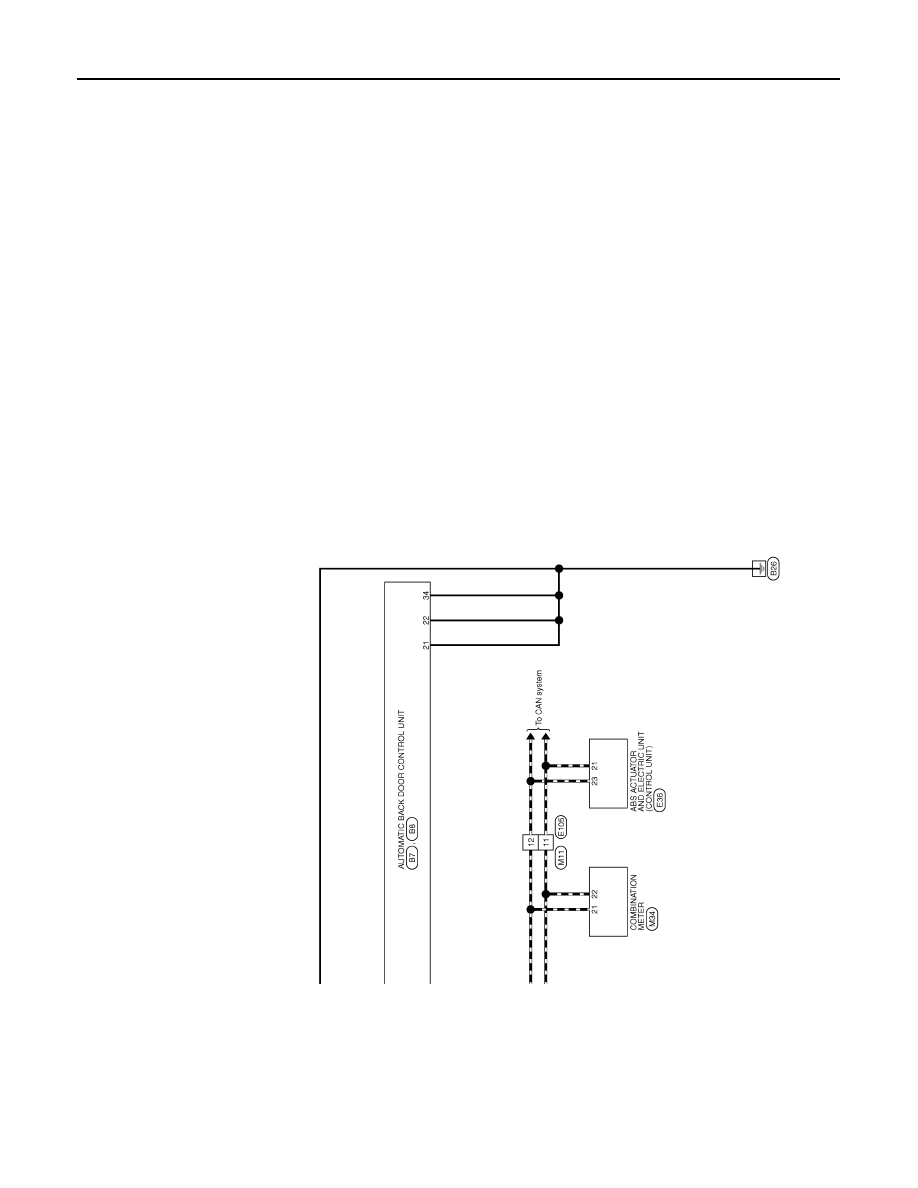

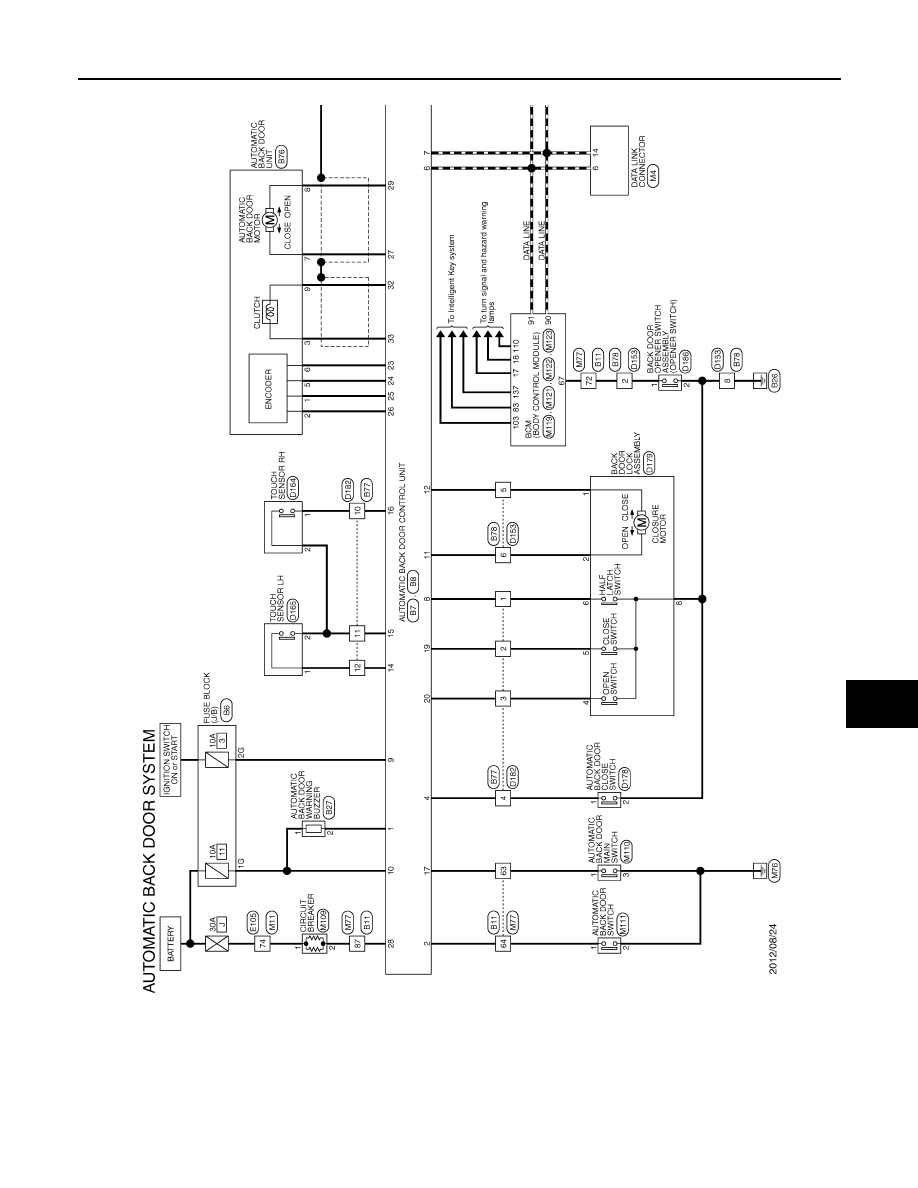

Wiring Diagram - AUTOMATIC BACK DOOR CONTROL SYSTEM -

INFOID:0000000009719124

JRKWC2433GB

DLK-248

< ECU DIAGNOSIS INFORMATION >

[WITH INTELLIGENT KEY SYSTEM]

AUTOMATIC BACK DOOR CONTROL UNIT

JRKWC2434GB

AUTOMATIC BACK DOOR CONTROL UNIT

DLK-249

< ECU DIAGNOSIS INFORMATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

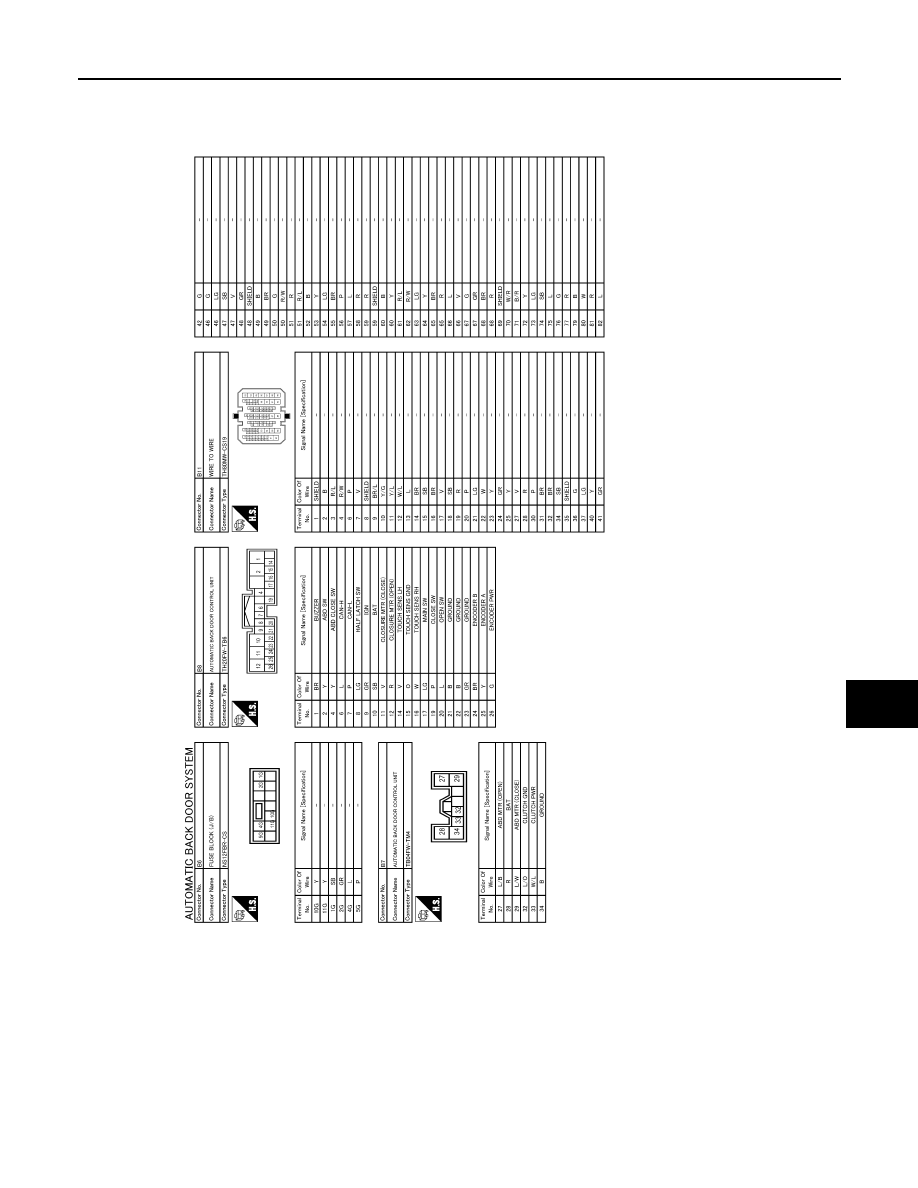

JRKWC8098GB

DLK-250

< ECU DIAGNOSIS INFORMATION >

[WITH INTELLIGENT KEY SYSTEM]

AUTOMATIC BACK DOOR CONTROL UNIT

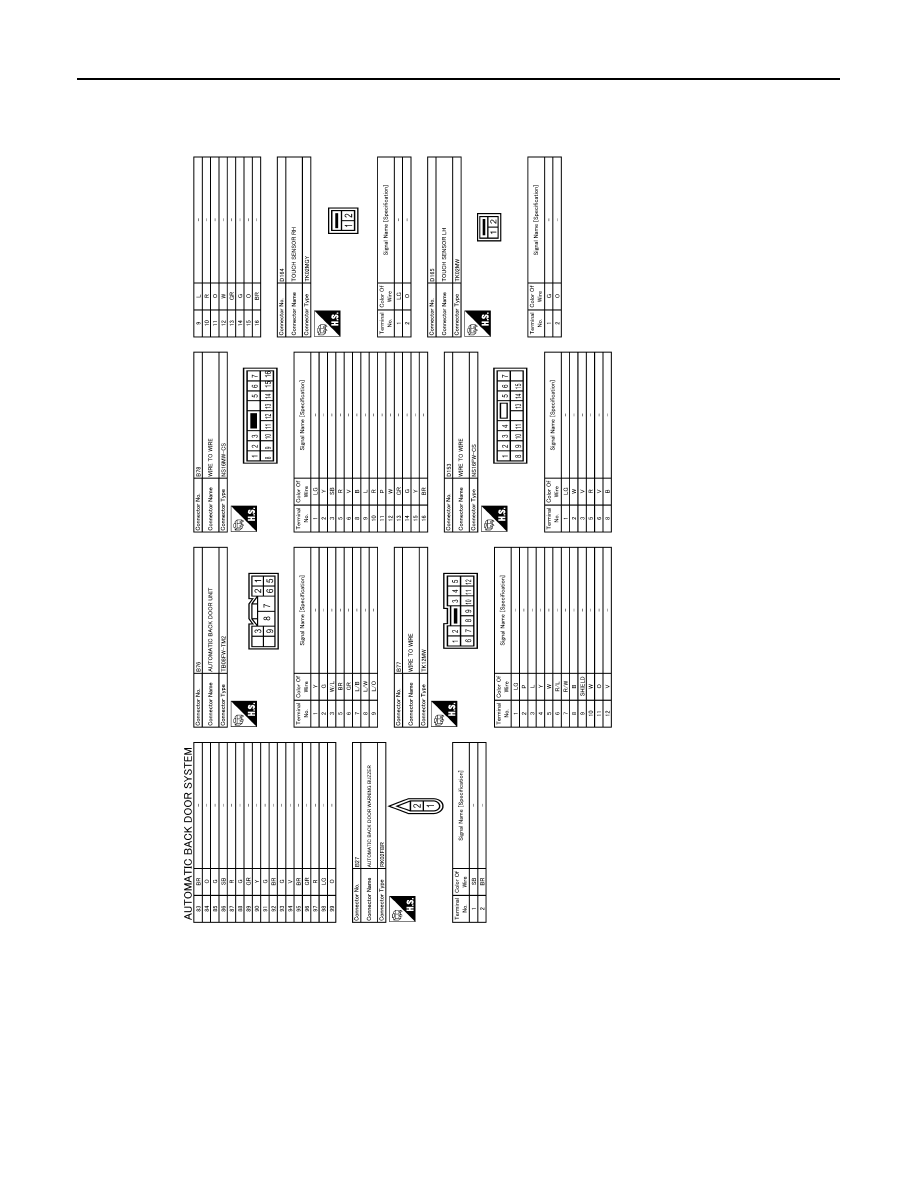

JRKWC8099GB
