AUTOMATIC BACK DOOR CONTROL UNIT

DLK-243

< ECU DIAGNOSIS INFORMATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

AUTOMATIC BACK DOOR CONTROL UNIT

Reference Value

INFOID:0000000009719123

VALUES ON THE DIAGNOSIS TOOL

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

CONSULT MONITOR ITEM

Monitor Item

Condition

Value/Status

VHCL SPEED MTR

While driving

Equivalent to speedometer

reading

VHCL SPEED ABS

While driving

Equivalent to speedometer

reading

MAIN SW

Automatic back door main switch

OFF

OFF

ON

ON

AUTO BD SW

Automatic back door switch

Release

OFF

Press

ON

BK DOOR CL SW

Automatic back door close switch

Release

OFF

Press

ON

UNLOCK SEN DR

Door lock (driver)

Unlock

OFF

Lock

ON

OPEN SW

Back door latch

Half latch/fully closed

OFF

Open

ON

CLOSE SW

Back door latch

Open/half latch/closed

OFF

Fully closed

ON

HALF LATCH SW

Back door

Half latch/fully closed

OFF

Open

ON

TOUCH SEN RH

Touch sensor RH

Other than bellow

OFF

Detect obstruction

ON

TOUCH SEN LH

Touch sensor LH

Other than bellow

OFF

Detect obstruction

ON

P RANGE IND

Selector lever

Other than P position

OFF

P position

ON

RKE REQ

Intelligent Key button (back door)

Release

OFF

Press (more than 0.5 sec-
ond)

MOVE

Press (just after)

REV

IGN SW

Ignition switch

Other than ON position

OFF

ON position

ON

ENCODER A

Automatic back door

Not operate

No change HI or LO

Operate

Change HI or LO

ENCODER B

Automatic back door

Not operate

No change HI or LO

Operate

Change HI or LO

BD OPENER SW

Back door opener switch

Release

OFF

Press

ON

UNLOCK SEN BD

Door lock (back door)

Unlock

OFF

Lock

ON

DLK-244

< ECU DIAGNOSIS INFORMATION >

[WITH INTELLIGENT KEY SYSTEM]

AUTOMATIC BACK DOOR CONTROL UNIT

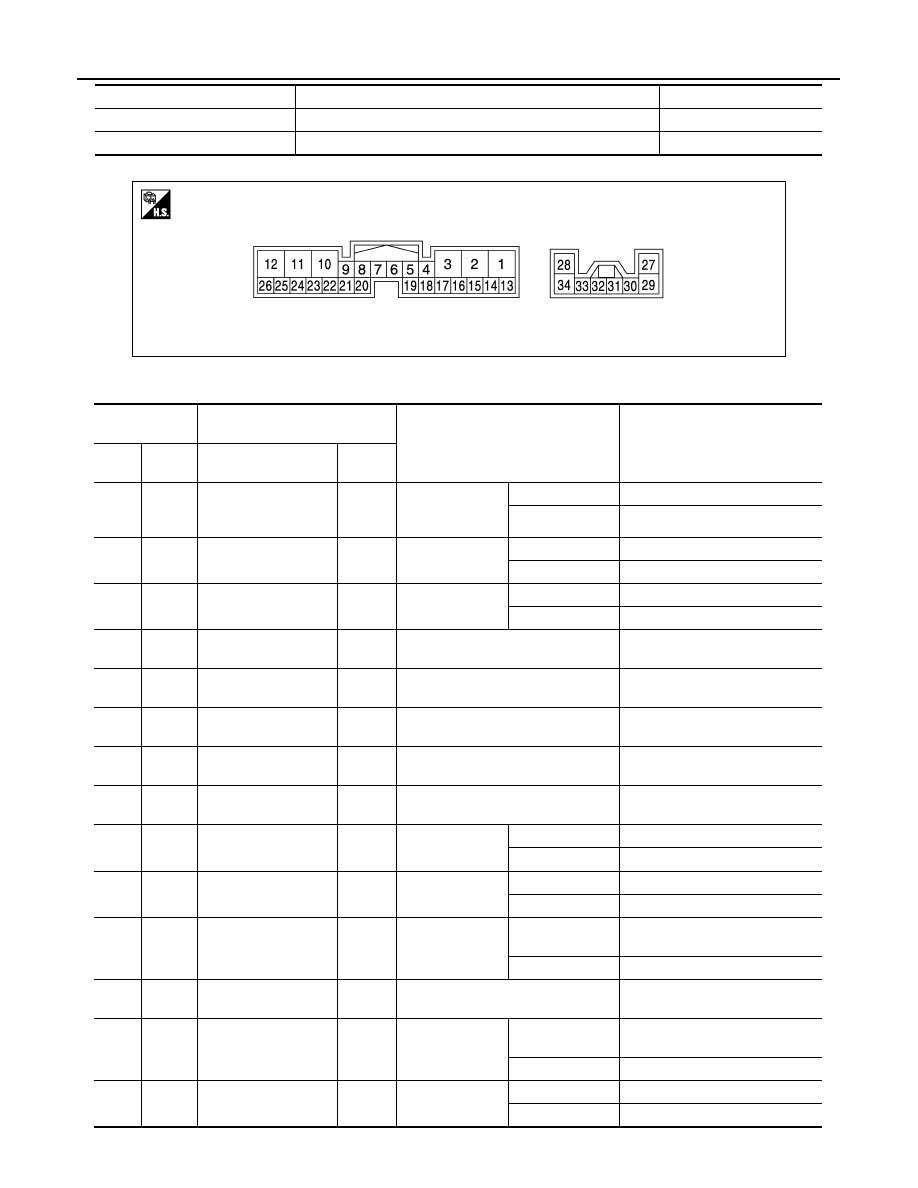

TERMINAL LAYOUT

PHYSICAL VALUES

DESTINATION

NAM

HAZARD

ON

Monitor Item

Condition

Value/Status

JMKIA2126ZZ

Terminal No.

(Wire color)

Description

Condition

Voltage (V)

(Approx.)

(+)

(–)

Signal name

Input/

Output

1

(BR)

Ground

Automatic back door
warning buzzer

Output

Automatic back
door warning
buzzer

Sounds

0

Other than above

Battery voltage

2

(Y)

Ground

Automatic back door
switch signal

Input

Automatic back
door switch

Pressed

0

Other than above

Battery voltage

4

(Y)

Ground

Automatic back door
close switch signal

Input

Automatic back
door close switch

Pressed

0

Other than above

Battery voltage

6

(L)

Ground

CAN - H

Input/

Output

7

(P)

Ground

CAN - L

Input/

Output

8

(LG)

Ground

Half latch switch signal

Input

Back door (open

 ajar or closed)

 Battery voltage

9

(GR)

Ground

Power supply (IGN)

Input

Ignition switch ON

Battery voltage

10

(SB)

Ground

Power supply (BAT)

Input

Battery voltage

11

(V)

Ground

Back door closure mo-
tor (close)

Output

Back door clo-
sure

Close operation

Battery voltage

Other than above

0

12

(R)

Ground

Back door closure mo-
tor (open)

Output

Back door clo-
sure

Open operation

Battery voltage

Other than above

0

14

(V)

Ground

Touch sensor LH sig-
nal

Input

Touch sensor LH

Detect obstruc-
tion

0

Other than above

6

15

(O)

Ground

Touch sensor ground

Input

0

16

(W)

Ground

Touch sensor RH sig-
nal

Input

Touch sensor RH

Detect obstruc-
tion

0

Other than above

6

17

(LG)

Ground

Automatic back door
main switch signal

Input

Automatic back
door main switch

ON

Battery voltage

OFF

0

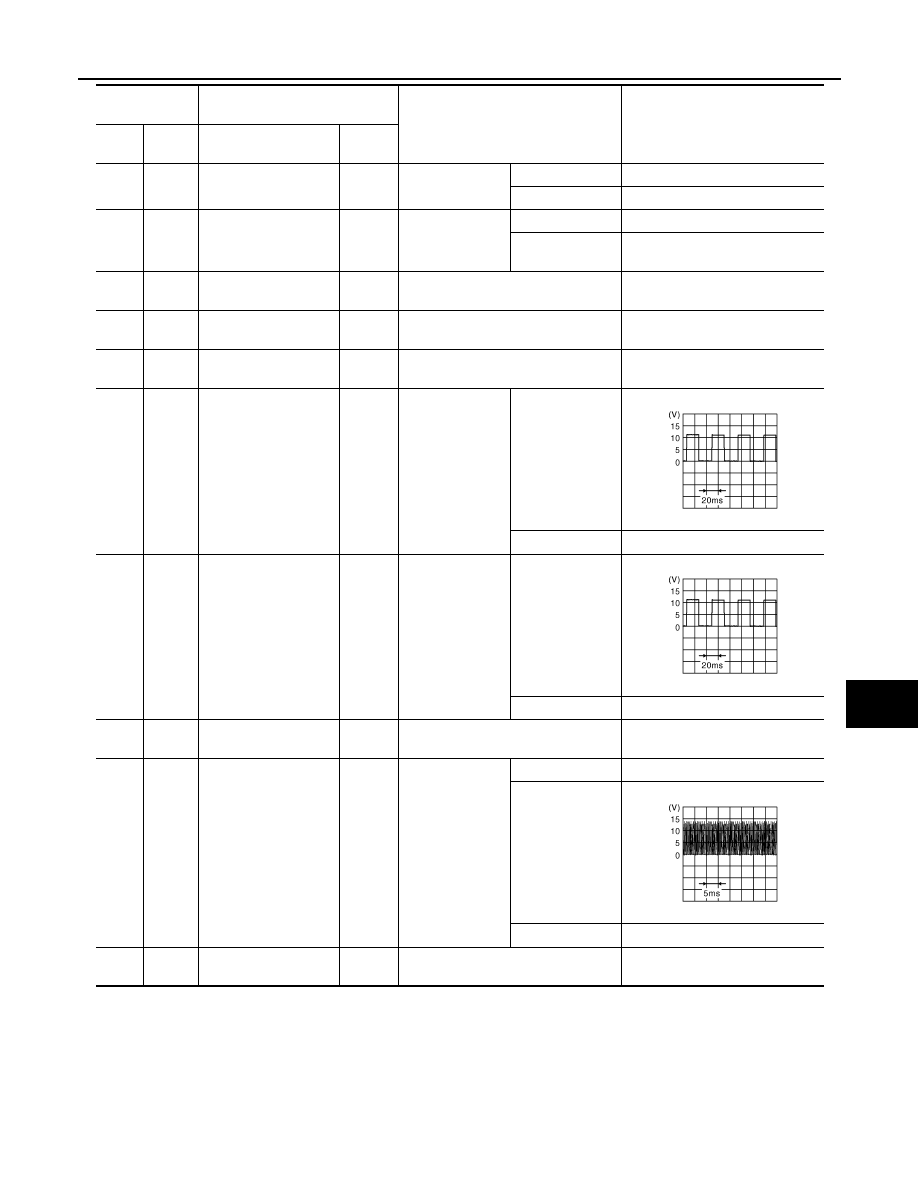

AUTOMATIC BACK DOOR CONTROL UNIT

DLK-245

< ECU DIAGNOSIS INFORMATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

19

(P)

Ground

Close switch signal

Input

Back door lock

Fully closed

0

Open/half latch

Battery voltage

20

(L)

Ground

Open switch signal

Input

Back door lock

Open

0

Half latch/fully
closed

Battery voltage

21

(B)

Ground

Ground (destination)

0

22

(B)

Ground

Ground (Hazard re-
minder)

0

23

(GR)

Ground

Encoder ground

0

24

(BR)

Ground

Encoder B signal

Input

Back door motor

Moving

Other than above

0/Battery voltage

25

(Y)

Ground

Encoder A signal

Input

Back door motor

Moving

Other than above

0/Battery voltage

26

(G)

Ground

Encoder power supply

Output

Battery voltage

27

(L/B)

Ground

Automatic back door
motor (open)

Input

Power back door

Active (open)

Battery voltage

Active (close)

Other than above

0

28

(R)

Ground

Power supply (BAT)

Input

Battery voltage

Terminal No.

(Wire color)

Description

Condition

Voltage (V)

(Approx.)

(+)

(–)

Signal name

Input/

Output

JMKIA1864ZZ

JMKIA1864ZZ

JMKIA1865ZZ

DLK-246

< ECU DIAGNOSIS INFORMATION >

[WITH INTELLIGENT KEY SYSTEM]

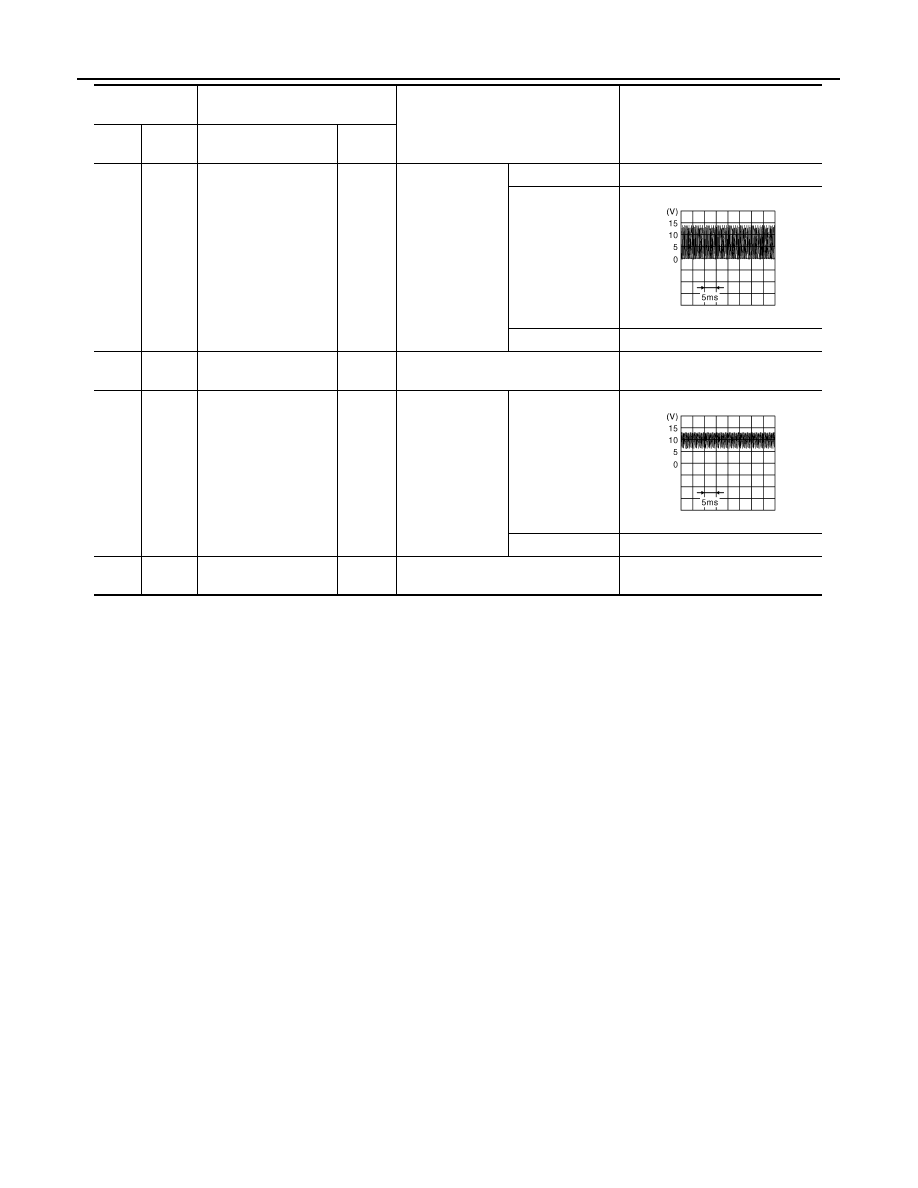

AUTOMATIC BACK DOOR CONTROL UNIT

29

(L/W)

Ground

Automatic back door
motor (close)

Input

Power back door

Active (close)

Battery voltage

Active (open)

Other than above

0

32

(L/O)

Ground

Ground (clutch)

0

33

(W/L)

Ground

Clutch power supply

Input

Power back door

Active

Other than above

0

34

(B)

Ground

Ground

0

Terminal No.

(Wire color)

Description

Condition

Voltage (V)

(Approx.)

(+)

(–)

Signal name

Input/

Output

JMKIA1865ZZ

JMKIA1866ZZ
