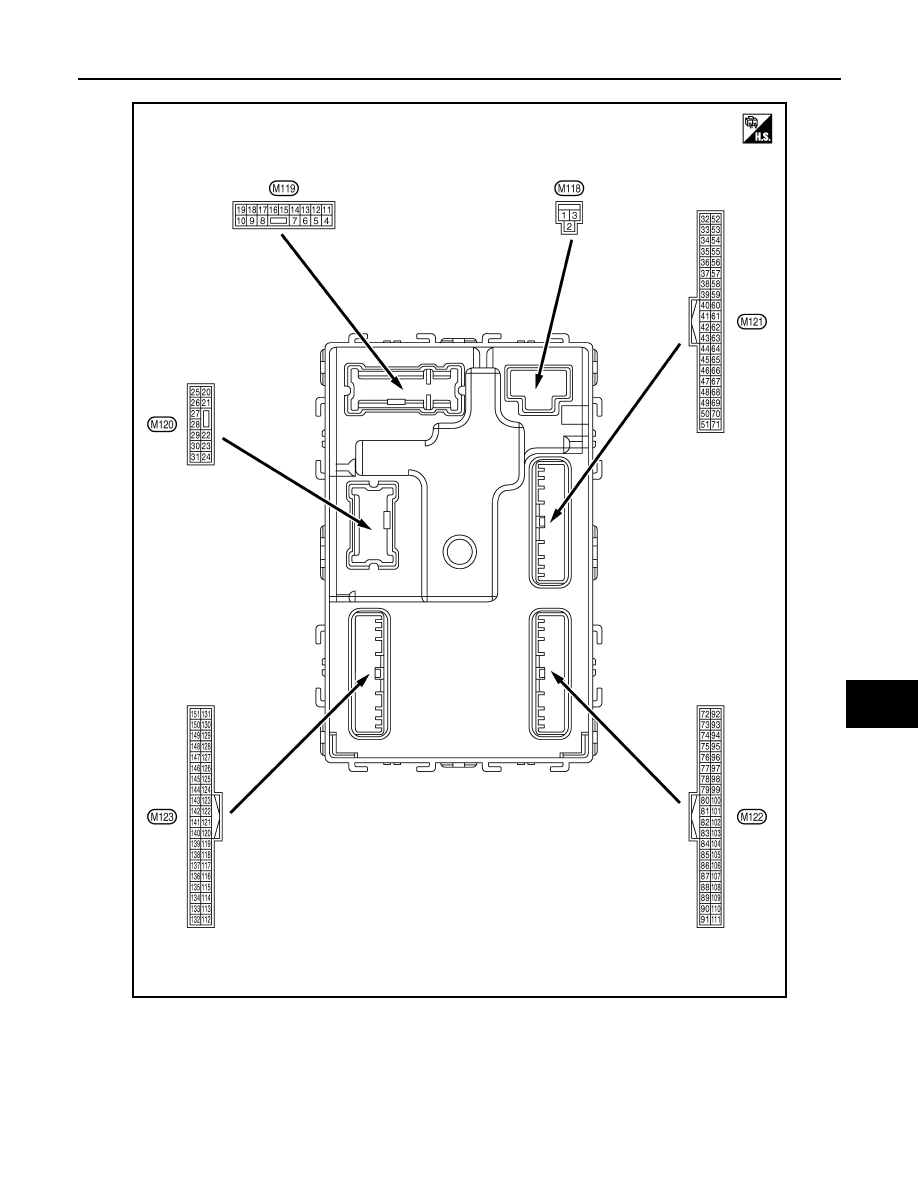

BCM (BODY CONTROL MODULE) DLK-203 < ECU DIAGNOSIS INFORMATION > [WITH INTELLIGENT KEY SYSTEM] C D E F G H I J L M A B DLK N O P SFT PN -IPDM Selector lever in any position other than P and N Off Selector lever in P or N position On SFT P -MET Selector lever in any position other than P Off Selector lever in P position On SFT N -MET Selector lever in any position other than N Off Selector lever in N position On ENGINE STATE Engine stopped Stop While the engine stalls Stall At engine cranking Crank Engine running Run S/L LOCK-IPDM NOTE: Off S/L UNLK-IPDM NOTE: Off S/L RELAY-REQ NOTE: Off VEH SPEED 1 While driving Equivalent to speed- ometer reading VEH SPEED 2 While driving Equivalent to speed- ometer reading DOOR STAT-DR Driver door is locked LOCK Wait with selective UNLOCK operation (5 seconds) READY Driver door is unlocked UNLOCK DOOR STAT-AS Passenger door is locked LOCK Wait with selective UNLOCK operation (5 seconds) READY Passenger door is unlocked UNLOCK ID OK FLAG Power supply position in LOCK position Reset Power supply position in any position other than LOCK Set PRMT ENG STRT The engine start is prohibited Reset The engine start is permitted Set PRMT RKE STRT NOTE: Reset KEY SW -SLOT Intelligent Key is not inserted into key slot Off Intelligent Key is inserted into key slot On RKE OPE COUN1 During the operation of Intelligent Key Operation frequency of Intelligent Key RKE OPE COUN2 NOTE: — CONFRM ID ALL The Intelligent Key ID that the key slot receives is not recognized by Yet The Intelligent Key ID that the key slot receives is recognized by any Done CONFIRM ID4 The Intelligent Key ID that the key slot receives is not recognized by Yet The Intelligent Key ID that the key slot receives is recognized by the Done Monitor Item Condition Value/Status |
