FUEL FILLER LID OPENER

Wiring Diagram - FUEL LID OPENER -

INFOID:0000000009719116

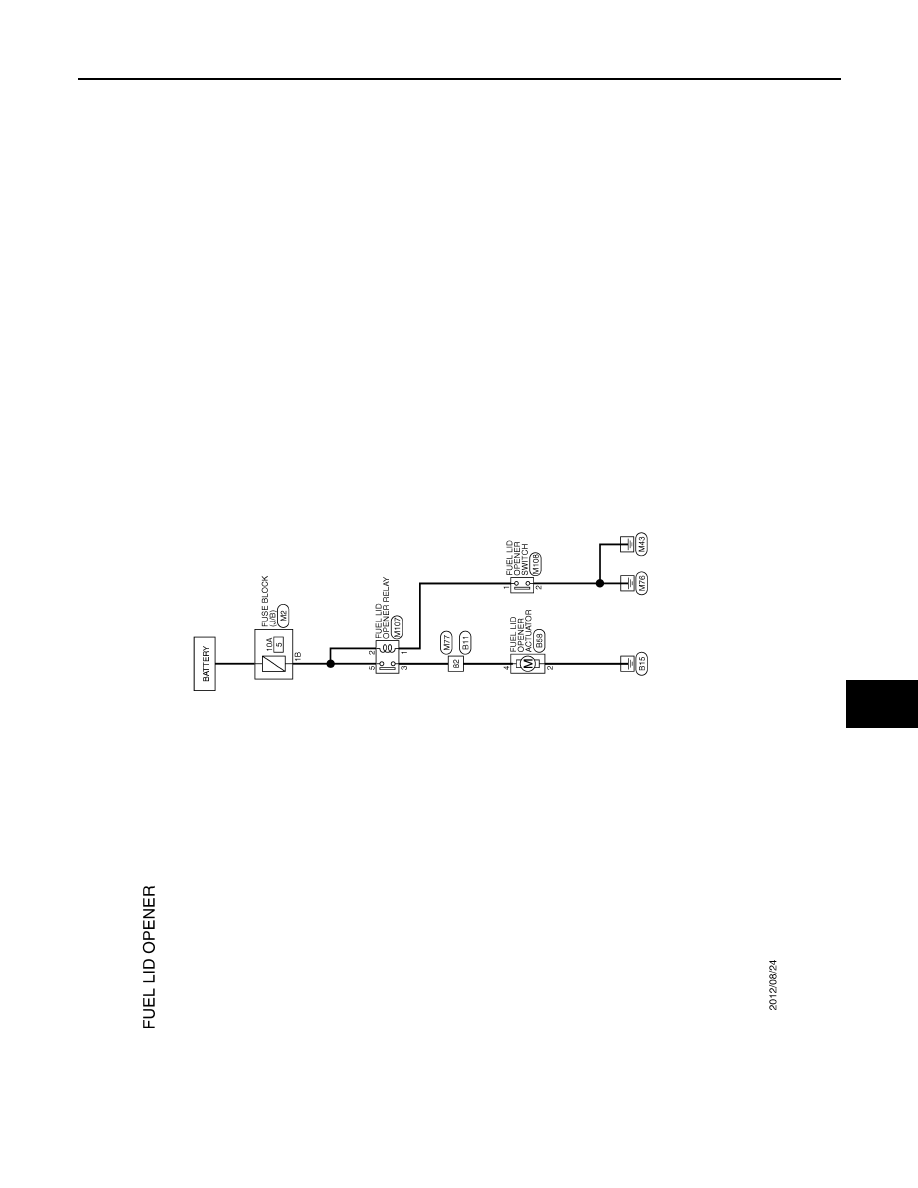

JRKWC2435GB

DLK-196

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

FUEL FILLER LID OPENER

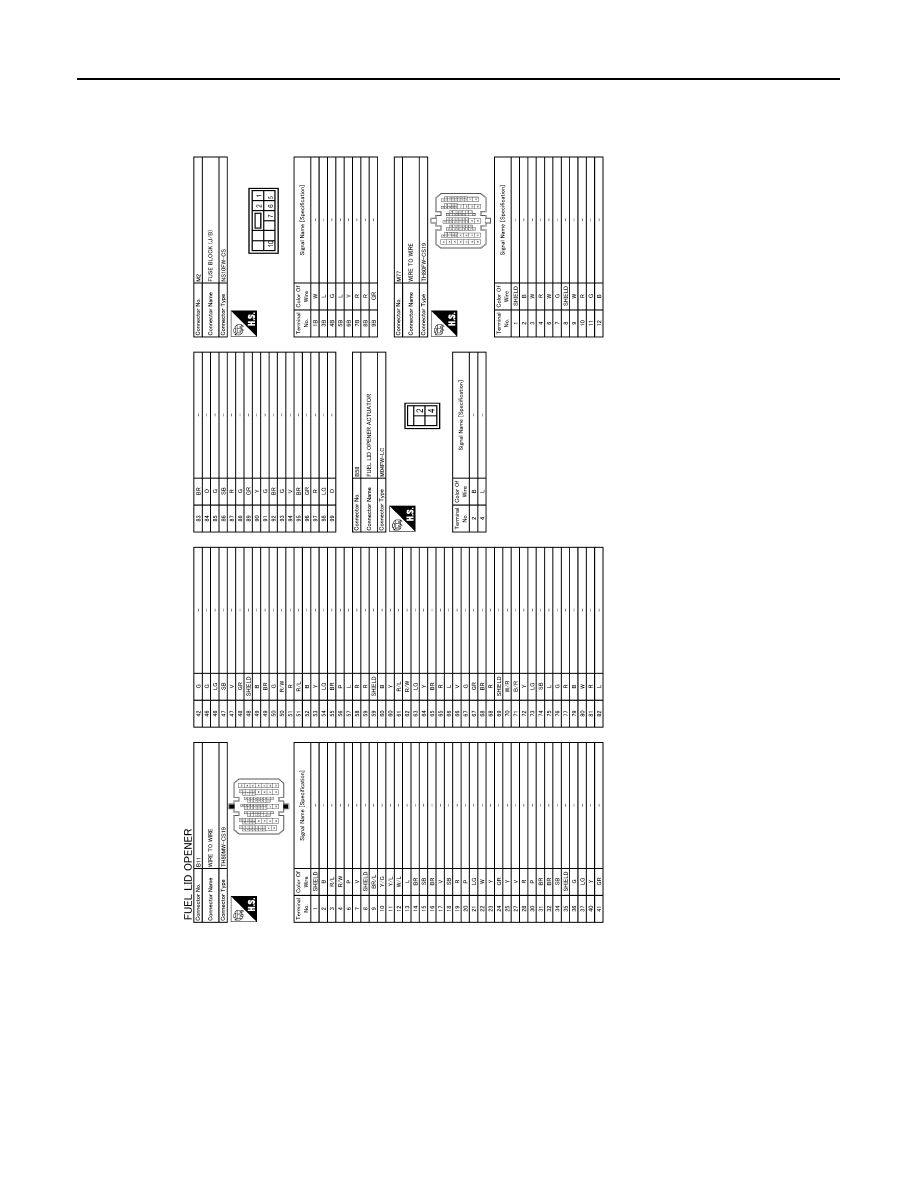

JRKWC8109GB

FUEL FILLER LID OPENER

DLK-197

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

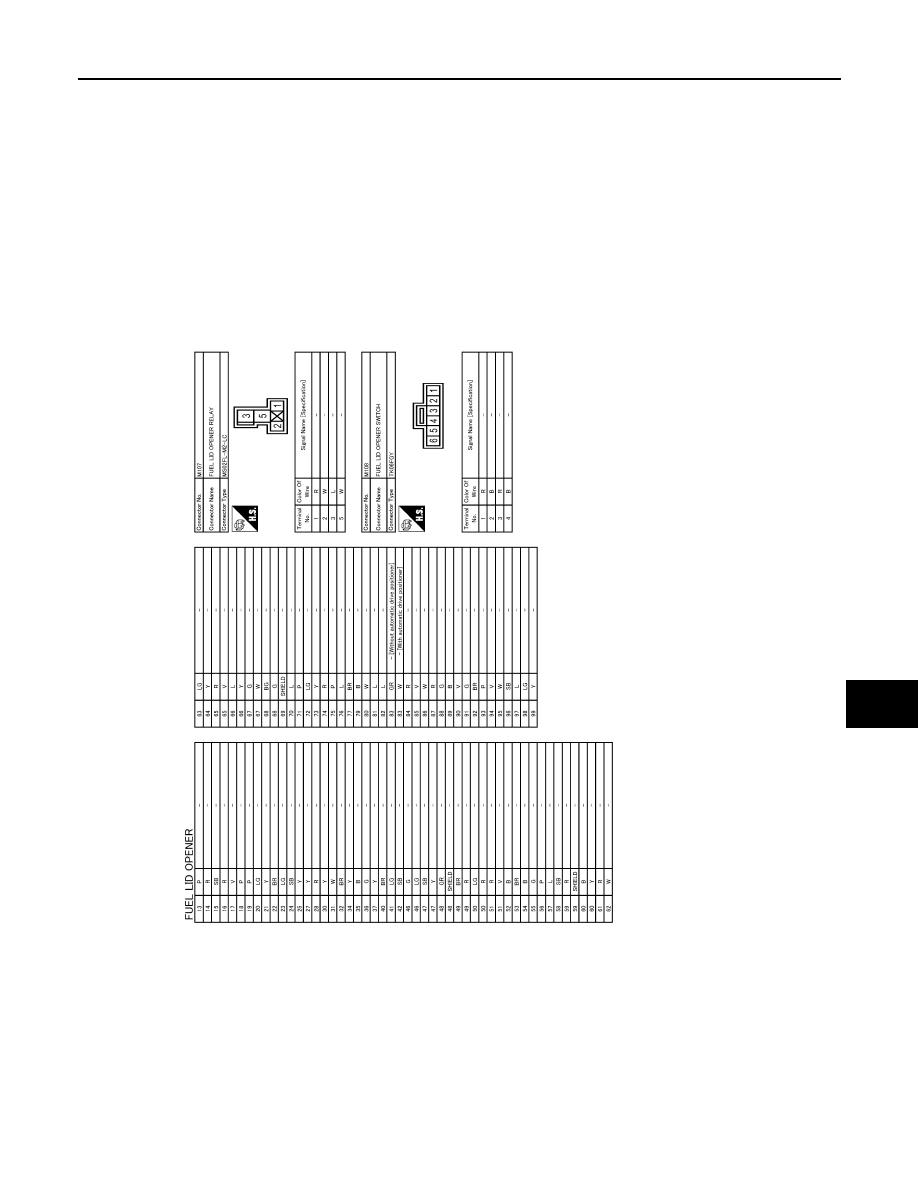

JRKWC8110GB

DLK-198

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

INTEGRATED HOMELINK TRANSMITTER SYSTEM

INTEGRATED HOMELINK TRANSMITTER SYSTEM

Wiring Diagram - INTEGRATED HOMELINK TRANSMITTER SYSTEM -

INFOID:0000000009719117

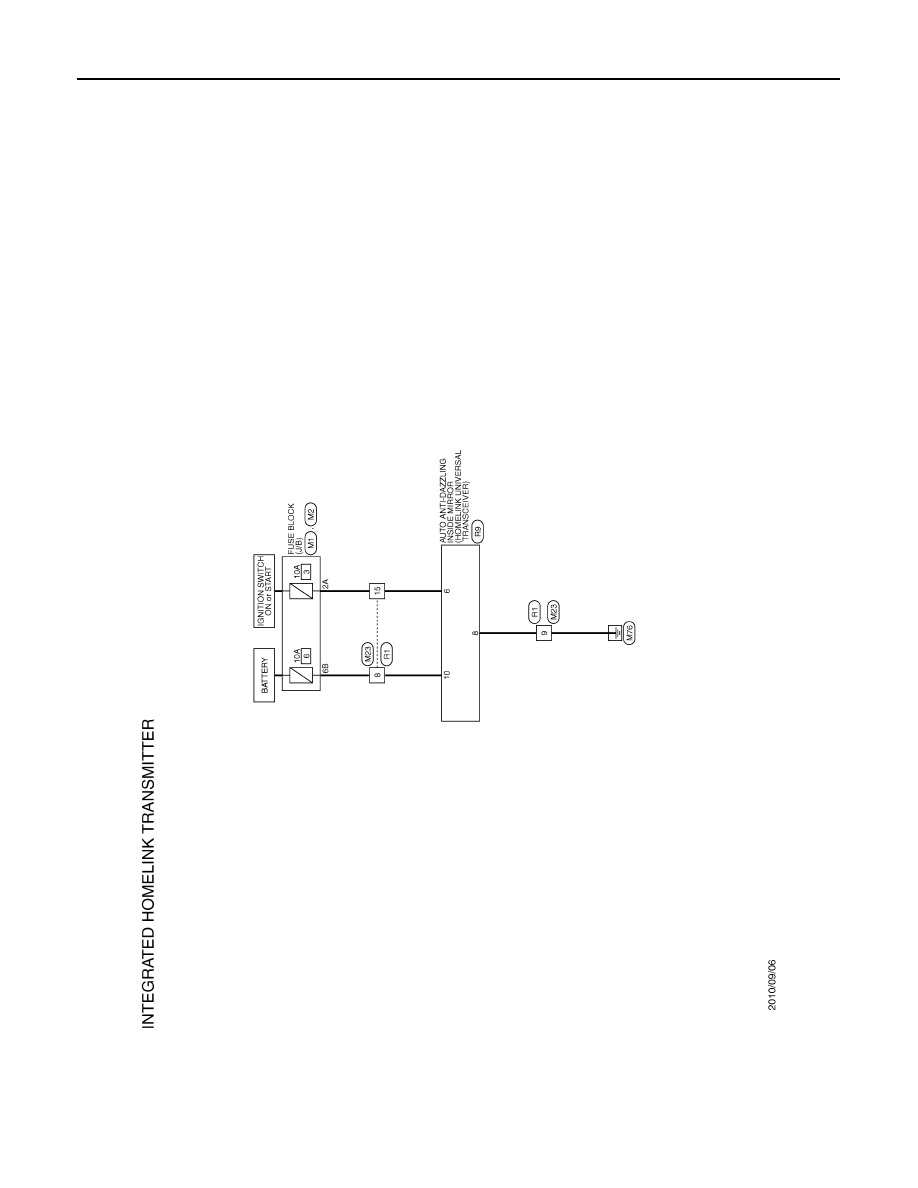

JCKWM5090GB
