KEY REMINDER FUNCTION : System Description

INFOID:0000000009718901

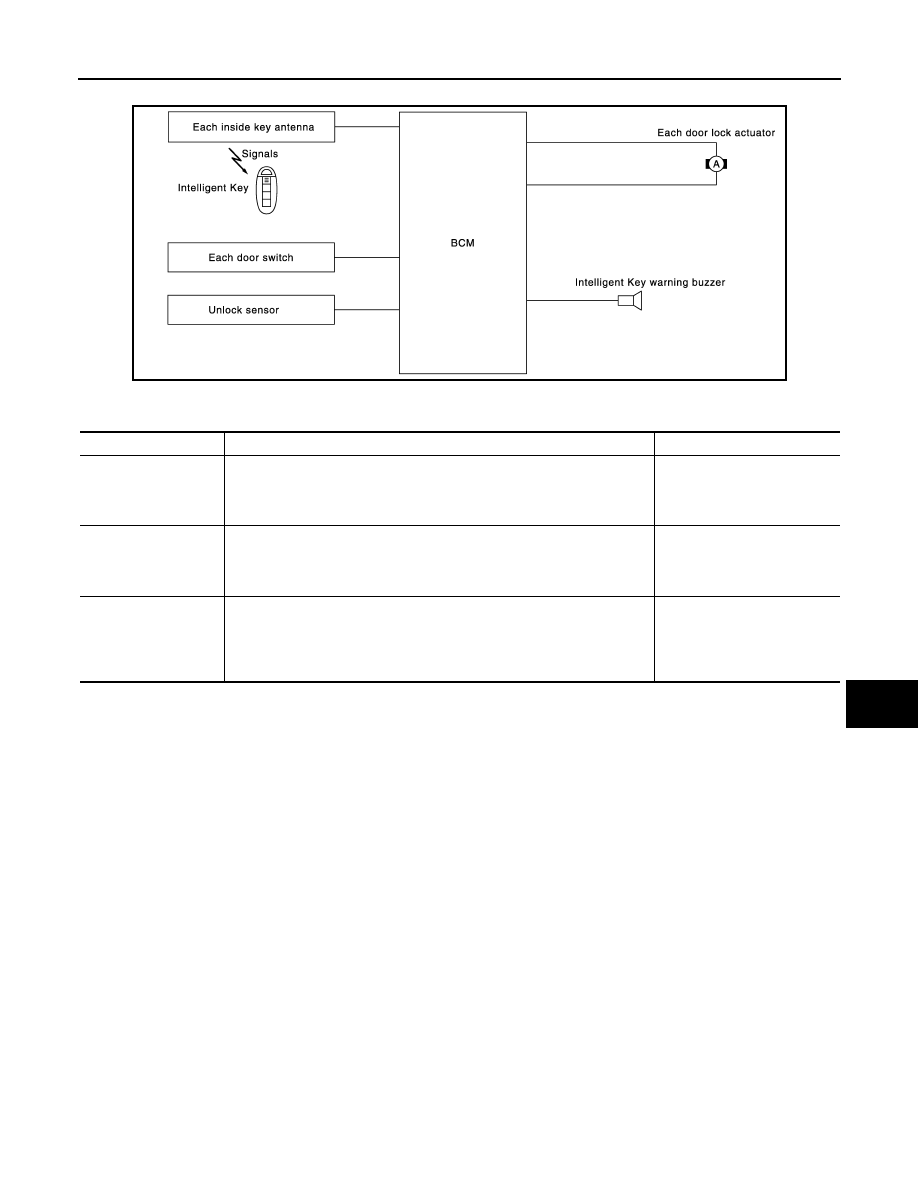

Key reminder is the function that prevents the key from being left in the vehicle.
Key reminder has the following 3 functions.

*:If the door closing impact shocks the door lock knob, or contacts against baggage with the door lock knob might activate the door locks
accidentally but unlock operation will be perform in these cases.

CAUTION:

• The above function operates when the Intelligent Key is inside the vehicle. However, there may be

times when the Intelligent Key cannot be detected, and this function will not operate when the Intelli-
gent Key is on the instrument panel, or in the glove box. Also, this system sometimes does not oper-
ate if the Intelligent Key is in the door pocket for the open door.

• Key reminder function is operated when the back door is open/closed and the buzzers sound, if the

following operations are performed, the key reminder function is cleared and buzzer sounds are
stopped.

- Remote controller door lock button operation of Intelligent Key
- Remote controller door unlock button operation of Intelligent Key
- When the back door is closed, the Intelligent Key is not inside the vehicle
- When any door is open

JMKIA1996GB

Key remainder function

Operation condition

Operation

Driver door closed*

Right after driver side door is closed under the following conditions
• Door lock operation is performed
• Driver side door is opened
• Driver side door is in lock state

All doors unlock

Door is open or closed

Right after all doors are closed under the following conditions
• Intelligent Key is inside the vehicle
• Any door is opened
• All doors are locked by door lock and unlock switch or door lock knob

• All doors unlock
• Honk Intelligent Key warning

buzzer

Back door is closed

Right after back door is closed under the following conditions
• Intelligent Key is inside vehicle
• All doors (except back door) are closed
• All doors (except back door) are locked

• All doors unlock
• Back door can open with

back door opener switch

• Honk Intelligent Key warning

buzzer

DLK-36

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

INTELLIGENT KEY SYSTEM

KEY REMINDER FUNCTION : Component Parts Location

INFOID:0000000009718902

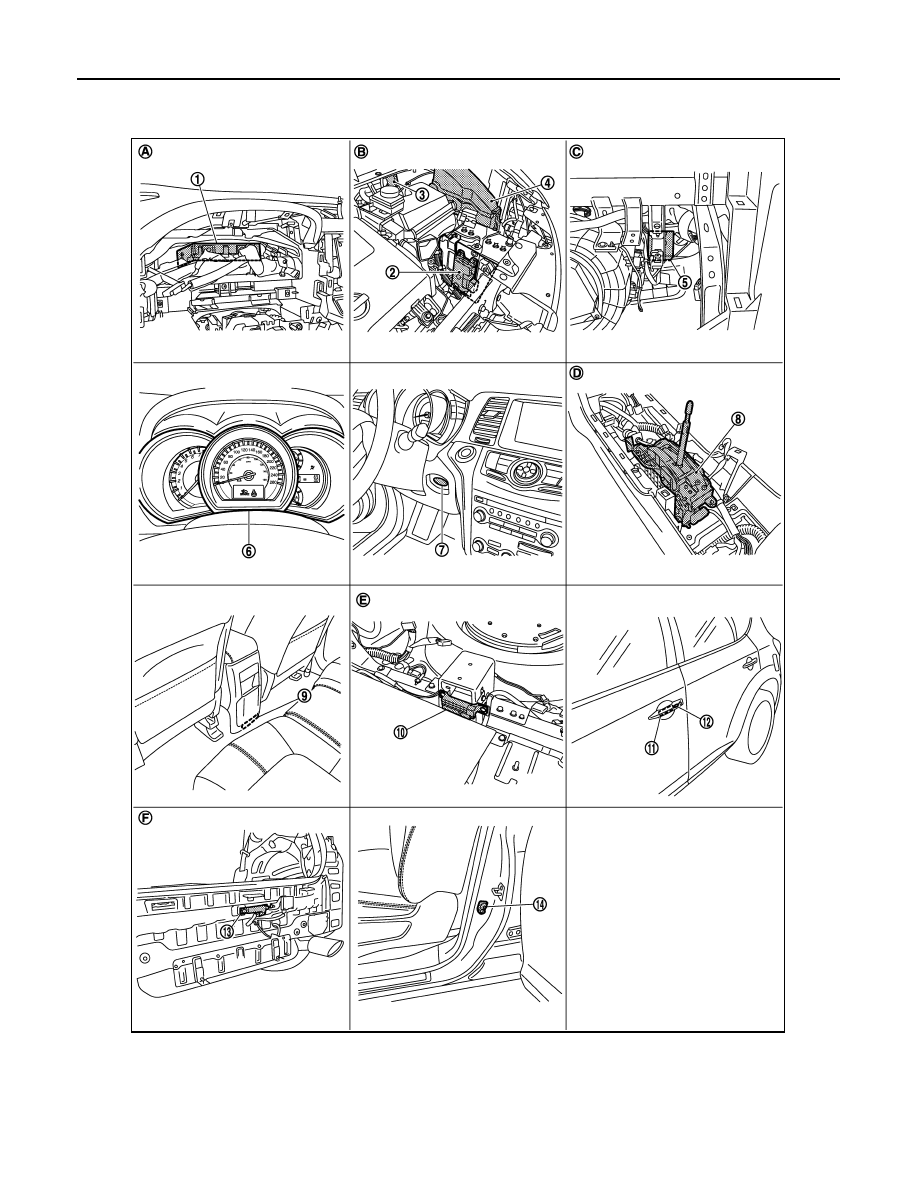

1.

BCM M118, M119, M120, M121, M122,
M123

2.

TCM F23

3.

Intelligent key warning buzzer E25

4.

IPDM E/R E10, E11

5.

Remote keyless entry receiver M78

6.

Combination meter M34

7.

Key slot M99

8.

CVT shift selector (detention switch)
M57

9.

Inside key antenna (console) M262

JMKIA4838ZZ

INTELLIGENT KEY SYSTEM

DLK-37

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

WARNING FUNCTION

WARNING FUNCTION : System Description

INFOID:0000000009718903

OPERATION DESCRIPTION

The warning function are as follows and are given to the user as warning information and warnings using com-
binations of Intelligent Key warning buzzer, KEY warning lamp, key slot illumination and information display in
combination meter.
• Intelligent Key system malfunction
• OFF position warning
• P position warning
• ACC warning
• Take away warning
• Door lock operation warning
• Key warning
• Intelligent Key insert information
• Engine start information

10. Inside key antenna (luggage room) B86

11.

Front outside handle LH (outside key
antenna) D12

12.

Front outside handle LH (request
switch) D11

13. Outside key antenna (rear bumper) B85

14.

Front door switch (driver side) B34

A.

Behind the combination meter

B.

Engine room (LH)

C.

Behind the instrument lower panel
RH

D.

Behind the center console

E.

Under the rear seat seatback

F.

View with rear bumper removed

JMKIA1933ZZ

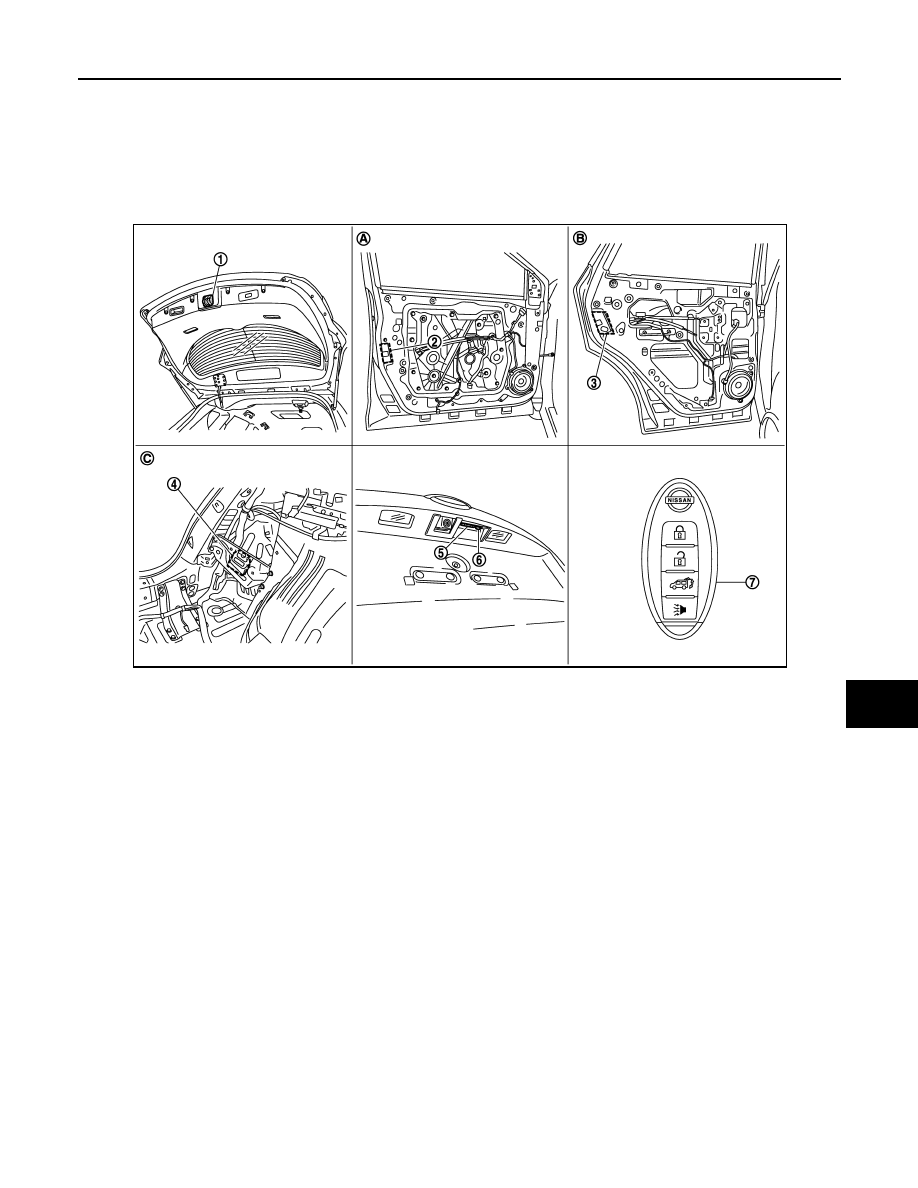

1.

Back door lock assembly
With automatic back door: D179
Without automatic back door: D180

2.

Front door lock assembly (driver side) D9

3.

Rear door lock assembly LH D85

4.

Automatic back door control unit B7, B8

5.

Back door opener switch assembly (open-
er switch) D186

6.

Back door opener switch assembly
(request switch) D186

7.

Intelligent Key

A.

View with front door finisher removed

B.

View with rear door finisher removed

C. Behind the luggage side finisher

lower (LH)

DLK-38

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

INTELLIGENT KEY SYSTEM

• Intelligent key low battery warning
• Key ID warning

OPERATION CONDITION

Once the following condition from below is established, alert or warning will be executed.

Warning/Information functions

Operation procedure

Intelligent Key system malfunction

When a malfunction is detected on BCM, “KEY” warning lamp will illuminate.

OFF position warning

For internal

When condition A, B or condition C is satisfied
• Condition A
- Ignition switch: ACC position
- Door switch (driver side): ON (Door is open)
• Condition B
- Turn ignition switch from ON to OFF while door is open
• Condition C
- Intelligent Key is inserted in key slot
- Door switch (driver side): ON (Door is open)

For external

OFF position warning (For internal) is in active mode, driver side door has
been closed.
NOTE:
OFF position (For external) active only when each of the sequence has oc-
curred as below: P position warning

→

 ACC warning

→

 OFF position warning

(For internal)

→

 OFF position warning (For internal)

P position warning

• Shift position: Except P position.
• Engine is running to stopped (Ignition switch is ON to OFF).

ACC warning

• During P position warning is in active mode, shift position has changed P po-

sition.

• Ignition switch: ACC position.

Take away warning

Door is open to close

• Ignition switch: Except LOCK position.
• Door switch: ON to OFF (Door is open to close).
• Intelligent Key can not be detected inside the vehicle.

Door is open

• Door switch: ON (Door is open).
• Key ID verification every 5 seconds when registered Intelligent Key can not

be detected inside the vehicle.

Push button-ignition
switch operation

• Ignition switch: Except LOCK position.
• Press push-button ignition switch.
• Intelligent Key can not be detected inside the vehicle.

Take away through win-
dow

• Engine is running.
• Key ID verification every 30 seconds when registered Intelligent Key can not

be detected inside the vehicle.

• After vehicle speed verification, the registered Intelligent Key can not be de-

tect inside the vehicle.

Intelligent Key is removed
from key slot

• When Intelligent Key is removed from key slot, Intelligent Key can not be de-

tected inside the vehicle.

Door lock operation warn-
ing

Request switch operation

When request switch is pushed (lock operation) under the following conditions.
• All door is closed.
• All door is unlocked.
• Intelligent Key is inside vehicle.

Intelligent Key button op-
eration

When Intelligent Key button is pushed (lock operation) under the following con-
ditions.
• Door switch: ON (Any door is open).
• For 3 seconds after Intelligent Key is removed from key slot.

Key warning

• Ignition switch is OFF position.
• Driver side door switch: ON (Driver side door is open).
• Intelligent Key is inserted in key slot.

Intelligent Key insert information

• Door switch: ON to OFF (Door is open to close).
• Ignition switch: OFF to ON position.
• Intelligent Key is out of key slot.
• Intelligent Key can not be detected inside the vehicle.
