Nissan Murano. Manual - part 354





INTELLIGENT KEY SYSTEM

DLK-27

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

HAZARD AND BUZZER REMINDER FUNCTION

Back door opening operation by back door opener switch, the hazard warning lamps and buzzer will blink or
honk as a reminder.

LIST OF OPERATION RELATED PARTS

Parts marked with

×

 are the parts related to operation.

Door lock function

Int

e

llig

en

t Ke

y

Ke

y sl

ot

Re

mo

te ke

yl

es

s e

n

try re

ce

iv

er

Doo

r swi

tch

Do

or re

qu

es

t s

w

it

c

h

Doo

r lo

ck actu

ato

r

In

si

de

 k

ey

 an

te

nn

a

Out

s

id

e k

e

y

 a

n

te

nn

(Re

a

bu

mp

er)

Int

e

llig

en

t Ke

y wa

rni

n

g

 bu

zz

er

CAN communication system

BCM

Hazard warning lamp

Ba

ck

 d

o

o

r op

en

er swi

tch

Back door open function by back door opener switch
(Carrying Intelligent Key)

×

×

×

×

×

×

×

×

×

×

×

Hazard and buzzer reminder function for door lock/unlock
operation

×

×

×

×

DLK-28

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

INTELLIGENT KEY SYSTEM

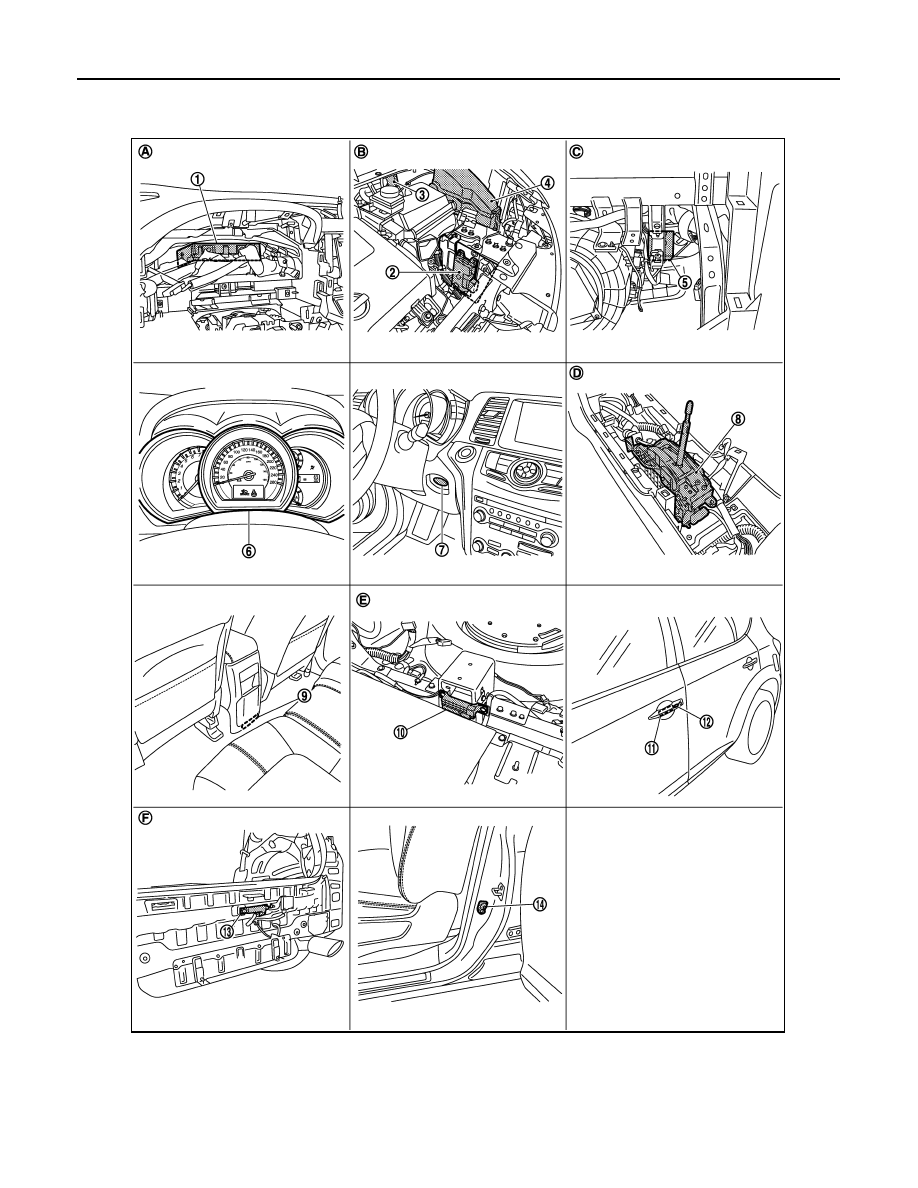

BACK DOOR OPEN FUNCTION : Component Parts Location

INFOID:0000000009718895

1.

BCM M118, M119, M120, M121, M122,
M123

2.

TCM F23

3.

Intelligent key warning buzzer E25

4.

IPDM E/R E10, E11

5.

Remote keyless entry receiver M78

6.

Combination meter M34

7.

Key slot M99

8.

CVT shift selector (detention switch)
M57

9.

Inside key antenna (console) M262

JMKIA4838ZZ

INTELLIGENT KEY SYSTEM

DLK-29

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

BACK DOOR OPEN FUNCTION : Component Description

INFOID:0000000009718896

10. Inside key antenna (luggage room) B86

11.

Front outside handle LH (outside key
antenna) D12

12.

Front outside handle LH (request
switch) D11

13. Outside key antenna (rear bumper) B85

14.

Front door switch (driver side) B34

A.

Behind the combination meter

B.

Engine room (LH)

C.

Behind the instrument lower panel
RH

D.

Behind the center console

E.

Under the rear seat seatback

F.

View with rear bumper removed

JMKIA1933ZZ

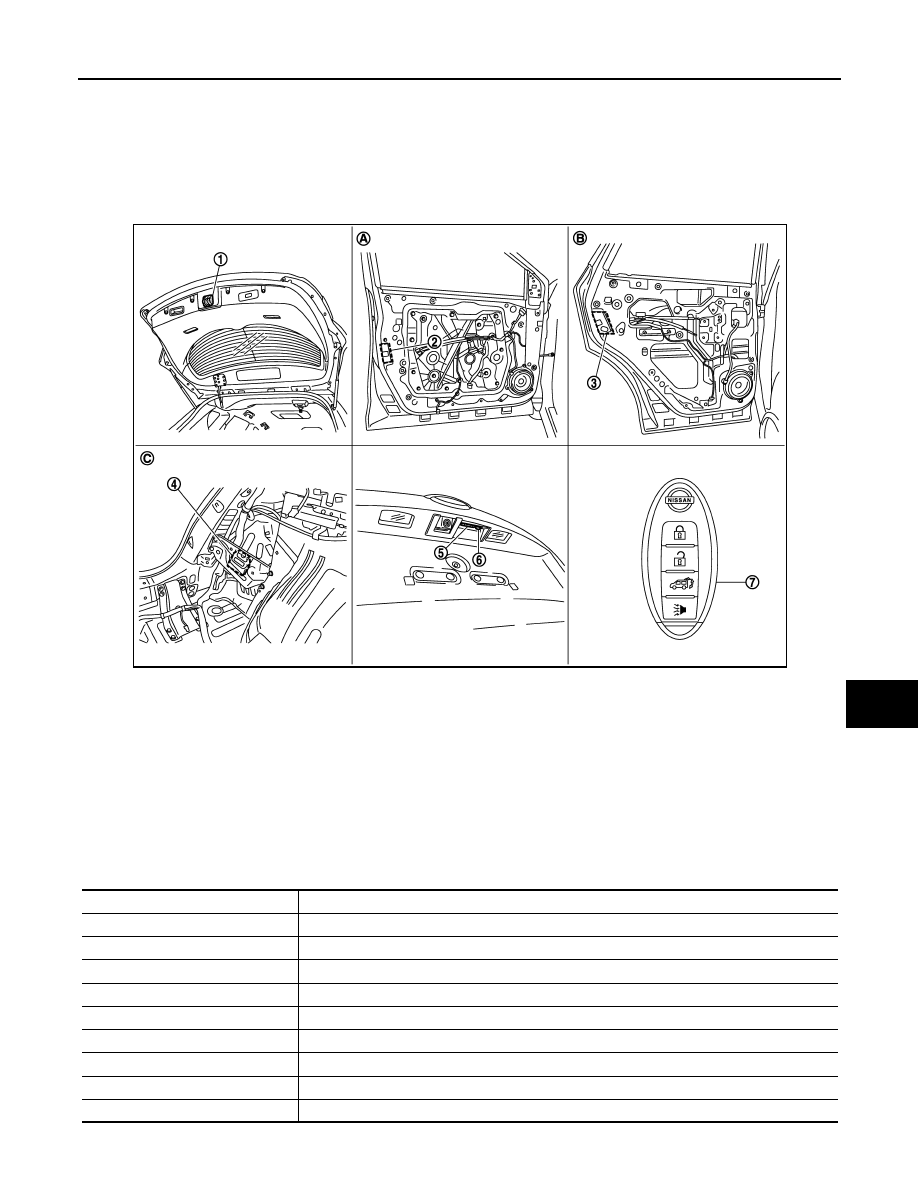

1.

Back door lock assembly
With automatic back door: D179
Without automatic back door: D180

2.

Front door lock assembly (driver side) D9

3.

Rear door lock assembly LH D85

4.

Automatic back door control unit B7, B8

5.

Back door opener switch assembly (open-
er switch) D186

6.

Back door opener switch assembly
(request switch) D186

7.

Intelligent Key

A.

View with front door finisher removed

B.

View with rear door finisher removed

C. Behind the luggage side finisher

lower (LH)

Item

Function

BCM

Controls the back door open function and room lamp function.

Back door opener switch

Input press/degrees signal to BCM.

Door lock actuator

Receives lock/unlock signal from BCM and locks/unlocks each door.

Door switch

Input door open/close condition to BCM.

Remote keyless entry receiver

Receives lock/unlock signal from the Intelligent Key, and then transmits to BCM.

Request switch (back door)

Input lock/unlock operation to BCM.

Intelligent Key

Transmits button operation to remote keyless entry receiver.

Outside key antenna (rear bumper)

Detects if Intelligent Key is outside the vehicle.

Inside key antenna

Detects if Intelligent Key is inside the vehicle.

DLK-30

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

INTELLIGENT KEY SYSTEM

REMOTE KEYLESS ENTRY FUNCTION

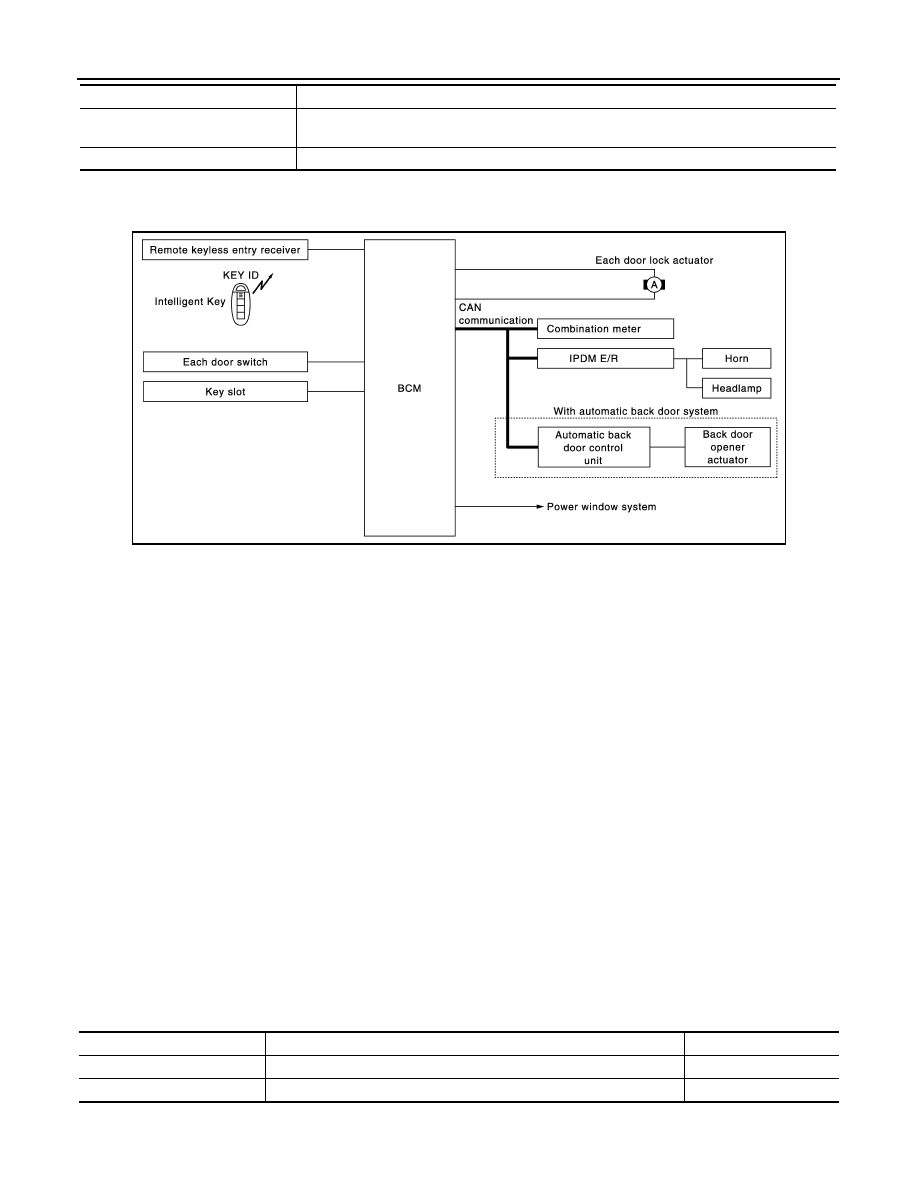

REMOTE KEYLESS ENTRY FUNCTION : System Diagram

INFOID:0000000009718897

REMOTE KEYLESS ENTRY FUNCTION : System Description

INFOID:0000000009718898

The Intelligent Key has the same functions as the remote control entry system. Therefore, it can be used in the
same manner as the Intelligent Ke by operating the door lock/unlock button.

OPERATION

Remote keyless entry system controls operation of the
• Door lock/unlock
• Automatic back door open
• Selective unlock
• Hazard and horn reminder
• Auto door lock
• Panic alarm
• Power window down

OPERATION AREA

To ensure the Intelligent Key works effectively, use within 1 m (3 ft) range of each doors, however the operable
range may differ according to surroundings.

DOOR LOCK/UNLOCK FUNCTION

• When door lock/unlock button of the Intelligent Key is pressed, lock signal or unlock signal is transmits from

Intelligent Key to BCM via remote keyless entry receiver.

• When BCM receives the door lock/unlock signal, it operates door lock actuator, flashes the hazard warning

lamp (lock: 2 time, unlock: 1 times) and horn chirp signal to IPDM E/R at the same time as a reminder.

• IPDM E/R honks horn (lock: 2 time) as a reminder

OPERATION CONDITION

AUTOMATIC BACK DOOR OPEN FUNCTION

Intelligent Key warning buzzer

Warns the user of the back door open/close condition and inappropriate operations with the
buzzer sound.

Automatic back door control unit

Controls back door open/close automatically.

Item

Function

JMKIA1995GB

Remote controller operation

Operation condition

Operation

Lock

• All doors closed

All doors lock

Unlock

• Intelligent Key is out of key slot

All doors unlock
